Sida 1/60

Contents

Installation, 2-3

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washing machine

and starting a wash cycle, 4-5

Control panel

Indicator lights

How to open and shut the drum

Starting a wash cycle

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 8

Detergent dispenser drawer

Bleach cycle

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 9

General safety

Disposal

Saving energy and respecting the environment

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

How to clean the detergent dispenser

Troubleshooting, 11

Service, 12

Instructions for use

WASHING MACHINE

ARTXF 149

English,1

 

CIS

Polski,25

Italiano,37

Français,49

Installation

! Keep this instruction manual in a safe place for future refe-

rence. Should the appliance be sold, transferred or moved,

make sure the instruction manual accompanies the washing

machine to inform the new owner as to its operation and

features.

! Read these instructions carefully: they contain vital infor-

mation on installation, use and safety.

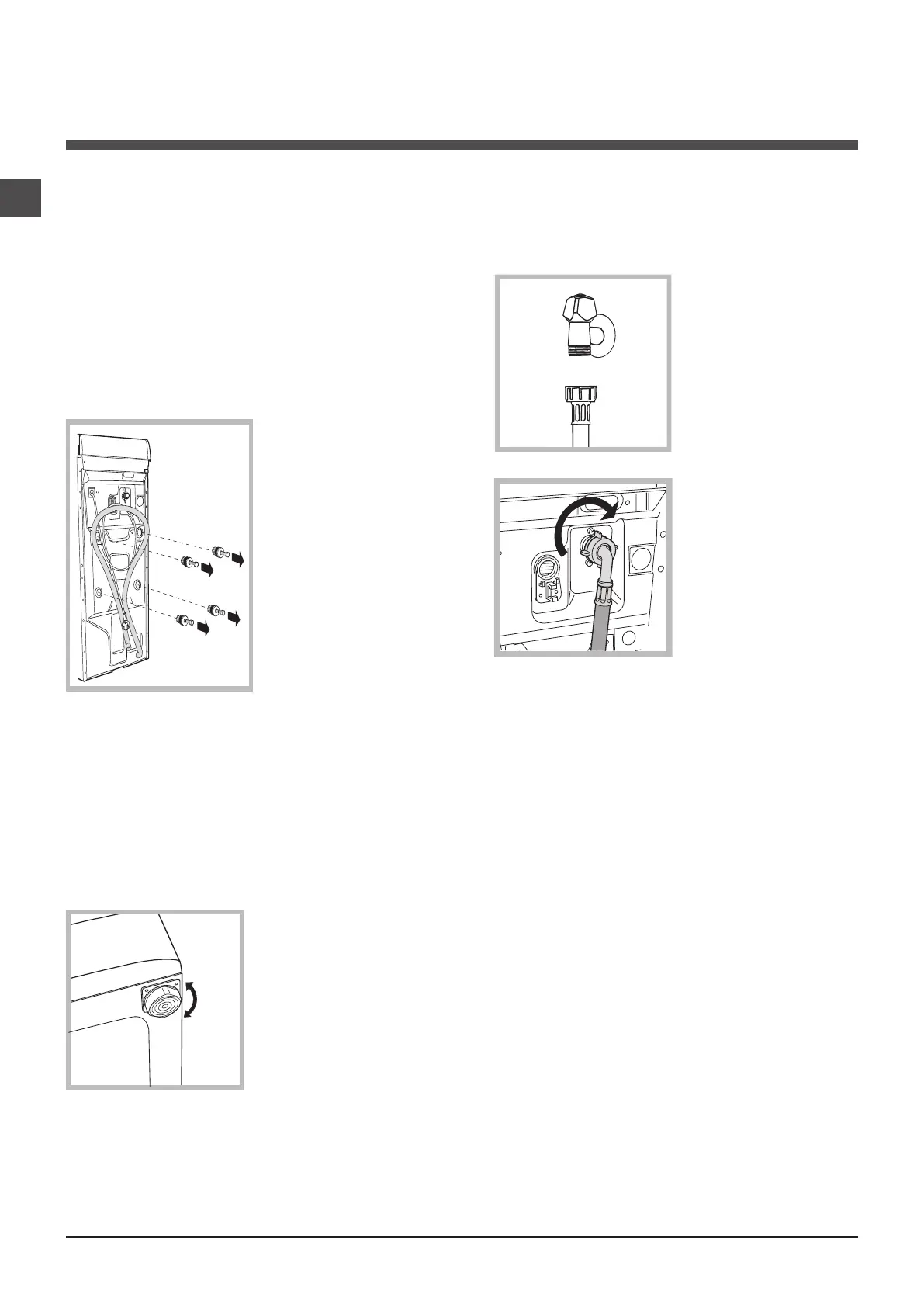

Unpacking and levelling

Unpacking

1. Unpack the washing

machine.

2. Check whether the wa-

shing machine has been

damaged during transport.

If this is the case, do not

install it and contact your

retailer.

3. Remove the four protec-

tive screws and the rubber

washer with the respective

spacer, situated on the

rear of the appliance (see

figure).

4. Seal the gaps using the

plastic plugs provided.

5. Keep all the parts: you will need them again if the washing

machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten

the shorter ones at the top.

! Packaging materials are not children’s toys.

Levelling

Your machine may make a considerable amount of noise if

the two front feet have not been adjusted correctly.

1. Install the washing ma-

chine on a flat sturdy floor,

without resting it up against

walls, furniture cabinets or

other.

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening or

loosening the adjustable front

feet ; the angle of (see figure)

inclination, measured accor-

ding to the worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with stability

and avoid any vibrations, noise and shifting during operation.

If it is placed on a fitted or loose carpet, adjust the feet in

such a way as to allow enough room for ventilation beneath

the washing machine.

Electric and water connections

Connecting the water inlet hose

1. Connect the supply pipe

by screwing it to a cold water

tab using a ¾ gas threaded

connection (see figure).

Before performing the con-

nection, allow the water to

run freely until it is perfectly

clear.

2. Connect the other end of

the water inlet hose to the

washing machine, screwing

it onto the appliance’s cold

water inlet, situated on the

top right-hand side on the

rear of the appliance (see

figure).

3. Make sure there are no kinks or bends in the hose.

! The water pres sure at the tap mus t be within

the values indicated in the Technical details table

(on the next page).

! If the water inlet hose is not long enough, contact a spe-

cialist store or an authorised serviceman.

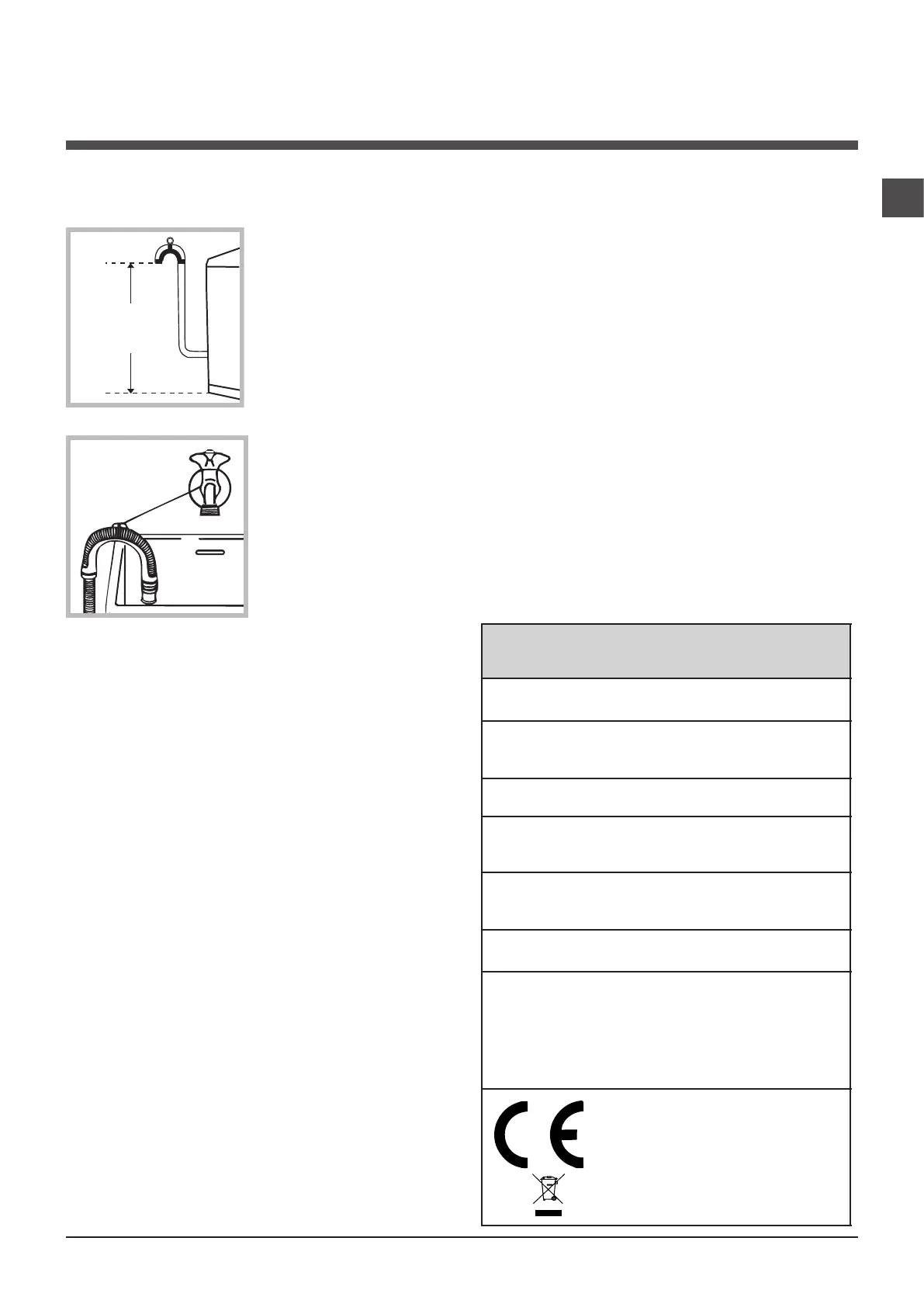

Connecting the drain hose

Connect the drain hose,

without bending it, to a

drainage duct or a wall

drain located at a height

between 65 and 100 cm

from the floor;

alternatively, rest it on

the side of a washbasin

or bathtub, fastening the

duct supplied to the tap

( ). The free end see figure

of the hose should not be

underwater.

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

in length.

Electrical connections

Before plugging the appliance into the electricity socket,

make sure that:

• the socket is earthed and complies with all applicable

laws;

• the socket is able to withstand the maximum power load

of the appliance as indicated in the Technical data table

(see opposite);

• the power supply voltage falls within the values indicated

in the Technical data table (see opposite);

• the socket is compatible with the plug of the washing

machine. If this is not the case, replace the socket or the

plug.

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave

the appliance exposed to rain, storms and other weather

conditions.

! When the washing machine has been installed, the elec-

tricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by autho-

rised technicians.

Warning! The company shall not be held responsible in the

event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, using the wash cycle 2.

65 - 100 cm

Technical details

Model ARTXF 149

Dimensions

40 cm wide

85 cm high

60 cm deep

Capacity from 1 to 6 kg

Electric

connections

Please refer to the technical data plate

fixed to the machine.

Water

connections

maximum pressure 1 MPa (10 bar)

minimum pressure 0.05 MPa (0.5 bar)

drum capacity 42 litres

Spin speed up to 1400 rpm

Test wash

cycles in

accordance

with directives

1061/2010 and

1015/2010

programme 7; temperature 60°C and

40°C.

This appliance is compliant with

the following European Community

Directives:

- 2004/108/CE (Electromagnetic

Compatibility)

- 2006/95/CE (Low Voltage)

- 2002/96/CE
