User Manual

Quick Guide

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more

detailed instructions on how to remove them, see the Installation Guide.

THANK YOU FOR PURCHASING A PRODUCTHOTPOINT .

To receive more comprehensive assistance, register the

appliance on

www.hotpoint.eu/register

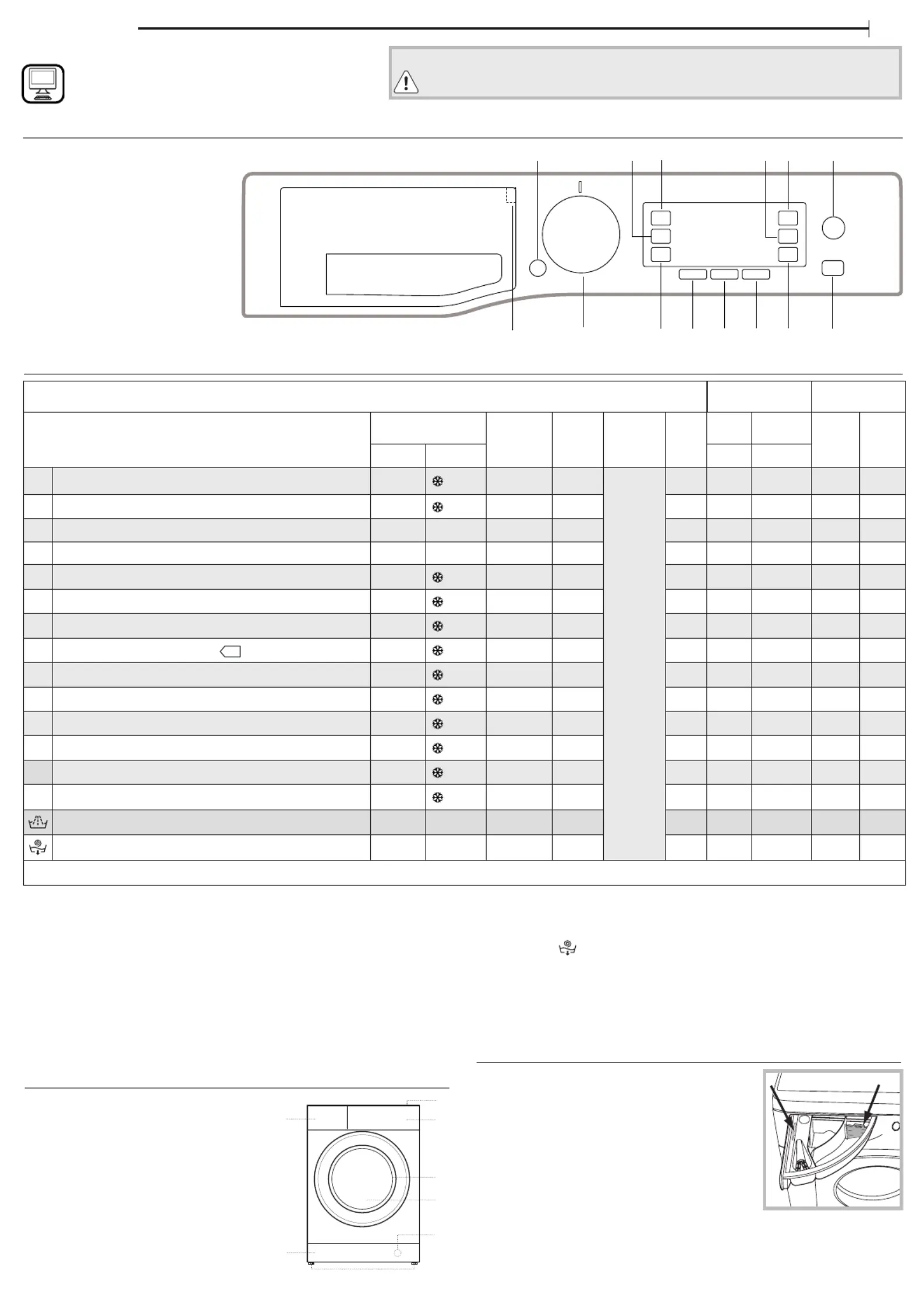

CONTROL PANEL

1. ON/OFF button

2. DRYING button

3. DRY ONLY button

4. MULTI RINSE button

5. OPTION button

6. DIRECT INJECTION button

7. START/PAUSE button and indicator light

8. KEY LOCK button

9. DELAY button

10. SPIN button

11. TEMPERATURE button

12. AUTO CLEAN button

13. WASH CYCLE SELECTOR KNOB

14. Programme Key

WASH CYCLE TABLE

For all testing institutes:

2) Long cotton cycle: set programme 8 at temperature 40°C and press the DIRECT INJECTION

button under “Power” mode.

3) Long synthetics cycle: set cycle 9 at a temperature of 40°C.

* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

** If a drying cycle is also programmed, the machine will run a “wash+dry” programme lasting

45’ and a 1kg laundry load.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as

the temperature and pressure of the incoming water, ambient temperature, amount of

detergent, load quantity and type, load balancing and any additional options selected.

1) Test programme in compliance with standard EN 50229 (Wash):

This cycle is designed for normally soiled cotton loads and is the most ecient in terms of

both electricity and water consumption; it should be used for garments washable at 60°C or

at 40°C. The actual washing temperature may dier from the indicated value.

Test programme in compliance with standard EN 50229 (Drying): select the 8 wash

programme and set the drying level to “EXTRA”, for both loads. The rst drying cycle must be

carried out with the nominal load.

PRODUCT DESCRIPTION

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

13 78910

1112

1 2 4

DISPLAY

5 63

Maximum load 9 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Detergents and

Additives

Recommended

detergent

Wash cycle Temperature Maximum

spin

(r.p.m.)

Max.

load

(kg)

Duration

(Minutes)

Drying

Wash Fabric

softener Powder Liquid

Default Range 1 2

1 Daily Wash & Dry (Daily Mix Wash & Dry) 40 °C - 40 °C 800 3,0

The duration of the wash cycles can be checked on the display.

   –

2 Shirts Wash & Dry 40 °C - 40 °C 1000 2,0    –

3 Pre Iron – – – 1,5 – – – – –

4 Steam Refresh – – – 2,0 – – – – –

5 Anti-Stain Turbo 45’ (Anti Stain Turbo 45’) 20 °C - 40 °C 1200 4,0    –

6 Anti-Stain Power 20°C (Anti Stain Power 20°C) 20 °C - 20 °C 1600 9,0    –

7 Cotton 40 °C - 90 °C 1600 9,0     

8 Eco Cotton

60°/40°

(1-2) 60 °C - 60 °C 1600 9,0     

9 Synthetics (3) 40 °C - 60 °C 1000 4,5     

10 Multicolour (Multi Colour) 40 °C - 40 °C 1600 9,0    –

11 Ultradelicates (Ultra Delicates) 30 °C - 30 °C -- 1,0    –

12 Wool 40 °C - 40 °C 800 2,0    –

13 Sport 40 °C - 40 °C 600 4,0    –

14 Fast **(Fast 30') 30 °C - 30 °C 800 3,5    –

Rinse – – 1600 9,0 –– –

Spin + Pump out * – – 1600 9,0 – – – –

 Required dosage Optional dosage

DETERGENT DISPENSER DRAWER

Compartment *:

Do not insert detergent in this compartment.

Compartment 1: Washing detergent (powder

or liquid)

If liquid detergent is used, the removable plastic

partition (supplied) should be used for proper A

dosage.

If powder detergent is used, place the partition

into slot .B

Compartment 2: Additives (fabric softeners, etc.)

The fabric softener must not exceed the “MAX” level.

! Use powder detergent for white cotton garments, for pre-washing, and

for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

WASH CYCLES

Follow the instructions on the symbols of the garment’s wash

care label. The value indicated in the symbol is the maximum

recommended temperature for washing the garment.

Daily Wash & Dry

use programme 1 to wash and dry mixed garments (cotton and

synthetics). This cycle may be used to wash and dry loads of up to 3 kg;

we recommend the use of liquid detergent.

The use of the steam in this programme is optimised to reduce the

formation of creases on garments, making them easier to iron.

Shirts Wash & Dry

Use programme 2 to wash and dry shirts and T-shirts in dierent fabrics

and colours to ensure maximum care. This cycle may be used to wash and

dry loads of up to 2 kg. To achieve optimum results, use liquid detergent

and pre-treat cus, collars and stains. The use of the steam in this

programme is optimised to reduce the formation of creases on garments,

making them easier to iron.

Pre Iron

Use this programme immediately before ironing; max. 1,5 kg load. The

use of the steam in this programme is optimised to reduce the formation

of creases on garments, making them easier to iron.

Steam Refresh

For refreshing garments, neutralised unpleasant odours and relaxing the

bres by delivering steam into the drum. The garments will be damp at

the end of the cycle.

Anti-Stain Turbo 45’

This cycle is ideal for washing daily stains in 45’. It is ideal for mixed fabrics

and coloured garments.

Anti-Stain Power 20°C

this programme ensures maximum stain removal capacity with no need

for pre-treatment at low temperatures, preserving fabrics and colours.

Cotton

Suitable for washing towels, underwear, table cloths, etc. made of

resistant linen and cotton that are moderately to heavily soiled.

Eco Cotton

Suitable for washing moderately soiled cotton garments. At 40°C and

60°C it is the standard cycle for washing cotton garments, and is the most

ecient in terms of combined water and electricity consumption.

Synthetics

Suitable for washing moderately soiled garments made of synthetic bres

(e.g. polyester, polyacrylic, viscose, etc.) or mixed synthetic-cotton bres.

Multicolour

for washing coloured cotton garments. This programme is optimised to

keep colours bright even after repeated washing.

Ultradelicates

For washing very delicate garments. It is advisable to turn the garments

inside out before washing them. For best results, use liquid detergent on

delicate garments.

We recommend turning the garments inside out before washing and

placing small items into the special bag for washing delicates. Use liquid

detergent on delicate garments for best results.

When selecting an exclusively time-based drying function, a drying cycle

is performed at the end of the wash cycle that is particularly delicate,

thanks to light handling and appropriate temperature control of the

water jet.

The recommended durations are:

1 kg of synthetic garments --> 165 min

1 kg of synthetic and cotton garments --> 180 min

1 kg of cotton garments --> 180 min

The degree of dryness depends on the load and fabric composition.

Wool - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved

by The Woolmark Company for the washing of wool

garments labelled as “hand wash” provided that the

products are washed according to the instructions on the

garment label and those issued by the manufacturer of

this washer-dryer. (M1318)

Sport

for washing lightly soiled sports clothing (tracksuits, shorts, towels, etc.);

for best results, we recommend not exceeding the maximum load

indicated in the “Wash cycles Table”. We recommend using liquid

detergent, and adding the amount suitable for a half-load.

Fast

For washing lightly soiled garments in a short time. Not suitable for wool,

silk and garments to be washed by hand.

Rinse

Designed for rinsing and spinning.

Spin + Pump out

Designed for spinning and draining the water.

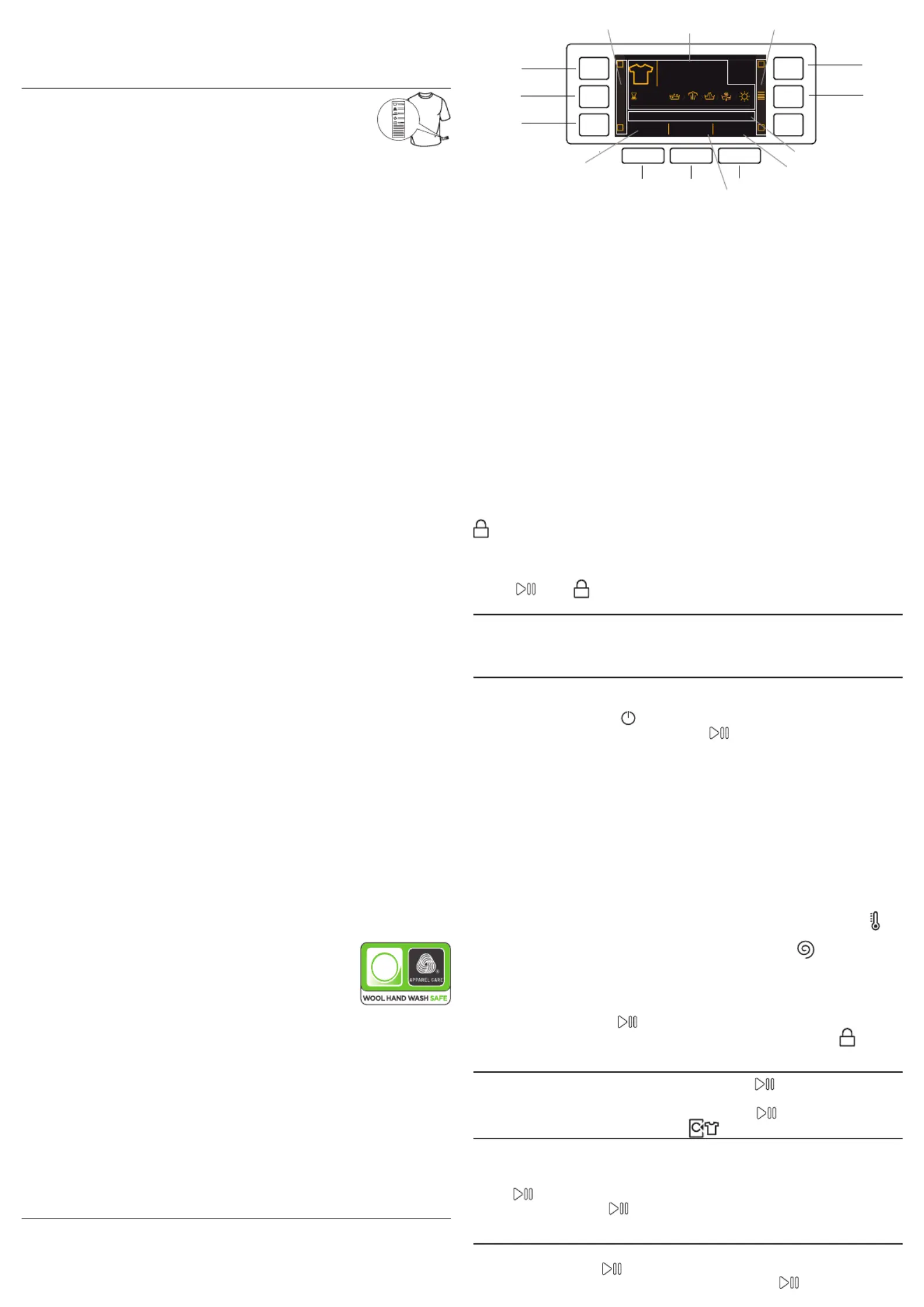

DISPLAY

The display is useful when programming the machine and provides a

great deal of information.

The following will appear in area : the icon and programme selected, the A

washing and drying phases and time remaining to the end of the cycle.

Area will include the two intensity levels relative to the DIRECT B

INJECTION option. The indicator lights relative to the available functions

appear in area . Area will display the time remaining to the start of the C D

selected cycle if the DELAY function was set.

Area will display the maximum available spin speed on the basis of the E

set cycle; if the cycle does not include the spin cycle setting, the dimly lit

“ ” symbol will appear in the area.--

Area will show the temperature value that can be selected on the basis F

of the set cycle.

If the cycle does not include setting of the temperature, the dimly lit “--”

symbol will appear in the area.

! To change the display luminosity, which by default is set to the highest

value, switch the machine o then simultaneously press buttons , and G L

M until the buzzer sounds.

Press buttons and to choose the desired level of luminosity then X Y

conrm by pressing button .Z

! During the wash cycle or when the DELAY function has been enabled, if

the user does not interact with the display for 1 minute the SCREEN SAVER

activates. To return to the previous window, simply press any button.

Locked door indicator

When lit, the symbol indicates that the door is locked. To prevent any

damage, wait until the symbol turns o before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE

button ; if the symbol is o, the door can be opened.

FIRSTTIME USE

Once the appliance has been installed, and before it is used for the rst

time, run a wash cycle with detergent and no laundry, by setting the “Auto

Clean” cycle.

DAILY USE

Prepare the laundry by following the suggestions appearing under the

“TIPS AND SUGGESTIONS” section.

- Press the ON/OFF button ; “HOTPOINT” will appear on the display; the

indicator light relative to the START/PAUSE button will ash slowly green.

- Open the door. Load the laundry while making sure not to exceed the

maximum load quantity indicated in the wash cycle table.

- Pull out the detergent dispenser drawer and pour the detergent into the

relevant compartments, as described in the “DETERGENT DISPENSER

DRAWER” section.

- Close the door.

- Use the WASH CYCLE selector knob to select the desired wash cycle: the

cycle’s name will appear on the display; the cycle will be associated with a

specic temperature and spin speed which can be modied. The duration

of the cycle will appear on the display.

- Modify the temperature and/or spin speed: the machine automatically

selects the maximum temperature and spin speed set for the selected

wash cycle; these values cannot therefore be increased. Pressing the

button gradually reduces the temperature down to the cold wash setting

(the “--” symbol will appear on the display). Pressing the button

gradually reduces the spin speed until it is completely excluded (the “--”

symbol will appear on the display). Pressing the buttons further restores

the maximum allowed values for the selected cycle.

- Select the desired options.

- Press the START/PAUSE button to start the wash cycle; the relative

indicator light will light up steady green and the door will lock (

symbol on).

PAUSING A CYCLE

To pause the wash cycle, press the START/PAUSE button again; the

indicator light will ash amber. To start the wash cycle from the point at

which it was interrupted, press the START/PAUSE button again.

ADDITIONAL GARMENTS

An icon on the display will signal when additional garments can be introduced

into the washing machine, without decreasing the washing performance.

To add garments, rst stop the washing machine by pressing the START/

PAUSE button then open the door and insert them.

Press the START/PAUSE button again to restart the wash cycle from

the point at which it was interrupted.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washing machine

using the START/PAUSE button (the relative indicator light will ash amber),

then select the desired cycle and press the START/PAUSE button again.

2:55

90° 1200 -- h

COTTON

YX Z

L M

! The “Programme key” situated inside the detergent dispenser shows all the

available wash cycles together with a graphic guide on how to use the

individual dispenser compartments.

Produktspecifikationer

Varumärke:	Hotpoint
Kategori:	tvättmaskin
Modell:	RD 966 JKD UK
Färg på produkten:	Wit
Inbyggd display:	Nee
Vikt:	4700 g
Bredd:	369 mm
Djup:	294 mm
Höjd:	132 mm
Ljudnivå:	38 dB
Användarmanual:	Ja
Kraftkälla:	AC
Placering:	Desktop
Original bildförhållande:	16:10
Ethernet LAN:	Ja
Integrerad minneskortläsare:	Nee
Typiskt kontrastförhållande:	2000:1
Zoomkapacitet:	Ja
Inkluderar AC-adapter:	Ja
Projektorns ljusstyrka:	5100 ANSI lumens
Projektionsteknik:	DLP
Projektorns inbyggda upplösning:	WXGA (1280x800)
Keystone-korrigering, vertikal:	-30 - 30 °
Keystone-korrigering, horisontell:	-30 - 30 °
Lämplig för skärmstorlekar:	26 - 300 "
Projektionsavståndsmål:	1.3 - 9.5 m
Antal färger:	1.073 biljoen kleuren
Matrisstorlek:	0.65 "
Antal USB 2.0-portar:	1
VGA (D-Sub) port(ar):	2
Antal HDMI-portar:	1
Typ av seriell anslutning:	RS-232C
Mikrofon, linjeingång:	Ja
Audio-ingan (L, R):	1
PC-ljud ingång:	Ja
PC-ljudutgång:	Ja
Kompositvideoingång:	1
HDMI-kontakttyp:	Volledige grootte
S-videoingång:	1
DVI-port:	Nee
Antal Ethernet LAN (RJ-45)-portar:	1
Smart TV:	Nee
Fokus:	Handmatig
Zoomtyp:	Handmatig
Diafragma (FF):	2.5 - 3.26
Brännvidd:	20.9109 - 323624 mm
Ljuskällans livslängd:	3000 uur
Typ av ljuskälla:	Lamp
Monteringsalternativ för kabellås:	Ja
Kabellåsspårtyp:	Kensington
Inbyggda högtalare:	Ja
Genomsnittlig effekt:	24 W
Antal inbyggda högtalare:	2
Strömförbrukning (i standby):	0.5 W
Lösenordsskydd:	Ja
Strömförbrukning (max):	479 W
Zoomförhållande:	1.6:1
Kastförhållande:	1.47 - 2.352:1
Full HD:	Nee
Ingångsström:	Ja
3D:	Ja
Lampkraft:	365 W
Förvaringstemperatur:	-20 - 60 °C
Mobile High-Definition Link (MHL):	Ja
Ljuskällans livslängd (sparläge):	4000 uur
Förvaringsfuktighet:	20 - 80 procent
Matris typ:	DMD
Ljudnivå (ekonomiläge):	33 dB
Antal mini-USB 2.0-portar:	1
Fjärrkontroll ingår:	Ja
HDBaseT-port:	Ja
Wifi:	Nee
AC-ingångsspänning:	110 - 220 V
AC-ingångsfrekvens:	50 - 60 Hz
Strömförbrukning (typiskt):	384 W
Drifttemperatur (TT):	5 - 40 °C
Relativ luftfuktighet i drift (VV):	20 - 80 procent
Typ produkt:	Projector met normale projectieafstand
