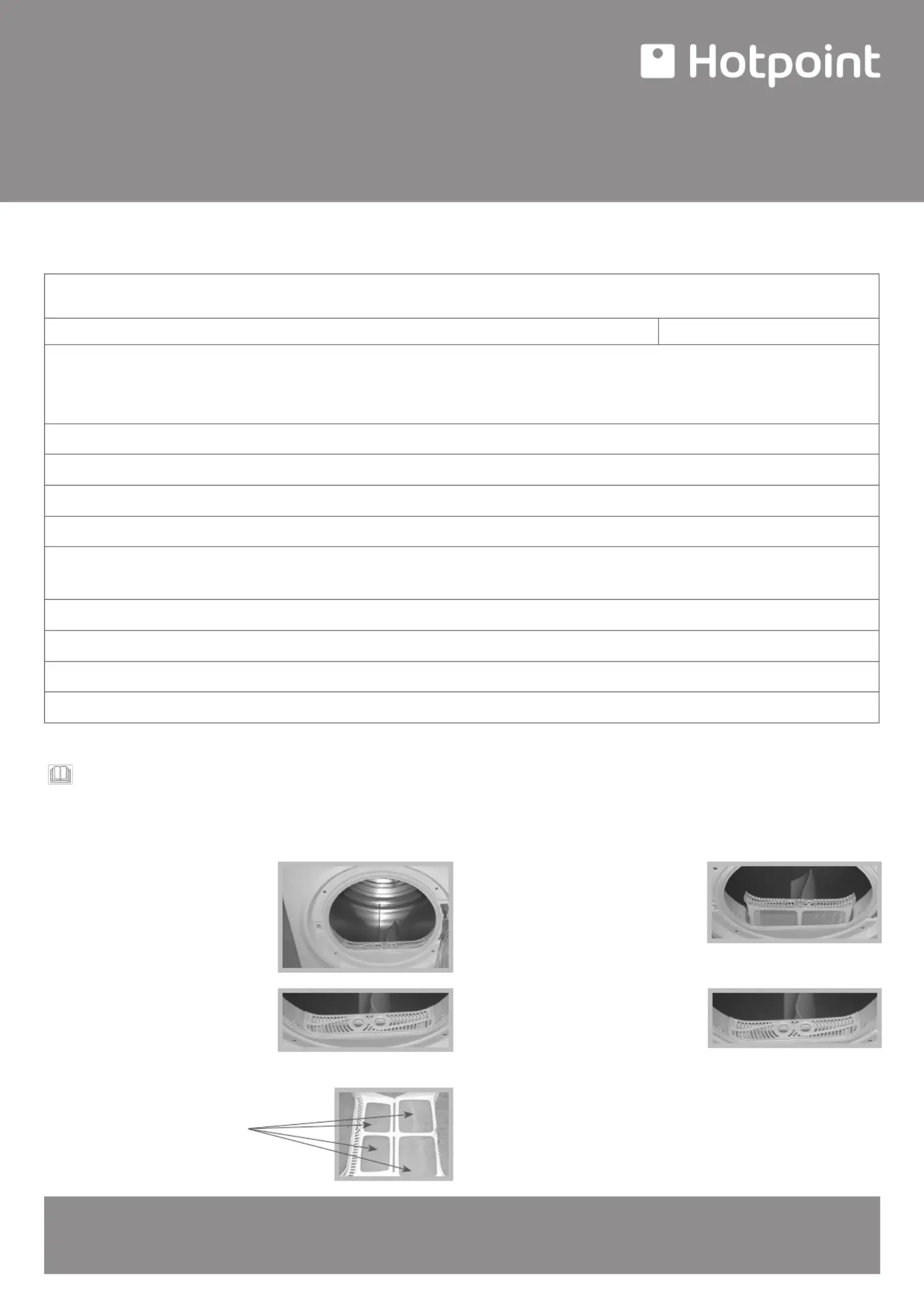

Instruction booklet

TUMBLE DRYER TCAM 80C

TCEM 80C

TCYM 80C

TCFM 80C

Important Information

FLUFF FILTER

You must clean the ﬂuff ﬁlter after drying cycle. EVERY

Step 1

Open the door of your dryer.

Step 2

Pull out the ﬁlter (using the two

ﬁnger grips).

Step 3

Open the ﬁlter and clean any ﬂuff

deposits from the ﬁlter mesh.

Step 4

Reﬁt the ﬁlter with the curved

side towards you.

Step 5

Make sure the ﬁlter is pushed

fully home - run the dryer NEVER

without the ﬁlter in position.

Failure to clean the ﬁlter after EVERY drying cycle will affect

the drying performance of your machine.

It will take longer to dry and as a result will use more

electricity during drying.

You MUST empty the water container after EVERY drying cycle.

Failure to empty the water container will cause the machine to stop heating and the load may still be wet at the end of the

drying cycle. The ‘Empty Water’ light will tell you that the water container is full and needs emptying.

PRODUCT DATA... (EU Regulation 392/2012)

Rated capacity of Cotton laundry for the standard programme at full load Energy efﬁciency class 8 kg C

The weighted Annual Energy Consumption (AEc) kWh.627.2

Consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of

the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used

This household tumble dryer is a Non-Automatic Condenser Dryer

Energy consumption: full load Edry

kWh, partial load E5.26 dry1/2 kWh2.91

Power consumption: off-mode (Po) W0.00

Duration of the ‘left-on mode’ for power management systems - minutesN/A

The ‘standard cotton programme’ suitable for drying normal wet cotton laundry that is the most efﬁcient programme in terms of

energy consumption for cotton used at full and partial load is High Heat

Programme time (minutes) weighted (Tt) full & partial load , full load (T115 dry) , partial load (T150 dry1/2) 88

Condensation efﬁciency class C

Average condensation efﬁciency (%): full load (Cdry) , partial load (C73 dry1/2) , weighted (C74 t) full & partial load 74

Airborne acoustical noise emissions dB(A) re 1 pW.69

This data is also available on the website http://www.hotpoint.eu/hotpoint

This symbol reminds you to read this booklet.

Dryer Description

Control panel

Installation

WATER CONTAINER

You empty the water container MUST

after drying cycle.EVERY

Removing the water container:

Step 1

Pull the water container towards you and remove it completely

from the dryer.

Step 2

Empty all the water in the water container.

Step 3

Replace the water container making sure that it is securely ﬁxed.

Priming the Water Collection System.

When your dryer is new, the water container will not collect

water until the system is primed. This will take 1 or 2 drying

cycles. Once primed it will collect water during every drying

cycle.

CONDENSER UNIT

You clean the ﬂuff from the MUST

condenser month. Failure to EVERY

clean the condenser could cause

premature failure of your dryer.

Remove the condenser unit regularly (at least monthly) and clean

off any ﬂuff deposits.

Step 1

Open the condenser cover.

Step 2

Remove the condenser

by turning the 3 catches

and pulling the condenser towards you. It is

normal for some residual water to be left in

the condenser unit.

Step 3

Flush the condenser from the rear with water

to remove any ﬂuff deposits.

Step 4

Replace the condenser unit and make sure

that all 3 catches are closed and that the

position arrows on the front of the condenser

are pointing upwards.

WHERE TO PUT YOUR DRYER

If you are going to install the dryer

under a work counter be sure to leave

a 10mm space between the top and

any other objects on or above the

machine and a 15mm space between

the sides and any kitchen units or

walls to ensure proper air circulation.

The dryer must never be installed

behind a lockable door, a sliding door

or a door with a hinge on the opposite

side to that of the dryer door.

WATER DRAINAGE CONNECTION

If the dryer is installed next to a drain

the water can be plumbed into this

drain. This does away with the need to

empty the water container. The height of

the drain must be less than 1m from the

bottom of the dryer. Remove the existing

hose from the dryer and connect it to

the drain (if required add an additional

length of hose).

ELECTRICAL CONNECTIONS

The socket must be grounded. The power supply cord should be

checked periodically and, if required, replaced by a cord specially

prepared for this dryer.

BEFORE YOU START USING YOUR DRYER

Once you have installed your dryer and before you use it clean

the inside of the drum to remove any dust that could have

accumulated during transport.

15 mm

100

110

120

130

TIMER

Knob Indicator

HEAT

Button

START

Button

Empty water

Light

The HEAT button selects drying temperature.

OUT: LOW IN: HIGH heat heat

The knob sets the drying time: rotate it clockwise, TIMER NEVER

COUNTER-CLOCKWISE, until the indictor is pointing to the drying

time you want to select.

The Empty Water indicator light signals that the water container is

full and must be emptied. The light will take a few seconds to go

out after replacing the empty water container, the dryer must be

running for this to happen.

Note: If the water container ﬁlls up the indicator lights, the heat is

turned off and your laundry will not dry.

Less than 1m

CHOOSING A PROGRAMME

1. Plug the dryer into the electrical socket.

2. Sort your laundry according to fabric type.

3. Open the door and make sure the ﬁlter is clean and in place.

4. Load the machine and make sure items are not in the way of the

door seal. Close door.

5. Set the temperature with the HEAT button. High heat for Cotton.

Low heat for delicates, synthetics and acrylics.

6. Select a drying time by rotating the TIMER knob clockwise.

The tables below show APPROXIMATE drying times in minutes.

Weights refer to dry garment weights.

7. Press the START button to begin.

During the drying programme, you can check on your laundry

and take out items that are dry while others continue drying.

When you close the door again press the START button in order

to resume drying.

8. About 10 minutes before the programme is completed it enters

the ﬁnal phase (fabrics are cooled) which should COOL TUMBLE

always be allowed to complete.

9. Open the door and take the laundry out. Clean and replace the

ﬁlter. Empty and replace the water container.

10. Unplug the dryer.

MAX LOAD SIZE

Do not load more than maximum capacity. These numbers refer

to dry weight:

Natural ﬁbres: 8kg max

Synthetic ﬁbre: 3kg max

WASH CARE LABELS

Look at the labels on your garments when tumble drying. The

following symbols are the most common.

May be tumble dried

Do tumble dryNOT

Tumble dry at high heat setting

Tumble dry at low heat setting

ITEMS NOT SUITABLE FOR TUMBLE

DRYING

1. Articles that contain rubber or rubber-like materials or plastic

ﬁlm, any ﬂammable articles or objects that contain ﬂammable

substances.

2. Glass ﬁbres.

3. Items which have been dry cleaned.

4. Large bulky items (quilts, sleeping bags, etc). These expand

when drying and prevent airﬂow through the dryer.

Before you call the service centre go through the following

troubleshooting suggestions:

PROBLEM:

The dryer won’t start.

POSSIBLE CAUSES/SOLUTION:

• The plug is not in the socket or making contact.

• There has been a power failure.

• The fuse has blown. Try to plug another appliance into the

socket.

• You are using an extension cord? Try to plug the dryer directly

into the socket.

• The timer knob has not been set properly.

• The start button has not been pressed.

• The door is not closed securely.

PROBLEM:

It is taking a long time to dry.

POSSIBLE CAUSES/SOLUTION:

• The lter has not been cleaned.

• The water container needs emptying? The empty water light

is on?

• The condenser needs cleaning.

• The temperature setting is not correct.

• The correct time has not been selected.

• The air intake grill is obstructed.

• The items were too wet.

• The dryer was over loaded.

Laundry

Troubleshooting

Cottons - High (full) Heat

Drying times 800-1000rpm spin in washing machine

1kg 2kg 3kg 4kg

30-40mins 40-55mins 55-70mins 70-80mins

5kg 6kg 7kg 8kg

80-90mins 95-120mins 120-140mins 130-150mins

Synthetics - Low (gentle) Heat

Drying times on reduced spin in washing machine

1kg 2kg 3kg

40-50mins 50-70mins 70-90mins

Acrylics - Low (gentle) Heat

Drying times on reduced spin in washing machine

1kg 2kg

40-60mins 55-75mins
