Contents

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washing machine

and starting a wash cycle, 6-7

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 8

Table of wash cycles

Personalisation, 9

Setting the temperature

Functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 11

General safety

Disposal

Care and maintenance, 12

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 13

Service and Guarantee, 14-15-16

Before calling for Assistance

Guarantee

IWB 5113

Instructions for use

WASHING MACHINE

English,1

Installation

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred

or moved, make sure that the instruction manual remains

with the machine so that the new owner is able to familiari-

se himself/herself with its operation and features.

! Read these instructions carefully: they contain vital infor-

mation relating to the safe installation and operation of the

appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been

damaged during the transportation process. If it has been

damaged, contact the retailer and do not proceed any

further with the installation process.

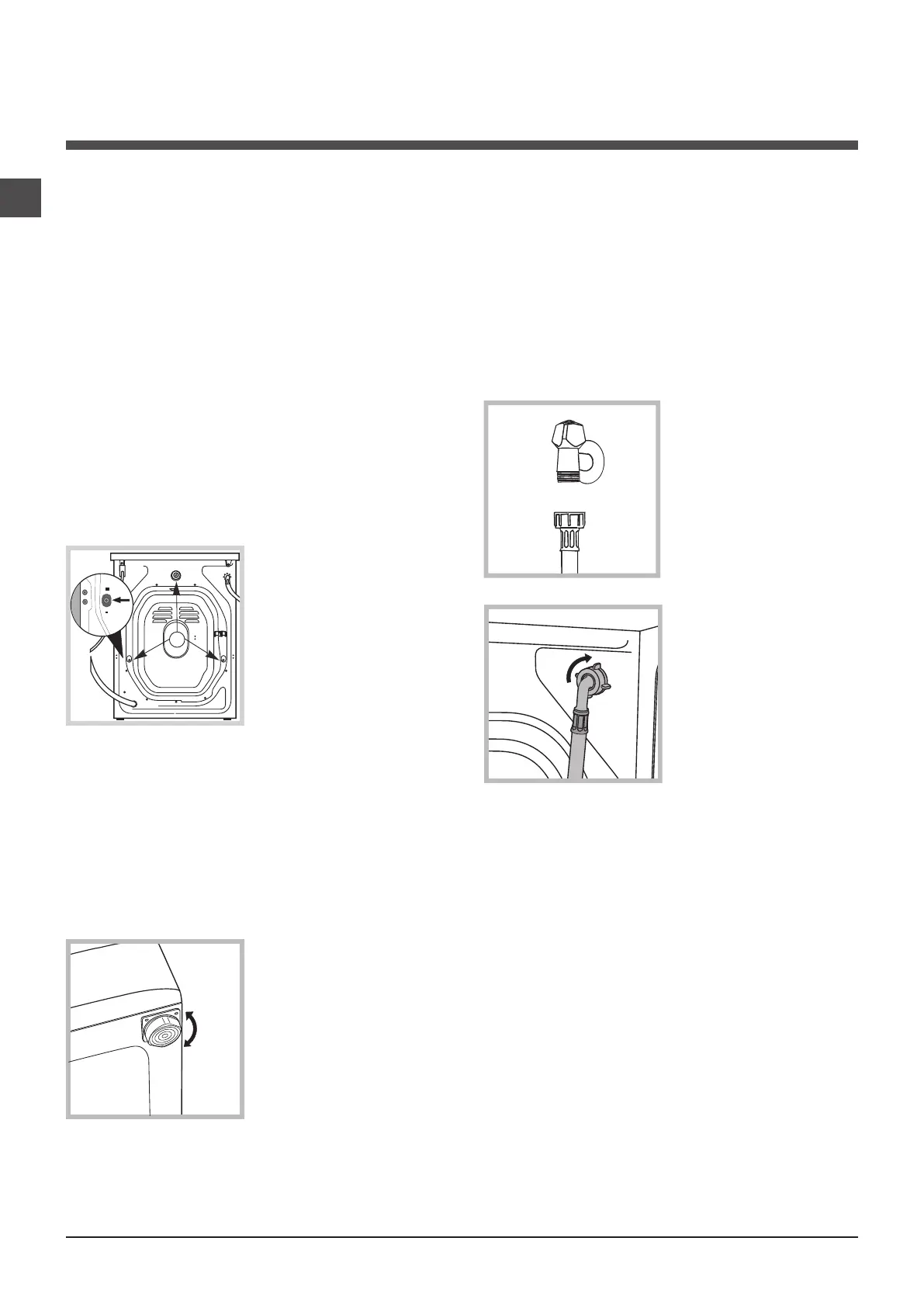

3. Remove the protective 3

screws (used during tran-

sportation) and the rubber

washer with the correspon-

ding spacer, located on the

rear part of the appliance

( ).see figure

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them

again if the washing machine needs to be moved to ano-

ther location.

! Packaging materials should not be used as toys for

children.

Levelling

1. Install the washing ma-

chine on a flat sturdy floor,

without resting it up against

walls, furniture cabinets or

anything else.

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening

or loosening the adjustable

front feet ( ); the see figure

angle of inclination, measured in relation to the worktop,

must not exceed 2°.

Levelling the machine correctly will provide it with stability,

help to avoid vibrations and excessive noise and prevent it

from shifting while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow a sufficient

ventilation space underneath the washing machine.

Connecting the electricity and water

supplies

Connecting the water inlet hose

1. Connect the supply pipe

by screwing it to a cold

water tab using a ¾ gas

threaded connection (see

figure).

Before performing the con-

nection, allow the water to

run freely until it is perfectly

clear.

2. Connect the inlet hose

to the washing machine by

screwing it onto the corre-

sponding water inlet of the

appliance, which is situa-

ted on the top right-hand

side of the rear part of the

appliance . (see figure)

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values

indicated in the Technical details table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap

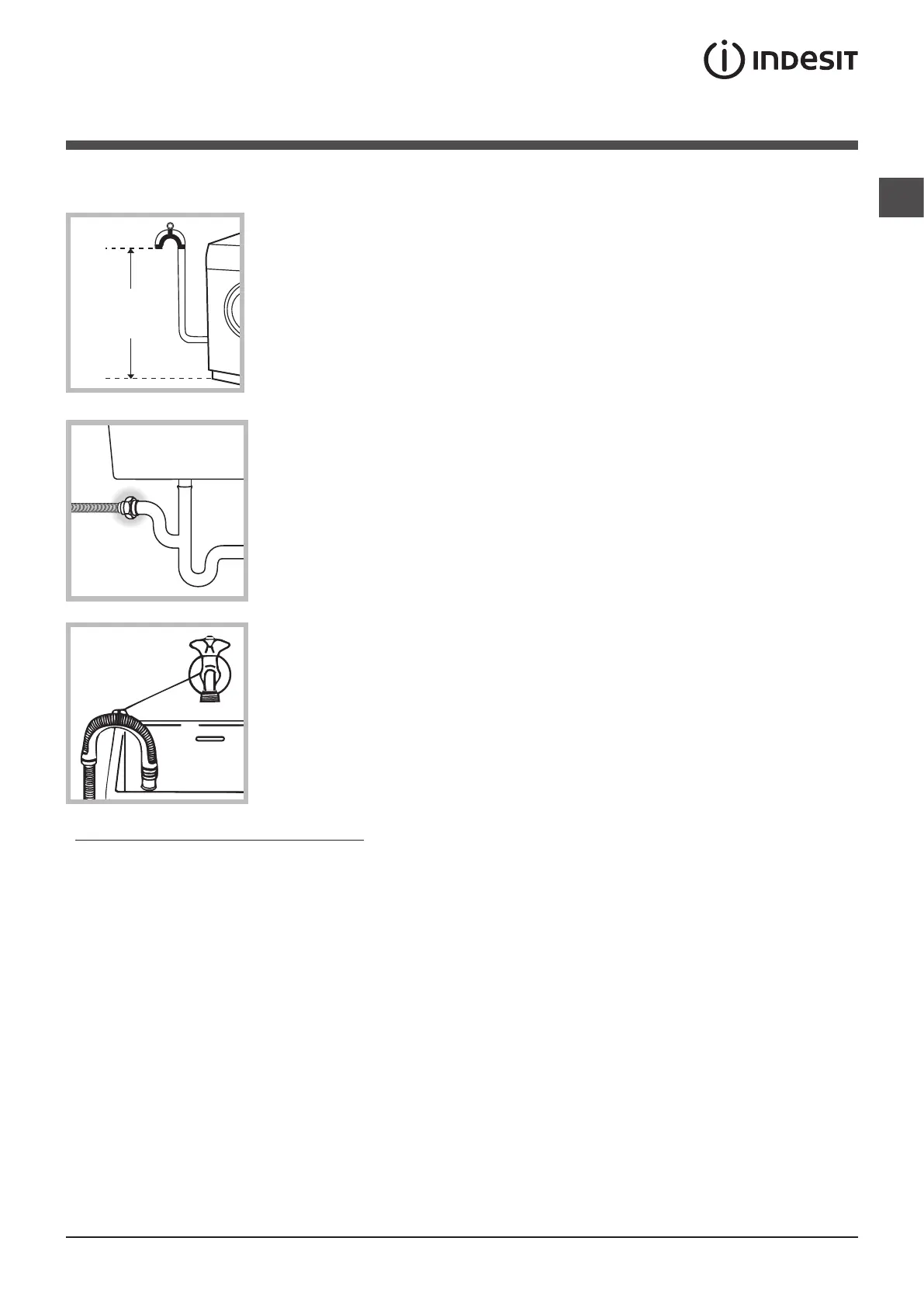

Connecting the drain hose

Connect the drain hose,

without bending it, to a

draining duct or a wall

drain situated between

65 and 100 cm from the

floor;

The drain hose may be

connected to an under-

sink trap. Before connec-

ting the drain hose from

the machine ensure that

any blanks or removable

ends have been taken off

the spigot.

If it is place over the edge

of a basin or sink be sure

the free end of the hose

should not be underwa-

ter.

! We advise against the use of hose extensions; in case

of absolute need, the extension must have the same

diameter as the original hose and must not exceed 150

cm in length.

Ensure that if the drain hose is pushed into a standpipe,

that the end does not go down more than 15cms (6 in-

ches). If the hose is pushed down too far, this may cause

the machine to self -syphon ie. continuously empty as it

is filling.

Electric connection

Before plugging the appliance into the mains socket,

make sure that:

• the socket is earthed and in compliance with the ap-

plicable law;

• the socket is able to sustain the appliance’s maximum

power load indicated in the Technical details table (see

page 5);

• the supply voltage is included within the values indica

ted on the Technical details table ;(see page 5)

• the socket is compatible with the washing machine’s

plug. If this is not the case, replace the socket or the

plug.

Your appliance is now supplied with a 13 amp fused plug

it can be plugged into a 13 amp socket for immediate use.

Before using the appliance please read the instructions

below.

WARNING - THIS APPLIANCE MUST BE EARTHED.

THE FOLLOWING OPERATIONS SHOULD BE CARRIED

OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved

fuse to BS 1362 should always be used, and the fuse

cover re-fitted. If the fuse cover is lost, the plug must not

be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the

correct colour as indicated by the coloured marking or the

colour that is embossed in words on the base of the plug.

Replacements can be obtained directly from your nearest

Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and

you should wish to re-route the mains cable through parti-

tions, units etc., please ensure that either:

the plug is replaced by a fused 13 ampere re-wearable

plug bearing the BSI mark of approval.

or:

the mains cable is wired directly into a 13 amp cable out-

let, controlled by a switch, (in compliance with BS 5733)

which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make

the pins unusable so that it cannot be accidentally inserted

into a socket.

Instructions for connecting cable to an alternative plug:

Important: the wires in the mains lead are coloured in

accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live
