Washer-dryer

Instructions for use

! This symbol reminds you to read this instruction manual.

Contents

Installation, 2-3

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Care and maintenance, 4

Cutting off the water and electricity supplies

Cleaning the washer-dryer

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Precautions and tips, 5

General safety

Disposal

Opening the porthole door manually

Description of the washer-dryer, 6-7

Control panel

Display

How to run a wash cycle or a drying cycle, 8

Wash cycles and options, 9-10

Table of wash cycles

Wash options

Push&Wash+Dry

Detergents and laundry, 11-12

Detergent dispenser drawer

Bleach cycle

Preparing the laundry

Special wash cycles

Load balancing system

Troubleshooting, 13

Service, 14

XWDE 861480

English,1

GB FR

Français,15

Deutsch,29

Nederlands,57

Polski,43

Česky,71

! This instruction manual should be kept in a safe

place for future reference. If the washer-dryer is

sold, transferred or moved, make sure that the

instruction manual remains with the machine so

that the new owner is able to familiarise himself/

herself with its operation and features.

! Read these instructions carefully: they contain

vital information relating to the safe installation

and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washer-dryer from its packaging.

2. Make sure that the washer-dryer has not been

damaged during the transportation process. If

it has been damaged, contact the retailer and

do not proceed any further with the installation

process.

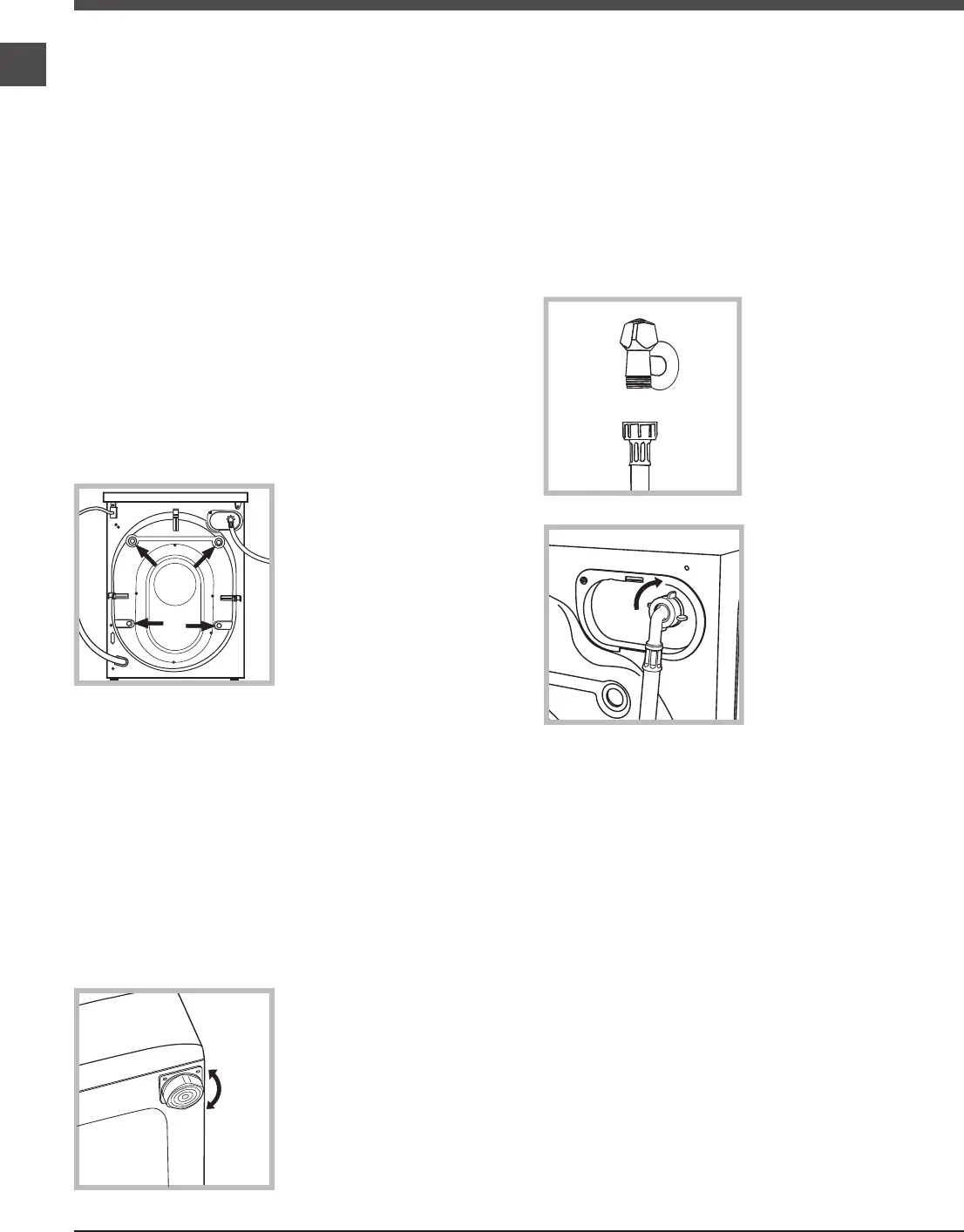

3. R e m o v e t h e 4

protective screws (used

during transportation)

and the rubber washer

with the corresponding

spacer, located on

the rear part of the

appliance ( ).see figure

4. Close off the holes using the plastic plugs

provided.

5. Keep all the parts in a safe place: you will

need them again if the washer-dryer needs to

be moved to another location.

! Packaging materials should not be used as

toys for children.

Levelling

1. Install the washer-dryer on a flat sturdy floor,

without resting it up against walls, furniture

cabinets or anything else.

2. If the floor is not

p e r f e c t l y l e v e l ,

c o m p e n s a t e f o r

any unevenness by

tightening or loosening

the adjustable front

feet ( ); the see figure

angle of inclination,

measured in relation to

the worktop, must not

exceed 2°.

Levelling the machine correctly will provide it with

stability, help to avoid vibrations and excessive

noise and prevent it from shifting while it is

operating. If it is placed on carpet or a rug, adjust

the feet in such a way as to allow a sufficient

ventilation space underneath the washer-dryer.

Connecting the electricity and

water supplies

Connecting the water inlet hose

1. Connect the supply

pipe by screwing it

to a cold water tap

using a ¾ gas threaded

connection (see figure).

Before performing the

connection, allow the

water to run freely until

it is perfectly clear.

2. Connect the inlet

hose to the washer-

dryer by screwing it

onto the corresponding

wat er inlet of t he

appliance, which is

situated on the top

right-hand side of

the rear part of the

appliance . (see figure)

3. Make sure that the hose is not folded over

or bent.

! The water pressure at the tap must fall within

the values indicated in the Technical details table

(see next page).

! If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

Installation

Connecting the drain hose

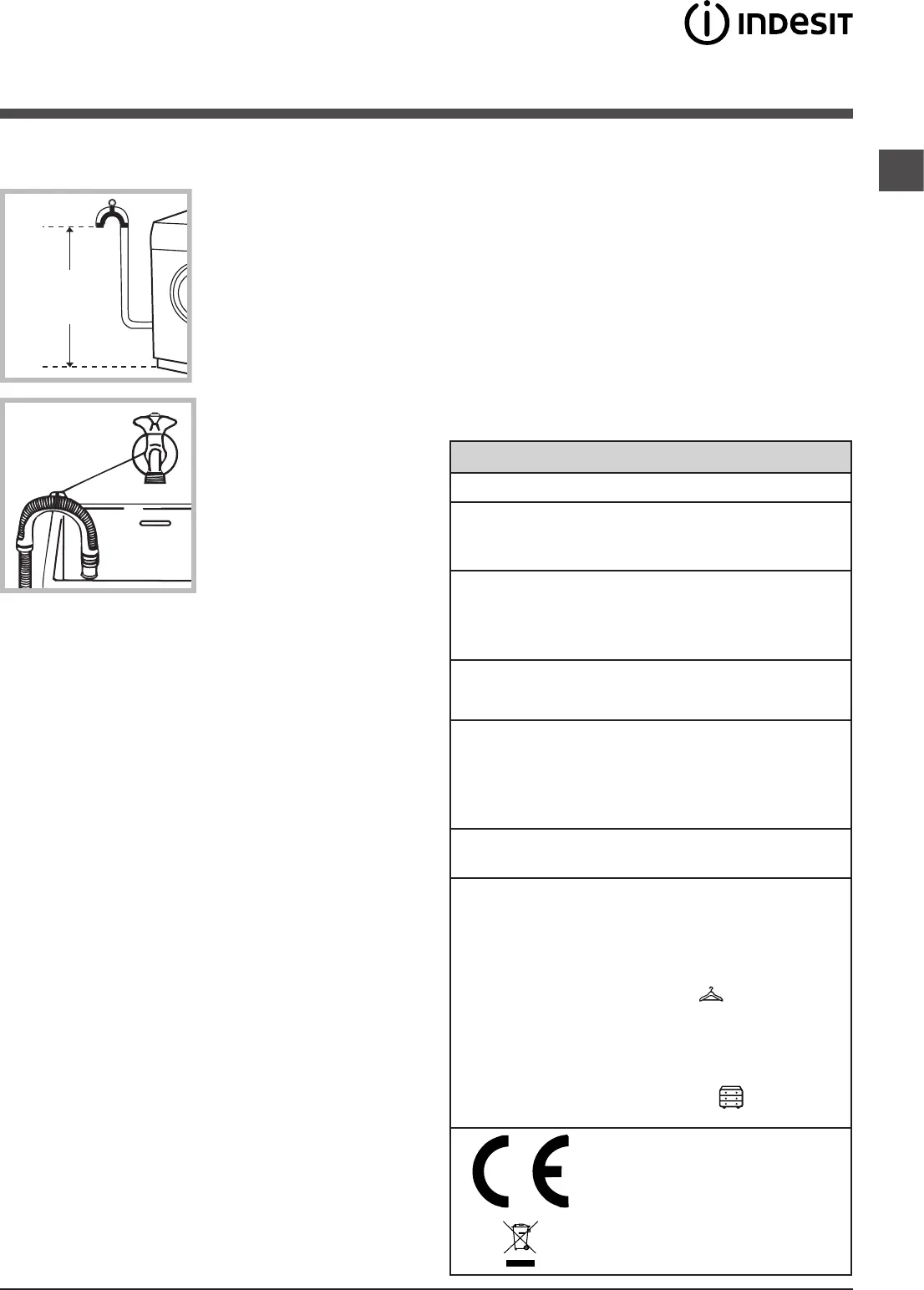

Connect the drain

hose, without bending

it, to a drainage duct or

a wall drain located at a

height between 65 and

100 cm from the floor;

alternatively, rest it on

the side of a washbasin

or bathtub, fastening

the duct supplied to

the tap ( ). see figure

The free end of the

hose should not be

underwater.

! We advise against the use of hose extensions;

if it is absolutely necessary, the extension must

have the same diameter as the original hose and

must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity

socket, make sure that:

• the socket is earthed and complies with all

applicable laws;

• the socket is able to withstand the maximum

power load of the appliance as indicated in the

Technical data table (see opposite);

• the power supply voltage falls within the values

indicated in the Technical data table (see

opposite);

• the socket is compatible with the plug of the

washer-dryer. If this is not the case, replace

the socket or the plug.

! The washer-dryer must not be installed

outdoors, even in covered areas. It is extremely

dangerous to leave the appliance exposed to

rain, storms and other weather conditions.

! When the washer-dryer has been installed, the

electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.

65 - 100 cm

Technical data

Model XWDE 861480

Dimensions

width 59.5 cm

height 85 cm

depth 60,5 cm

Capacity

from 1 to 8 kg for wash

programme

from 1 to 6 kg for the drying

programme

Electrical

connections

please refer to the technical

data plate fixed to the machine

Water con-

nections

maximum pressure

1 MPa (10 bar)

minimum pressure

0.05 MPa (0.5 bar)

drum capacity 62 litres

Spin speed up to 1400 rotations per

minute

Energy ra-

ted

programmes

according to

regulation

EN 50229

wash: programme 8; tem-

perature 60°C; using a load

of 8 kg.

drying: the smaller load

(2kg) must be dried by se-

lecting the “ ” dryness le-

vel. The load must consist of

3 sheets, 2 pillowcases and

1 hand towel; the remainder

of the load must be dried by

selecting the “ ” dryness

level.

This appliance conforms to

the following EC Directives:

- 2004/108/EC (Electroma-

gnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2012/19/EU

! The cable should not be bent or compressed.

! The power supply cable must only be replaced

by authorised technicians.

Warning! The company shall not be held responsible

in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before

you use it for the first time, run a wash cycle with

detergent and no laundry, using the wash cycle

“Auto Clean” (see “Cleaning the washer-dryer”).
