Quick Guide

THANK YOU FOR HAVING PURCHASED AN INDESIT PRODUCT.

To receive more comprehensive assistance, register the

appliance on

www.indesit.com/register

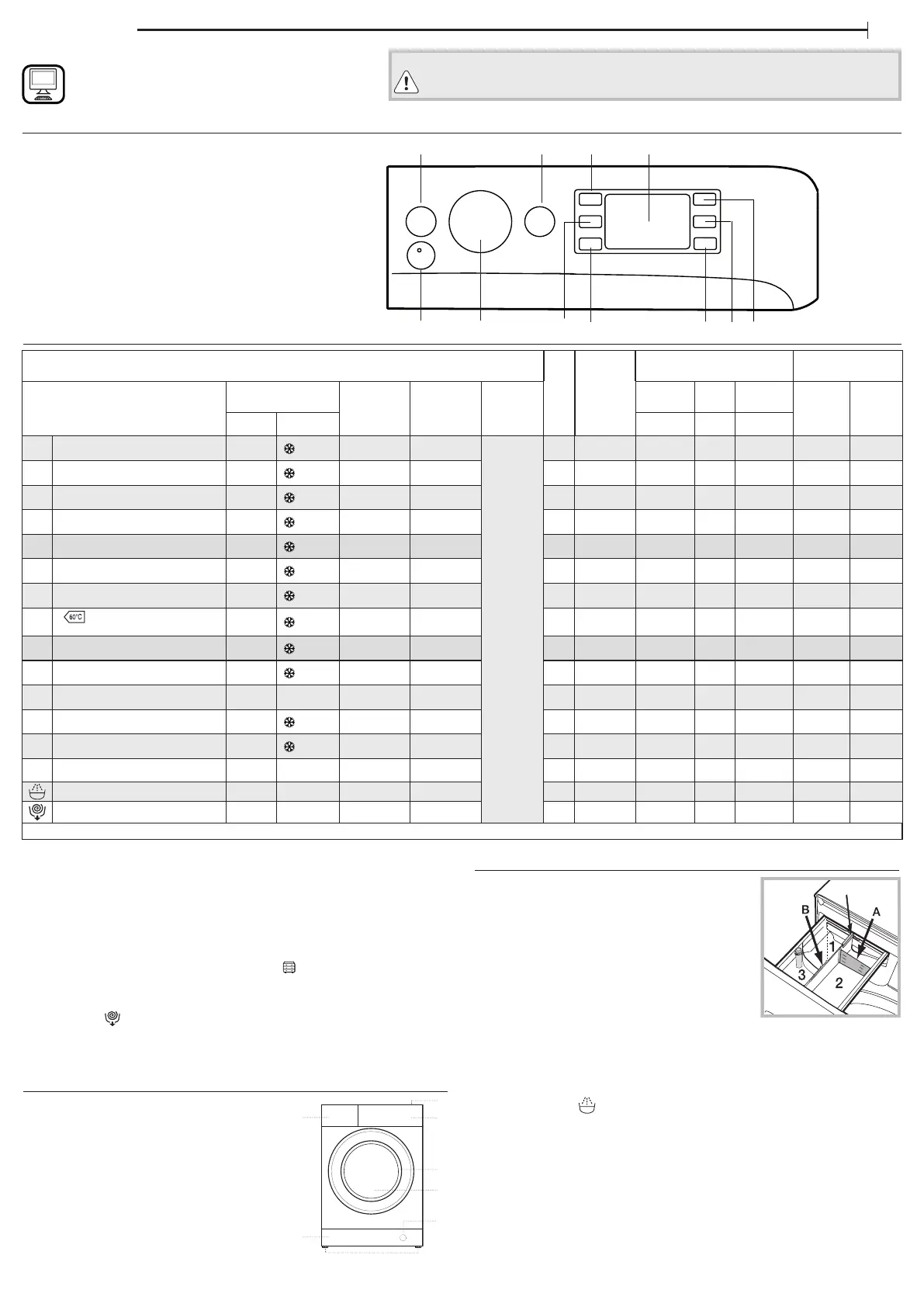

CONTROL PANEL

1. ON/OFF button

2. START/PAUSE button and indicator light

3. TEMPERATURE button

4. DISPLAY

5. OPTION button

6. DRYING ONLY button

7. buttonDRYING

8. DELAYED START button

9. SPIN button

10. WASH CYCLE SELECTOR KNOB

11. PUSH & WASH + DRY button

WASH CYCLE TABLE

Prior to using the appliance, carefully read the .Safety and installation instructions

Prior to using the appliance, the bolts used for transport must be removed. For detailed

instructions on the removal procedure, consult the safety and installation instructions.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as

the temperature and pressure of the incoming water, ambient temperature, amount of

detergent, load quantity and type, load balancing and any additional options selected.

1) Test wash cycle in compliance with regulation EN 50229 (Wash):

This cycle is designed for normally soiled cotton loads and is the most ecient in terms of

both electricity and water consumption; it should be used for garments washable at 60°C.

The actual washing temperature may dier from the indicated value.

Test wash cycle in compliance with regulation EN 50229 (Drying):

Select the 8 wash programme and set the drying level to for both loads. The rst drying

cycle must be carried out with the nominal load.

For all testing institutes:

2) Long cotton cycle: set cycle 8 at a temperature of 40°C.

* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

PRODUCT DESCRIPTION

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

DETERGENT DISPENSER DRAWER

Compartment 1: Prewash detergent (powder)

Compartment 2: Washing detergent (powder

or liquid)

If liquid detergent is used, the removable plastic

partition A (supplied) should be used for proper

dosage. If powder detergent is used, insert the

partition into slot B.

Compartment 3: Additives (fabric softener, etc.)

The fabric softener must never exceed the “max”

level indicated on the central pin.

! Use powder detergent for white cotton

garments, for pre-washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

! To remove the drawer, press lever C and pull the drawer outwards.

Bleach Cycle

If you wish to bleach the laundry, load the washing machine and set the

Rinse programme .

Start the machine and wait for it to complete the rst water lling cycle

(roughly 2 minutes). Put the machine in pause mode by pressing the

START/PAUSE, open the detergent drawer and pour the bleach (observe

the recommended doses indicated on the package) into the wash

compartment where the partition was previously mounted. Restart the

cycle by pressing the START/PAUSE.

If desired, it is possible to add fabric softener into the appropriate

compartment of the detergent drawer.

Maximum load 9 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Drying

Maximum

load for dry-

ing (Kg)

Detergents and Additives Recommended

detergent

Wash cycle Temperature Maximum

spin

(r.p.m.)

Maximum

load for

washing

(Kg)

Duration

(minutes)

Prewash Wash Fabric

softener Powder Liquid

Default Range 1 2 3

1Sport 30°C - 30°C 600 4,0

The duration of the wash cycles can be checked on the display.

4,0 –   –

2Dark 30°C - 30°C 800 5,0 3,0 –   –

3 Anti-odour 60°C - 60°C 1000 3,5 3,5 –    

4 Delicate 30°C - 30°C 0 1,0 1,0 –   –

5 Wool 40°C - 40°C 800 2,0 2,0 –   –

6 Rapid 30’ 30°C - 30°C 800 3,5 3,5 –   –

7 Cotton 90° + P 90°C - 90°C 1400 9,0 6,0     

8 Standard Cotton 60°

(1-2) 60°C - 90°C 1400 9,0 6,0 –    

9 Synthetic 60°C - 60°C 1000 4,5 4,0 –    

10 Coloured 40°C - 40°C 1400 9,0 6,0 –   –

11 Eco Cotton 20° 20°C 20°C 1400 9,0 6,0 –   –

12 Eco Synthetic 20°C - 20°C 1000 9,0 6,0 –   –

13 Wash&Dry 45’ 30°C - 30°C 1400 1,0 1,0 –   –

14 AirFresh – – – – 1,5 – – – – –

Rinse/Bleach – – 1400 9,0 6,0 – – – –

Spin + Drain * – – 1400 9,0 6,0 – – – – –

 Required dosage Optional dosage 

2 3

WASH CYCLES

Follow the instructions on the symbols of the garment’s wash

care label. The value indicated in the symbol is the maximum

recommended temperature for washing the garment.

Sport: a cycle designed for washing lightly soiled sports clothing

(tracksuits, shorts, etc.); for best results, we recommend not exceeding the

maximum load indicated in the “Wash Cycle Table”. We recommend using liquid

detergent and adding the amount suitable for a half-load.

Dark: use programme 2 to wash dark-coloured garments. This

programme is designed to maintain dark colours over time. We

recommend using a liquid detergent for the best results when washing

dark-coloured garments.

When you select the drying function, at the end of the washing cycle the

machine will automatically perform a delicate drying cycle that preserves the

colours of the garments. The display will show the level “ ”. Max. load: 3 kg.

Anti-odour: use programme 3 for washing garments with bad odours

(e.g. smoke, sweat, fried food). The programme is designed to remove bad

odours while preserving the fabric bres. Synthetics fabrics or mixed

loads should be washed at 40°, and resistant cotton fabrics at 60°.

Delicate: use programme 4 to wash very delicate garments. It is

advisable to turn the garments inside out before washing them. For best

results, use liquid detergent on delicate garments.

When selecting an exclusively time-based drying function, a drying cycle is

performed at the end of the wash cycle that is particularly delicate, thanks

to light handling and appropriate temperature control of the water jet.

The recommended durations are:

1 kg of synthetic garments --> 150 min

1 kg of synthetic and cotton garments --> 180 min

1 kg of cotton garments --> 180 min

The degree of dryness depends on the load and fabric composition.

Wool - Woolmark Apparel Care - Blue:

The “Wool” wash cycle is approved by the Woolmark

Company for washing wool garments classied as

“hand-washable”, provided that the wash complies with

the instructions appearing on the garment’s label and

with those provided by the manufacturer of this washer-

dryer. (M1318)

Rapid 30’: this programme is designed to wash lightly soiled garments at

30° (excluding wool and silk) with a 3 kg maximum load in a short time: it

only lasts 30 minutes and allows for saving time and energy.

Cotton 90°+P: suitable for resistant linen and cotton that are heavily soiled.

Standard Cotton 60°C: suitable for washing moderately soiled cotton

garments. At 60°C it is the standard cycle for washing cotton garments,

and is the most ecient in terms of combined water and electricity

consumption.

Synthetic: suitable for washing moderately soiled garments made of

synthetic bres (e.g. polyester, polyacrylic, viscose, etc.) or mixed

synthetic-cotton bres.

Coloured: a 30°C cycle that helps to preserve colours, suitable for cotton

or synthetic coloured garments. It allows for reducing electricity

consumption for heating the water while guaranteeing good washing

results. Suitable for lightly soiled garments.

Eco Cotton 20°: ideal for lightly soiled cotton loads. The eective

performance levels achieved at cold temperatures, which are comparable

to washing at 40°, are guaranteed by a mechanical action which operates

at varying speed, with repeated and frequent peaks.

Eco Synthetic: ideal for mixed loads (cotton and synthetics) with a

normal soil level. The eective performance levels achieved at cold

temperatures are guaranteed by a mechanical action which operates at

varying speed, across set average intervals.

Wash&Dry 45’: select programme 13 for washing and drying lightly

soiled garments (Cotton and Synthetic) in a short time. This cycle may be

used to wash and dry a laundry load of up to 1 kg in just 45 minutes. To

achieve optimum results, use liquid detergent and pre-treat cus, collars

and stains.

AirFresh: ideal cycle to refresh garments and remove bad odours, in

particular smoke, from cotton and synthetic items in 30’ (max. 1,5 kg)

without the washing phase.

Rinse/Bleach: designed for rinsing and bleaching.

Spin + Drain: designed to spin and drain the water.

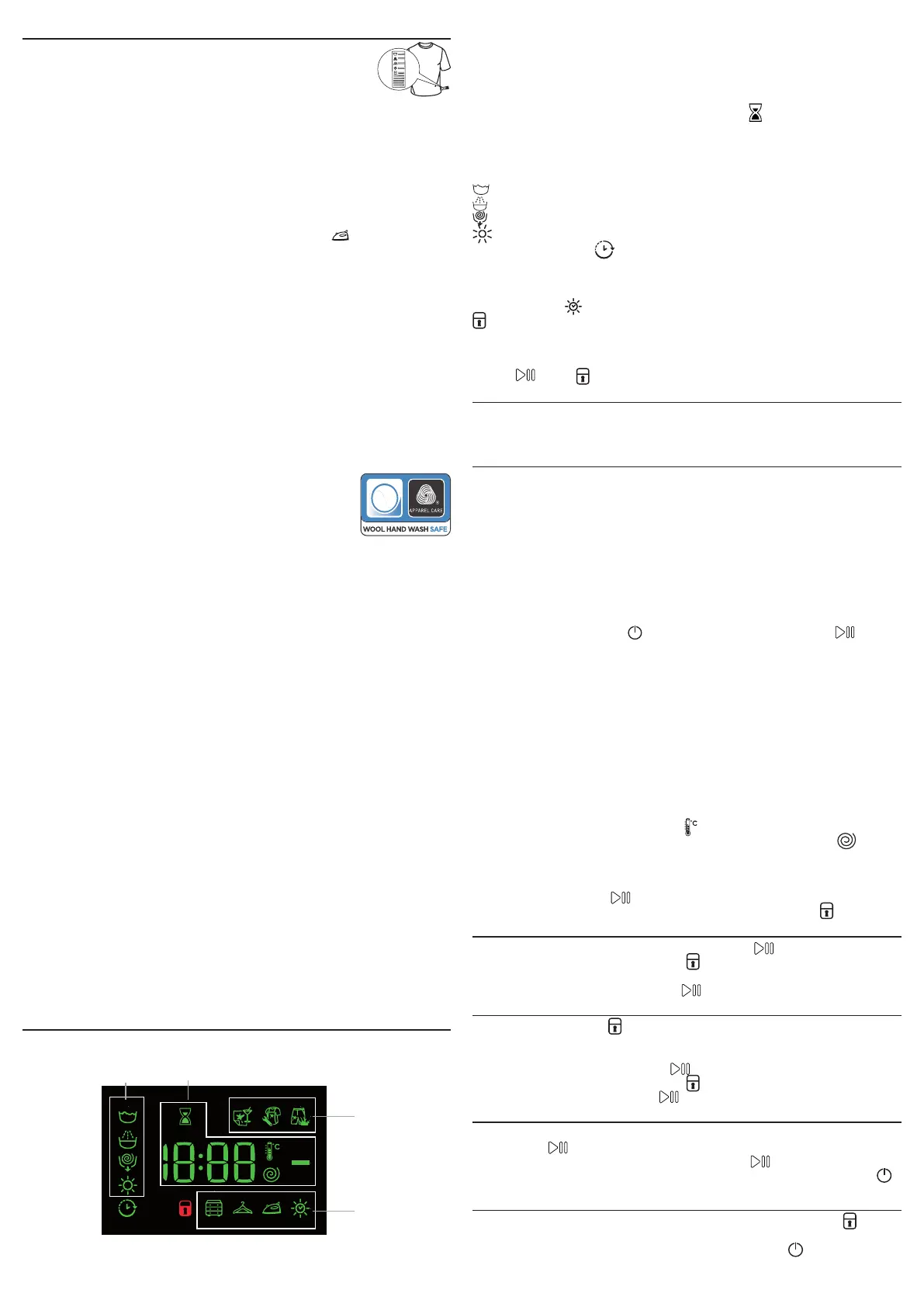

DISPLAY

The display is useful when programming the machine and provides a lot

of information.

The duration of the available wash cycles and the remaining time of a

running cycle appear in section ; if the Delayed Start option has been A

set, the countdown to the start of the selected cycle will appear.

Pressing the corresponding button allows you to view either the

maximum spin speed, temperature and drying time values attained by

the machine during the set wash cycle, or the values selected most

recently (if compatible with the set wash cycle).

The hourglass ashes while the machine processes the data on the basis of the

selected cycle. After a maximum of 10 minutes, the icon remains steady lit

and the nal time remaining is displayed. The “hourglass” icon will then switch

o approximately 1 minute after the nal time remaining has been displayed.

The “washing phases” relative to the selected cycle and the “washing

phase” of the running cycle appear in section :B

Wash

Rinse

Spin/ Drain

Drying

When lit, the symbol indicates that the set “Delayed Start” value has

appeared on the display.

There are three levels in section relative to the washing options.C

Section includes the icons related to the three dierent drying levels as D

well as the icon , which lights up when a timed drying option is set.

Door locked indicator

When lit, the symbol indicates that the door is locked. To prevent any

damage, wait until the symbol turns o before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE

button ; if the symbol is o, the door can be opened.

FIRSTTIME USE

Once the appliance has been installed, and before it is used for the rst

time, run a wash cycle with detergent and no laundry, by setting the

“Auto-Clean” cycle.

DAILY USE

Prepare the laundry by following the suggestions appearing under the

“TIPS AND SUGGESTIONS” section.

Rapid programming

- Open the door. Load the laundry while making sure not to exceed the

maximum load quantity indicated in the cycle table.

- Pull out the detergent dispenser drawer and pour the detergent into the

relevant compartments as described in “DETERGENT DISPENSER DRAWER”

section.

- Close the door.

- Press the PUSH & WASH + DRY button to start the wash cycle.

Traditional programming

- Press the ON/OFF button ; the START/PAUSE indicator light will

ash slowly green.

- Open the door. Load the laundry while making sure not to exceed the

maximum load quantity indicated in the Wash Cycle Table.

- Pull out the detergent dispenser drawer and pour the detergent into the

relevant compartments as described in “DETERGENT DISPENSER DRAWER”

section.

- Close the door.

- Use the WASH CYCLE selector knob to select the desired wash cycle: it

will be associated with a specic temperature and spin speed that can be

modied. The duration of the cycle will appear on the display.

- Modify the temperature and/or spin speed: the machine automatically

displays the maximum temperature and spin speed values set for the

selected cycle, or the most recently-used settings if they are compatible

with the selected cycle. Pressing the button gradually reduces the

temperature down to the cold wash “OFF” setting. Pressing the button

gradually reduces the spin speed until it is completely excluded (“OFF”

setting). Pressing these buttons again restores the maximum values.

- Select the desired options.

- Press the START/PAUSE button to start the wash cycle; the relative

indicator light will light up steady green and the door will lock ( symbol on).

PAUSING A CYCLE

To pause the wash cycle, press the START/PAUSE button again; the

indicator light will ash amber. If the symbol is not lit, the door may be

opened. To start the wash cycle from the point at which it was

interrupted, press the START/PAUSE button again.

OPENING THE DOOR, IF NECESSARY

Once a cycle starts, the symbol turns on to signal that the door cannot

be opened. While a wash cycle is running, the door remains locked. To

open the door while a cycle is under way, for example, to add or remove

garments, press the START/PAUSE button to pause the cycle; the

indicator light will ash amber. If the symbol is not lit, the door may be

opened. Press the START/PAUSE button again to continue the cycle.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washer-dryer using the

START/PAUSE button (the relative indicator light will ash amber), then

select the desired cycle and press the START/PAUSE button again.

! To cancel a cycle that has already begun, press and hold the ON/OFF

button. The cycle will be stopped and the machine will switch o.

END OF THE CYCLE

This will be indicated by the word “END” on the display; when the symbol

switches o, the door may be opened. Open the door, unload the laundry

and switch o the machine. If you do not press ON/OFF button, the

washer-dryer will switch o automatically after about a half of an hour.

OPTIONS

- If the selected option is not compatible with the set wash cycle, the

indicator light will ash and the option will not be activated.

Stain removal

This option allows for selecting the type of dirt so as to optimally adjust

the cycle for removing the stains. The following types of dirt can be

selected:

- Food, for stains caused by foodstus and beverages, for example.

- Work, for grease and ink stains, for example.

- Outdoor, for mud and grass stains, for example.

! The wash cycle duration varies according to the type of selected dirt.

Delayed Start

To set a delayed start for the selected cycle, press the corresponding

button repeatedly until the desired delay period has been reached. When

this option has been activated, the symbol lights up on the display. To

remove the delayed start setting, press the button until the word “OFF”

appears on the display.

Temperature

Each wash cycle has a pre-dened temperature. To modify the

temperature, press the button. The value will appear on the display.

Spin

Each wash cycle has a pre-dened spin speed. To modify the spin speed,

press the button. The value will appear on the display.

Setting the drying cycle

The rst time the button is pressed, the machine will automatically

select the maximum drying cycle which is compatible with the selected

wash cycle. Subsequent presses will decrease the drying level and then the

drying time, until the cycle is excluded completely (“OFF”).

Drying may be set as follows:

A- Based on the desired laundry dryness level:

Cupboard : suitable for laundry which can be put back in a cupboard

without being ironed.

Hanger : ideal for clothes which do not need to be dried fully.

Iron : suitable for clothes which will need ironing afterwards. the

remaining dampness softens creases, making them easier to remove.

B - Based on a set time period: between 210 and 30 minutes.

If your laundry load to be washed and dried is much greater than the

maximum stated load (see adjacent table of wash cycles), perform the

wash cycle, and when the cycle is complete, divide the garments into

groups and put some of them back in the drum. At this point, follow the

instructions provided for a “Drying only” cycle. Repeat this procedure for

the remainder of the load. Note: a cooling-down period is always added to

the end of each drying cycle.

Drying only

Press button to perform the drying-only cycle. After selecting the

desired cycle (compatible with the type of garments), press button to

exclude the washing phase and start the drying phase at the maximum

level for the selected cycle. The drying level or time may be set and

changed by pressing the drying button .

(Not compatible with cycles 13 and 14).

Push & Wash + Dry

This function makes it possible to start an automatic wash and drying

cycle either when the machine is o without having to press the ON/OFF

button in advance, or after switching on the machine without having

activated any button and/or selector (otherwise the Push&Wash+Dry

function will be deactivated). To start the Push&Wash+Dry cycle press

and hold the button for 2 seconds. The indicator lights up to show

that the cycle has started. The wash and drying cycle is ideal for cotton

or synthetic fabrics, as it washes them at a temperature of 30° and a

maximum spin speed of 1000 rpm. During the drying cycle the maximum

temperature is 60°C. At the end of the cycle the residual humidity will be

the same as for the “ ” level. Max recommended load 3 kg.

The time displayed is the maximum time allowed by the Push&Wash+Dry

cycle. If the load is lower than the maximum load or most garment are

made of synthetic materials, the actual time of the cycle will be shorter.

How does it work?

1. Load the laundry (cotton and/or synthetic garments) and close the door.

2. Pour the detergent and/or additives.

3. Start the cycle by pressing and holding the Push&Wash+Dry button for 2

seconds. The relevant indicator light will turn green and the door will lock

(the DOOR LOCKED symbol is lit).

NB: starting the cycle through the Push&Wash+Dry button activates an

automatic non-customisable wash and drying cycle recommended for

cotton and synthetic fabrics.

4. The automatic cycle can be used only for washing, excluding the drying

phase. Press the Push&Wash+Dry button and then the drying button :

the drying icon of the “ ” level will switch o. Maximum load for washing-

only is 4 kg. The cycle cannot be customised further.

To open the door while an automatic cycle is under way, press the START/

PAUSE button. If the DOOR LOCKED symbol is o, the door may be opened

only during the washing phase. Press the START/PAUSE button again to

restart the wash cycle from the point at which it was interrupted.

5. At the end of the wash cycle the word END will light up.

TIPS AND SUGGESTIONS

Divide the laundry according to:

Type of fabric (cotton, mixed bres, synthetics, wool, garments to be

hand-washed). Colour (separate coloured garments from whites, wash new

coloured garments separately). Delicates (small garments – such as nylon

stockings – and items with hooks – such as bras: insert them in a fabric bag).

Empty the pockets:

Objects such as coins or lighters can damage the washer-dryer and the

drum. Check all buttons.

CARE AND MAINTENANCE

Before performing cleaning and maintenance, switch the washer-dryer o

and disconnect it from the mains power. Do not use ammable liquids to

clean the washer-dryer.

Disconnect the water and power supplies

Close the water tap after every wash. This will limit wear on the hydraulic

system inside the washer-dryer and help to prevent leaks. Unplug the

washer-dryer when cleaning it and during all maintenance work.

Clean the washer-dryer

The outer parts and rubber components of the appliance can be cleaned

using a soft cloth soaked in lukewarm soapy water. Do not use solvents or

abrasives. The washer-dryer has a “Auto-clean” cycle for its internal parts; it

must be run without any load in the drum.

To optimise this cycle, it is possible to use either detergent (10% of the

quantity specied for lightly soiled garments) or special additives to clean

the washer-dryer. We recommend running a cleaning cycle every 40 wash

cycles. To start the cycle press buttons and simultaneously for 5

seconds. The cycle will start automatically and will run for about 80

minutes. To stop the cycle, press the START/PAUSE button.

Clean the detergent dispenser drawer

Wash it under running water; this operation should be repeated frequently.

Care for the door and drum

Always leave the porthole door ajar in order to prevent unpleasant odours

from forming.

Clean the pump

The washer-dryer is tted with a auto-cleaning pump that does not require any

maintenance. Small items (such as coins or buttons) may sometimes fall into

the protective pre-chamber situated at the base of the pump.

! Make sure the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

1. remove the cover panel on the front of the machine by rst pressing it

in the centre then pushing downwards on both sides to extract it;

2. loosen the drainage pump cover by turning it anti-clockwise: it is

normal for some water to leak out;

3. clean the inside thoroughly;

4. screw the cover back on;

5. put the panel back in place, making sure the hooks slot in place before

pushing the panel onto the appliance.

Check the water inlet hose

Check the water inlet hose at least once a year. If it is cracked or broken, it

must be replaced: during wash cycles, the high pressure of the water

could suddenly split the hose open.

! Never use hoses that have already been used.

LOAD BALANCING SYSTEM

Before every spin cycle, to avoid excessive vibrations before every

spin and to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the washing

rotation speed. If, after several attempts, the load is not balanced

correctly, the machine spins at a reduced spin speed. If the load is

excessively unbalanced, the washer-dryer performs the distribution

process instead of spinning. To encourage improved load distribution and

balance, we recommend small and large garments are mixed in the load.

ACCESSORIES

Contact our Technical Assistance Service to check whether the following

accessories are available for this washer-dryer model.

Stacking kit

With this accessory you can secure the tumble dryer to the upper part of

your washer-dryer to save space and facilitate loading and unloading of

the tumble dryer.

TRANSPORT AND HANDLING

Do not lift the washer-dryer by gripping it from the upper section.

Unplug the appliance and close the water tap. Check that the door and

detergent dispenser drawer are tightly closed. Detach the lling hose

from the water tap then detach the drain hose. Empty all the water

remaining in the hoses and secure the latter so that they do not get

damaged during transport. Apply the transport bolts back on. Repeat, in

reverse order, the transport bolt removal procedure described in the

“Health & Safety and Installation Guides”.

Important: Not emptying contents from pockets may cause pump or drain

blockages, or may damage the machine.

Do not wash items which do not have a wash label, or wash items that are

not intended as machine washable.

DEMO MODE: to deactivate this function, switch the washing machine OFF.

Than press and hold “Start/Pause” button, within 5 seconds press also

“ON/OFF” button and hold both buttons for 2 seconds.

Produktspecifikationer

Varumärke:	Indesit
Kategori:	tvättmaskin
Modell:	XWDE 961480X WSSS EU
Färg på produkten:	Zwart
Vikt:	3500 g
Ljudnivå:	34 dB
Skärm diagonal:	0.7 "
Ethernet LAN:	Ja
Videolägen som stöds:	1080i, 480p, 576i, 720p
Typiskt kontrastförhållande:	2500:1
Zoomkapacitet:	Ja
Projektorns ljusstyrka:	4000 ANSI lumens
Projektionsteknik:	DLP
Projektorns inbyggda upplösning:	XGA (1024x768)
Keystone-korrigering, horisontell:	15 °
Lämplig för skärmstorlekar:	- "
Projektionsavståndsmål:	0.9 - 9.1 m
Antal färger:	16.78 miljoen kleuren
Frekvensområde horisontellt:	15 - 90 kHz
Frekvensområde vertikalt:	43 - 85 Hz
Antal USB 2.0-portar:	1
VGA (D-Sub) port(ar):	2
Antal HDMI-portar:	1
Typ av seriell anslutning:	RS-232
Audio-ingan (L, R):	1
Kompositvideoingång:	1
S-videoingång:	1
Antal Ethernet LAN (RJ-45)-portar:	1
Fokus:	Handmatig
Zoomtyp:	Handmatig
Brännvidd:	- mm
Ljuskällans livslängd:	3000 uur
Typ av ljuskälla:	Lamp
Monteringsalternativ för kabellås:	Ja
Kabellåsspårtyp:	Kensington
Inbyggda högtalare:	Ja
Genomsnittlig effekt:	3 W
Antal inbyggda högtalare:	1
Strömförbrukning (i standby):	1 W
Hörlursutgångar:	1
Zoomförhållande:	1.15:1
Analog signalformat:	NTSC, SECAM
Full HD:	Ja
RS-232 port:	1
3D:	Nee
Lampkraft:	230 W
Grafikupplösningar som stöds:	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Bildförhållande:	4:3, 16:9
Ljud (L,R) ut:	1
Strömförbrukning (PowerSave):	240 W
Ljuskällans livslängd (sparläge):	4000 uur
Ljudnivå (ekonomiläge):	29 dB
Mått (B x D x H):	355 x 256 x 102 mm
Fjärrkontroll ingår:	Nee
Wifi:	Nee
Strömförbrukning (typiskt):	290 W
Drifttemperatur (TT):	5 - 40 °C
