Thank you for choosing the Infinity

BassLink LC. BassLink LC has been designed to

enhance the performance of BassLink by adding

remote level control to the long list of BassLink

features. Although these instructions explain

how to install the BassLink LC in a general

sense, they do not show the specific installation

methods for your particular vehicle. If you

feel you do not have the necessary tools or

experience, do not attempt the installation

yourself; rather, ask your authorized Infinity

car audio dealer about professional

installation options.

Remember to keep this manual and

your sales receipt in a safe place for

future reference.

instructions

BassLink

™LC

WARNING: Playing loud

music in an automobile can

permanently damage your

hearing, as well as hinder

your ability to hear traffic. We

recommend using low volume

levels while driving. Infinity

accepts no liability for hearing

loss, bodily injury or property

damage resulting from the use

or misuse of this product.

INSTALLATION

BassLink LC may be mounted

under the dash or may be

dismantled and mounted in the

dash for a factory appearance.

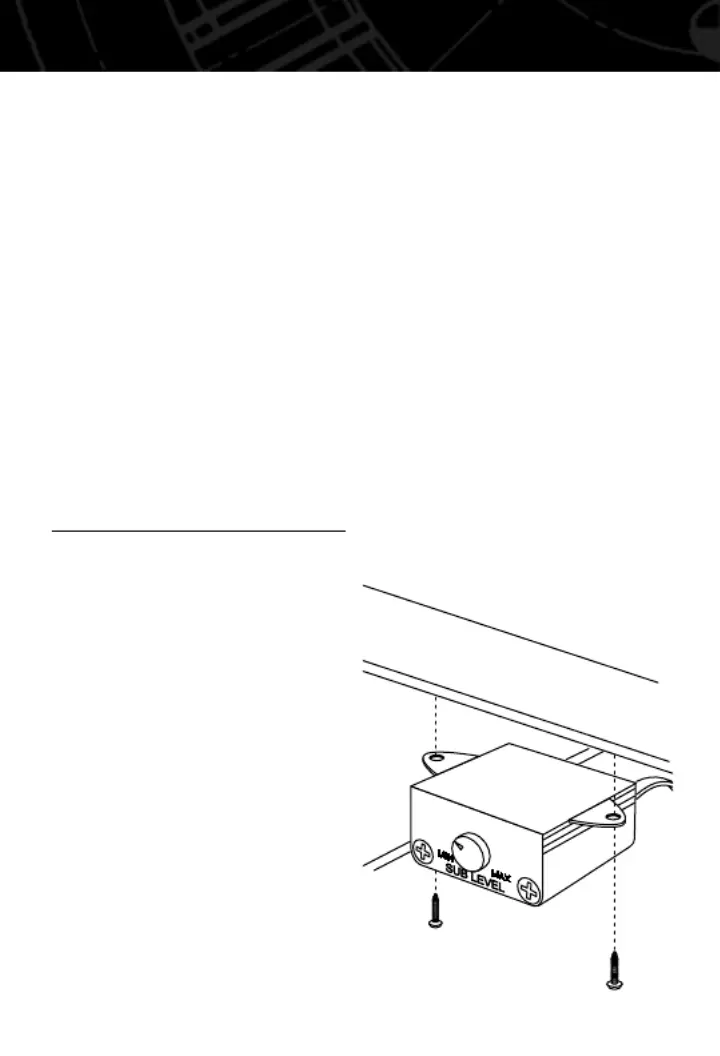

Under-Dash Mounting:

Select a mounting location that

allows easy access to the

control while driving. Using

the BassLink LC as a template,

mark and drill holes in the

mounting surface. Attach

BassLink LC using the

mounting screws provided

(Figure 1).

In-Dash Mounting:

Disassemble BassLink LC by

removing the two Phillips-head

screws on the front panel, rear

panel and on top. Remove

BassLink LC’s bottom and side

panels. Slide BassLink LC’s PC

board forward to release the

RJ11 connector from the back

panel and remove the board

along with the potentiometer,

knob, and connector as a

single assembly.

Figure 1.

LEVEL

CONTROL

CIRCUIT

BOARD

WASHER

HEX NUT

KNOB

SOCKET

FOR

CONTROL

CABLE

OFF

AUTO

A TO

TU N ON

CONTROL

CABLE

BASSLINK CONNECTOR PANEL

LINE LEVEL

INPUT

FRONT REAR

PHASE

FUSE 20A

REMOT E

GAIN

CONTR OL

POWER

GND

REM

+BATT

SERVO

FRONT

REAR

RIGHT +

LEFT +

UNIVERSAL

INTERFACE

180

REAR VIEW

OF LEVEL CONTROL

CIRCUIT BOARD

RIGHT +

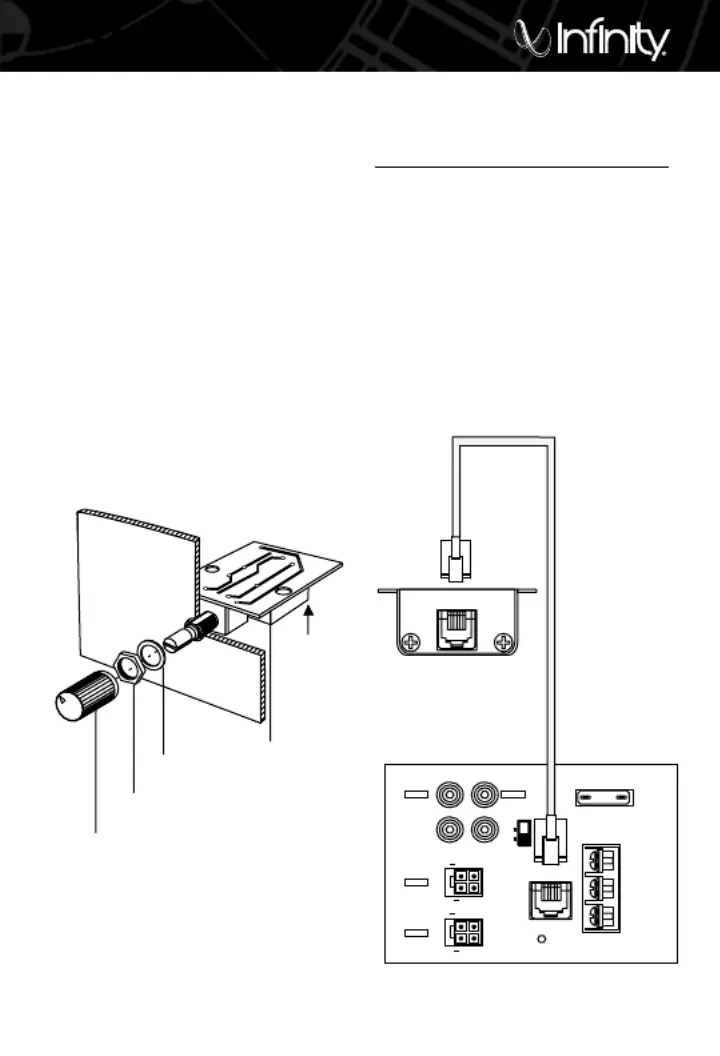

Choose a mounting location

that allows easy access to the

control, and provides 1-3/4"

clearance behind the mounting

surface. Drill a 9/32" hole in the

mounting surface. Feed the

BassLink LC’s potentiometer

(with the knob removed)

through the hole and use

the nut provided to hold the

control in place (Figure 2).

Figure 2.

C B LONNECTING ASS INK LC

T B LO ASS INK

Route the cable behind the

dash or other interior panels

and under the carpet. Do not

route the cable outside the

vehicle. Connect the RJ11 cable

between the RJ11 receptacle on

the BassLink and the receptacle

on BassLink LC (Figure 3).

Figure 3.
