Infinity DSP Amplifier DSP6840
EN
ES
ZH-CH
ID
JP
KO
RU
FR
Owner's Manual
Mode d’emploi
Manual de propietario
Jmdh\h^kl\hihevah\Zl_ey
=*[C
Panduan Pengguna
󱾫󳨵áÇE
zw^혓òSê
EN
1
THANK YOU FOR YOUR PURCHASE . . .
Your product has been designed to provide you the performance and ease of operation you expect from Infinity. Take time
to read this manual before operating or installing your amplifier. This manual describes general installation guidelines and
operation instructions. Please note that proper installation of mobile audio components requires qualified experience with
mechanical and electrical procedures. If you do not have the knowledge and tools to perform this installation, we strongly
recommend consulting an authorized Infinity dealer about your installation options.
TABLE OF CONTENTS
PRODUCT DESCRIPTION
···········································································································
2
WHAT'S IN THE BOX
·················································································································
2
INSTALLATION AND WIRING
········································································································
2
SETTING THE SOUND
··············································································································
4
SPECIFICATIONS
·····················································································································
6
TROUBLESHOOTING
················································································································
6
EN

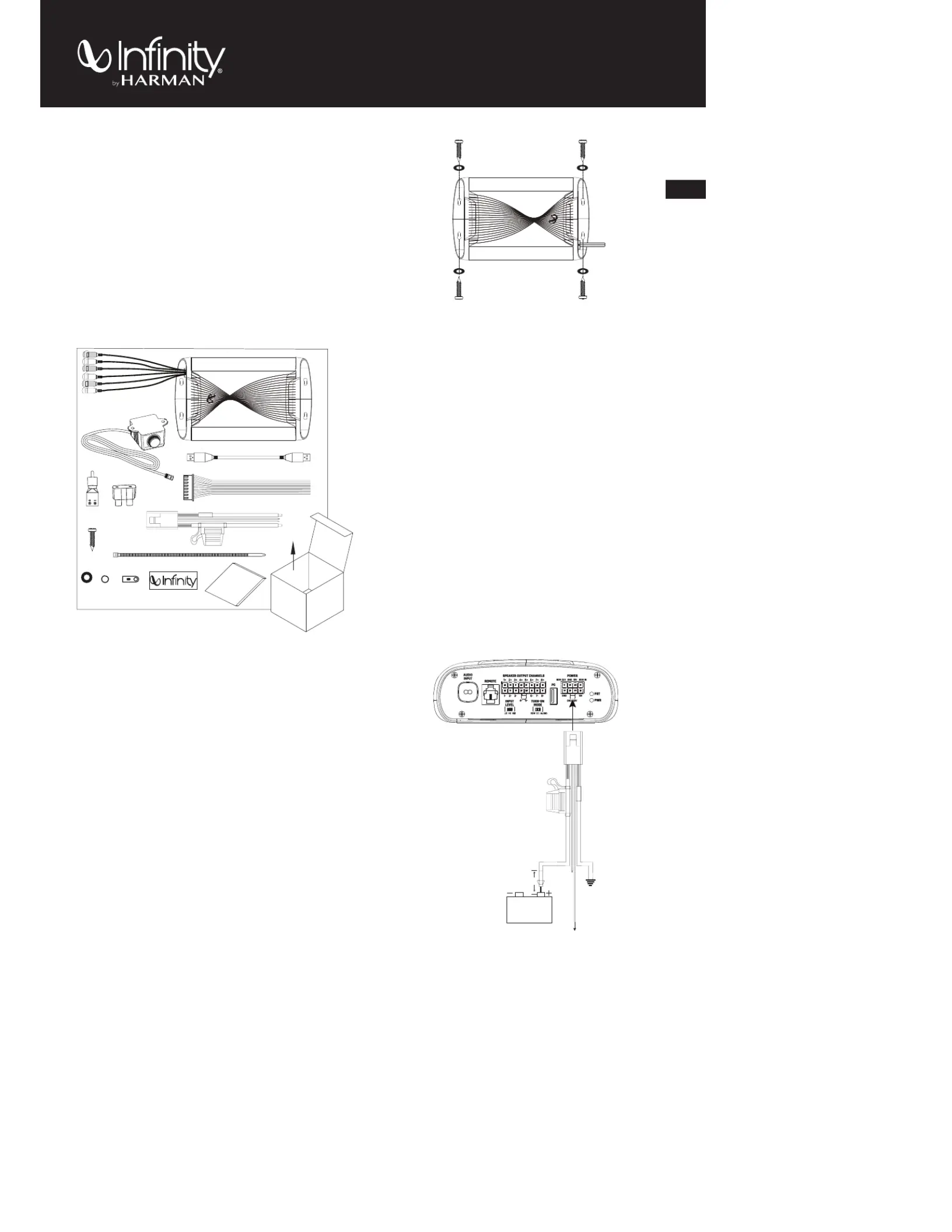

Infinity DSP Amplifier DSP6840
2
Power and Ground Connections
• Connect the power wire to the positive terminal Power: +12V
of the vehicle’s battery. Make sure the fuse and fuse holder are
within 18” (457mm) of the battery.
• Connect the wire to the negative terminal of Ground: GND
the vehicle’s battery, or to the vehicle’s chassis near the battery
with a screw. If possible, remove any paint from the NOTE:
chassis for best contact. It is recommended to use a star
washer below the ring connector for a secure connection.
• Connect the remote turn-on wire to the “Remote Remote-In:
Out” lead of the source unit, if using low-level signal inputs with
an aftermarket stereo. If you are using high-level signal NOTE:
inputs (your vehicle’s speaker wires), you can choose to have
the 12-volt DC offset feature turn the amplifier on when you
turn on the vehicle power, or the audio-sensing feature turn on
the amplifier when it detects audio signal. In either case, you
will not have to connect the remote turn-on wire and can tape
or cap it off to prevent the introduction of noise.
• Connect the remote-out wire to external devices Remote-Out:
that require 12V turn-on after the Infinity DSP Amplifier. This
connection will allow turn-on of 12V devices after the amplifier
wakes from turn-on by 12V remote-in, DC offset or audio
signal sensing input.
Power/Protect indicators
The power light will illuminate in green when the amplifier is getting
power and playing. The light will illuminate in red if the amp enters
protect mode in the event of conditions such as over/under voltage,
short circuit, amplifier output circuit failure, or excessive heat.
Chassis ground (-)
Remote turn-on
EOXHWR󰀬HUHR
REM out
Battery
Fuse holder, 40A fuse
18" (46cm)
PRODUCT DESCRIPTION
The Infinity DSP Amplifier is an audio processor for fine-tuning of
aftermarket audio systems. It is a self-contained audio system
with 6-channel audio inputs, 8-channel powered audio outputs,
an easy-to-use tuning interface a novice can understand, and
detailed tuning capabilities to satisfy even experienced installers.
With a USB connection to access the tuning interface using a
Windows PC, you can control fully variable crossovers, selectable
0-to-48 dB slopes, time delay, 31-band parametric or graphic EQ
adjustment, assignable input-to-output mixer with input channel
summing, channel gain, master volume control, clipping indicator
to ensure the audio output is not distorted, and ability to save up
to 10 presets.
WHAT'S IN THE BOX
1X
4X
4X 4X 1X
6X
1X
1X
1X
4X
1X
1X
1X2X
INSTALLATION AND WIRING
IMPORTANT: Disconnect the vehicle’s negative (–) battery
terminal before beginning the installation.
• Wear protective eyewear when using tools.
• Choose a safe mounting location. Check clearances on both
sides of the location. Be sure that screws will not puncture
brake or fuel lines or wiring harnesses, and that wire routing will
not interfere with vehicle operation. Use caution when drilling
or cutting.
• When making electrical connections, make sure they are
secure and properly insulated.
• Do not mount the amplifier with the heat sink facing downward,
as this interferes with cooling.
• Using the amplifier as a template, mark the locations of the
holes on the mounting surface.
• Drill pilot holes in the mounting surface.
• Attach the amplifier to the mounting surface with the included
sheet metal screws and washers.
