Sida 1/4
P40000 SERIES
POOL/SPA EQUIPMENT CONTROLS
INSTALLATION
OPERATION &
SERVICE MANUAL
CONTROL PANEL FOR INDOOR/OUTDOOR USE
Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights
ELECTRICAL RATINGS: See inside Enclosure Door
Intermatic Pool and Spa load centers are
complete in construction and shall be installed
in accordance with NEC requirements as
applicable. These enclosures are provided
with provisions for single-gang certified
switching devices and an extra low voltage
transformer certified for use with underwater
pool lights with a breaker base. Enclosures
with breaker bases are certified as industrial
controls for specific use.
The Transformers supplied in these panels
are specifically designed to supply 12 volts
to underwater pool/spa lights. A grounded
shield between the primary and secondary
winding assures safe operation and the built-
in circuit protection will disconnect power to
the transformer in case of overload. These
transformers are suitable for direct connection
to underwater Pool and Spa lights.
The all-weather enclosure contains provisions
to install a switch inside as well as a switch or
GFCI receptacle on the outside.
1
GENERAL INFORMATION
Transformer Input Secondary Output
Rating 60 Hz. Lamp Watts* Volts
100W 120V. 1 Amp Max. 100 Max. 12, 13 or 14
300W 120V. 3 Amp Max. 300 Max. 12, 13 or 14
* Any combination of bulbs, any tap.
Risk of electric shock!
Test ground fault protection regularly. If it fails, do not use Pool or Spa. Contact
qualified service professional for help.
Do not use this control as a power disconnect, it could turn ON unexpectedly.
Disconnect electricity at the main Panel before servicing this control or the
equipment(s) connected to it.
WARNING
INSTALLATION
1. Remove the four #10 hex head screws from
the back of the enclosure and attach mounting
brackets to enclosure.
2. Select the proper location for the Control
Panel and hang enclosure on a flat vertical
surface or other support, using hardware
suitable for the purpose.
3. Prepare the necessary conduit runs, terminate
them at both ends and pull in the conductors
as specified by the installation layout.
4. If external bonding is required, install a
bonding lug at bottom of enclosure and bond
installation according to code requirements.
5. The enclosure must be grounded as required
by NEC, Article 680 and any applicable
local codes.For Canadian installations, the
transformer supply circuit must be protected
by a ground fault circuit interrupter.
6. If this enclosure is used for direct connection
of underwater lights, refer to 1999 NEC 680-
21(b), 2002 NEC 680-24(b) or CEC 68-060,
062 and 066 for further details.
7. Make sure that all unused transformer taps
(leads) are separately insulated.
8. Use the tables at the top of page 3 as a guide
to determine the correct wire size.
9. Check voltage at lamp terminals after
installation. It should be 12 0.3 volts.+
10. Install front panel over wiring compartment.
The control is now ready for programming,
see OPERATION section on Page 3.
2
8"
21 1/4"
4 3/8"
4 3/4"
20 7/8"
12 7/8"

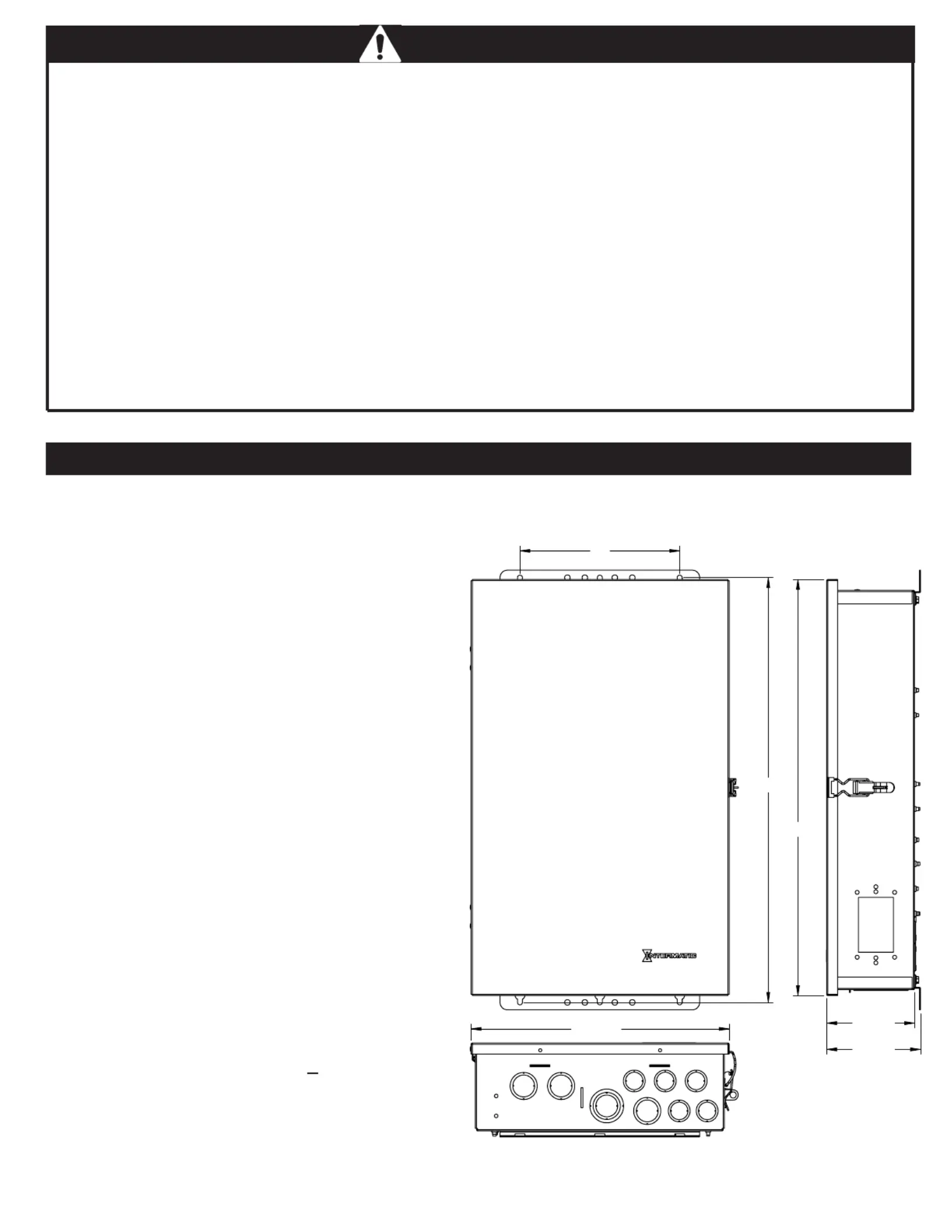

Figure 1
Risk of injury or property damage!
Do not install or operate this equipment and other associated equipment without basic safety
precautions.
Read and follow the safety instructions listed below and other basic safety precautions before
installation or operation of this control and other associated equipment.
1. This control must be installed by a qualified person, according to the national and local electrical
codes.
2. Install this control not less than 5 feet (3 meters in Canada) from inside edge of pool and 1 foot
(30cm) above ground.
3. USE COPPER CONDUCTORS ONLY rated 90˚C minimum.
4. Do not exceed maximum ratings of individual components, wiring devices and current carrying
capacity of conductors.
5. For control grounding, bonding, installing and the wiring of underwater lights, refer to Article 680
of the National Electrical Code or Article 68 of the Canadian Electrical Code.
6. The control should not operate any equipment which would cause bodily injury or property
damage should it be activated unexpectedly.
CAUTION
3
Transformer Cable - Voltage Selection Chart
Length of Cable 100 W Transformer
10 ft 13 V 12 V 12 V 12 V 12 V 12 V
25 ft 13 V 13 V 12 V 12 V 12 V 12 V
50 ft 14 V 13 V 13 V 12 V 12 V 12 V
75 ft 14 V 13 V 13 V 12 V 12 V
100 ft 13 V 13 V 13 V 12 V
125 ft 14 V 13 V 13 V 12 V
150 ft 14 V 13 V 13 V 13 V
175 ft 14 V 14 V 13 V 13 V
200 ft 14 V 13 V 13 V
250 ft 14 V 13 V 13 V
Wire Gauge (AWG) #16* #14 #12 #10 #8 #6
* Minimum Gauge Cable
**Blank fields indicate conditions not suited for wiring
Transformer Cable - Voltage Selection Chart
Length of Cable 300 W Transformer
10 ft 12 V 12 V 12 V 12 V
25 ft 13 V 13 V 12 V 12 V
50 ft 13 V 13 V 13 V 13 V
75 ft 14 V 13 V 13 V
100 ft 14 V 14 V 13 V
125 ft 14 V 13 V
150 ft 14 V 14 V
175 ft 14 V
200 ft 14 V
250 ft 14 V
Wire Gauge (AWG) #12* #10 #8 #6
* Minimum Gauge Cable
**Blank fields indicate conditions not suited for wiring
