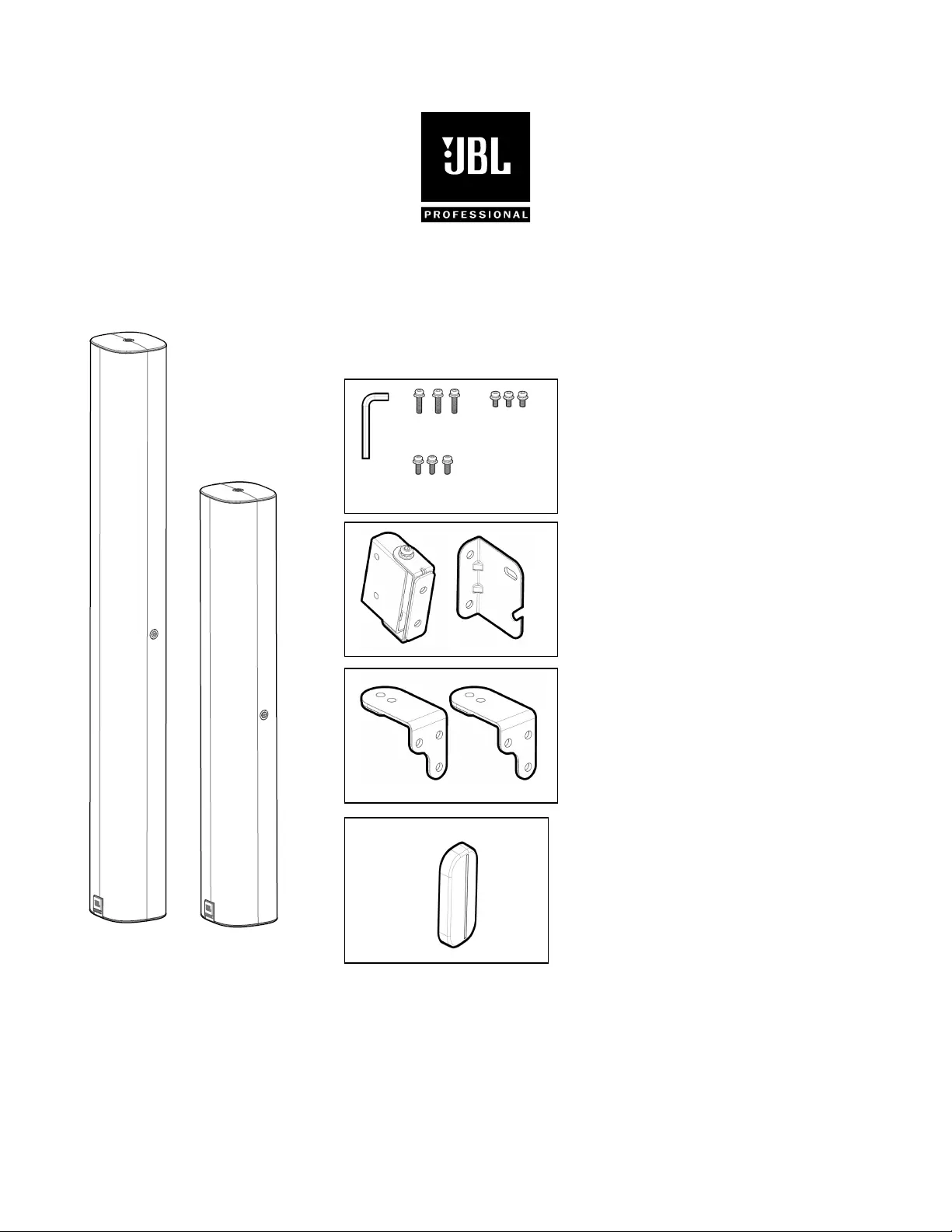

COL Column Speaker Installation Guide

COL 800

JBL- - COL800 BK and

JBL- -COL800 WH)

COL 6 00

JBL- 6 - COL 00 BK and

JBL- 6 -COL 00 WH)

Included Hardware

(not to scale)

3 bolts ers pieces M6 x 12 mm with flat wash & lock washers

3 pieces M6 x 20 mm flat washers bolts with & l s ock washer

3 pi & eces M6 x 28 mm bolts with flat washers lock washers

( F Note: lat washers & lock washers are captive on the bolts.

O .) ne additional of each bolt for backupis provided

4 mm hex key

2-p - / art Low Prof Pan)ile Swivel ( Tilt

WALL BRACKET ASSEMBLY

C s : onsist of

- Bracket •SPEAKER SIDE of

• W - B ALL SIDE of racket

• Decorative T - rim piece for WALL SIDE BRACKET ( not shown)

2 L- pieces BRACKETS

Ver 1.0

TRIM COVER (for WALL BRACKET ASSEMBLY)

Important S I s afety nstruction

1. Please read and keep all safety and user instructions.

2. This product is intended for installation by professional installers only! This document is intended to provide professional

installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read

this document and all safety warnings before attempting installation. Do not attempt to service this product yourself.

Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Harman

Professional or to find a dealer or distributor near you, visit https://www.jblpro.com.

3. The products must be installed in accordance with local, state, federal and industry regulations. It is the installer’s

responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all

applicable codes, including cal buildinglo codes and regulations. Consult the local authority having jurisdiction before

installing this product.

4. Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage.

It is the installer’s responsibility to evaluate the reliability of any mounting method used for their application. Only

professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install

any loudspeaker overhead.

5. Do NOT make unauthorized al erations to this product.t

6. Only use the mounting hardware supplied with this product.

7. Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or

plumbing. If you are not sure about ins btalling the racket, contact a qualified professional installer. Ensure the bracket is

installed according to local building codes.

8. Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around this speaker, and

associated mounting hard use of such hydrocarbon based lubricants, solvents or cleaning ware, during installation. The

agents on or around the mounting anchors and screws can lead to degradation of the plastic material, possibly resulting

in cracking and premature fail rure of the p oduct.

9. Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or

near the product.

10. The loudspeaker and all mounting components must be inspected annually by a qualified professional wh is trained o

and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the

loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination,

or any other condition th egrity and create a dangerous falling hazard.at could compromise the system's int

11. Prolonged exposure to excessive SPL can cause hearing damage! The loudspeaker is easily capable of generating sound

pressure levels (SPL) sufficient to cause pe anent hearinrm g damage to performers, production crew, and audience

members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.

WATCH FOR THIS : SYMBOL

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: – No naked flame sources such as lighted candles – should be placed on the product.

CAUTION: b , To be installed y instructed or skilled, persons only.

Regulatory Information

This product conforms to all applicable EU directive requirements. The full text of the EU declaration of

conformity is available at the following internet address: https://www.jblpro.com

This pro duct conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable

UK regulations. The complete declaration of conformity can be found at: https://www.jblpro.com

This symbol means the pro uct must not be discarded as household waste, and should be delivered to an d

appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health

and the environment. For more information on disposal and recycling of this product, contact your local municipality,

disposal service, or the shop where you bought this product.

ROHS认证和环保使用年限

此标识适用于在中华人民共和国销售的电子信息产品。标识中间的数字为环保使用期限的年数。

部件名称

有毒有害物质或元素

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价格

(Cr+6)

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

电路板

○

线材

○

包装材料

○

金属件

○

除电路板以外的其他电子件 X ○ ○ ○ ○ ○

本表格依据S 的规定编制。J/T 11364

○ 表示该有毒有害物质在该部件所有均质材料中的含量均在标准规定的限量要求以下: SJ/T11363-2006 .

X: - .表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363 2006标准规定的限量要求
