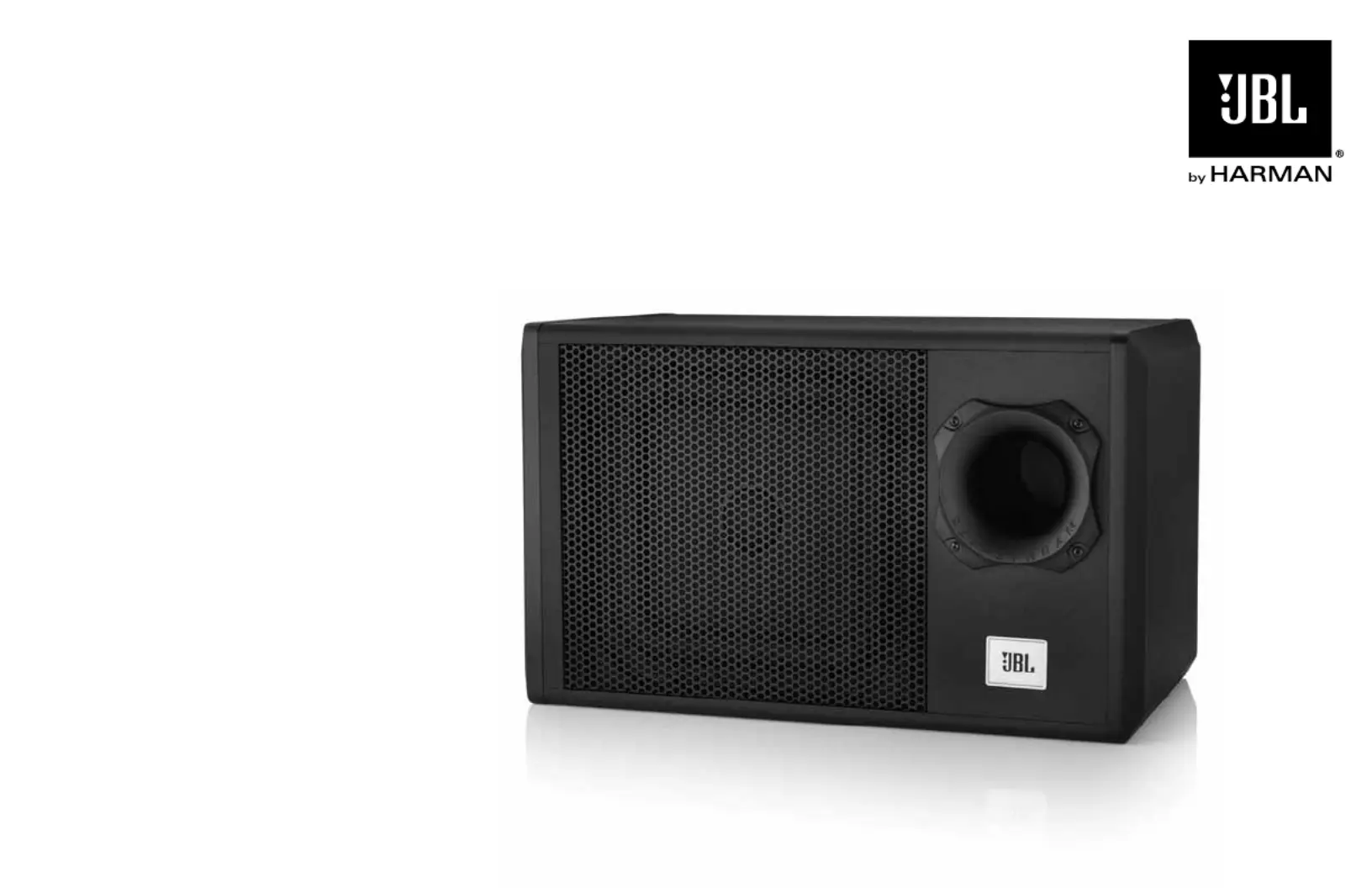

OWNER’S MANUAL

MS-BassPro SQ

powered automotive subwoofer

IntrOductIOn

Thank you for choosing the JBL® MS-BassPro SQ powered automotive

subwoofer. The MS-BassPro SQ has been designed to deliver outstanding

bass performance from a compact, easily installed powered subwoofer

enclosure.

To get the best performance from your MS-BassPro SQ, we strongly

recommend that installation be entrusted to a qualified professional.

Although these instructions explain how to install the MS-BassPro SQ in

a general sense, they do not show specific installation methods that may

be required for your particular vehicle. If you do not have the necessary

tools or experience, do not attempt the installation yourself. Instead,

please ask your authorized JBL car audio dealer about professional

installation.

In order that we may better serve you should you require warranty

service, please retain your original sales receipt and register your

MS-BassPro SQ online at www.jbl.com.

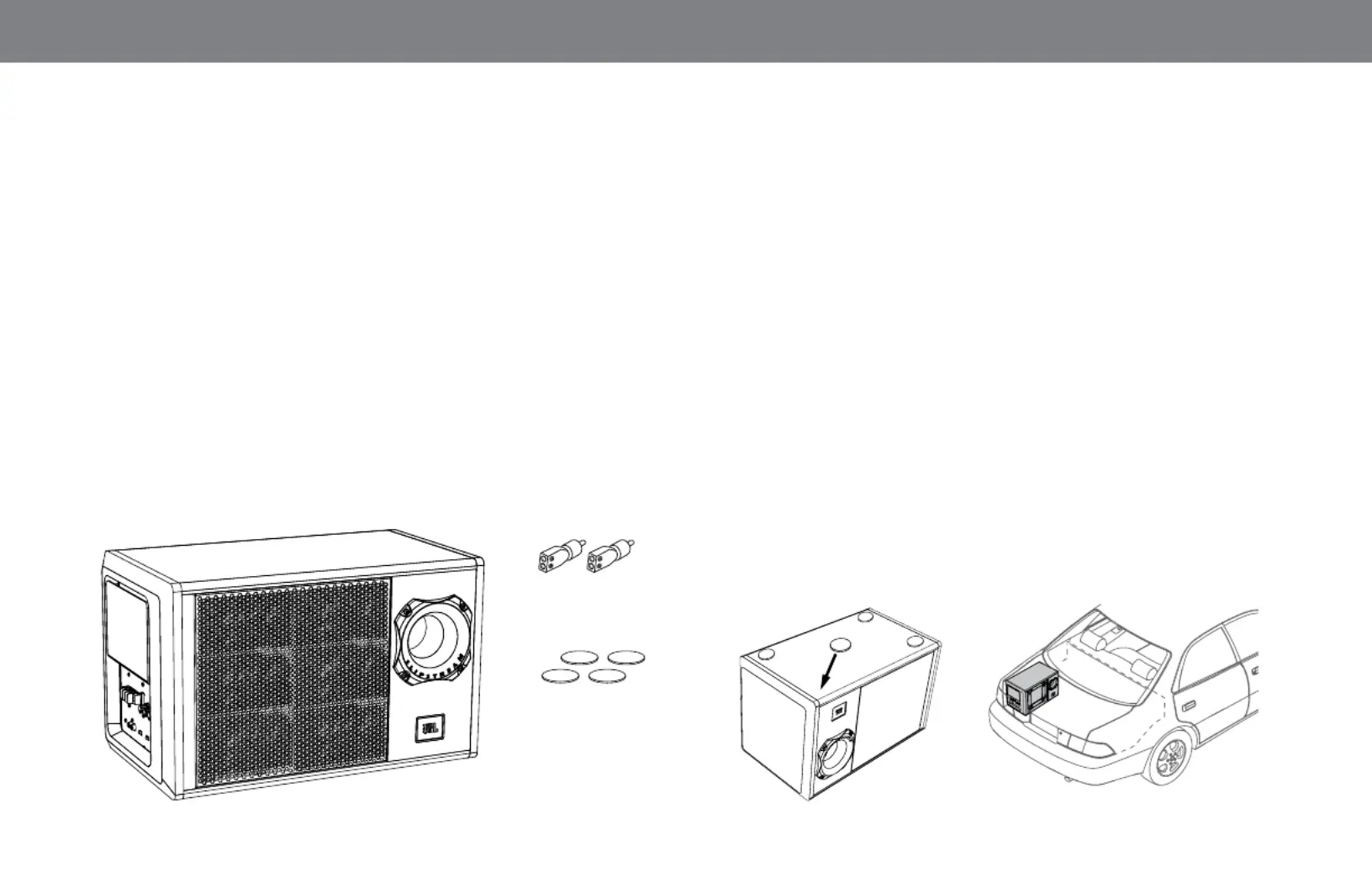

Included IteMs

InstallIng the suBwOOfer

InstallatIon WarnIngs and tIps

• Always wear protective eyewear when using tools.

• Disconnect the vehicle’s negative (–) battery terminal before starting

the installation.

• Check clearances on both sides of a planned mounting surface. Be

sure that screws or wires will not puncture brake lines, fuel lines or

wiring harnesses, and that wire routing will not interfere with the safe

operation of the vehicle.

• When making electrical connections, make sure they are secure and

properly insulated.

• I f you must replace the MS-BassPro SQ’s fuse, be sure to use the same

type of fuse and current rating as that of the original.

MountIng the subWoofer

Choose a location for the subwoofer that doesn’t interfere with cargo,

a fold-down rear seat or the trunk lid. The best location is usually a

corner of the trunk or cargo area, as shown in the illustrations. These

locations, in addition to being out of the way, will provide the best sonic

reproduction in the 60Hz to 100Hz range because the woofer output

will be “corner loaded” against the vehicle’s walls. In any case, the

MS-Basspro SQ must not interfere with the safe operation of the vehicle.

www.jbl.com

English

cOnnectIOns

IMPORTANT: Disconnect the vehicle’s negative (–) battery terminal

before beginning installation.

AUDIO SENSE SWITCH:

No remote turn on connection is necessary because the MS-BassPro SQ

includes signal sensing turn on, which will turn the subwoofer on when

it receives an audio signal at its input connectors. The subwoofer will

automatically turn off approximately five minutes after the input signal

ceases.

If your audio system’s source unit includes a remote turn on wire and you

would prefer to use it, defeat the signal sensing turn on circuit by moving

the Audio Sense switch to the “off” position.

CONNECTING THE SUBWOOFER TO YOUR VEHICLE’S AUDIO

SYSTEM

The JBL MS-BassPro SQ is equipped with two line-level (RCA) input

connectors that can handle line-level and speaker-level input signals. Use

RCA audio cables to connect the subwoofer to source units with preamp-

level outputs; use the supplied bare wire-to-RCA adapters to connect the

subwoofer to source units that don’t have RCA output connectors. Consult

the following system application diagrams to help you plan the installation

of your MS-BassPro SQ. For additional installation suggestions, contact

your local authorized JBL car audio dealer.

If your car audio system’s head unit has front or rear stereo line-

level outputs:

Use a stereo RCA audio cable (not supplied) to connect the MS-BassPro

SQ to the head unit’s front or rear left and right line-level outputs.

L. Front

Speaker

L. Rear

Speaker Audio System

Head Unit Left/Right

Line-Level

Outputs

Stereo RCA Audio Cable

(not supplied)

R. Front

Speaker

R. Rear

Speaker
