Sida 1/4
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
AL
AL
AL
ALALUMINIUM CASE F
UMINIUM CASE F
UMINIUM CASE F
UMINIUM CASE FUMINIUM CASE FOR RASPBERRY PI 4
OR RASPBERRY PI 4
OR RASPBERRY PI 4
OR RASPBERRY PI 4OR RASPBERRY PI 4

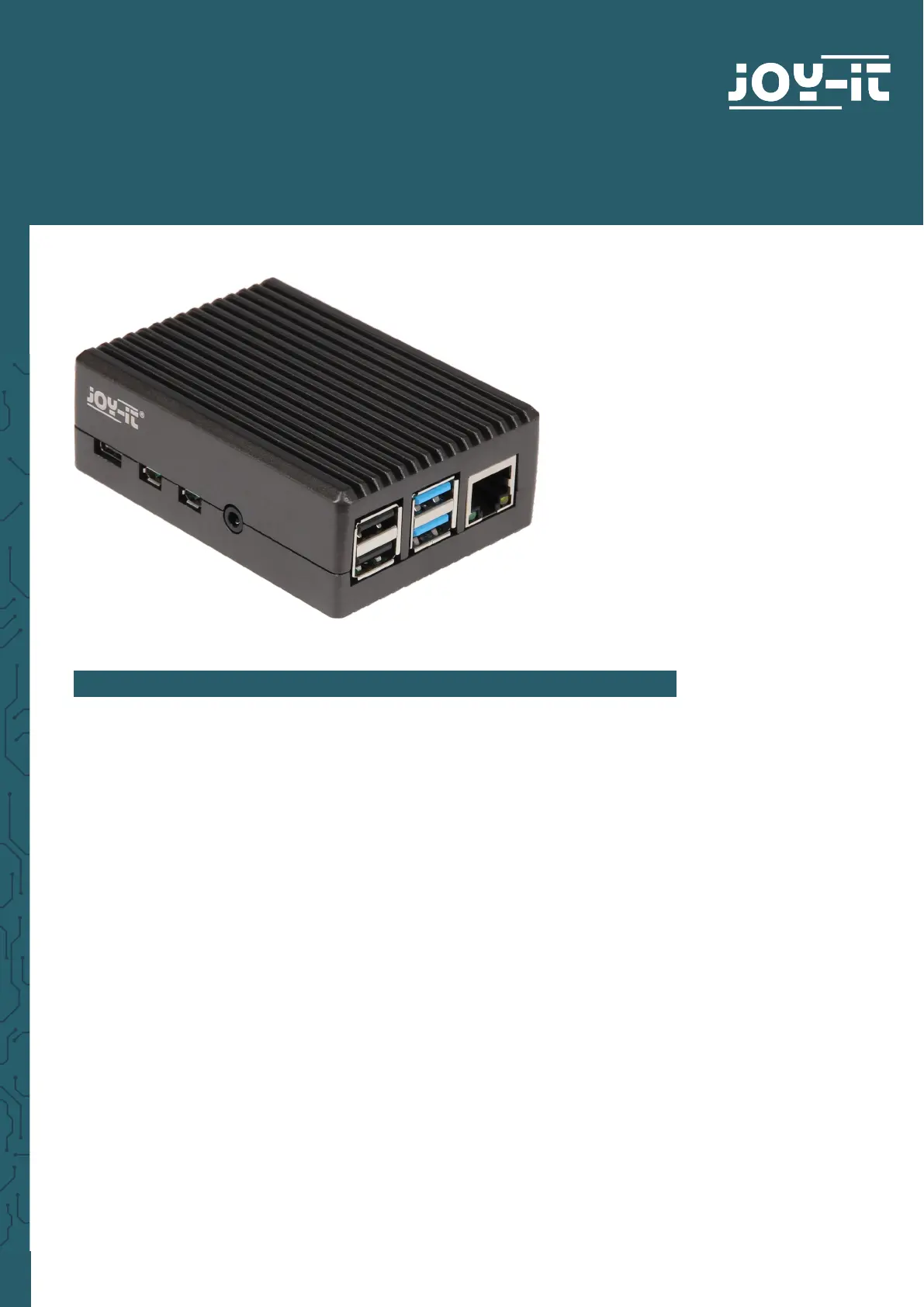

RB-AlucaseP4+08
1. GENERAL INFORMATION
1. GENERAL INFORMATION
1. GENERAL INFORMATION
1. GENERAL INFORMATION1. GENERAL INFORMATION
Dear customer,
Thank you for purchasing our product. In the following, we will show you
which things should be noted during the use.
Should you encounter any unexpected problems, do not hesitate to
contact
us.
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
2. ASSEMBLY
2. ASSEMBLY
2. ASSEMBLY
2. ASSEMBLY2. ASSEMBLY

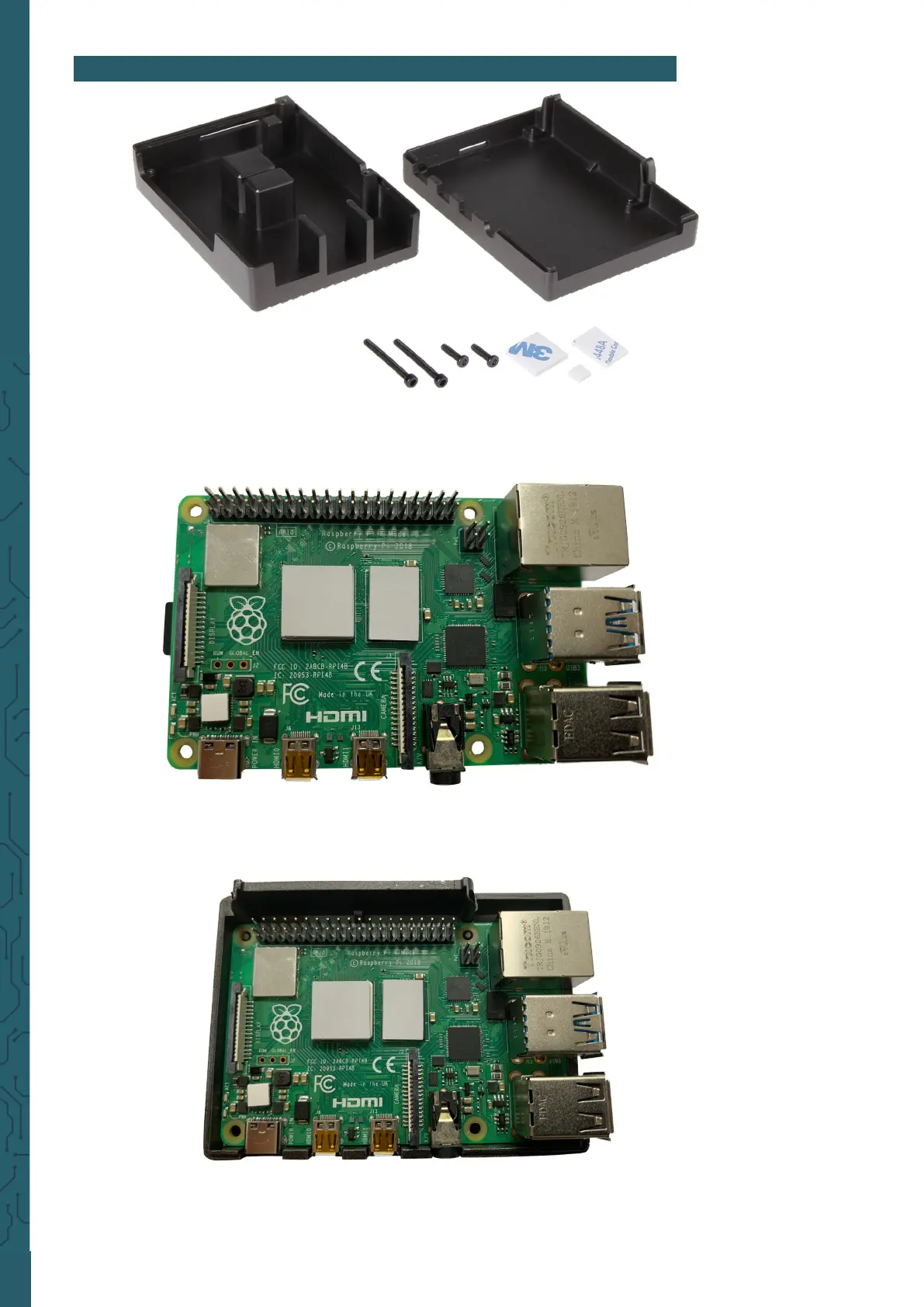

1. -Stick the heat conducting pad on the Raspberry Pi 4 like shown in
the following picture:
2. Next, you have to put your Raspberry Pi 4 into the bottom side of
the case.
Pascalstr. 8 47506 Neukirchen Vluyn-

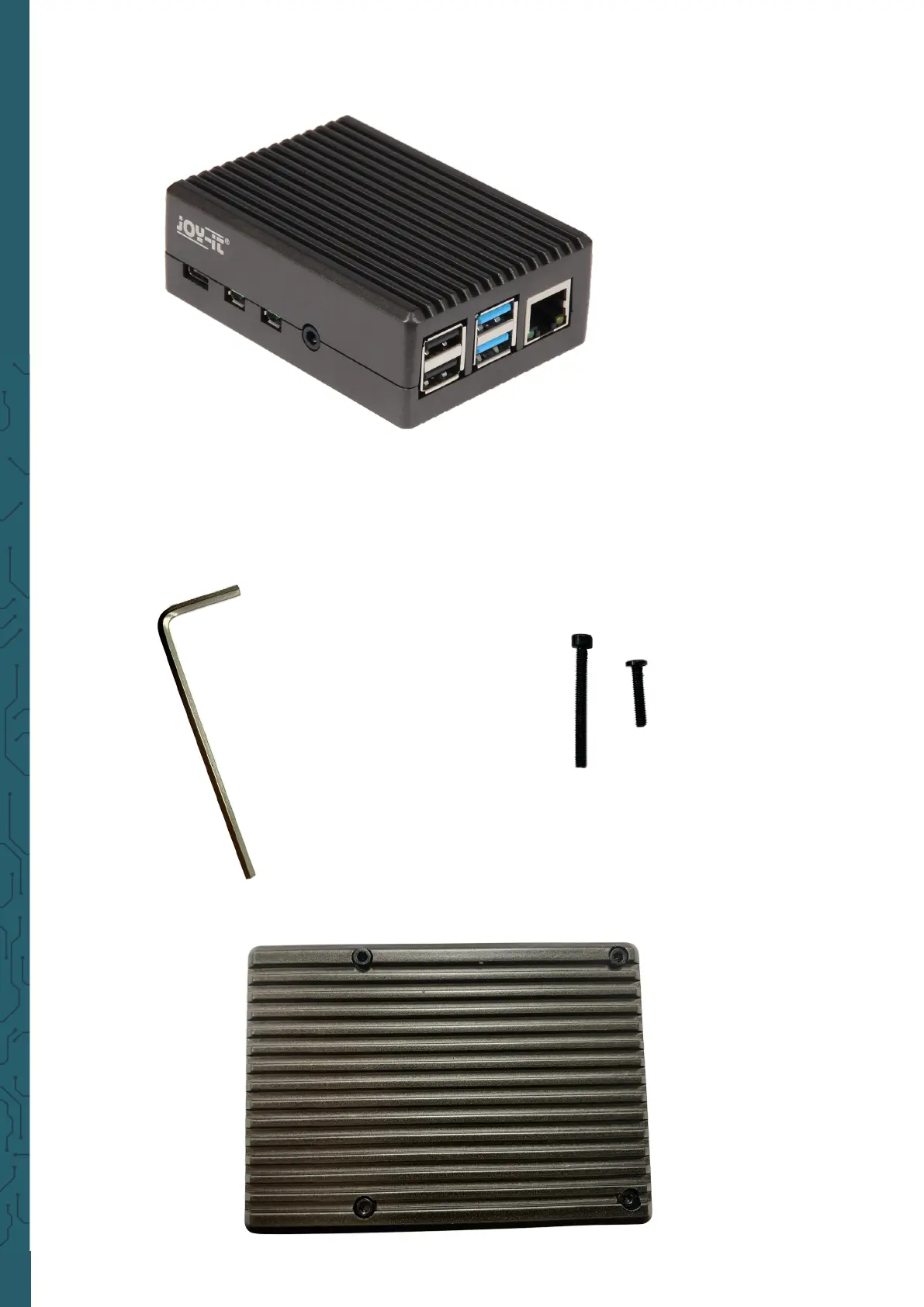

3. Now put the top onto the bottom part and turn around the Rasp-
berry Pi 4 with the case .
4. The case must be screwed tight now. Do this at the bottom part
of the case. Thereby please note that the shorter screws must be
used on the side with the HDMI ports and the longer ones on the side
-of the GPIO pins. The screws can be tightened with the help of the al
len key included in the scope of delivery.
