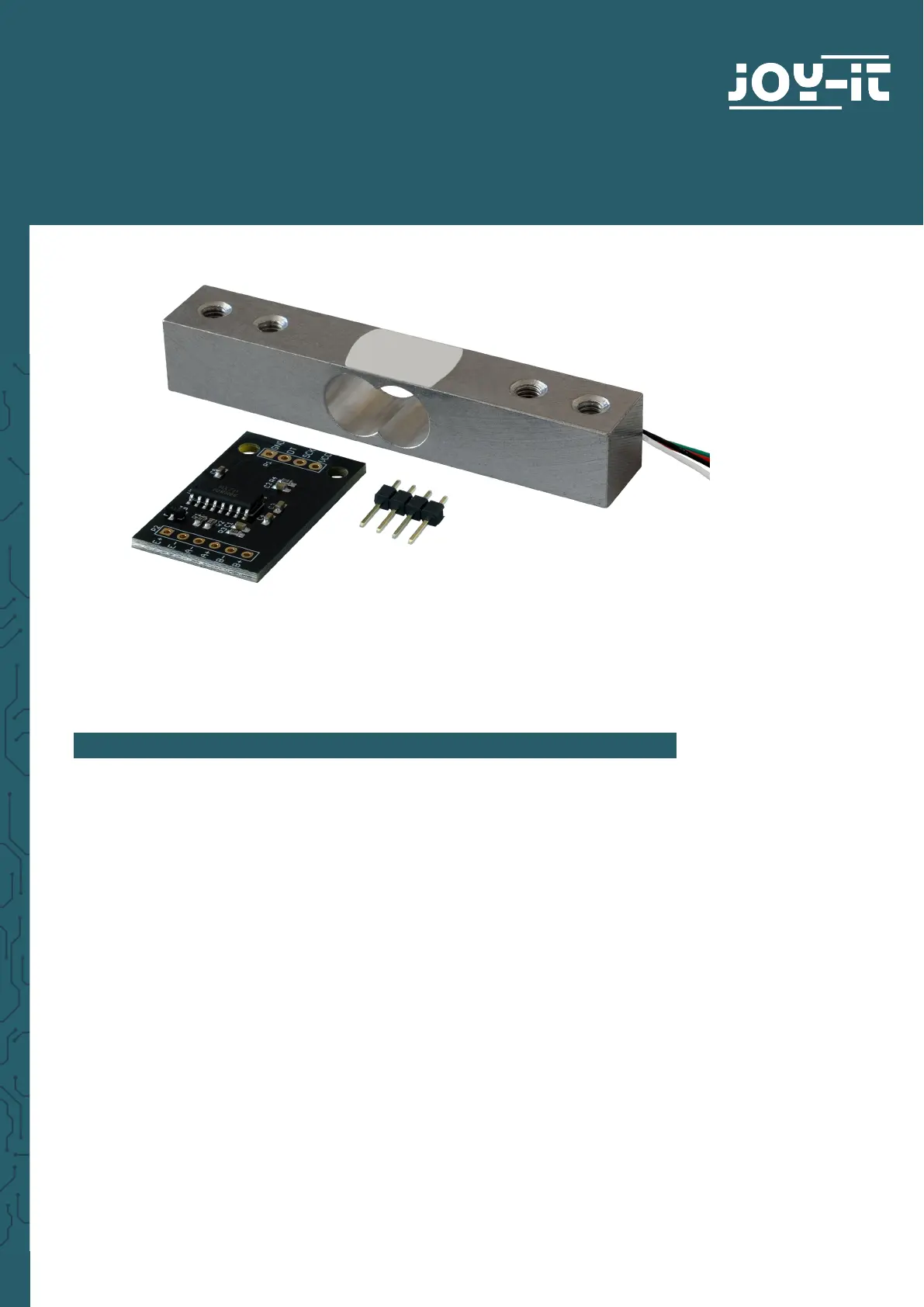

LOAD CELL

SEN-HX711

1. GENERAL INFORMATION

Dear customer,

thank you very much for choosing our product.

In following, we will introduce you to what to observe while starting up

and using this product.

Should you encounter any unexpected problems during use, please do

not hesitate to contact us.

For accurate measurements it is important to mount the load cell cor-

rectly.

The cell must be bolted into a solid base plate with the Integrated holes

on one side and the other side bolted to the bearing surface of your mea-

suring point.

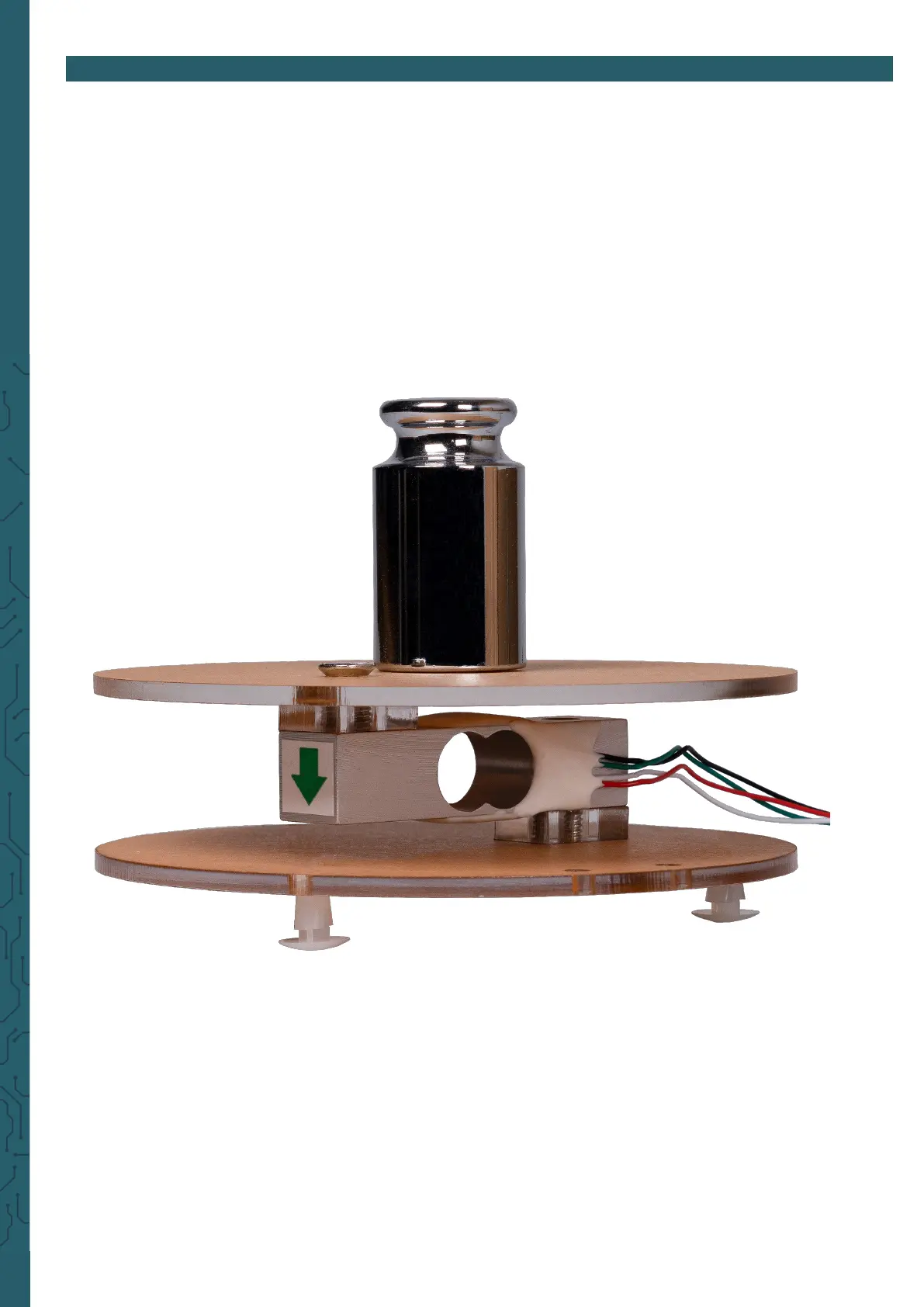

Example setup:

2. INSTALLATION OF THE LOAD CELL

3. USE WITH THE ARDUINO

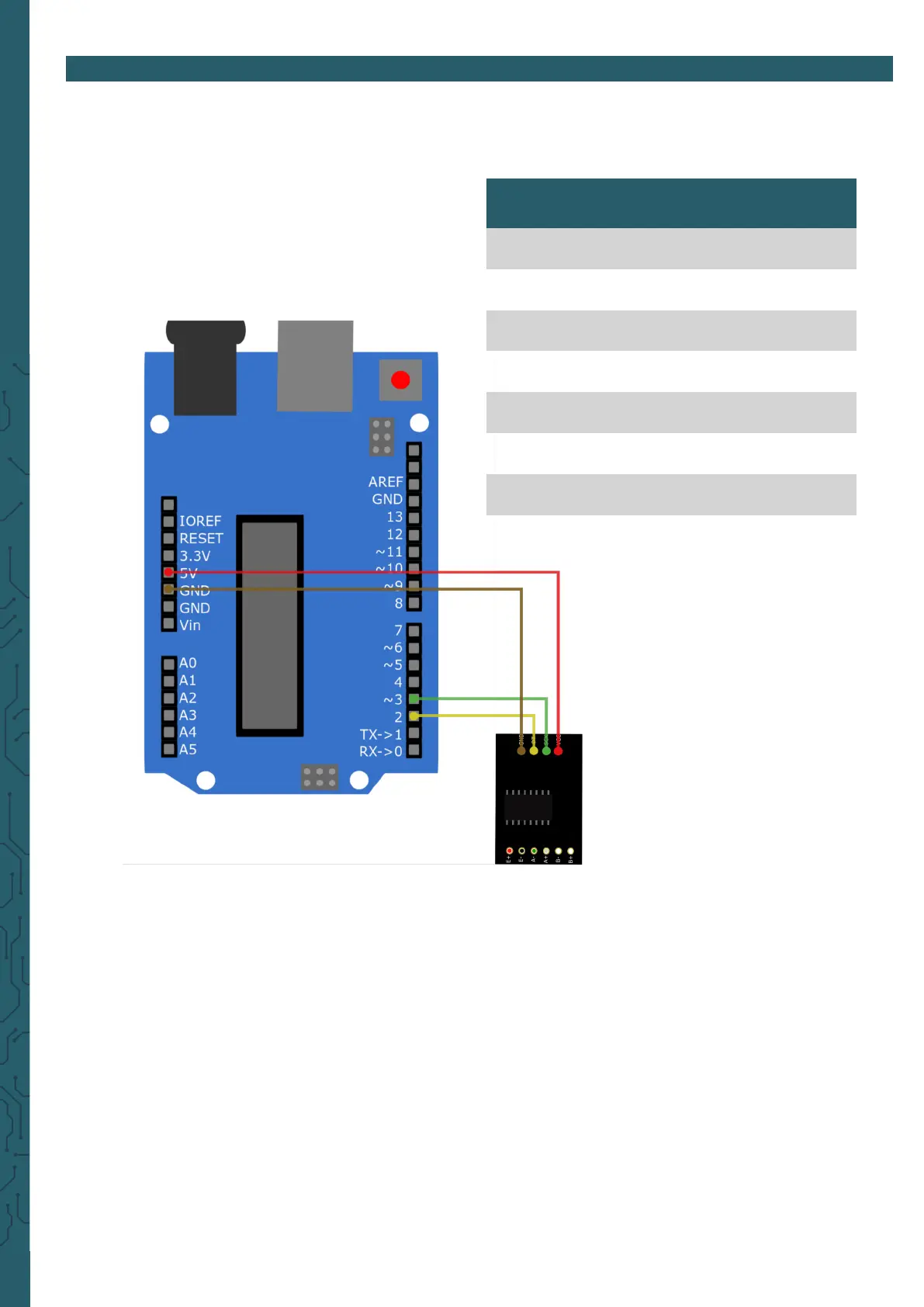

3.1 Wiring

3.2 Installation

To use the load cell, you must install a library. To do this, open your

Arduino IDE and click on:

Tools Manage libraries-> …

Now enter HX711 Arduino Library in the search field and install the library

HX711 Arduino Library by Bogdan Necula, Andreas Motl.

Arduino Amplifier board Load cell

5 V VCC -

GND GND -

Pin 3 SCK -

Pin 2 DT -

E+ Red

- E Black

- A Green

A+ White
