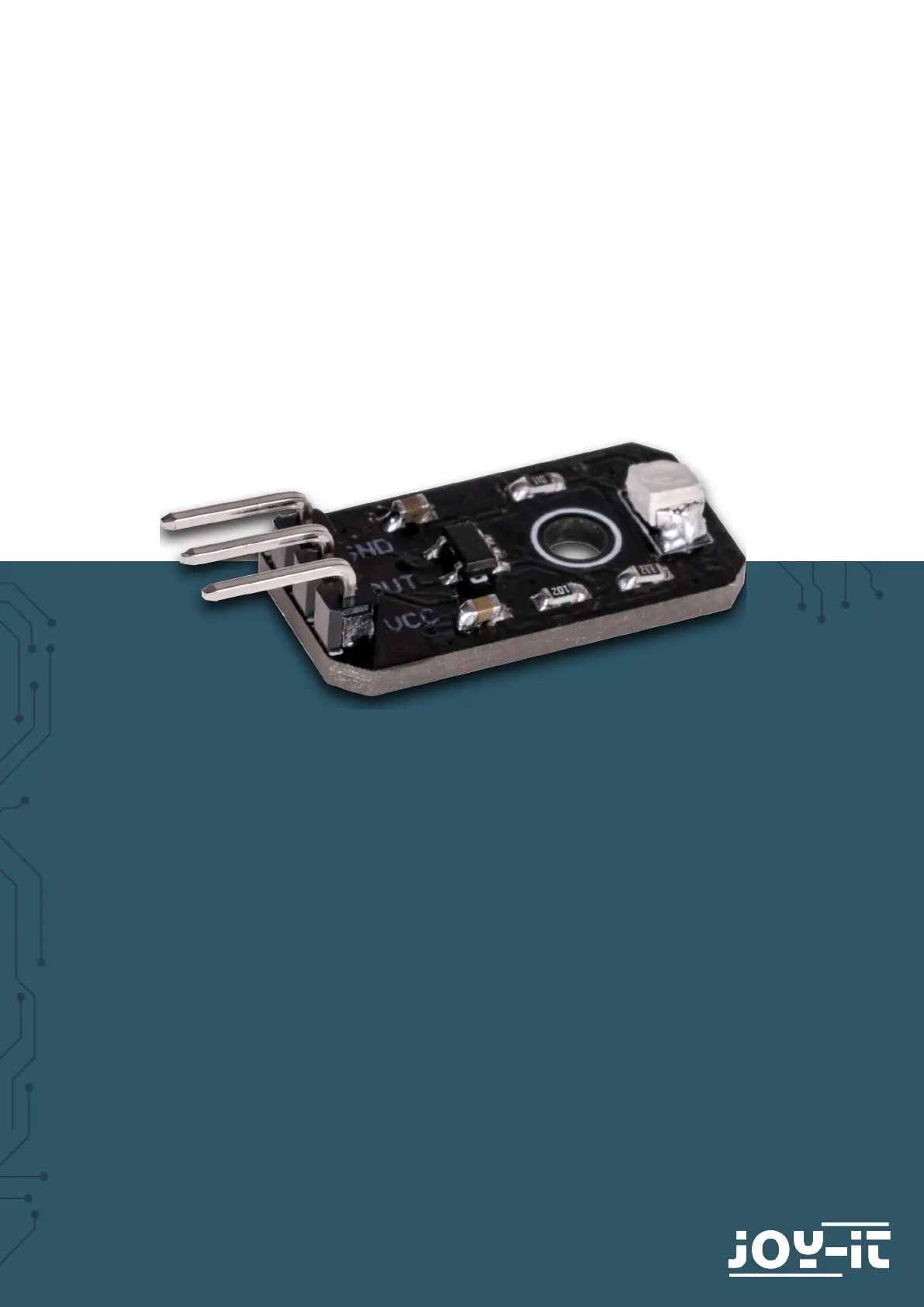

UV-SENSOR
Analog GUVA-S12SD UV-Photodiode
Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net
Dear customer,
thank you for choosing our product. In the following, we will show
you what to consider during commissioning and use.
Should you encounter any unexpected problems during use, please feel
free to contact us.
The module is equipped with a GUVA-S12SD photodiode, which can
measure the intensity of UV-B and UV-A rays.
The module can be connected as follows:
1. GENERAL INFORMATION
2. BASICS & CONNECTION OF THE MODULE
VCC
Analog
Output
Ground
First connect the module to your Arduino:
3. APPLICATION EXAMPLE ARDUINO
UV-SENSOR ARDUINO
GND
OUT
GND
A0
VCC 5 V
