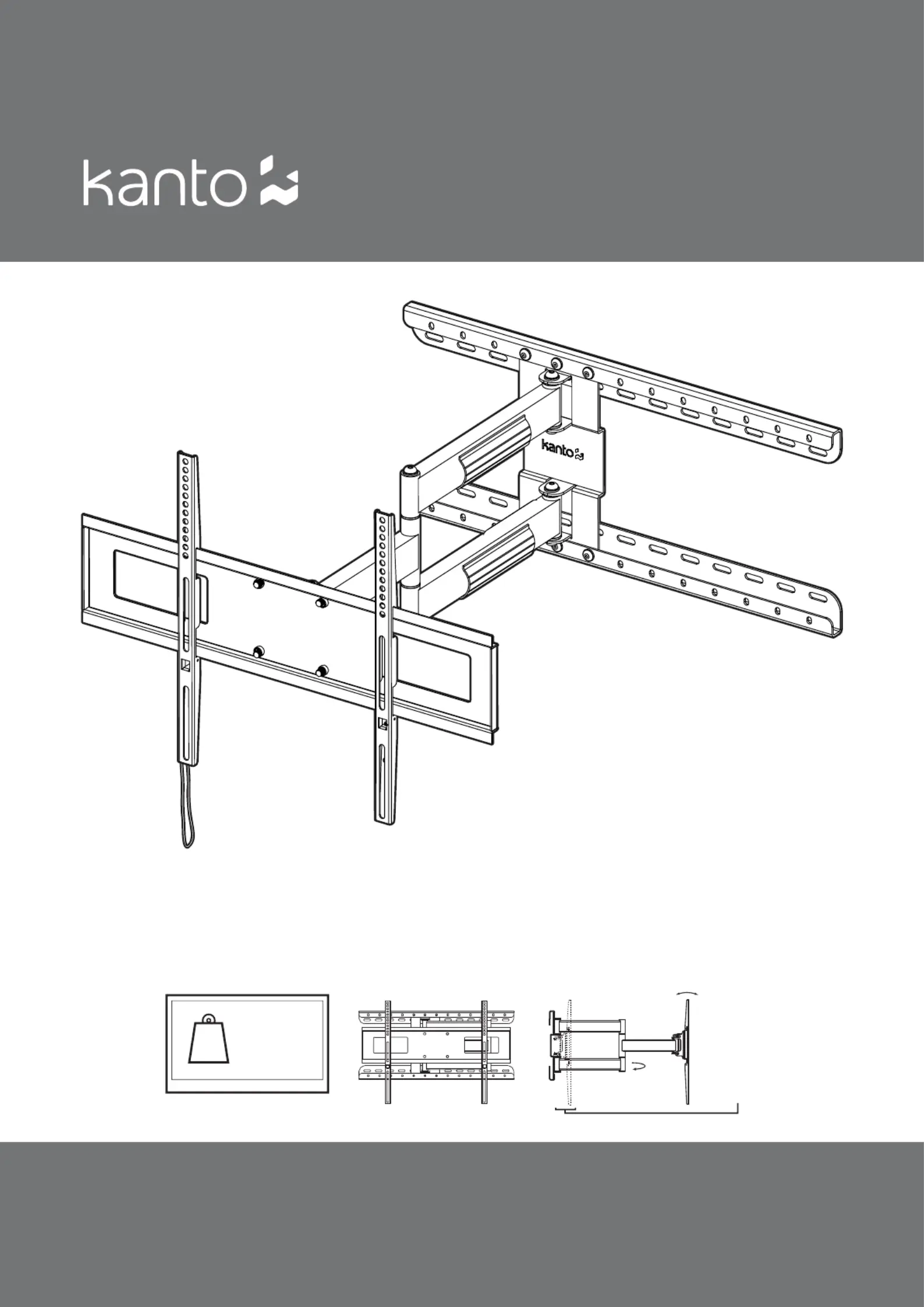

Sida 1/8
User Manual
FMC4 TV Mount
Supporting your digital lifestyle™
FULL MOTION FLAT PANEL TV MOUNT
English
100 lb
(45 kg)
100x100
-
600x400
VESA (8 - 66 cm)
3.1” - 26”
±135°
-5°/+10°
Introduction
Table of Contents
Table of Contents / Introduction . . . . . . . . . . . . . 2
Supplied Parts & Hardware . . . . . . . . . . . . . . . . . 3
Setup - Step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup - Step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup - Steps 3 to 4 . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup - Steps 5 to 6 . . . . . . . . . . . . . . . . . . . . . . . . 7
Other Kanto Products . . . . . . . . . . . . . . . . . . . . . . 8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2
Thank you for choosing a Kanto FMC4 full motion TV wall mount with adjustable pivot point. The FMC4 is designed
to mount fl at panel televisions weighing up to 100 lbs (45 kg), extend up to 26” from your wall, move your pivot point
from side to side up to 20”, pan left and right up to 135º (depending on TV size), and tilt your TV +10º / –5º.
Read these instructions fully before installation of this mount. If you do not understand these directions, or have
any doubts about the safety of the installation, please consult a qualifi ed installation contractor to install this mount.
Make sure there are no defective or missing parts. Do not use defective parts. If you are uncertain whether the part is
defective call Kanto Living directly at 1-888-848-2643 or support@kantoliving.com.
This product should not be mounted on steel stud walls or cinder block walls. Kanto cannot be liable for property
damage or injury caused by incorrect mounting, incorrect assembly, lifting or incorrect use of this product.
CAUTION
The maximum loading weight is 100 lbs (45 kg). This wall mount is intended for use only with the
maximum weights indicated. Use with products heavier than the maximum weights indicated may result in
instability causing possible injury.
CAUTION
The wall you plan to affi x the Kanto mount to must be able to support more than 5 times the weight of the
television and the wall mount combined. Do not use this product for any purpose other than to mount a fl at
panel TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your TV or
serious injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls. Consult
a qualifi ed installation contractor if you are unsure about the type of wall you may have.
Visit our website at kantoliving.com for the most recent version of this manual
See installation video online at:
Regarder la video d’installation en ligne à:
Vea el vídeo de instalación online en:
www.kantomounts.com
Supporting your digital lifestyle™
Supplied Parts and Hardware
3
Wall Plate
A: M5 x 15mm
Screw
C: M6 x 15mm
Screw
B: M5 x 25mm
Screw
D: M6 x 25mm
Screw
E: M8 x 20mm
Screw
G: M8 x 50mm
Screw
F: M8 x 35mm
Screw
L: Lag Bolt
N: 4mm Allen Key
O: 5mm Allen Key
P: 6mm Allen Key
M: Concrete Anchor
x4 x4 x4
K: 10 mm SpacerJ: 5mm Spacer
x4x8 x6
I: Lag Bolt Washer
x6
x6
x4 x4
x4 x4
x4
H: Washer
Q: Quick-Lock
Bracket Arm
R: Locking
Bracket Arm
Required Tools
Socket
Set
Phillips
Screwdriver
Hammer (for
Concrete
installs)
Stud
Finder
Level Drill
7/16”
Masonry
Bit
3/16”
Wood
Bit
Pencil
