KW1 WIRELESS SUBWOOFER ADAPTER KIT

Performance with convenience

KW1 is a wireless adapter system designed to work with KUBE 8b, 10b,

12b and KF92 of KEF subwoofers. Comprising a discreet transmitter

and receiver, using KW1 means KEF subwoofers can be optimally

placed, rather than limited by trailing cables. The high-quality wireless

transmission delivers every ounce of detail and impact from your

favourite  lms and music. KW1 is also perfectly suited for use with KEF's

LSX and LS50 Wireless Music Systems.

The KEF di erence

The diminutive transmitter and receiver units are designed for

function without drawing attention to themselves. The transmitter can

be powered by USB, while the receiver is powered directly by the KEF

subwoofer expansion port. In many cases, additional power sockets

are not required.

Unlike similar devices, KW1 operates in the high bandwidth 5GHz band,

delivering high-resolution audio up to 24bit/48kHz. Pairing is intuitive,

while a range of up to 30m (line of sight) makes subwoofer placement

easy. An advanced channel selection algorithm, vanishingly low latency

and data encryption ensures that day-to-day use is not only hassle-

free, but secure. The receiver is also available separately, allowing two

KEF subwoofers to receive the same signal wirelessly from the same

transmitter.

Expand your System Further

The KW1 RX receiver is also available separately, allowing a single

transmitter to deliver high quality audio to a second KEF subwoofer

wirelessly. By adding a second subwoofer, bass performance becomes

more consistent throughout the room, improving the experience for

every member of the audience.

Technology

• 24-bit 48KHz high resolution audioHigh Performance -

for pristine performance

• 5.2 & 5.8GHz selectable digital wirelessLossless Audio -

link for near lossless audio

• Advanced RF Selection Algorithm Advanced Algorithm -

• Wide Range - Up to 15 meter (30m/ 100 ft line of sight)

operational distance between transmitter and receiver

• Low Latency - Designed with latency of <17ms

KEF reserves the right, in line with continuing research and development, to amend or change speci cations. E&OE.

Visit: KEF.com for more about KEF and its products.

K W 1

Speci cations:

Model KW1 TX/RX System KW1 RX Receiver

Radio Frequency 5.2GHz and 5.8GHz 5.2GHz and 5.8GHz

Sampling Rate 24bit, 48KHz 24bit, 48KHz

Latency <17ms <17ms

Link Distance Max 100 ft (Line of sight) Max 100 ft (Line of sight)

Frequency Response 10Hz - 20kHz 10Hz - 20kHz

Signal-to-noise Ratio >80dB >80dB

Transmitter Power Input 5V DC 1A -

Audio Output Level 2V 2V

Transmitter Input Level 2V -

Total harmonic distortion typ.-90 dB typ.-90 dB

Radio Frequency 5150-5250MHz ≤ 23dBm 5150-5250MHz ≤ 23dBm

Output Power 5725-5850MHz ≤ 25mw 5725-5850MHz ≤ 25mw

Dimension H x W x D

Transmitter

Receiver

21.4 x 72 x 79.5mm

27 x 37 x 72mm

05.2020 | KW1

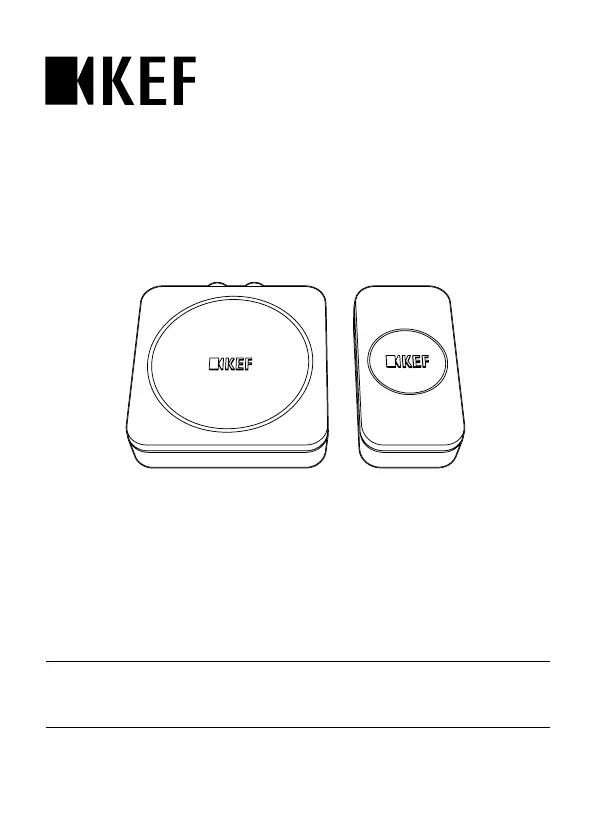

Transmitter Receiver
