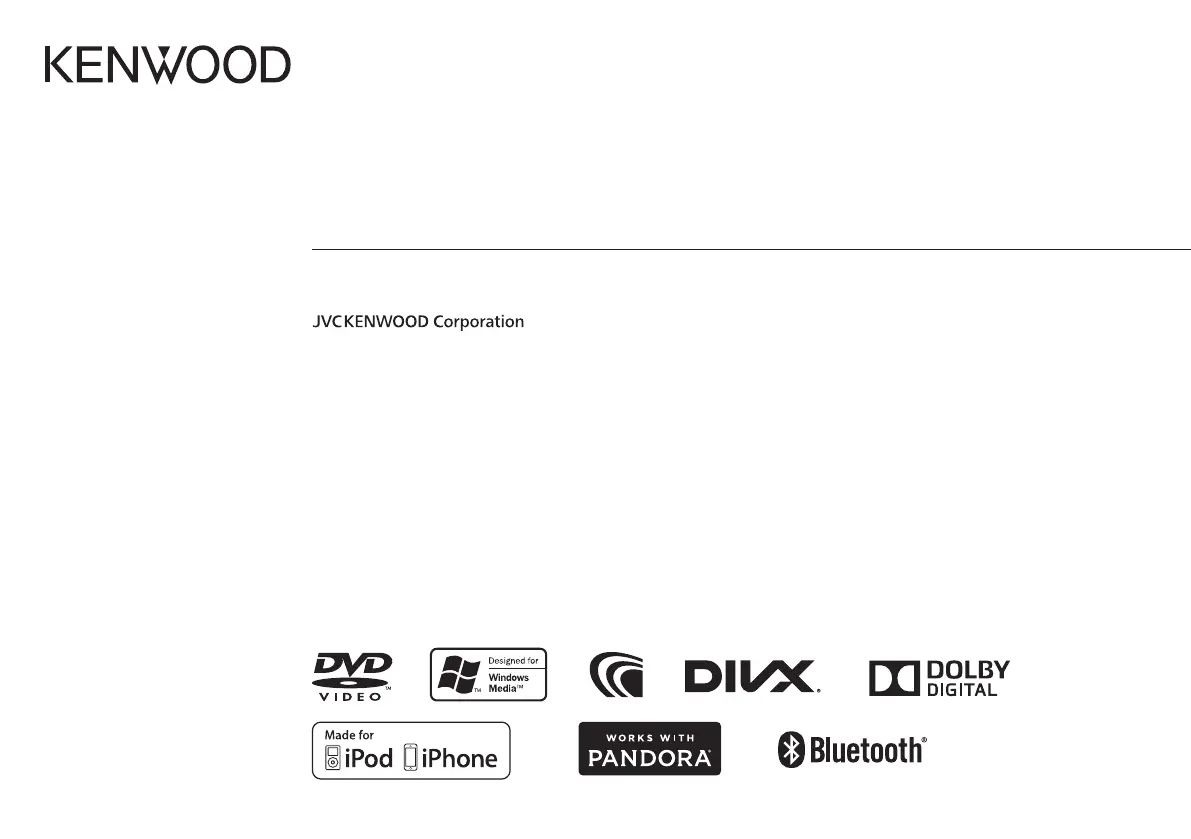

DDX6016BT

DDX6016BTM

DDX4016BT

MONITOR WITH DVD RECEIVER

INSTRUCTION MANUAL

This instruction manual is used to describe models listed below. Model availability and features (functions)

may di er depending on the country and sales area.

t3FHJPO%7%3FHJPO$PEFBSFB

t3FHJPO%7%3FHJPO$PEFBSFB

t3FHJPO%7%3FHJPO$PEFBSFB

t3FHJPO%7%3FHJPO$PEFBSFB

DDX416BT

DDX416BTM

DDX316

DDX316M

DDX616WBT

DDX616WBTM

ENGLISH 3

For DDX6016BTM/DDX416BTM/DDX616WBTM

Declaration of Conformity with regard to the

EMC Directive

Declaration of Conformity with regard to the

R&TTE Directive 1999/5/EC

Declaration of Conformity with regard to the

RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi,

Kanagawa, 221-0022, Japan

EU Representative:

JVCKENWOOD NEDERLAND B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, The

Netherlands

English

Hereby, JVC KENWOOD declares that this unit

“DDX6016BTM/DDX416BTM/DDX616WBTM ” is in

compliance with the essential requirements and

other relevant provisions of Directive 1999/5/EC.

Türkçe

Bu vesileyle JVC KENWOOD, “DDX6016BTM/

DDX416BTM/DDX616WBTM ” ünitesinin,1999/5/

EC Direktifinin ba lıca gereksinimleri ve di er ilgili ş ğ

hükümleri ile uyumlu oldu unu beyan eder.ğ

For DDX316M

Declaration of Conformity with regard to the

EMC Directive

Declaration of Conformity with regard to the

RoHS Directive 2011/65/EU

Manufacturer:

JVC KENWOOD Corporation

3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi,

Kanagawa, 221-0022, Japan

EU Representative:

JVCKENWOOD NEDERLAND B.V.

Amsterdamseweg 37, 1422 AC UITHOORN, The

Netherlands

For Turkey

Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan

Atik Elektrikli ve Elektronik E yalarin Kontrolü ş

Yönetmeli e uygun olarak üretilmi tir.ğ ş

Eski Elektrik ve Elektronik Ekipmanların mha İ

Edilmesi Hakkında Bilgi (ayrı atık toplama

sistemlerini kullanan ülkeleri için uygulanabilir)

Sembollü (üzerinde çarpı i areti olan çöp ş

kutusu) ürünler ev atıkları olarak atılamaz.

Eski elektrik ve elektronik ekipmanlar,

bu ürünleri ve ürün atıklarını

geri dönü türebilecek bir tesiste ş

de erlendirilmelidir. Ya adı ınız bölgeye ğ ş ğ

en yakın geri dönü üm tesisinin yerini ş

ö renmek için yerel makamlara müracaat ğ

edin. Uygun geri dönü üm ve atık imha ş

yöntemi sa lı ımız ve çevremiz üzerindeki ğ ğ

zararlı etkileri önlerken kaynakların

korunmasına da yardımcı olacaktır.

V Cautions on the monitor:

• The monitor built into this unit has been

produced with high precision, but it may have

some ineffective dots. This is inevitable and is not

considered defective.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point

pen or similar tool with a sharp tip.

Touch the buttons on the touch panel with your

finger directly (if you are wearing a glove, take it

off).

• When the temperature is very cold or very hot...

– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with

the sound or picture quality may decline in such

environments.

For safety...

• Do not raise the volume level too much, as this

will make driving dangerous by blocking outside

sounds, and may cause hearing loss.

• Stop the car before performing any complicated

operations.

Temperature inside the car...

If you have parked the car for a long time in hot or

cold weather, wait until the temperature in the car

becomes normal before operating the unit.

How to reset your unit

If the unit fails to operate properly, press the reset

button.

DDX6016BT/DDX6016BTM

DDX4016BT/DDX416BT/DDX416BTM/DDX316/

DDX316M

DDX616WBT/DDX616WBTM

BEFORE USE

BEFORE USEBEFORE USE

INITIAL SETTINGS

INITIAL SETTINGSINITIAL SETTINGS

Initial setup

When you power on the unit for the first time or

reset the unit, the initial setting screen appears.

• You can also change the settings on the <Setup>

screen. (Page 54)

1 Perform the initial settings.

• Press [ ] repeatedly to display more items.

(Page 55)

Activate or deactivate the

display demonstration.

(Page 56)

Select the text language

used for on-screen

information.

• Set <GUI Language>

to display the operation

buttons and menu items

in the selected language

( ) or English [Local]

( ).[English]

<Angle>*

(Page 9)

Adjust the panel angle.

(Page 23)

Select the connection

method of iPod/iPhone.

(Page 32)

Configure the settings to

display the picture from

the connected front view

camera.

(Page 32)

Configure the settings to

display the picture from

the connected rear view

camera.

<User

Customize>

(Page 50)

Change the display design.

2 Finish the procedure.

• Press [ ] repeatedly to change the page on

the screen.<Initial Setup>

The Home screen is displayed.

Only for DDX6016BT/DDX6016BTM/DDX616WBT/DDX616WBTM.

Setting the security function

Registering a security code

You can set a security code to protect your receiver

system against theft.

1 Display the Home screen.

On the monitor panel:

DDX616WBT/DDX616WBTM

DDX6016BT/DDX6016BTM

DDX4016BT/DDX416BT/

DDX416BTM/DDX316/

DDX316M

2 Display the setting screen.<System>

3 Display the screen.<Security Code Set>

• Press [ ] repeatedly to change the page on

the menu screen.<System>

• To clear the registered security code, perform

steps and , then press in 1 2 [CLR] <Security

Code>.

4 Enter a four-digit number ( ), then 1

confirm the entry ( ).2

• Press to delete the last entry.[Clear]

• Press to cancel the setting.[Cancel]

• Press [ ] to return to the current source

control screen.
