KDC-4590R

KDC-4590RV

KDC-4090R

KDC-3090RG

KDC-3090RA

KDC-305RG

KDC-305RA

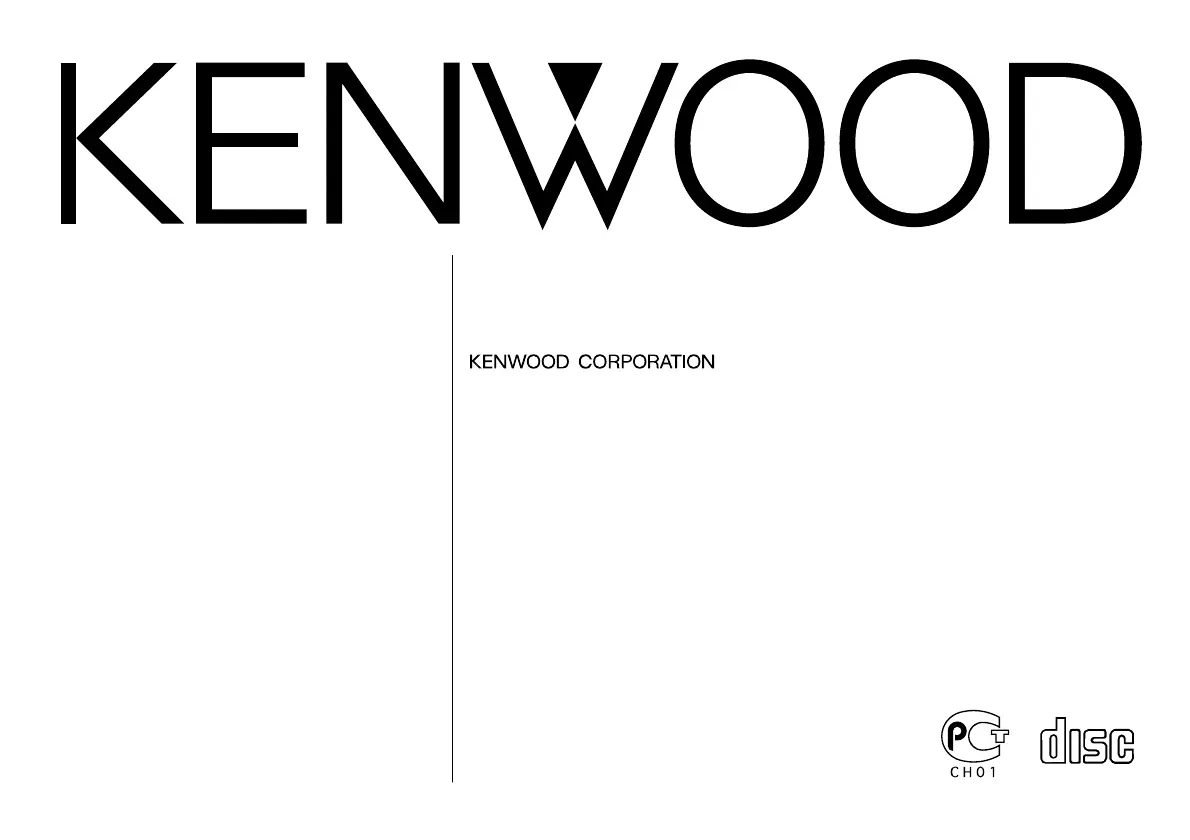

B64-1835-00 (EN)

COMPACT

DIGITAL AUDIO

CD-RECEIVER

INSTRUCTION MANUAL

— 2 —

English

Contents

Safety precautions................................................3

Handling Compact discs .......................................5

General features

Power............................................................................................7

Volume..........................................................................................7

Attenuator .....................................................................................7

Switching Modes..........................................................................8

Loudness ......................................................................................8

System Q......................................................................................8

Mobile Preset................................................................................9

TEL Mute ......................................................................................9

Audio Control Setting..................................................................10

Theft Deterrent Faceplate...........................................................10

Tuner features

Tuning .........................................................................................12

Station Preset Memory...............................................................12

Clock display ...............................................................................12

RDS features

RDS (Radio Data System)...........................................................13

Traffic Information Function........................................................14

Programme Type (PTY) Function................................................14

Enhanced Other Network ...........................................................15

Alarm...........................................................................................15

Presetting Volume for Traffic Information/News........................16

CD/External disc control features

Playing CDs.................................................................................17

Playing Other Disc mode............................................................17

Switching Display for Discs ........................................................18

Fast Forwarding and Reversing Disc Play ..................................18

Track Search ...............................................................................18

Disc Search.................................................................................19

Track / Disc Repeat.....................................................................19

Track Scan...................................................................................19

Random Play...............................................................................20

Magazine Random Play...............................................................20

Presetting Disc Names (DNPS) ..................................................20

Text Scroll ...................................................................................21

Menu settings

Menu System .............................................................................22

Touch Sensor Tone.....................................................................23

Manual Time Adjustment............................................................23

Automatic Time Adjustment.......................................................23

Disabled System Indicator (DSI) .................................................23

Selectable Illumination................................................................24

News Bulletin Function with PTY News Timeout Setting..........24

Local Seek Function ...................................................................24

Selecting Tuning Mode...............................................................24

Auto Memory Entry ....................................................................24

AF (Alternative Frequency) Function ..........................................25

Restricting RDS Region (Region Restrict Function) ...................25

Auto TP Seek Function ..............................................................25

Monaural Reception ...................................................................26

Text Scroll ...................................................................................26

Name Preset...............................................................................26

Power OFF Timer........................................................................26

Installation

Accessories.................................................................................27

Installation Procedure .................................................................27

Connecting Cables to Terminals.................................................28

Installation...................................................................................29

Troubleshooting Guide .......................................31

Specifications .....................................................35

— 3 —

To prevent injury and/or fire, take the

following precautions:

•Insert the unit all the way until it is fully

locked in place. Otherwise it may fly out of

place during collisions and other jolts.

•When extending the ignition, battery or

ground cables, make sure to use

automotive-grade cables or other cables

with an area of 0.75mm2(AWG18) or more

to prevent cable deterioration and damage

to the cable coating.

•To prevent short circuits, never put or leave

any metallic objects (e.g., coins or metal

tools) inside the unit.

•If the unit starts to emit smoke or strange

smells, turn off the power immediately and

consult your Kenwood dealer.

•Make sure not to get your fingers caught

between the faceplate and the unit.

•Be careful not to drop the unit or subject it

to strong shock.

The unit may break or crack because it

contains glass parts.

•Do not touch the liquid crystal fluid if the

LCD is damaged or broken due to shock.

The liquid crystal fluid may be dangerous to

your health or even fatal.

If the liquid crystal fluid from the LCD

contacts your body or clothing, wash it off

with soap immediately.

2WARNING

To prevent damage to the machine,

take the following precautions:

• Make sure to ground the unit to a negative

12V DC power supply.

• Do not open the top or bottom covers of the

unit.

• Do not install the unit in a spot exposed to

direct sunlight or excessive heat or humidity.

Also avoid places with too much dust or the

possibility of water splashing.

• Do not set the removed faceplate or the

faceplate case in areas exposed to direct

sunlight, excessive heat or humidity. Also

avoid places with too much dust or the

possibility of water splashing.

• To prevent deterioration, do not touch the

terminals of the unit or faceplate with your

fingers.

• Do not subject the faceplate to excessive

shock, as it is a piece of precision

equipment.

• When replacing a fuse, only use a new one

with the prescribed rating. Using a fuse with

the wrong rating may cause your unit to

malfunction.

• To prevent short circuits when replacing a

fuse, first disconnect the wiring harness.

• Do not place any object between the

faceplate and the unit.

• During installation, do not use any screws

except for the ones provided. The use of

improper screws might result in damage to

the main unit.

2CAUTION

IMPORTANT INFORMATION

About the disc changer to be

connected:

To connect a disc changer having the "O-N"

switch to this unit, set the "O-N" switch to

"N".

To connect a disc changer having no "O-N"

switch to this unit, the converter cord CA-

DS100 and/or switching adapter KCA-S210A

are required as options.

If a model with no "O-N" switch is

connected, some unavailable functions and

information that cannot be displayed are

generated, such as the DNPS, DNPP,

Magazine random play, and CD Text display.

Note that none of the KDC-C100, KDC-C302,

C205, C705, and non-Kenwood CD changers

can be connected.

You can damage both your unit and

the CD changer if you connect them

incorrectly.

Do Not Load 8-cm (3-in.) CDs in the

CD slot

If you try to load an 8-cm CD with its adapter

into the unit, the adapter might separate

from the CD and damage the unit.

2CAUTION

Safety precautions
