Sida 1/36

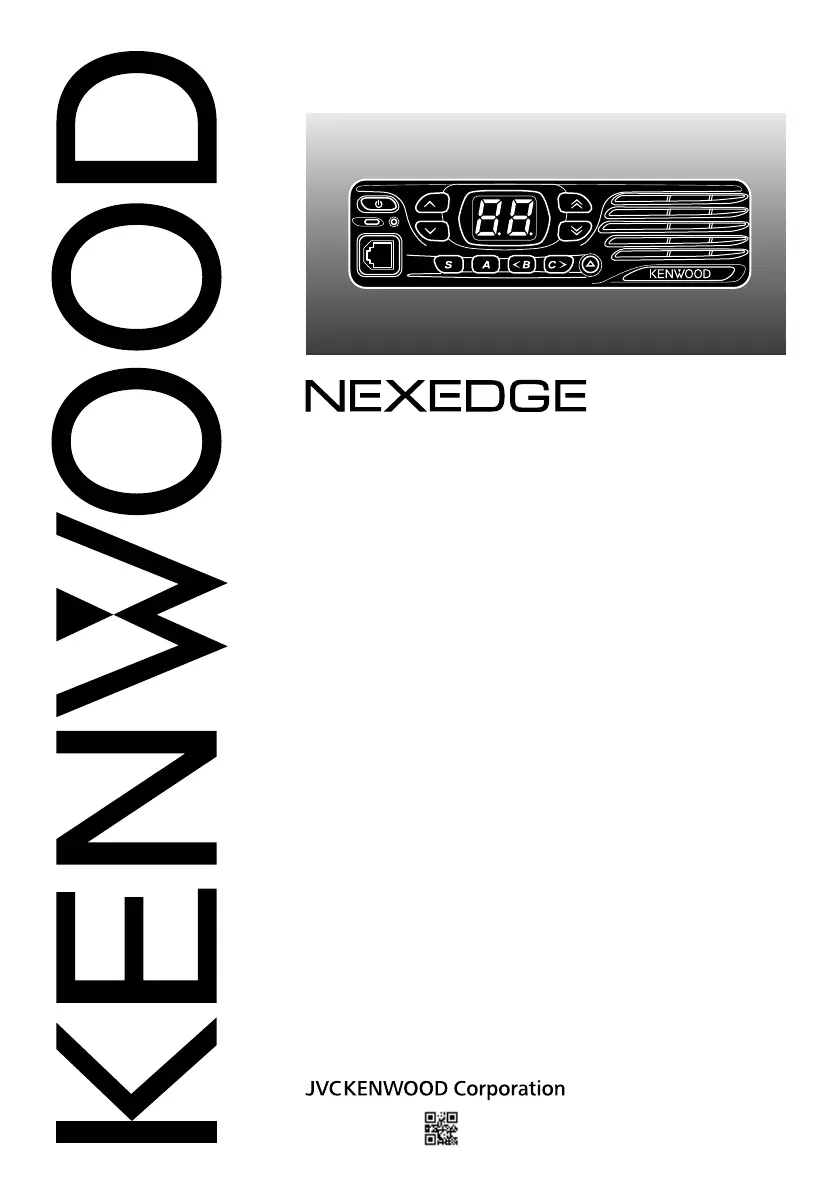

VHF DIGITAL TRANSCEIVER
NX-740H NX-740HV
UHF DIGITAL TRANSCEIVER
NX-840H NX-840HU
INSTRUCTION MANUAL
B5A-0031-20 (K)
Terminal Descriptions
ACC (D-SUB 15 Pin Connector)
Pin No. Name I/O Description Specifi cation
1 SB O DC Power (Switched B) Output 13.6 V ±15% Max. 1 A
2 IGN I Igintion Signal Input Min. Input: 10.8 V
Max. Input: 16.0 V
3 SP2/PA O Loudspeaker Output/ Public Address Output 4
4 DETO O RX Detected Audio Output 280 mVp-p (typ.)
5 DATAI I TX Data Input 100 k
6 FNC1/ TXD I/O Programmable/ PC Serial Data from Radio High Impedance
7 FNC2/ RXD I/O Programmable/ PC Serial Data to Radio High Impedance
8 FNC3 I/O Programmable High Impedance
9 FNC4 I/O Programmable High Impedance
10 FNC5 I/O Programmable High Impedance
11 FNC6 I/O Programmable High Impedance
12 50MC O DC Power Output 5 V, Max 100 mA
13 HR1 I Horn Alert Signal Input Max 2 A
14 HR2 O Horn Alert Signal Output Max 2 A
15 GND — Ground Ground
Speaker Jack (3.5 mm Phone Jack) 4 W/ 4
Pin No. Name I/O Description Specifi cation
1 SPO O External Speaker Output 4
3 GND — Ground Ground
DC Input Connector
Pin No. Name I/O Description Specifi cation
Red B I DC Power Input 13.6 V ±15%
Black GND I Ground Ground
Microphone Jack
Pin No. Name I/O Description Specifi cation
1 MBL O MIC Backlight Control High Impedance
2 SB O DC Power (Switched B) Output 13.6 V ±15%
3 GND — Ground Ground
4 PTT/ TXD I/O PTT/ PC Serial Data from Radio High Impedance
5 ME — Mic Ground Ground
6 MIC I Mic Signal Input 600
7 HOOK/ RXD I Hook/ PC Serial Data to Radio High Impedance
8 DM I/O Mic Data Detection High Impedance
Antenna Terminal
50 impedance
i
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or modifi cations to this equipment
may cause harmful interference unless the modifi cations are expressly approved by the party responsible/
JVC KENWOOD. The user could lose the authority to operate this equipment if an unauthorized change
or modifi cation is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can generate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that the interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer for technical assistance.
The AMBE+2TM voice coding Technology embodied in this product is protected by intellectual property
rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding
Technology is licensed solely for use within this Communications Equipment. The user of this Technology
is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the
Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos.
#5,826,222, #5,754,974, #5,701,390, and #5,715,365.
Firmware Copyrights
The title to and ownership of copyrights for fi rmware embedded in KENWOOD product memories are reserved for
JVC KENWOOD Corporation.
THANK YOU
We are grateful you have chosen for your personal mobile applications.KENWOOD
This instruction manual covers only the basic operations of your mobile radio. Ask your dealer for
information on any customized features they may have added to your radio.
NOTICES TO THE USER
◆ Government law prohibits the operation of unlicensed transmitters within the territories under
government control.
◆ Illegal operation is punishable by fi ne and/or imprisonment.
◆ Refer service to qualifi ed technicians only.
SAFETY: It is important that the operator is aware of, and understands, hazards
common to the operation of any transceiver.
◆ EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry
spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area.
◆ INJURY FROM RADIO FREQUENCY TRANSMISSIONS
Do not operate your transceiver when somebody is either standing near to or touching the
antenna, to avoid the possibility of radio frequency burns or related physical injury.
◆ DYNAMITE BLASTING CAPS
Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them
to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where
“TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps
in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not
transmit while the caps are being placed into or removed from the container.
© 2015
