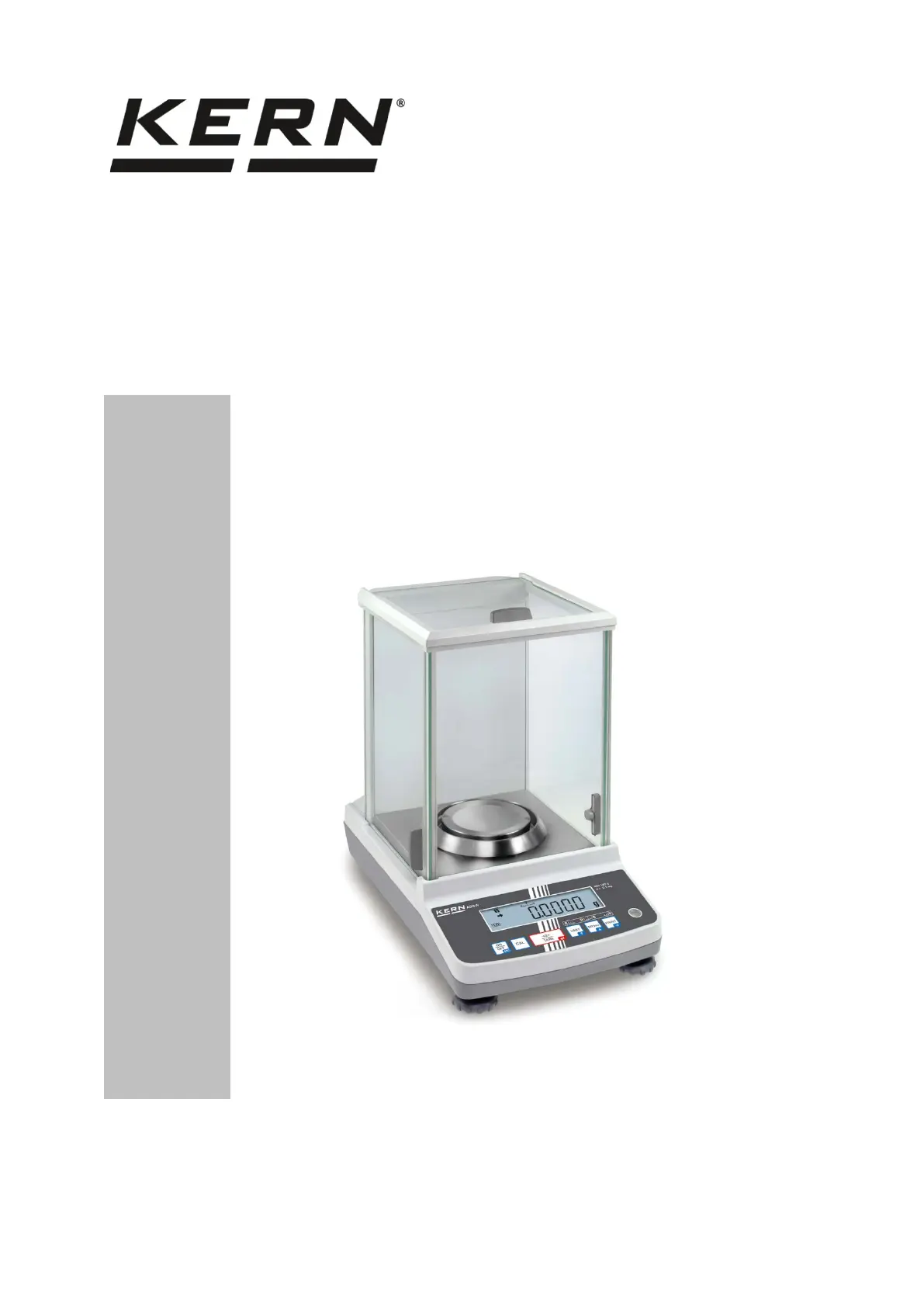

KERN ABJ 320-4NM
The bestseller in analytical balances, with high-quality single-cell weighing system
1
Category
Brand KERN
Product categoriy Laboratory balance
Product group Analytical balance
Product family ABJ
Measuring System
Construction type of the scale Single-range balance
Weighing system Single-Cell
Weighing capacity [Max] 320 g
Weighing capacity [Max] (ct) 1600 ct
Readability [d] 0,0001 g
Readability carat [d] (ct) 0,001 ct
Resolution 3.200.000
Linearity ± 0,0003 g
Reproducibility 0,0002 g
Default unit g
Units
g
mg
ct
Units (if device is conformity
assessed)
g
mg
ct
USP Minimum weight of sample (k
= 2, U = 0.1%) 400 mg
Minimum weight [Min] (ct) 0,1 ct
Adjustment options
Internal calibration
(automatic)
Adjusting with internal
weight (manual)
Automatic adjustment - Standard
temperature deviation 2 °C
Automatic adjustment - Standard
time interval 4 h
Stabilization time 3 s
Warm-up time 8 h
Eccentric loading at 1/3 [Max] 0,0005 g
Maximum creep (15 minutes) 1 mg
Maximum creep (30 minutes) 2 mg
Approval
CE mark ✓
Display
Display type LCD
Display screen size 115×32 mm
Display backlight no
Display digit height 14 mm
Languages of the user interface Symbol language
Construction
Dimension housing (W×D×H) 213×333×338 mm
Dimensions rectangular draught
shield - inner (W×D×H) 174×162×227 mm
Dimensions rectangular draught
shield - outer (W×D×H) 201×220×256 mm
Material display housing Plastics
Material housing cast aluminium, plastic
Material weighing plate stainless steel
Material draught shield glass
Dimensions weighing surface (Ø) 91 mm
Levelling feet adjustable ✓
Functions
Number of keys for operation 6
Auto-off interval(s) in mains power
mode 0 - 99 min
Tare function manual (multi)
Percentage determination ✓
Counting function ✓
Tolerance weighing ✓
Tolerance weighing - type of signal visual
Standby function ✓
Recipe/summing level Rez A (Net total)
Sum memory function ✓
Underfloor weighing None
Interfaces RS-232 (optional)
KERN ABJ 320-4NM
The bestseller in analytical balances, with high-quality single-cell weighing system
2
Counting
Smallest piece weight when piece
counting - laboratory conditions 1 mg
Smallest piece weight when piece
counting - normal conditions 10 mg
Counting reference weight can be
entered ✓
Reference quantity 5, 10, 20, 50, 100
Counting resolution (laboratory
conditions) 320.000
Power Supply
Input voltage power supply /
power [Max] 110 V - 230 V AC
Input voltage device / power [Max] 12 V DC, 1000 mA
Plug-in power supply type Power adapter
Supplied power supply Power supply unit
Plug-in power supply / adapter for
countries - included with the
delivery
EURO
AUS
UK
US
CH
Plug-in power supply / adapter for
countries - optional
EURO
AUS
UK
US
CH
Environmental conditions
Humity of environment [Min] 20 %
Humity of environment [Max] 85 %
Ambient temperature [Min] 10 °C
Ambient temperature [Max] 30 °C
Storage temperature [Min] -10 °C
Storage temperature [Max] 50 °C
Packing & Shipping
Readability force [d] (N) 1 d
Dimensions packaging (W×D×H) 390×570×530 mm
Net weight 6,44 kg
Shipping method Parcel service
Net weight approx. 7 kg
Gross weight approx. 9 kg
Shipping weight 23,6 kg
Services (optional)
Article number for DAkkS
calibration 963-101
Article number for certificate of
conformity (verification) 969-517
Pictograms
STANDARD
OPTION
