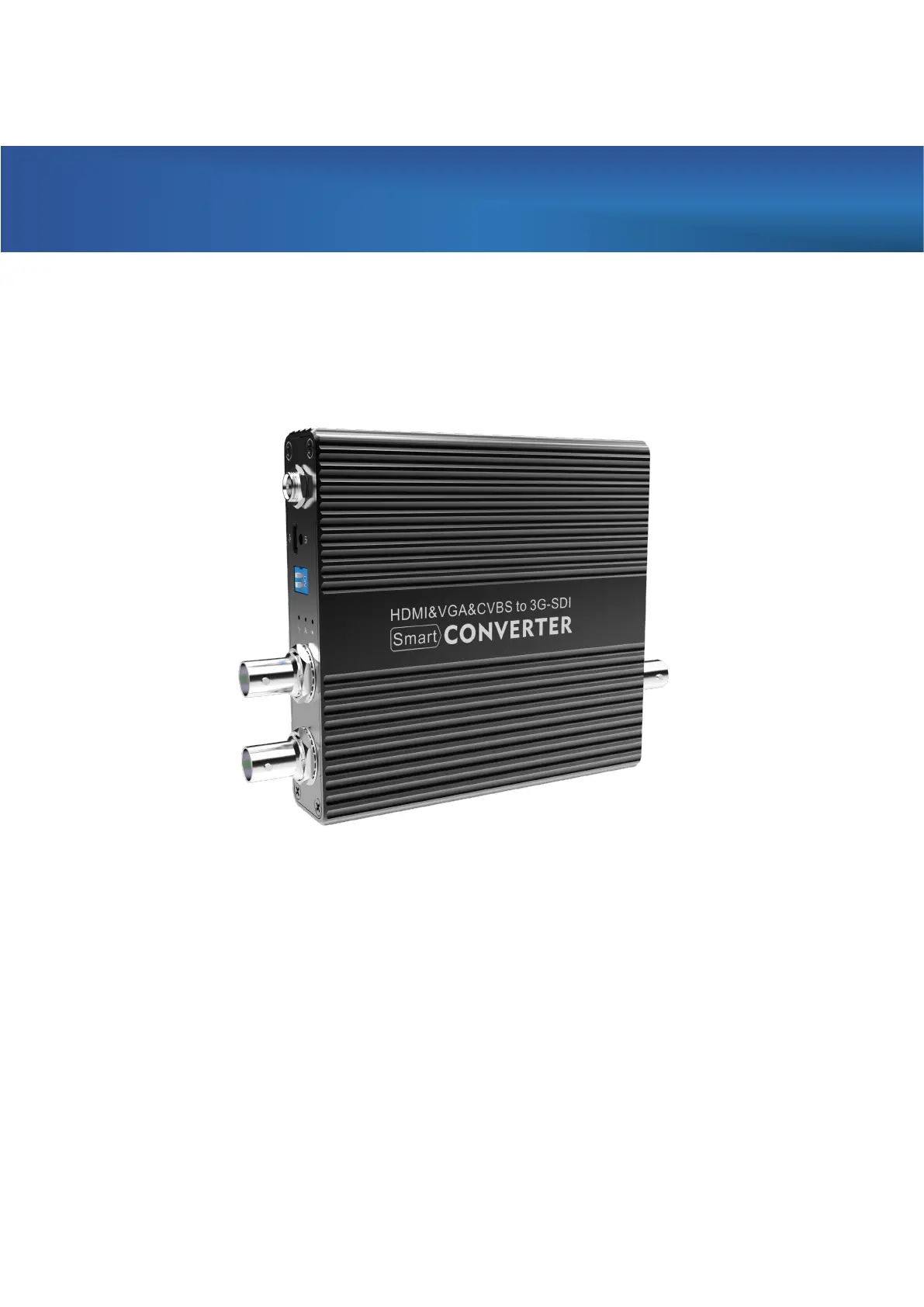

HDMI&VGA&CVBS to 3G SDI Multifunction Video Converter
Before using this converter, please read this user manual clearly. Please strictly to follow our
manual to use, or install and use under guiding by professional person, to protect your body
safety and to avoid the encoder damage from physical and electrical. The product may be
damaged if incorrect electrical connection or the physical installation, even threaten the body
safety.
USER MANNUAL
Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved
KV-CV190 HDMI&VGA&CVBS to 3G-SDI converter
User Manual
1
Description
HDMI&VGA&CVBS-SD/HD/3G SDI video converter is a high-quality, high-performance video
signal conversion products. It supports HDMI 1.4/HDCP 1.1, supporting HDMI, VGA and CVBS
signal input and compatible with SD/HD/3G SDI signal. After professional design
manufacturing craft, our converter is completely in conformity with SMPTE standard with
broadcast grade quality, in the meantime, supporting transmission distance up to 200 m
HD-SDI, 3G-SDI signals up to 120 meters [Note: Meets Belden 1694A cable standards, SDI
standard signal indicators]. Unlike the traditional converter products in current market, our
converter with built-in a professional image conversion processing chip, firstly it will process
the image enhancement, noise reduction, de-interlacing (optional) function of SDI image
before converting to. It supports image enhancement processing, denoising, deinterlacing
(optional), smart resolution conversion and frame rate conversion, adjustable
saturability/luminance/contrast ratio setting, through automatic scaling and frame rate
conversion, converting any form video to standard SD/HD/3G-SDI signal, compatible with
common HDMI, VGA and CVBS signal.
Traditional converter works principle
SD/HD/3G SDI - HDMI&VGA&CVBS converter working principle
HDMI&VGA&CVBS-SD/HD/3G SDI Video converter features:
Supporting transmission distance up to 200 m HD-SDI, 3G-SDI signals up to 120 meters
(Test and verified by TEKTRONIX/PHABRIX, professional signal tester);
Compatible with HDMI 1.4/HDCP 1.1, compatible with various VESA standard signal and up
to 1920x1080@60Hz;
Professional SDI lightning protection design;
Compare the working
principle with other
traditional converters
Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved
KV-CV190 HDMI&VGA&CVBS to 3G-SDI converter
User Manual
2
Support image enhancement processing, denoising, deinterlacing (optional), smart
resolution conversion and frame rate conversion, compatible with various video signal
formats.
Supporting HDMI DDC and VGA DDC function;
Choosing SDI output support and 3G-SDI not support;
Supporting lock SDI output format to insure no black screen or splash screen during signal
conversion;
Color adjust like luminance/contrast ratio/saturation/hue are supported;
Output blue screen/black screen signal when signal is lost;
OSD display input/output signal format;
Remote control, Chinese/English interface.
1. Device installation and connection guide
Please read the user manual clearly before install the converter, to avoid any incorrect connection to
damage the converter, even threaten the body safety!
Open the box, please check the product and accessory are completely before install:
1) HDMI&VGA&CVBS-SDI video converter 1 set;
2) AC 110-220V input, DC 12V/1A output power supply 1 set;
3) Remote control 1 set;
4) User manual/product certification/warranty card 1 set.
Before installing HDMI&VGA&CVBS-SDI video converter, you need to prepare as below:
1) The coax (75Ω) to connect SDI signal. As standard SYV-75-5-1C coax. The quality of poor
coax will affect the SDI signal transmission distance directly;
2) The cable to connect HDMI signal;
3) The bracket and wire gong etc. For fixing SD/HD/3G SDI-HDMI&VGA&CVBS video
converter.
Install and connect HDMI&VGA&CVBS-SDI video converter notes:
1) Strongly recommend you connect SDI and HDMI / VGA / CVBS (AV) cable at first then，
connect the power supply;
2) SDI signal output can connect either one of the two output port, or connecting
simultaneously (drive two SDI monitors). If only connecting one, we strongly suggest users
connect one 75Ω terminal resistance to the other output port, which can improve signal
quality and driving capacity;
3) It is better not always hot plugging for HDMI/VGA/CVBS. Hot plugging HDMI/VGA/CVBS
cable will lead to equipment trouble due to reasons of static shock.
！
！
！
！！
