SAVE THESE INSTRUCTIONS

INSTALLATION AND MAINTENANCE

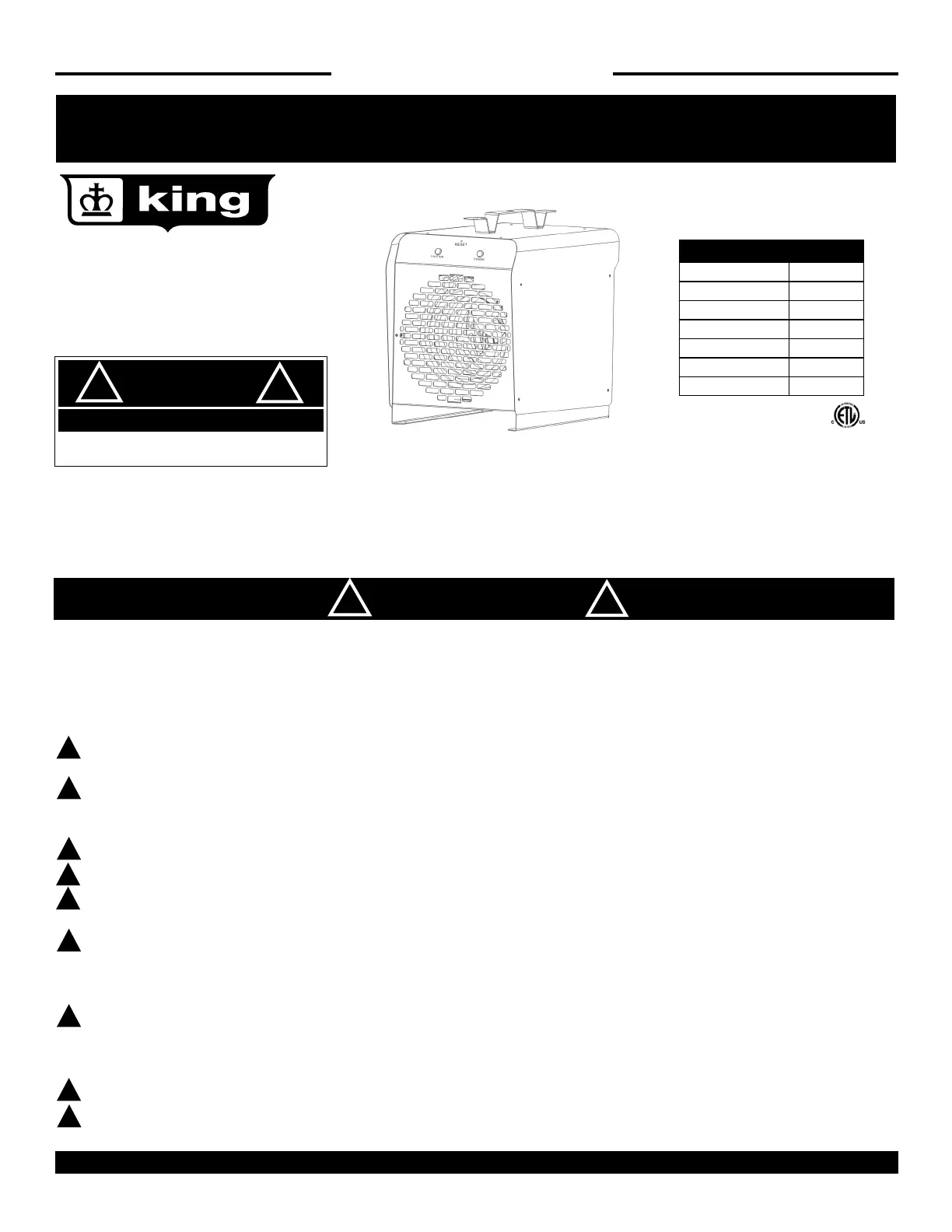

PSH2440TB

Portable Shop Heater

DANGER

! !

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND

SAFETY DATA TO AVOID PROPERTY DAMAGE AND

WARNING

! !

KING ELECTRIC MFG CO · TH AVENUE SOUTH · SEATTLE WA · PH: · FAX · www.king-electric.com 9131 10 , 98108 206 762 0400 : 206 763 7738

READ CAREFULLY - Use the heater only as described in this manual. Any other use is not recommended and could result in fire,

electric shock, and personal injury. Following these instructions will prevent difficulties that might occur during the installation

and use of the heater. Please studying the instructions first, as they may save considerable time and trouble during installation in

addition to providing important safety information. Make sure to save these instructions for future use.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

FIRE OR EXPLOSION MAY OCCUR! During normal operation the heater has hot components and arching or sparking

parts inside. Do not use it in areas where gasoline, paint or other flammable liquids are used or stored.

RISK OF FIRE. To prevent a possible fire, do not block the intakes or exhaust in any manner. Do not use on soft

surfaces, like a bed where openings may become blocked. Keep clear of all obstructions. Maintain a 3 foot

minimum clearance from front & 12 inches from sides and rear. Heaters must be kept clean of lint, dirt, & debris.

RISK OF FIRE. DO NOT use heater with extension cord. Plug the heater directly into a 208-240VAC receptacle.

OVERHEATING OR FIRE MAY OCCUR. Do not place heater behind a door.

BURN HAZARD. This heater is hot when it is in use. To avoid burns, do not touch the case, grill or interior parts of

the heater when in use. Use handles when moving the heater. Allow the heater to cool down before touching it.

RISK OF ELECTRIC SHOCK OR INJURY. Do not run the power cord under carpeting, throw rugs, runners or other sim-

ilar coverings. Do not route the cord under furniture or appliances. Keep the cord away form a traffic area so it

will not cause a tripping hazard. Do not operate the heater with a damaged cord or plug, after the heater malfunc-

tions, or if it has been dropped or damaged in any manner. Discard heater immediately, do not try to repair.

RISK OF ELECTRICAL SHOCK. Connect the heater to a properly grounded outlet only. Do not insert or allow foreign

objects to enter the intake or exhaust opening of the heater as this may cause an electric shock or fire and dam-

age the heater. Unplug the heater before performing any maintenance or when not in use. To disconnect heater,

turn thermostat control to low, then remove plug from outlet.

NEVER SUSPEND OR HANG ANY OBJECTS FROM A MOUNTED HEATER.

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN HEATER CASE WHEN PLUGGED INTO AN ELECTRICAL OUTLET. —

! WARNING

SPECIFICATIONS

BTU 13,000B

Was 3,750W

Heang Area (2) 450 2

Power (Volts) 240V~60Hz

Amps 16A

Heat Sengs 1 On/O

Heat Sengs 2 Thermostat

! WARNING

The Yellow Jacket Junior is a versatile 240 volt heater that is perfect for any garage workspace or construction site.

Ideal for portable temporary heating or it can be permanently mounted to the wall of ceiling by using the included

heavy duty bracket. Designed for durability and safety with industry-leading Sure Stop Safety Limit Protection.

SAVE THESE INSTRUCTIONS

SAFTEY INFORMATION

DANGER

! !

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND

SAFETY DATA TO AVOID PROPERTY DAMAGE AND

KING ELECTRIC MFG CO · TH AVENUE SOUTH · SEATTLE WA · PH: · FAX · www.king-electric.com 9131 10 , 98108 206 762 0400 : 206 763 7738

Warning: Prior to operating, make sure the electrical outlet is of the configuration and capacity appropriate for the heater.

- Use extreme caution when heater is used near children

or people with disabilities.

- Do not use outdoors.

- Not intended for use in bathrooms, laundry areas or oth-

er similar wet locations. Never locate heater where it

may have contact with water.

- Do not use heater in wet or moist locations.

- Always locate heater on a stable and level surface.

- Do not place the heater against cardboard or low-density

fiberboard surfaces.

- Avoid using an extension cord because the extension cord

may overheat and cause a risk of fire.

- Use only the electrical power (voltage and frequency)

specified on the model plate of the heater.

- Use only three-prong, grounded outlet.

- ALWAYS unplug the heater when not in use.

Minimum Clearance

From Combustibles

Front 3 ft.

Top 1 ft.

Sides 1 ft.

Rear 1 ft.

WHAT’S IN THE BOX HEATER DIAGRAM

BACK

FRONT

Wall/Ceiling Bracket (1)

Handle (1)

Safety Limit Light

66 mm Screws (3)

5 mm Washer (1)

the wood stud in wall or joist in ceiling.

2. Use holes in bracket to mark 3 holes for drilling.

drill 3 holes for screws. Be sure holes are drilled into

7. Insert the third 66 mm screw with a washer through the mid

hole on bracket, tighten screw against bracket to secure.

SAVE THESE INSTRUCTIONS

ASSEMBLY INSTRUCTIONS

KING ELECTRIC MFG CO · TH AVENUE SOUTH · SEATTLE WA · PH: · FAX · www.king-electric.com 9131 10 , 98108 206 762 0400 : 206 763 7738

PSH2440TB

Portable Shop Heater

TOOLS NEEDED:

- Power Drill

- 4 mm or 5/32 in. drill bit

- Phillips head screwdriver

- Stud finder

Remove heater & all packaging materials from the box.

Tip: Be sure to remove the hardware package from the

Styrofoam packaging.

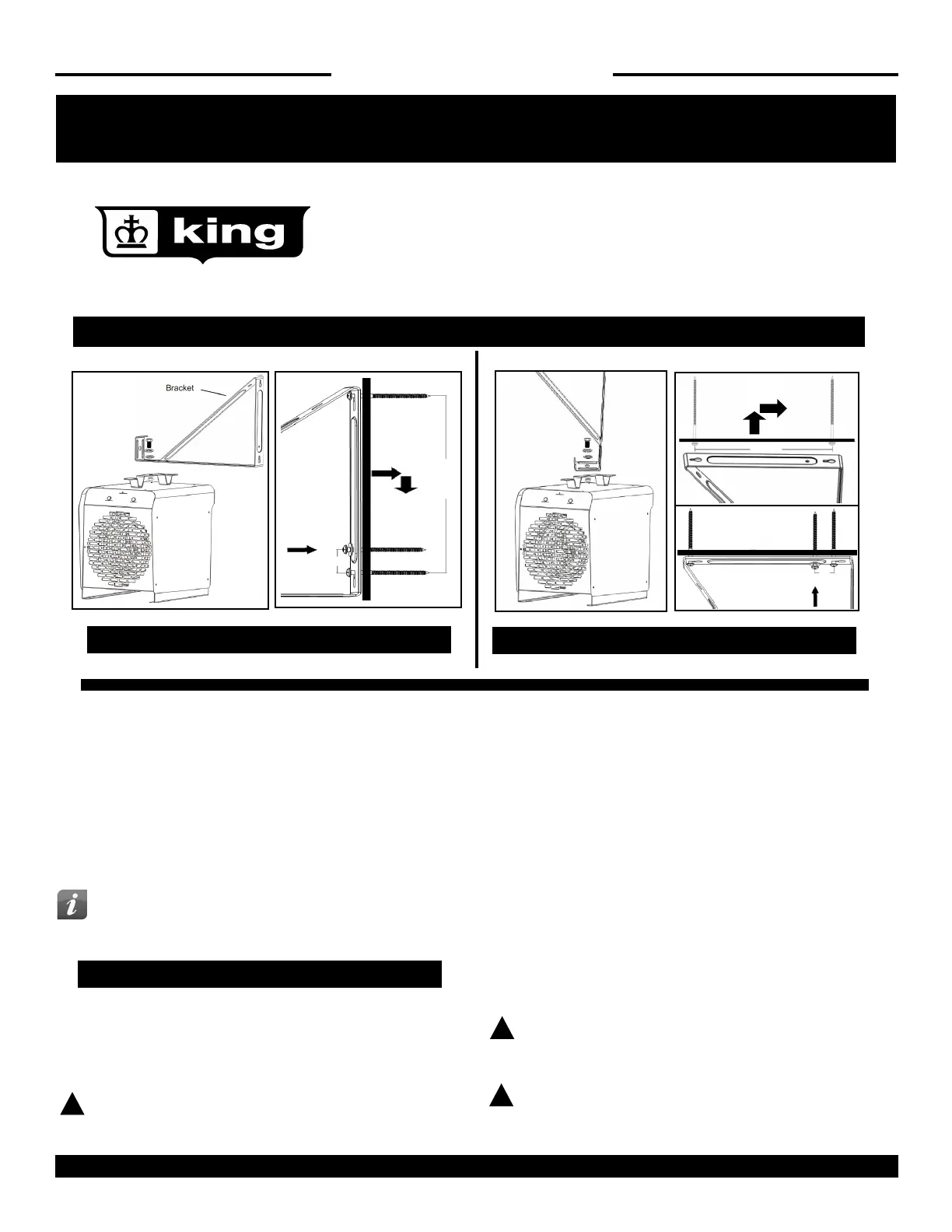

Attaching Heater to Wall Bracket

1. Line up hole on bracket with hole on the heater handle.

2. Attach heater to bracket with 20mm screw and nut, larger

10 mm washer and locking washer.

Be certain adjustment knobs are tightened

firmly to secure heater to swivel bracket.

Wall or Ceiling Mounting

1. Locate wood stud in wall or joist in ceiling to mount heater.

3. Pre-

4 Secure two mm screws to wall leaving 1/8. 66 ” exposed.

Two (2)

screws must be attached to a wood stud (min 1.5 ).”

5. Attached bracket to wall by inserting screws through

keyholes on bracket and pushing down to lock in place.

6. Tighten screws against bracket to secure.

HEATER MUST BE ATTACHED TO A JOIST

WITH A MINIMUM OF TWO (2) SCREWS IN

OPPOSING HOLES.

Use appropriate fasteners. The screws

included are for installing in wood studs only

and not intended for metal joists.

INSTALLATION INSTRUCTIONS

! WARNING

FOR WALL OR CEILING MOUNT APPLCATIONS

FOR WALL MOUNT APPLCATIONS FOR CEILING MOUNT APPLCATIONS

8.5"
