INSTALLATION INSTRUCTIONS

30" (76.2 CM) FREESTANDING GAS RANGES

INSTRUCTIONS D’INSTALLATION DES CUISINIÈRES À GAZ

AUTOPORTANTES DE 30" (76,2 CM)

Table of Contents/Table des matières

RANGE SAFETY .............................................................................2

INSTALLATION REQUIREMENTS................................................3

Tools and Parts ............................................................................3

Location Requirements ................................................................4

Electrical Requirements ...............................................................5

Gas Supply Requirements ...........................................................6

INSTALLATION INSTRUCTIONS ..................................................7

Unpack Range..............................................................................7

Install Anti-Tip Bracket.................................................................8

Make Gas Connection .................................................................8

Verify Anti-Tip Bracket Is Installed and Engaged ......................10

Level Range................................................................................10

Electronic Ignition System .........................................................11

Warming Drawer or Premium Storage Drawer ..........................12

Storage Drawer ..........................................................................13

Oven Door ..................................................................................13

Complete Installation .................................................................13

GAS CONVERSIONS....................................................................14

LP Gas Conversion ....................................................................14

Natural Gas Conversion.............................................................17

SÉCURITÉ DE LA CUISINIÈRE...................................................20

EXIGENCES D’INSTALLATION...................................................22

Outillage et pièces......................................................................22

Exigences d'emplacement.........................................................22

Spécifications électriques..........................................................24

Spécifications de l’alimentation en gaz.....................................24

INSTRUCTIONS D'INSTALLATION ............................................26

Déballage de la cuisinière..........................................................26

Installation de la bride antibasculement ....................................26

Raccordement à la canalisation de gaz.....................................27

Vérifier que la bride antibasculement est bien

installée et engagée ...................................................................28

Réglage de l'aplomb de la cuisinière.........................................29

Système d'allumage électronique .............................................29

Tiroir-réchaud ou tiroir de remisage de qualité

supérieure...................................................................................31

Tiroir de remisage ......................................................................32

Porte du four ..............................................................................32

Achever l’installation ..................................................................33

CONVERSIONS POUR CHANGEMENT DE GAZ ......................34

Conversion pour l'alimentation au propane ..............................34

Conversion pour l'alimentation au gaz naturel ..........................37

IMPORTANT:

Installer: Leave installation instructions with the homeowner.

Homeowner: Keep installation instructions for future reference.

IMPORTANT :

Installateur : Remettre les instructions d'installation au propriétaire.

Propriétaire : Conserver les instructions d'installation pour référence ultérieure.

W10553363A

RANGE SAFETY

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

WARNING: If the information in this manual is not followed exactly, a fire or explosion

may result causing property damage, personal injury or death.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

– WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch.

•Do not use any phone in your building.

•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

•If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer, service agency or

the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the “What to do if you smell gas” instructions.

IMPORTANT: Do not install a ventilation system that blows air downward toward this gas cooking appliance. This type of

ventilation system may cause ignition and combustion problems with this gas cooking appliance resulting in personal injury or

unintended operation.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools needed

Parts supplied

Check that all parts are included.

■ Anti-tip bracket must be securely mounted to floor or wall.

Thickness of flooring may require longer screws to anchor

bracket to floor.

Parts needed

Check local codes and consult gas supplier. Check existing gas

supply and electrical supply. See “Electrical Requirements” and

“Gas Supply Requirements” sections.

In the State of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by

the State of Massachusetts.

■ If using a ball valve, it shall be a T-handle type.

■ A flexible gas connector, when used, must not exceed 3 feet.

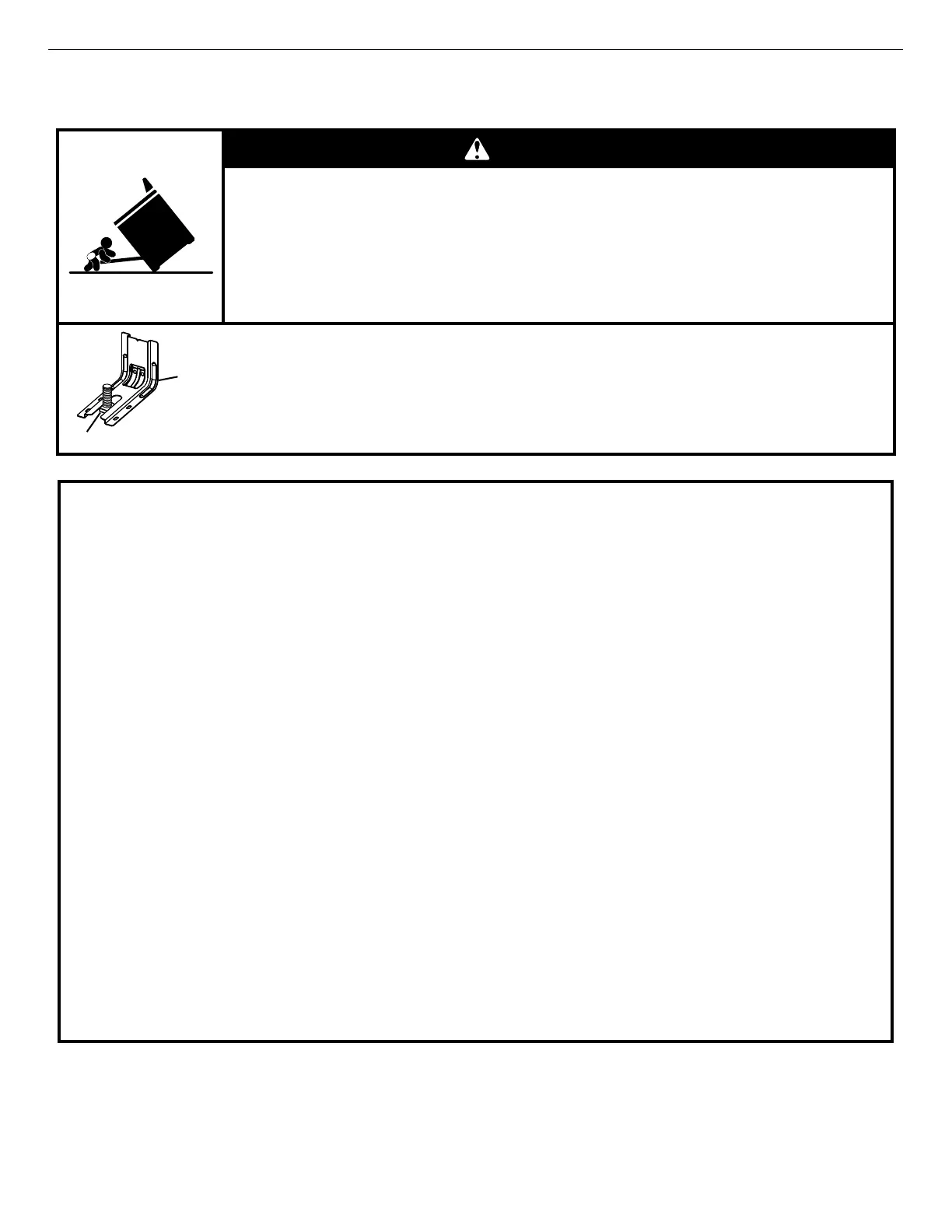

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

Anti-Tip

Bracket

To verify the anti-tip bracket is installed and engaged:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor or wall.

• Slide range back so rear range foot is under anti-tip bracket.

• See installation instructions for details.

Range Foot

WARNING

■ Tape measure

■ Flat-blade screwdriver

■ Phillips screwdriver

■ Level

■ Hand or electric drill

■ Hammer

■ Wrench or pliers

■ Pipe wrench

■ ¹⁵⁄₁₆" combination wrench

■ ¼" drive ratchet

■ ³⁄₈" nut driver

■ ¹⁄₈" (3.2 mm) drill bit (for

wood floors)

■ Marker or pencil

■ Pipe-joint compound

resistant to LP gas

■ Noncorrosive leak-detection

solution

For LP/Natural Gas

Conversions

■ ³⁄₈" combination wrench

■ ½" combination wrench

■ ⁵⁄₈" combination wrench

■ 7 mm (⁹⁄₃₂") nut driver

■ Quadrex®† or Phillips

screwdriver

■ Masking tape

†® QUADREX is a registered trademark of NLW Holdings, Inc.

A. Anti-tip bracket

B. #12 x 1

⁵⁄₈

" screws (2)
