Landmann Sicilia 0452 Bruksanvisning

Landmann Utegrill Sicilia 0452

Läs nedan 📖 manual på svenska för Landmann Sicilia 0452 (4 sidor) i kategorin Utegrill. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF

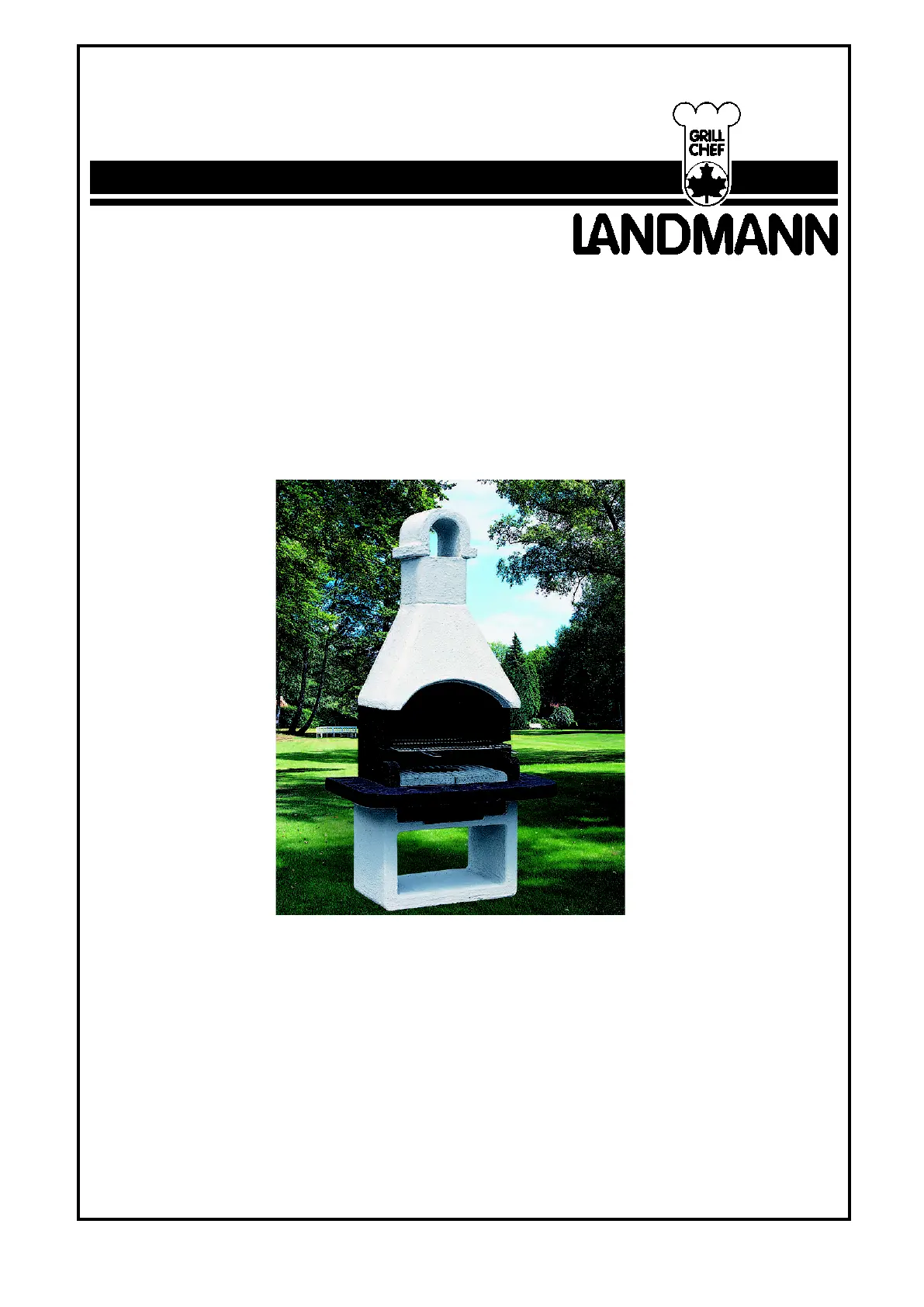

Sida 1/4
0452 01 01 t / B 1
Ass m I s r s r me bly n t u nctio fo od 0452el
If r r r n pa y a ts a e a a e d m g d o n p on h nd nn mi iss g lea es c t tac t e La ma B BE E EL L EAR CU H P IN
on ond o d 10 4 p . ou n d o h v h o o n0871 2311990- M ay t Fri ay am - m Y will ee t a e t e f ll wi g
i m ti il l : m t t i ti m l t tn of r a on va a ab e ou nY r a e a a e nd ddr ss, h p odue r c de cs r p on ( ode 0452 , ) h e s ore
you pu h d h b b u o nd d o h d d o n p . rc a es t e ar ec e fr m a e at ils f t e a a em g r mi iss g art
0452 01/01 Bt 2
Parts List:
1: Base Element
2: Fire Plane
3, 5: Fire Side
4: Backside
6: Hood
7: Flue
8: Chimney Cap
9, 10: Fire Plane
11: Ash Box
12: Grid
13: Cooking Grill
Assembly Instructions
1.: Select a level support which provides a perfectly horizontal plane so possible
settlements caused by the weight of the barbecue could be avoided.
2.: Prepare a low - resistant mortar mix with 20 % cement and 80 % sand. The use of
cement and glues with high - heat resistant or quick setting (e. g. white cement,
aluminium cement, glue for paving - tile etc.) is forbidden. Those materials do not
permit expansion of the barbecue components and cause crackings. Assemble the
single parts in accordance to the list above using a film of mortar in between. The
parts 3 to 8 should be mounted with a very thin layer of mortar in order to ease the
thermal expansion of the single elements which otherwise could break. The
refractory elements belonging to the high - heat zone (parts 3 to 8) must be
installed without any binder.
3.: Once the assembly is completed, cover the external surface with a liquid film of
low - resistant cement mixed with fine sand. In this way the wear will be reduced
and an optimum surface will be obtained. Then paint the barbecue with a product
containing plastic quartz to protect it from the weather. Spread the paint in two
phases. For the first coat use a paint with 5 % diluited water which is to be spread
with a brush. For the second coat you should use 10 % diluited water which can
be laid and finished with a roller to achieve a peel effect. Before spreading the
paint it is advisable to cover and protect the already coloured parts.
4.: Once these first phases are finished, wait at least 24 hours before inserting the
accessories and using the barbecue.
0452 01/01 Bt 3
WARNINGS:
This barbecue is an outdoor item and may not be assembled indoors.
It is prepared for the use of charcoal only!
Do not use other materials like
wood or rubbish.
Never light the charcoal or burn any materials containing toxic
chemical products or synthetic materials (rubber, plastic etc.)
Always light the fire slowly and gradually so that possible water particles and humidity
absorbed during the night can be removed. Never use petrol or methylated spirits to
light or relight the barbecue. Use propriatary lighting aids. Keep children away from
the barbecue when in use. We suggest to use protective gloves and long handled
barbecue tongs. Let the barbecue cool down completely before cleaning.
The material of the fireplace shows characteristics of expansion when in use with the
appearance of micro cracks due to the absorption of temperature changes. The cracks
tend to close during the cooling process of the different elements not leading, however,
to any defects in the product. Always repaint the barbecue at the end of the season.
Thus the penetration of water particles which could cause micro cracks on the
elements will be avoided. The barbecue should be kept clean.
Lighting Instructions
1 Place a layer of Landmann charcoal (lump wood or briquettes) on the grate.
Build it up into a pyramid shaped p ile.
2 Light, using Landmann fire lighters, following the instructions on the pack.
3 The barbecue will be ready for use in about 30 to 40 minutes, when all flames
and smoke have died down and the charcoal is covered by an even layer of grey
ash. At this point, spread the charcoal evenly across the grate. Add more
charcoal if required.
4 Grease the cooking grill to prevent sticking.

Produktspecifikationer

Varumärke: Landmann
Kategori: Utegrill
Modell: Sicilia 0452
