05/04 1824

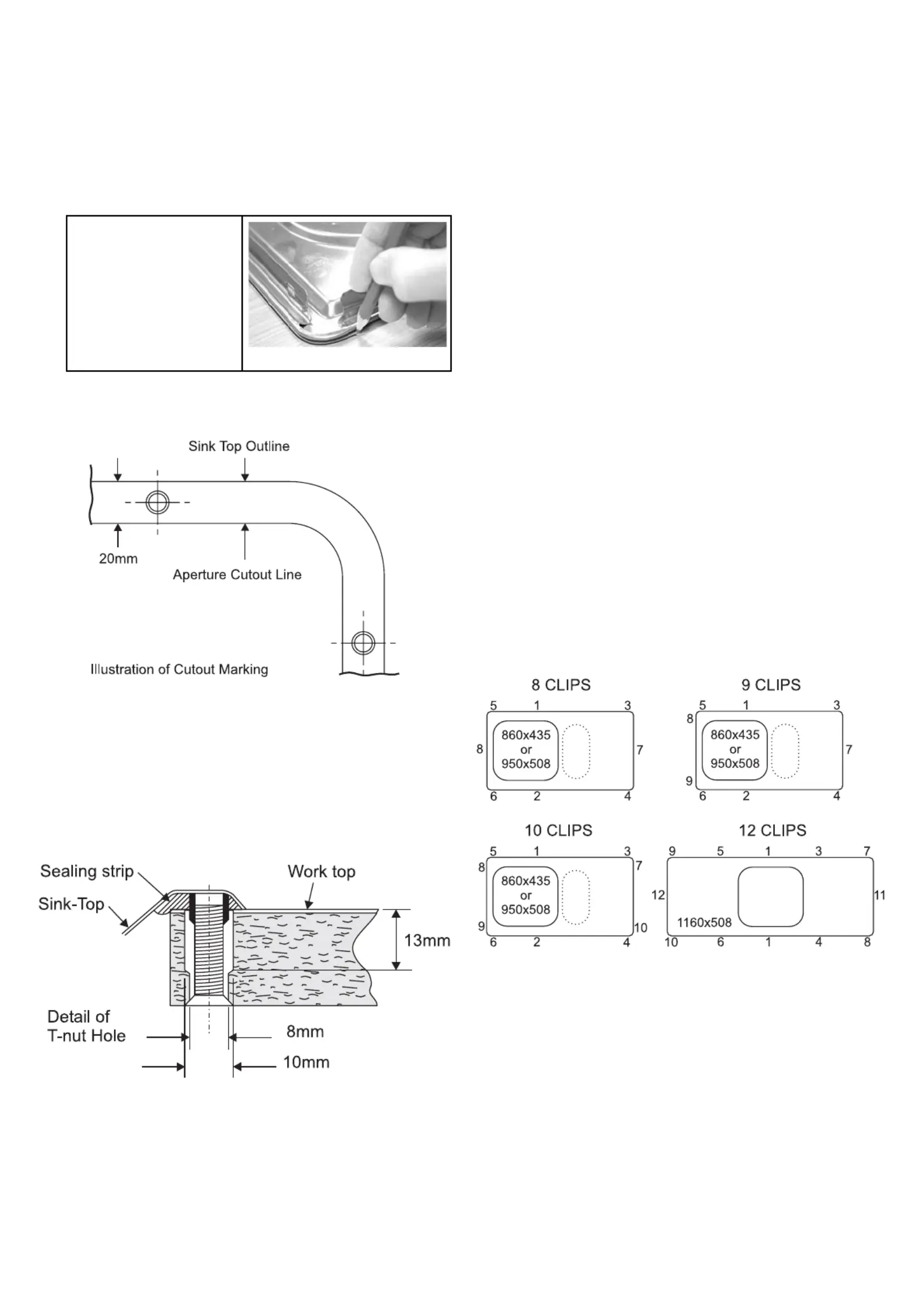

1. With soft sharp pencil, mark fi nal position of sink top,
by measurement, on the work top allowing for clear-
ance of cabinet frame work.
2. Place sink-top in correct position on worktop then
reverse front to rear, not end for end.
With sharp soft pencil
draw round sink as
accurately as possible
making sure that this
outline coincides with
fi nal position marked
previously.
3. Remove sink top and mark another line 20mm inside
the sink top outline, following the corner radii with
care.
This is the cutting line for the aperture.
4. Drill as large a hole as possible inside the cutting
line. Using a pad saw, jig saw or similar, cut out the
aperture to the cutting line.
5. The sink should then be placed in the aperture
where it will rest on the T-Nuts. The T-Nuts should
be marked round carefully with a pencil making sure
that the sink is parallel to the worktop edge.
6. The sink is then removed and a 8mm hole is drilled
on the centre of each T-Nut position, countersunk
on the underside of the worktop and counterbored
from the top with a 10mm diameter drill 13mm deep
to accept the T-Nut.
Stainless Steel Inset Sinks with T-nut Fixing
7. The sinktop should then be placed in position to check
for fi nal fi tting.
8. Turn the sink upside down and fi ll the outer pe-
rimeter with a suitable sealing compound, (Bostik
Glazing Compound, Prestik Sealing Compound and
Arborseal have been found suitable). The sealing
compound should be suffi cient to fi ll the rim but any
excess should be pressed down with a warm knife so
that it is evenly spread around the sink perimeter.
9. Now fi t the sink to the worktop, fi rmly in position and
press down evenly if possible using heavyweights
around the perimeter. Enter the screws and screw
gently home. The weights will cause the sealing
compound to settle to the profi le of the sink perim-
eter, and the screws will need to be tightened slowly
and gently or distortion of the sink perimeter will
result from too great a local pressure. After one hour
remove the weights and dress off any surplus com-
pound from around the sink fl ange, with a wooden or
plastic spatula, taking care not to damage the plastic
laminate.
10. After twenty-four hours, check the tightness of the
T-Nuts but do not over-tighten. If the fi xing screw bot-
toms because of over length, remove and hacksaw
12mm from end of thread, and refi t.
Recommended tightening sequence for sink
fi xing clips
05/04 1824
After Care Stainless Sinks
Day to Day Care
Routine cleaning of your stainless steel sink is
easy if the following simple procedure is followed
After use wipe the bowl and drainer with a soft
damp soapy cloth, rinse with clean water. In hard-
water areas, an application of Jif will avoid any
build-up of dull fi lm of waterborne deposits.
Although stainless steel is an extremely durable
material and will withstand a great deal of hard
use, it can be scratched by hard or sharp objects.
If the surfaces are to be kept in a blemish free
condition reasonable care should be taken when
handling such items.
Discolouration and Heavy Staining
Staining of stainless steel in most cases is due
to something being deposited on the steel rather
than an attack on the material itself. The most
common cause of staining is the build up of a thin
fi lm of water borne deposits on the sink surface,
often fi rst seen as a rainbow effect. The build up of
such a fi lm can be avoided by drying the surface
of the sink after use as described above. How-
ever, should such a fi lm appear, it can be readily
removed with a soft damp cloth and Jif. To remove
the fi lm, apply the Jif neat and rub vigorously with
a damp cloth along the length of the sink surface.
After cleaning rinse thoroughly with clean water
and dry. Wire wool products and ferrous water
supply pipes can leave minute ferrous particles
adhered to the sink surface. Since stainless steel
under normal conditions does not rust, these par-
ticles can cause the appearance of small brown
rust stains. These stains can be removed using
the procedure described above.
CAUTION :
Certain household products contain substances
which will attack the stainless steel surface, they
are :
1. Bleaches :
Most common domestic bleaches contain Chlorine
in the form of a hypochlorite. Chlorine attacks the
microscopic Chromium Oxide fi lm on the surface
and can cause pitting of the surface. Bleaches
should always be used in the prescribed strength
specifi ed by the manufacturers. Undiluted bleach-
es can cause pitting and staining of the surface
and should be immediately rinsed off with plenty
of clean water. All cleaning agents containing
hypochlorites are unsuitable for use with stainless
steel and, even highly diluted, can cause pit-
ting under certain conditions. For this reason it is
strongly recommended that the sink is not used for
soaking clothes or cleaning clothes in hypochlorite
solutions for long periods.
2. Silver Dip Cleaners :
These are particularly harmful since they contain
strong acids which can cause discolouration and
pitting. The fi rst sign of this is an iridescent rain-
bow stain which turns an etched dull grey colour.
Should any Silver Dip Cleaner come into contact
with the surface of the sink it should be immedi-
ately rinsed off with plenty of clean water.
3. Corrosive Foodstuffs :
Fruit juices, damp salt, vinegar, readymade mus-
tards, pickle and mayonnaise can cause pitting
and corrosion if left in contact with the stainless
steel surface for long periods.
4. Acids :
Sulphuric, Hydrochloric and other strong acids will
cause pitting corrosion, as will photographic devel-
oping liquids. All should be immediately washed
off with plenty of clean water if contact occurs.
Cleaning :
Always use a soft cloth. The use of coarse grit
scouring powders or soap fi lled wire wool cleaning
pads is not recommended, since both will mark the
surface of the sink. Wire wool pads can leave tiny
fragments of wire embedded in the surface and
these can rust and leave small brown rust stains.
Vigorous rubbing with a soft cloth, JIF, neat deter-
gent, cleaning cream or liquid will remove these
stains. Always remove wet cleaning aids (cloths,
containers, etc.) from the sink surface after use in
order to avoid the formation of water marks and
rust stains.
