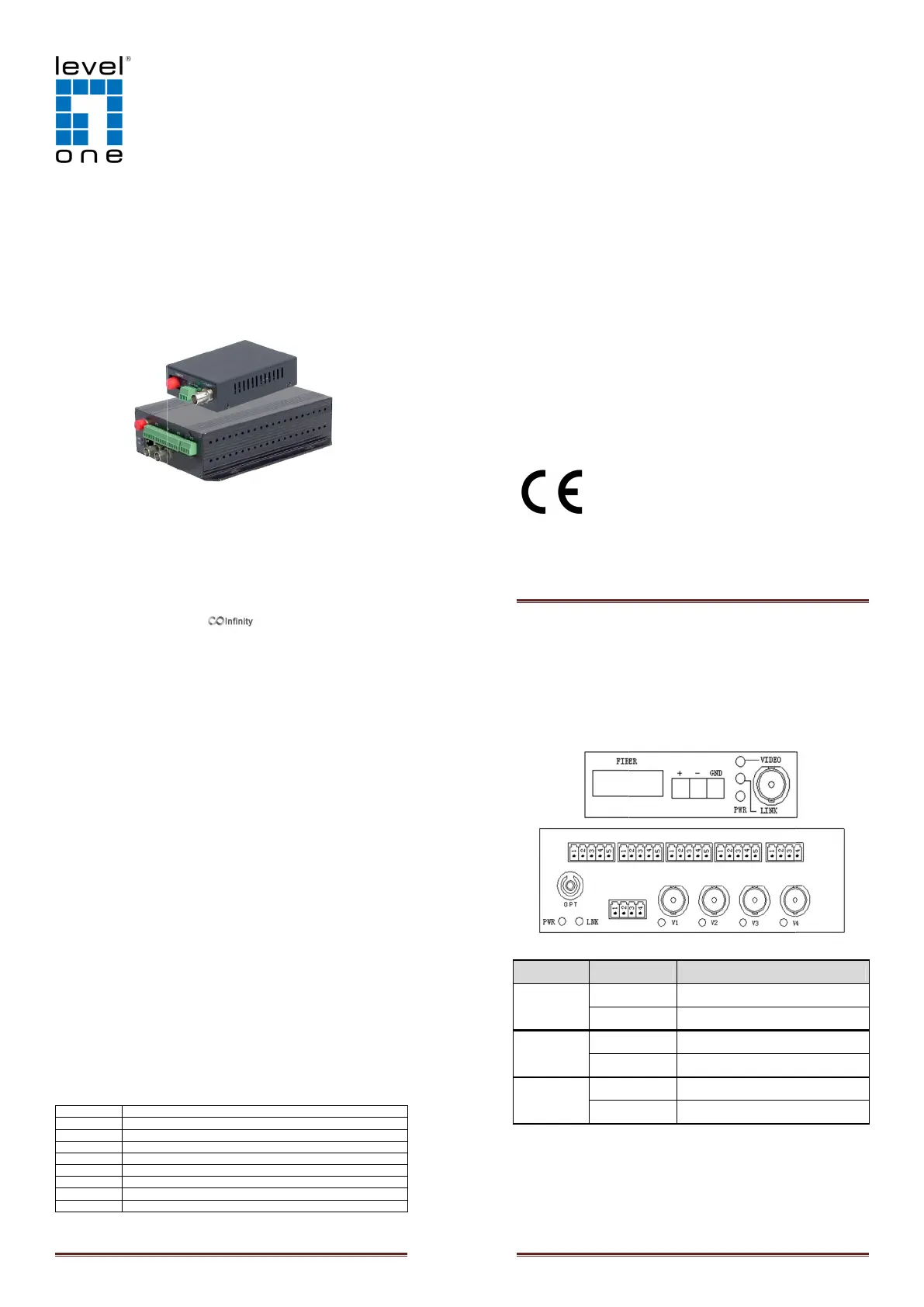

Sida 1/2

CCTV

Quick

Video over Fib

AVF series

k Installation Guid

v1.00 - 1404

bre

AVF Series Page 1

Overview

LevelOne AVF CCTV Video to Fibre Converter series is designed to

transmit composite video signals via optical fibre over long

distance. In the transmitting side, the video signal is digitalized and

converted to optical signal and then transmitted over the fibre link

to the receiver. The receiver recovers the optical signal to analogue

video signal and displays images on monitor. It provides

surveillance systems the high quality and long distances

transmission over optical fibre cable; it is ideal kit for the CCTV

Surveillance and Video Wall System applications

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including Electric

& Utility, Critical Infrastructure, Transportation and Surveillance

Security. This device operates under -25 to 75 Celsius (-13 to 167

Fahrenheit) temperature.

AVF Series Page 2

Features

 Transmits analogue video signal over single fibre cable

 Uncompressed high quality video transmission

 Transmit up to 20 km without optical attenuation

 No RF interference or signal degradation over optical fibre

 No EMI and electromagnetic interference

 LED indicator status for instance system monitoring

 True Plug & Play design facilitates ease of installation

 Operation temperature -25 to 75 C (-13 to 167 F)

 Supports RS-485 data protocol (Optional)

Package Contents

 CCTV Video Converter (TX)

 CCTV Video Converter (RX)

 Power Adapter x 2

 Quick Installation Guide

Model List

Model Description

AVF-1000 1-CH Video over Fibre mini Converter FC SMF 20KM w/ RS485 Kit

AVF-1100 1-CH Video over Fibre Converter FC SMF 20KM Kit

AVF-1200 2-CH Video over Fibre Converter FC SMF 20KM Kit

AVF-1400 4-CH Video over Fibre Converter FC SMF 20KM Kit

AVF-1800 8-CH Video over Fibre Converter FC SMF 20KM Kit

AVF-1160 16-CH Video over Fibre Converter FC SMF 20KM Kit

AVF-1160R 16-CH Video over Fibre Converter FC SMF 20KM Kit (19inch 1U)

CHV-2100 19 inch 3U 18-Slot Chassis

AVF Series

LED Statu

LED

Sta

PWR

Steady

Off

LNK

Steady

Off

Video / V

Steady

Off

atus

Description

Power On

Power Off

Fibre link established

No fibre link

Video signal connected

No video signal detected

Page 3

AVF Series Page 4

Power Input

 Power Input: 90 to 264VAC @ 50 to 60Hz

 Power Output: 5VDC @ 2A

WARNING – any exceeded input voltage will not make this unit

function and may damage this unit.

AVF Series Page 5

Specification

Model AVF-1000 

Interface Video

 BNC

Video

 Format

 Impedance

 Level

 Signal Noise

 Bandwidth

□ NTSC / PAL

□ 75 ohm unbalanced

□ 1 Vp-p nominal

□ 63 dB (S/N)

□ 5 Hz to 6.5 MHz

Optical

 Connector

 Fibre Type

 Wavelength

 Distance

 Transmit Power

 Receive Sensitivity

 Link Budget

□ FC

□ Single-mode @ Single fibre

□ 1310 / 1550 nm

□ 20 km

□ 2 dB

□ < -36 dB

□ 33 dB

Data  RS485

 Terminal Block

 150 Kbps

Power Input

 DC5V

Operation

Temperature

 -25 to 75 C (-13 to 167 F)

Humidity  0 to 95% non-condensing

Dimension

 94 x 71 x 26 mm

Weight

 450 g

Approval

 CE, EN50130-5, BS2011

Optional Chassis

CVH-2000  19 inch 2U 14-Slot Chassis 5V 16A

AVF Series Page 6

Specification

Model AVF-1100

AVF-1200

AVF-1400

AVF-1800

AVF-1160

Interface Video

BNC x 1 BNC x 2 BNC x 4 BNC x 8 BNC x 16

Video

 Format

 Impedance

 Level

 Signal Noise

 Bandwidth

□ NTSC / PAL

□ 75 ohm unbalanced

□ 1 Vp-p nominal

□ 63 dB (S/N)

□ 5 Hz to 6.5 MHz

Optical

 Connector

 Fibre Type

 Wavelength

 Distance

 Transmit Power

 Receive Sensitivity

 Link Budget

□ FC

□ Single-mode @ Single fibre

□ 1310 / 1550 nm

□ 20 km

□ 2 dB

□ < -36 dB

□ 33 dB

Data  Optional

Power Input  DC5V

Operation

Temperature

 -25 to 75 C (-13 to 167 F)

Humidity

 0 to 95% non-condensing

Dimension

 110 x 174 x 47 mm

Weight 1.1 kg 1.3 kg 1.4 kg 1.5 kg 2.0 kg

Approval  CE, EN50130-5, BS2011

Optional Chassis

CHV-2100

 19 inch 3U 18-Slot Chassis 5V 20A

AVF Series Page 7

Specification

Model AVF-1600R  (1U 19 inch rack mount)

Interface Video

 BNC x 16

Video

 Format

 Impedance

 Level

 Signal Noise

 Bandwidth

□ NTSC / PAL

□ 75 ohm unbalanced

□ 1 Vp-p nominal

□ 63 dB (S/N)

□ 5 Hz to 6.5 MHz

Optical

 Connector

 Fibre Type

 Wavelength

 Distance

 Transmit Power

 Receive Sensitivity

 Link Budget

□ FC

□ Single-mode @ Single fibre

□ 1310 / 1550 nm

□ 20 km

□ 2 dB

□ < -36 dB

□ 33 dB

Data  Optional

Power Input  100 to 240VAC

Operation

Temperature

 -25 to 75 C (-13 to 167 F)

Humidity

 0 to 95% non-condensing

Dimension

 437 x 220 x 44 mm

Weight  2.0 kg

Approval  CE, EN50130-5, BS2011
