ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
8565 8577
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

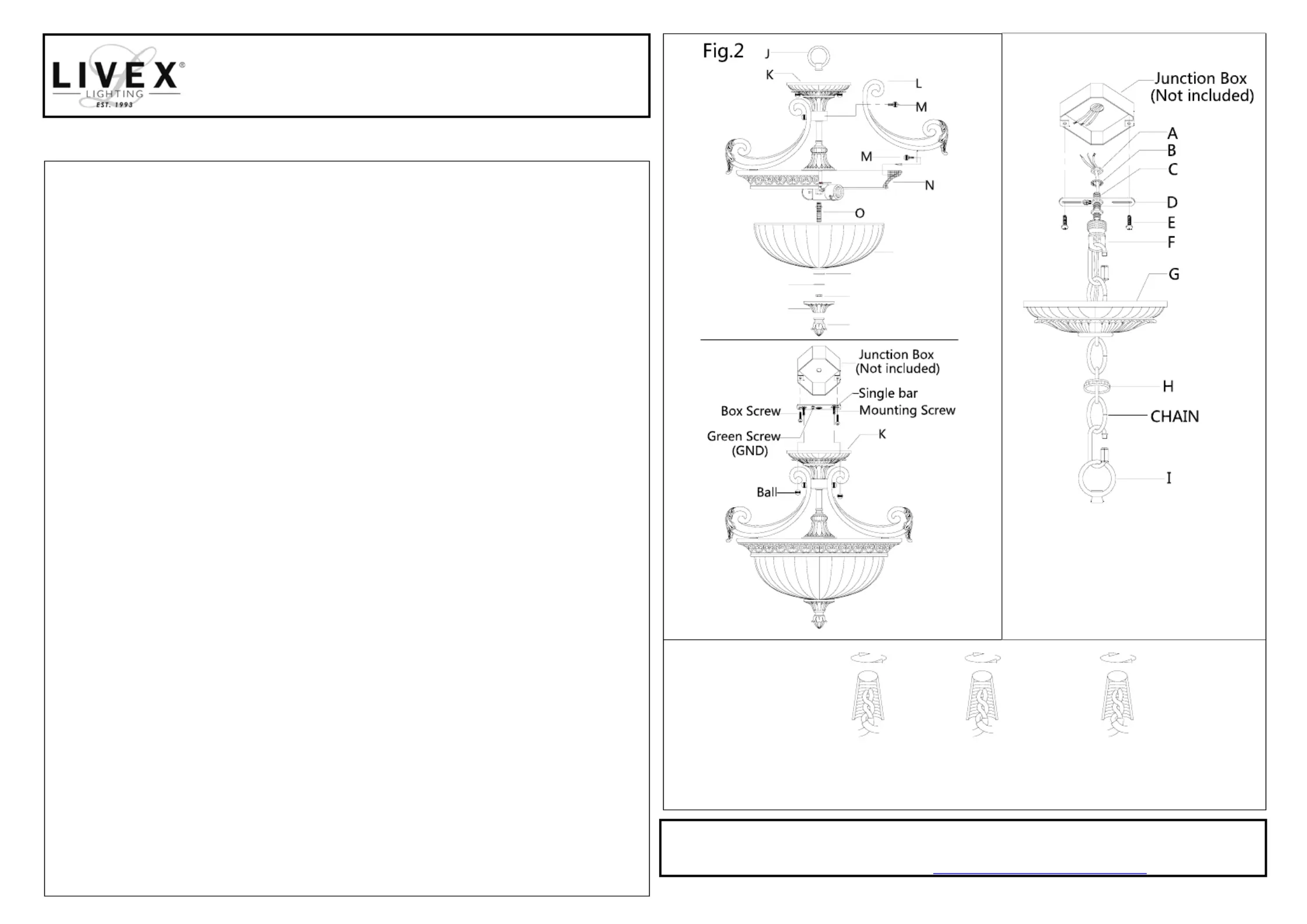

ASSEMBLING THE FIXTURE (Fig.2)
1. Attach the loop (J) to the top center pipe nipple of the fixture body(K) by turning it clockwise
until tight.
2. Attach the end hook of arm(L) to the big ring(N) and aligning the holes on it, lock them with
the knob screw(M), then fasten the other epnd of arm(L) to the fixture body(K) aligning the
holes on it, lock them with the knob screw(M).
3. Install the light bulbs in accordance with the fixture specifications. NOTE: DO NOT
EXCEED THE SPECIFIED WATTAGE!
4. Thread pipe(O) into center coupling of the fixture body(K) and tighten it with the hex nut.
Raise the glass(P) onto the big ring(N) and protruding the pipe(O) from the center hole of
the glass. Attach the plastic shim (Q) and iron shim(R) onto the glass and tighten it firmly
with the hex nut(S). Attach the cover (T) to the glass and tighten it firmly with the finial(U).
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture from ceiling, including the old
single bar. Carefully unpack new fixture and lay all the parts on a clear surface.
2. Thread nipple (C) into loop (F) until snug. Thread other end of nipple (C) with loop attached
into single bar (D) until snug.
3. Place lock washer (B) over end of nipple protruding through single bar and thread hex nut
(A) onto nipple until tight.
4. Take this single bar assembly and mount to ceiling junction box with junction box screws
(E). Tighten screws securely with screwdriver.
5. Using proper chain pliers to open one end link of the chain provided and connect to the
fixture loop. Close the link.
6. By measuring, determine correct number of links needed for proper hanging height. Using
proper chain pliers disconnect and discard remaining chain.
7. Lace the fixture wires through the chain.
8. Slip loop collar (H) over the chain, then do the same with the canopy (G).
9. Open the other end link of the chain and hang the fixture on the loop at the ceiling . Close
the link. Feed the fixture wires through the loop (F) and nipple (C) and pull until taut.
**If you not need assembly the fixture loop , please pause and refer to Fig 2.1.**
1. Take out the loop(J) of the fixture body(K). Attach the fixture body to the ceiling, lock it
securely with the ball nut.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth wire leg from the fixture
and twist bare ends together. Twist wire connector onto end of wire until snug.
2. Repeat same process with white junction box wire and ribbed wire leg of fixture wire. NOTE:
Twist wires together in the same direction you twist the wire connector onto wires.
3. If your junction box has a grounding wire (green or bare copper), attach this wire and the
bare copper wire from the fixture together as step 1.If junction box has no ground wire,
attach the bare copper fixture wire to the green ground screw on the crossbar.
4. Tuck these wire connections neatly into the ceiling outlet box and then raise the canopy (G)
all the way to the ceiling. Raise the loop (H) and thread onto ceiling loop protruding through
canopy.
Your installation is now complete. Return power to the junction box and test the fixture.
Fig.2.1
P
Q
RS
T
U
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us on-line at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC. DOC20180608565
FIG.3
FIG.1
