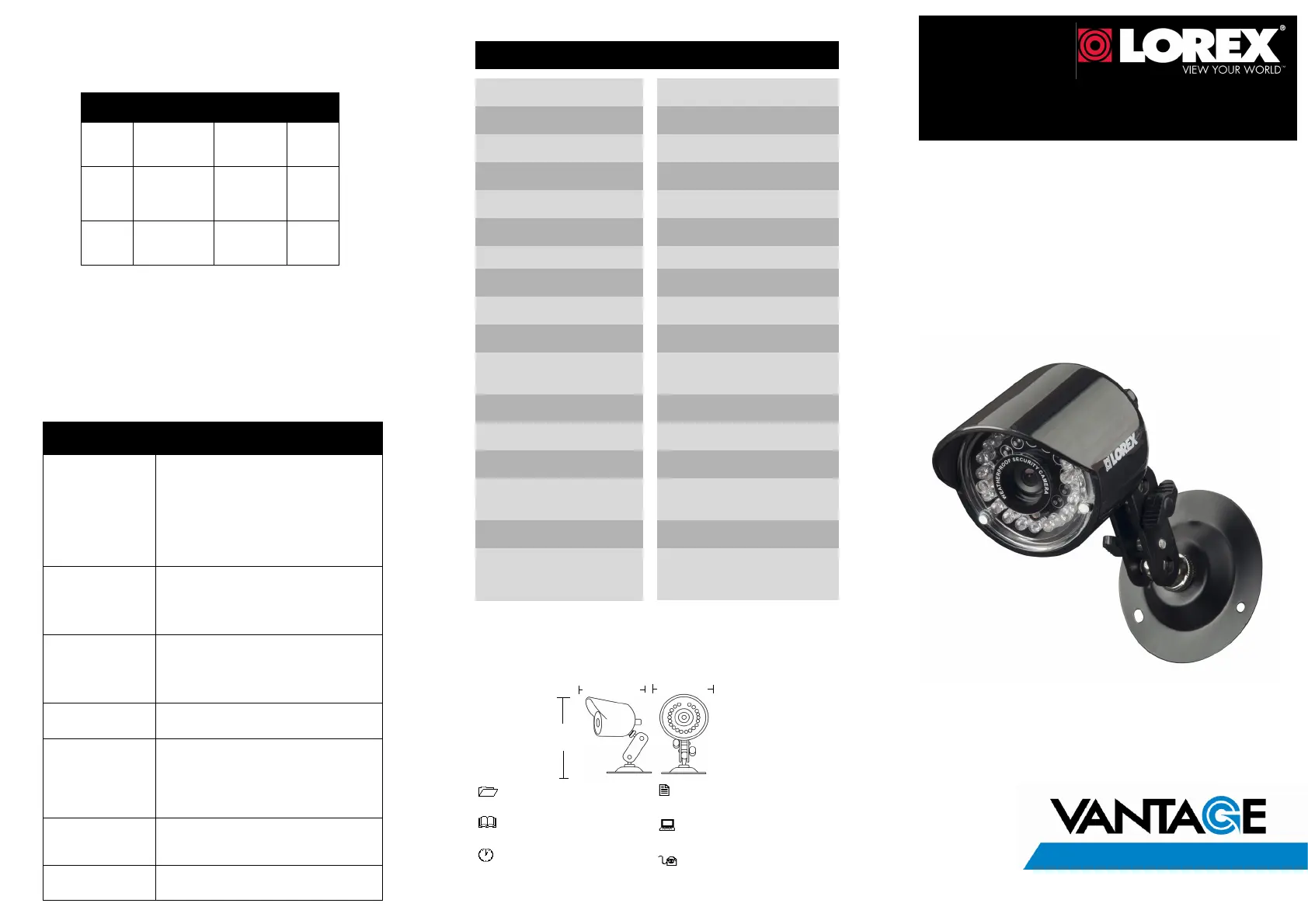

Sida 1/2

Camera Specifications

Image Sensor 1/4” Color

Lens / Lens Mount

Video Format / Pixels

Horizontal Resolution

Minimum Illumination

Termination

IR / Night Vision Range

FOV (diagonal)

S/N Ratio

Sync. & Scan. Systems

Video Output

Power Consumption

NTSC: 640(H) x 480 (V)

420 TVL

0 LUX (IR LEDs on)

Video: BNC Female

Power: Barrel Female

18 IR LED/60 ft. / 18 m*

64 Degrees

> 48dB

Internal; 2:1 Interlace

Comp. 1.0 Vpp @ 75ohm

170 mA or 2W max

Operating Temp.

Dimensions

WxLxH

(with stand)

14°F ~ 122°F

(-10°C ~ 50°C)

2.6" x 4.2"" x 5.2"

66 mm x 107 mm x 132 mm

3.6 mm F1.8/ Fixed

Iris & Shutter Speed AES; 1/30 ~ 1/62,500 sec.

Power Requirement 12V DC ±10%

Weight (with stand) 0.6 lbs. / 0.26 kg

*IR illumination range under ideal conditions. Objects at or beyond this range

may be partially or completely obscured, depending on the camera

application.

IR BULLET CAMERA

English Version 1.0

QUICK START GUIDE

CVC6941

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

Lorex Technologies Inc.

As our products are subject to continuous improvement, Lorex reserves the right to modify product

design, specifications and prices, without notice and without incurring any obligation. E&OE

2.6"/ 66mm

5.2"/

132mm

4.2"/107mm

www.lorextechnology.com

IT’S ALL ON THE WEB!

Problem Solution

No Picture/Signal • Ensure your TV is on the correct input channel.

Common terms of an input channel: INPUT,

AV CHANNEL, LINE1, LINE2, AUX.

• If your camera is connected to a VCR/DVR,

ensure it is properly connected to your TV/

Monitor.

• Ensure connections are properly connected.

• Ensure all the camera power supply is

plugged in.

Picture is too bright • Ensure your camera isn’t pointed directly at a

source of light (e.g sun or spot light).

• Slide the sunshade (bullet cameras only)

forward to block excess light.

• Move your camera to a different location.

Picture is too dark • If using during the day, the camera may not

be getting enough light. Slide the sunshade

backwards to let in more light. Check the

brightness and contrast settings of the device

your camera connects to (TV/Monitor/DVR).

Night Vision is not

working

• The night vision activates when light levels

drop. The area may have too much light.

Picture is not clear • Check the camera lens for dirt, dust,

spiderwebs. Clean the lens with a soft, clean

cloth.

• Make sure that the cable run is within the

limitations specified in the section ' Cable

Extension Options'

Bright spot in video

when viewing camera

at night

• Night vision reflects when pointing a camera

to a window. Move the camera to a different

location.

BNC connection does

not connect to my TV

• Use a BNC to RCA adapter at the end of the

extension cable.

Troubleshooting

Option Cable Type

1Regular BNC

(supplied with

camera)

180ft / 55m 3

2'RG59' or

'Coax' or '

Coaxial' BNC

(sold separately)

300ft / 92m 5

3Lorex Universal

Cable

(sold separately)

300ft / 92m 3

Max. Cable

Run Distance

Max. # of

extensions

Notes:

1. For optimal performance, consider using option 2 or 3. Preference for using the

same cable type for the entire distance.

2. Cable run recommendation based on typical camera power consumption (up

to 500mA). For specialty cameras with higher current consumption, maximum

cable run may be reduced. Consider providing power to the camera at the

camera side rather then at the end of the extension cable.

3. Indicators that your cable run may be too long:

• Video is permanently Black & White (even during day time)

• Video is distorted

Extend the cable run for your camera up to 300ft or more

depending on the cable type used. See table below:

Cable Extension Options

4. Connect the BNC end of the 60ft Extension Cable

to the DVR / Observation System or to a TV/VCR:

NOTE: Connect a BNC to RCA Adapter as needed to

allow for proper connectivity.

5. Connect the A/C Power Adapter to the 60ft

Extension cable (Black connector). Plug the Power

adapter to a wall outlet.

Figure 3.0 Connect the BNC cable to a DVR, CCTV monitor or TV

ATTENTION: This camera includes a Auto Mechanical IR Cut Filter.

When the camera changes between Day/Night Lighting, an

audible clicking noise may be heard coming from the camera. This

clicking is normal, and indicates that the camera filter is working.

Figure 4.0 Connect an AC power adapter

AC Power Adapter

Contents Installing The Camera

• Indoor / Outdoor Color Camera with Night Vision

• Mounting Stand

• 60 ft. BNC/Power Extension Cable

• BNC to RCA Adapter

• AC Power Adapter

To install the camera:

1. Mount the camera stand to the desired mounting

surface.

2. Attach the camera to the stand at either of the two

connection points.

3. Connect the 60ft Extension cable to the camera:

ATTENTION - Test the camera prior to selecting a permanent

mounting location by temporarily connecting the cameras and

cables to a DVR, or Observation System.

Figure 1.0 Use the stand for ceiling, table, or wall mounting.

Wall Mount

Ceiling Mount

Table Mount

BNC (VIDEO)

(Yellow Connector) POWER

(Black Connector)

To Camera:

Connect the BNC and power

connectors to the camera.

Figure 2.0 Connect the BNC and power ends of the extension cable

Connect the BNC connector

to the video input of the

monitor/DVR, and connect

the power connector to a

power adapter.

To Monitor/DVR:

Features

• 18 IR LEDs provide night vision range up to 60ft (18m)1

• True day/night operation using built-in IR filter

changeable mechanism to achieve accurate color

representation in varying lighting conditions

• Advanced day/night mode: picture automatically

switches to B&W delivering better clarity in low light

conditions

• Weatherproof design: ideal for outdoor and indoor

applications (IP66)2

• Easy connect to any DVR, observation system, TV or VCR

• Ceiling or wall mountable

1. IR illumination range under ideal conditions. Objects at or beyond this range maybe

partially or completely obscured, depending on the camera application.

2. Not recommended for submersion in water. Installation in a sheltered location

recommended.

Connecting The Camera

Setup Diagram:

WARNING - A REGULATED UL/CSA APPROVED 12V DC power supply is

REQUIRED for use with this camera. Use of a non-regulated, non-conforming power

supply can damage this product and will void the warranty.

Installation Tips

• Point the camera where there is the least amount of

obstructions (i.e. tree branches).

• Install the camera in a location that is difficult for

vandals to reach.

• Secure cabling so that it is not exposed or easily cut.

• Connect your system and cameras to a back-up power

supply. This ensures the system continues to record

during power outtages.

Warning / Caution Statements

1. Read this guide carefully and keep it for future reference.

2. Follow all instructions for safe use of the product.

3. Use the camera within given temperature, humidity and voltage levels noted

in Camera Specifications.

4. Do not disassemble the camera.

5. Do not point the camera directly towards the sun or a source of intense light.

6. Use only the supplied regulated power supply. Use of a non-regulated, non-

conforming power supply can damage this product and voids the warranty.

7. The supplied extension cable is rated for surface mounting only.

Cables for in-wall / floor-to-floor installations are sold separately.
