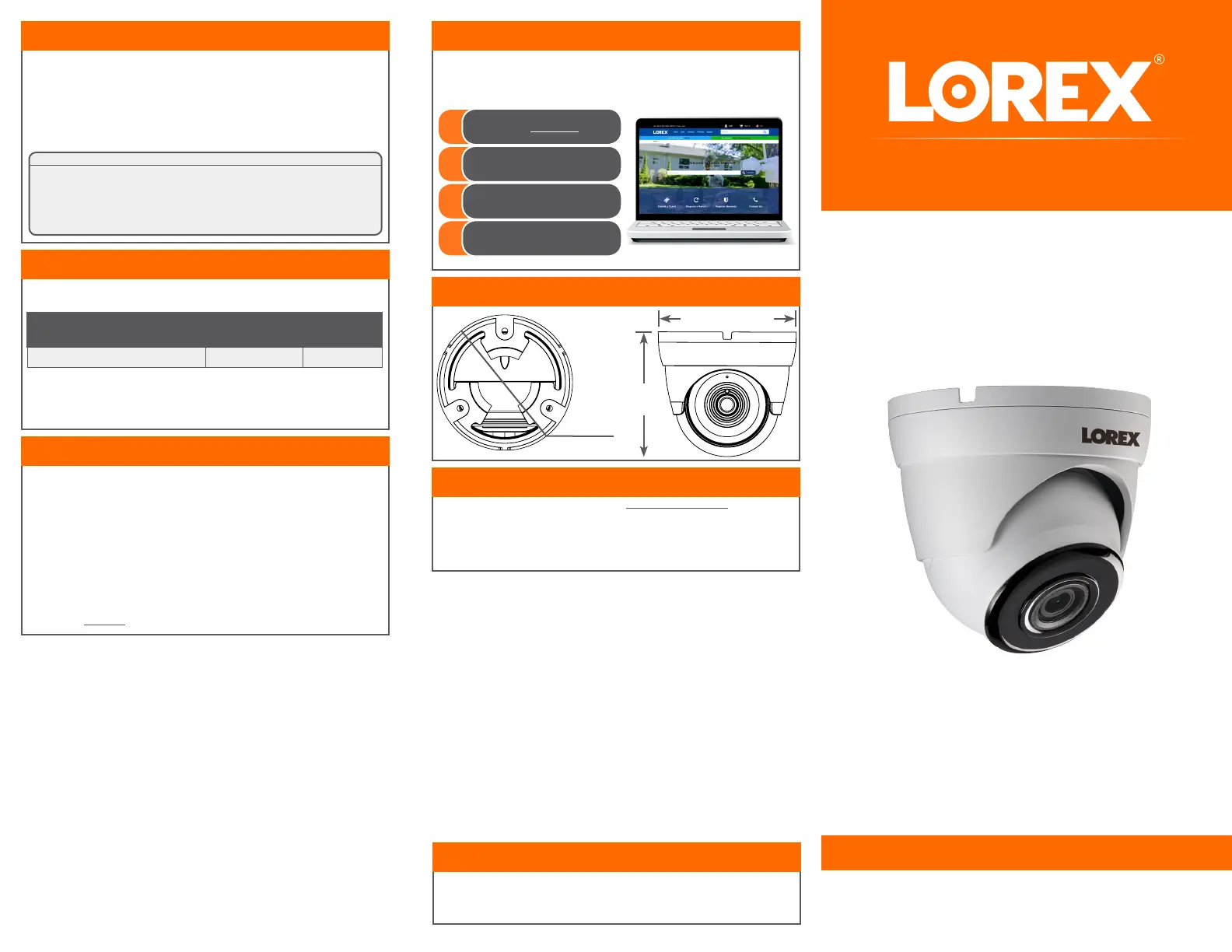

Sida 1/2

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (92m), a switch will be required

(sold separately).

LKE343_QSG_EN_R2

4MP HD IP Dome Security Camera

• 4MP HD IP Dome Security Camera

• Mounting Kit*

• Ethernet Extension Cable*

• Weatherprooﬁng Cap*

• Allen Key*

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels noted in the

camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of intense light.

• Use only the supplied regulated power supply provided with the product. Use of a

non-regulated, non-conforming power supply can damage the product and void the

warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh,

chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall and ﬂoor-

to-ﬂoor installations are sold separately (CMR type). These and other cables are

available at lorex.com

* Per camera in multi-camera packs.

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, speciﬁcations and prices, without notice and without

Quick Start Guide

English Version 2.0

LKE343 SERIES

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE

switch. If using a DC power adapter (not included) with the camera, a

REGULATED power supply is REQUIRED for use with this camera. Use of

a non-regulated, non-conforming power supply can damage this product

and voids the warranty.

Safety Precautions

Dimensions

www.lorex.com

Extend the cable run for your camera. Additional extension cables sold

separately. See table below:

Cable Extension Options

Cable Type Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (92m) 3

• For a full list of compatible recorders, visit lorex.com/compatibility

• Not intended for submersion in water. Installation in a sheltered location

recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes

between Day/Night viewing modes, an audible clicking noise may be heard from

the camera. This clicking is normal, and indicates that the camera ﬁlter is working.

3.9” /

100mm

3.9” / 100mm

3.5” /

90mm

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

Resources

Disclaimers

Connecting the Cameras

To install your camera:

1. Rotate the camera base counterclockwise to separate it from the

ball camera, adjustment ring, and dome cover.

2. Use the included mounting template to mark and drill holes for the

included mounting screws.

3. Feed the cable through the camera base. If you are running the

cables against a wall or ceiling, make sure to pass the cable

through the cable notch as shown above.

4. Connect the cables as shown in the section ‘Connecting the

Camera’.

5. Mount the camera base to the mounting surface using the included

screws and drywall anchors (optional).

6. Place the adjustment ring over the dome cover, then place both

over the ball camera. Twist the adjustment ring clockwise halfway

onto the camera base. Do not tighten all the way.

7. Move the ball camera to the desired position. While holding the ball

camera ﬁrmly in place, twist the adjustment ring the rest of the

way to secure it to the camera base. Holding the camera prevents

it from moving while securing the adjustment ring.

8. Remove the vinyl ﬁlm from the camera lens when your installation

is complete.

ATTENTION:

Test your camera prior to selecting a permanent mounting location by

temporarily connecting the camera and cable to your NVR.

Before Installing the Camera

• Decide whether to run the cables through

the wall / ceiling (drilling required) or along

the wall / ceiling.

• If you run the cables along the wall / ceiling,

you must run the cable through the cable

notch on the base. This will keep the camera

base ﬂush to the surface when mounted.

Cable Notch

Mounting

Surface

Camera Base

Ball Camera

Adjustment Ring

Dome Cover

Drywall Anchors

Mounting

Screws

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

Installing the Camera

Installation Tips

Connect the Ethernet cable to

the camera.

Connect the other end of the

Ethernet cable to the NVR’s PoE

ports. The camera may take a

minute to power up after

being connected.

Connecting the Camera

LKE343_QSG_EN_R2

Problem Solution

No picture / signal • Ensure the camera is connected to a compatible NVR.

For full camera compatibility, visit

lorex.com/compatibility.

• The camera may take up to 1 minute to power up after

being connected to the NVR. Wait two minutes before

following the steps below.

• Ensure the camera is connected to your NVR or to your

local network.

• If you are not using PoE, you must connect the camera

to a 12V DC power adapter (not included).

• If the camera is connected to the LAN, you must search

your network for cameras using the NVR. See the NVR’s

instruction manual.

• Ensure your NVR is properly connected to a TV/monitor.

• There may be an issue with your extension cable run.

Connect the camera to the NVR using a different

Ethernet cable.

Picture is too bright • Ensure your camera isn’t pointed directly at a source of

light (e.g., sun or spot light).

• Move your camera to a different location.

• Check the brightness and contrast settings on the NVR.

Picture is too dark • Check the brightness and contrast settings on the NVR.

Night vision is not

working

• The night vision activates when light levels drop. The

area may have too much light.

Picture is not clear • Check the camera lens for dirt, dust, spiderwebs. Clean

the lens with a soft, clean cloth.

• Make sure that the cable run is within the limitations

speciﬁed in the section ‘Cable Extension Options’.

• Remove the vinyl ﬁlm from the camera lens when your

installation is complete.

Bright spot in

video when viewing

camera at night

• Night vision reﬂects when pointing a camera through a

window. Move the camera to a different location.

Picture is in color in

dark conditions

• This camera comes with an image sensor that is extra

sensitive to light, meaning that the camera stays in color

mode at low-light conditions. For instructions on how to

make your camera switch to night mode, visit

lorex.com, and search for “How do I make my camera

switch to night mode?”

Troubleshooting

Connect the other end of the

Ethernet cable to a router or

switch on your network. See

your NVR manual for details on

connecting the camera to your

NVR using a switch or router.

Camera NVR

Setup Diagram

CameraHD NVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

HD NVR

Router

PoE Switch

(Optional)

12V DC Power

ATTENTION:

This camera is only compatible with select NVRs. For a list of compatible

recorders, visit lorex.com/compatibility.

Ethernet Cable

NOTES:

• For weatherprooﬁng instructions,

see “Using the Weatherprooﬁng

Cap (Optional)”.

• A 12V DC power adapter (model#:

CVA4902, not included) is

only required if connecting the

camera’s Ethernet cable to a

router or switch that does not

support PoE.

Using the Weatherprooﬁng Cap (Optional)

Camera Ethernet Connector

O-Ring Rubber Stopper

Barrel End Cap

1. Fit the O-ring around the camera Ethernet connector.

2. Feed the Ethernet extension cable through the end cap and the barrel as

shown above. Connect the cable to the camera Ethernet connector.

3. Twist the barrel securely onto the camera Ethernet connector. The o-ring

becomes compressed when the seal is properly tight.

4. Split the rubber stopper to wrap it around the cable between the barrel

and end cap as shown above. Push the rubber stoppper toward the barrel

until it is underneath the teeth at the end of the barrel.

5. Twist the end cap securely onto the barrel. The rubber stopper becomes

compressed and will stick out of the end cap slightly when the seal is

properly tight.
