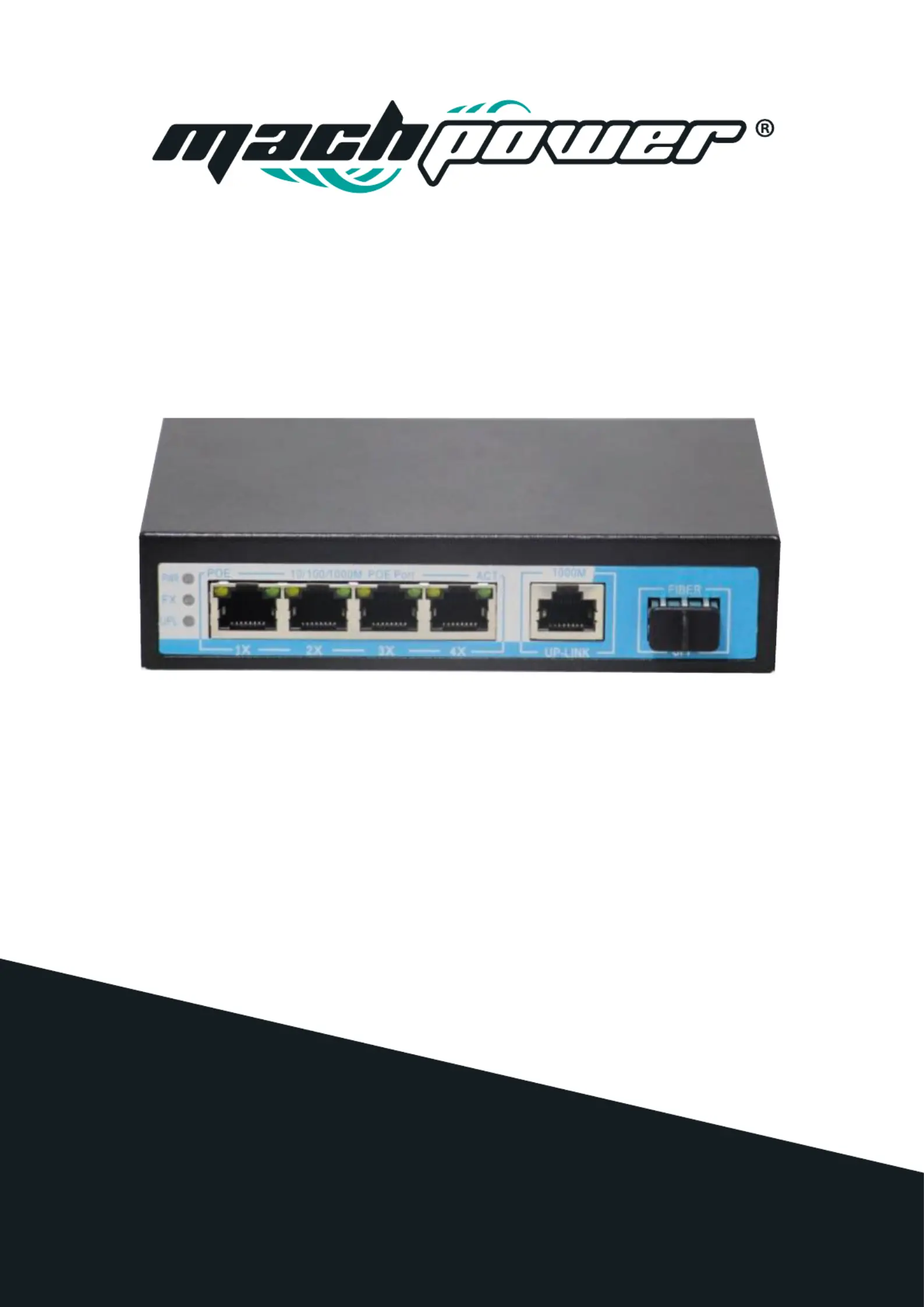

4p 10/100/1000M POE +1 Gigabit SFP
Port SWITCH+1 Gigabit LAN port
DATASHEET
MODEL: SW-UG4P1L1S-068
| DATASHEET
4 x 10/100/1000M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4) ,
1 x 10/100/1000mbps SFP Uplink port
1 x 10/100/1000mbps LAN port
250M cable power support 65W MAX power output
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
LED indicators for monitoring power, link, activity and speed
Desktop mode with Metal Case
Each POE port Up to 30W of power on
Compatible With All IEEE 802.3at or Legacy
Safe: Low Power Devices Receive Only the Power They Need
Automatic Detection and Protection of Non–standard Ethernet Terminals
Supports 10/100/1000 Base-T applications
Plug-and-Play no configuration required
External power supply (52VDC 1.25A MAX 65W )
Easy installation and maintenance
Complies to IEEE 802.3af/at PoE standard and is backward
FEATURES
SPECIFICATION
4
1 SFP ports, 1 Gigabit LAN port
Store-and-forward
10G
4K
Working Temperature: -10°C~55°C
Storage temperature: -40°C~70°C
Working Humidity :10%~90% RH non-condensing
Storage Humidity:5%~90% RH non-condensing
External power adapter 52V/1.25A 65W
IEEE802.3af/at, Port PoE 30W
IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X IEEE 802.3af/at
IEEE 802.3x
1000M POE Rj45
1000M UPLINK
Exchange Mechanism
Bandwidth
MAC
Environmental
Power input
POE
Standards Protocols
© Mach Power. All rights reserved. Mach Power is a registered trademark.
Specifications are subject to change without notice
The images may be used for illustrative purposes
| DATASHEET
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(150m)
100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(150m)
1000Base-T: Pair 4 Category 5(Cat5e) and above UTP/STP(150m)
1000Base-SX:62.5µm/50µm MMF(2m~550m)
1000Base-LX:62.5µm/50µm MM(2m~550m) or 10µm SMF(2m~5000m)
Speed
Network Media
