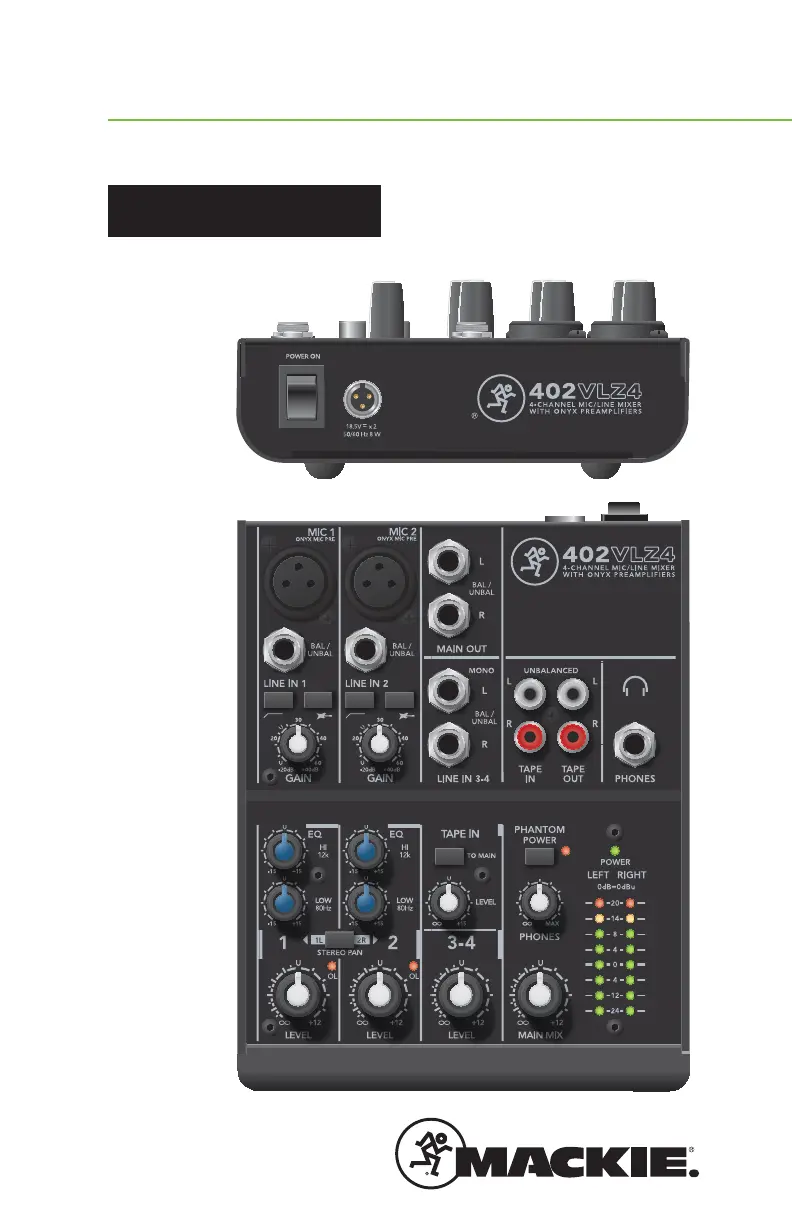

402VLZ4 4-Channel

Ultra-Compact Mixer

402VLZ4

The 4-channel 402VLZ4 features our ﬂagship Onyx

mic preamps in an ultra-compact design that is an

industry-leading performer ideal for professional

low-input applications.

From every input to every output, the 402VLZ4 is designed

to provide the highest headroom and lowest noise possible

for maximum signal integrity.

Plus, it truly is “Built-Like-A-Tank” with a ridiculously rugged

solid steel chassis and high-contrast controls for ultimate

tactile control.

And with features like instrument level inputs, phantom

power and level metering, the 402VLZ4 is the premier

mixer choice for anybody who’s big on performance,

but light on inputs.

APPLICATIONS:

Live sound mixing, houses of worship, clubs, gymnasiums,

banquet halls, conference rooms, boardrooms, studio and

ﬁeld recording, multimedia applications, broadcast and

many, many more.

FEATURES:

4-channel mixer featuring our signature

high-headroom, low-noise design

2 boutique-quality Onyx mic preamps

 •Ultra-wide 60 dB gain range

 •128.5dBdynamicrange

 •+22dBulineinputhandling

 •Extendedfrequencyresponse

 •Distortionunder0.0007%[20Hz–50kHz]

Improved RF rejection, perfect for broadcast

applications

Phantom power for condenser mics

Four high-headroom line inputs

Selectable instrument inputs on ﬁrst two

 channels–noDIboxneeded

2-bandEQ(80Hz,12kHz)

18dB/oct100Hzlow-cutlteronmicinputchannels

High-resolution8-segmentstereometers

Sealed rotary controls resist dust and grime

“Built-Like-A-Tank”ruggedsteelchassiswith

powder-coat ﬁnish

High-visibility,high-contrastcontrolsdeliver

 convenient“at-a-glance”visualfeedback

Like us

Watch our dang videos

2/5 PAGES

402VLZ4

4-Channel

Ultra-Compact Mixer

402VLZ4 SPECIFICATIONS

Main Mix Noise

(20 Hz–20 kHz bandwidth, 1/4" main out, channels 1-2 gain @ unity,

channel EQs ﬂat, stereo-pan button in)

Main mix knob down, channel level knobs down –103 dBu

Main mix knob @ unity, channel level knobs down –98 dBu

Main mix knob @ unity, channel level knobs @ unity –92 dBu

Signal-to-Noise Ratio, ref. +4 dBu 102 dB

Total Harmonic Distortion (THD)

(1 kHz @ 35 dB gain)

20 Hz–80 kHz bandwidth <0.005%

20 Hz–20 kHz bandwidth <0.003%

Attenuation / Crosstalk

(1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth, line in,

1/4" main out, gain @ unity)

Main mix knob down –70 dBu

Channel level knob down –94 dBu

Frequency Response

Mic input to main output (gain @ unity)

+0, –1 dB, 20 Hz to 50 kHz

+0, –3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (EIN)

(Mic in to main out, max gain)

150 termination –128.5 dBu

20 Hz–20 kHz

Common Mode Rejection Ratio (CMRR)

1 kHz better than –70 dB

Maximum Levels

Mic in +21 dBu

Tape in +24 dBu

All other inputs +22 dBu

All outputs +22 dBu

Impedances

Mic in 2.55 k

Instrument input 1 M

All other inputs 10 k or greater

Tape out 1.0 k

Phones out 60

All other outputs 120

High Shelving ±15 dB @ 12 kHz

Low Shelving ±15 dB @ 80 Hz

AC Power Requirements

Power Consumption 8 watts

US, JP 100 – 120 VAC, 50 – 60 Hz

EU, UK, AU, CN 200 – 240 VAC, 50 – 60 Hz

External Power Supply AC Connector 2-pin IEC 250 VAC

Operating Temperature 0˚ – 40˚C

32˚ – 104˚F

External Power Supply

US Adapter (18.5 VAC x 2, 350 mA, US) P/N 0028090-00

EU Adapter (18.5 VAC x 2, 350 mA, EU) P/N 0028090-01

JP Adapter (18.5 VAC x 2, 350 mA, JP) P/N 0028090-02

UK Adapter (18.5 VAC x 2, 350 mA, UK) P/N 0028090-03

AU Adapter (18.5 VAC x 2, 350 mA, AU) P/N 0028090-04

CN Adapter (18.5 VAC x 2, 350 mA, CN) P/N 0028090-05

Physical Properties (product)

Height 7.3 in / 186 mm

Depth 1.6 in / 41 mm

Width 5.8 in / 147 mm

Weight (with power supply) 3.0 lb / 1.36 kg

Weight (without power supply) 2.5 lb / 1.1 kg

Physical Properties (packaged product)

Height 4.1 in / 104 mm

Depth 12.5 in / 318 mm

Width 8.8 in / 222 mm

Weight 3.8 lb / 1.7 kg

Options

402VLZ4 Mixer Bag P/N 2036809-08

Ordering Information

402VLZ4 4-Channel Ultra-Compact Mixer, US

P/N 2040768-00

402VLZ4 4-Channel Ultra-Compact Mixer, EU

P/N 2040768-01

402VLZ4 4-Channel Ultra-Compact Mixer, JP

P/N 2040768-02

402VLZ4 4-Channel Ultra-Compact Mixer, UK

P/N 2040768-03

402VLZ4 4-Channel Ultra-Compact Mixer, AU

P/N 2040768-04

402VLZ4 4-Channel Ultra-Compact Mixer, CN

P/N 2040768-05

402VLZ4 4-Channel Ultra-Compact Mixer, BZ

P/N 2040768-06

3/5 PAGES

402VLZ4

4-Channel

Ultra-Compact Mixer

402VLZ4 DIMENSIONS

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

THIRD ANGLE PROJECTION

NOTES:

1. WEIGHT APPROX. 3.0 lb [1.36 kg] – with power supply

2. WEIGHT APPROX. 2.5 lb [1.1 kg] – without power supply

3. SHIPPING WEIGHT APPROX. 3.8 lb [1.7 kg]

5.8

[147]

7.3

[186]

1.6

[41]

The bottom panel of the 402VLZ4 has three non-threaded

holes that allow it to be fitted with an optional microphone

stand adapter. This lets you support the mixer on a standard

mic stand and adjust its height and level to whatever suits

your preferences.

The Atlas AD-11B mic stand adapter is available at many

music stores. It is made and distributed by Atlas Sound.

Use three self-tapping machine screws 6-32 x 1/4” long to

secure the adapter to the bottom of the 402VLZ4.

Do not use screws longer than 1/4” as these could damage

the circuit boards. Do not use screws shorter than 1/4”,

or the adapter will not be securely fixed to the mixer.

Holes for microphone

stand adapter

MICROPHONE STAND
