Sida 1/6

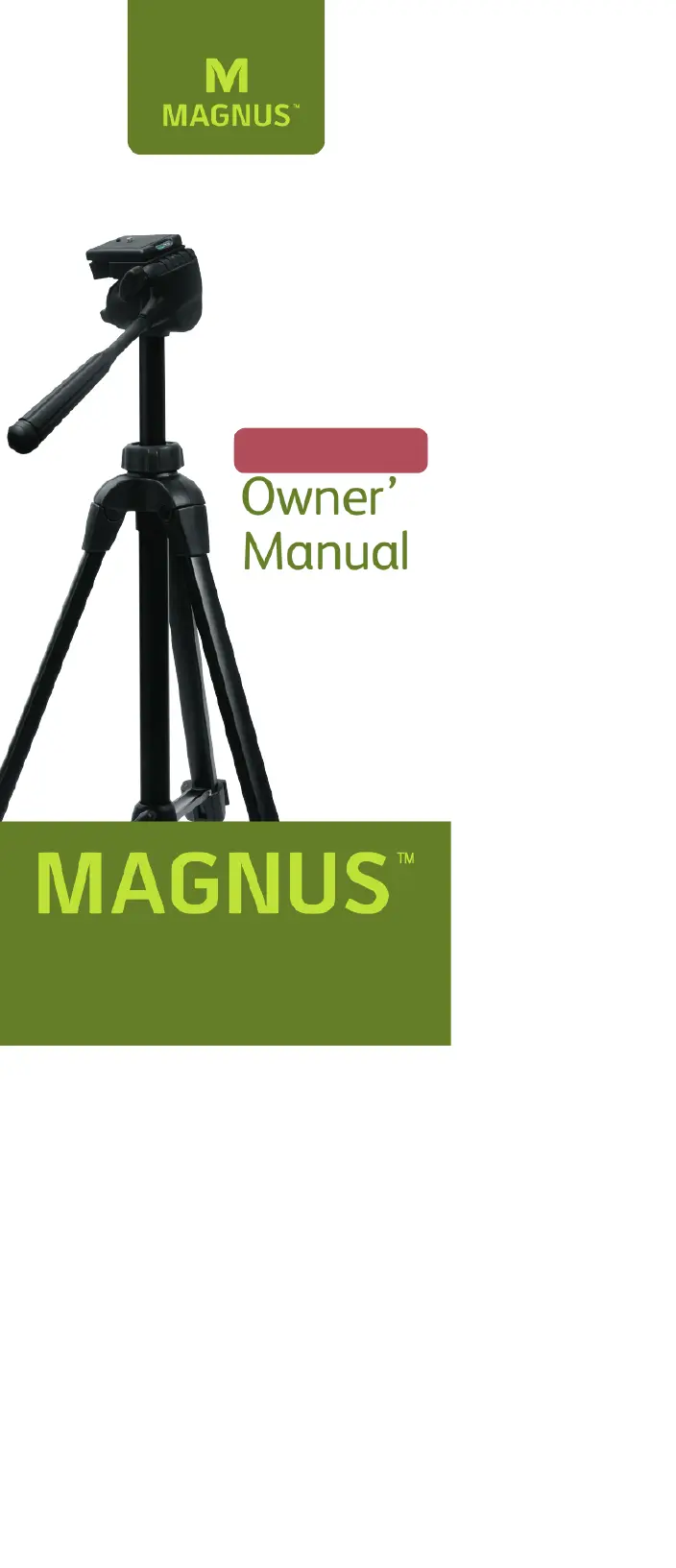

Owner’s
Manual
Photo Tripod
PV Series
Photo Tripod Components
Thank you for choosing Magnus.
Congratulations on the purchase of your new
Magnus tripod. This tripod features an adjustable
center column for smooth and precise camera height
adjustment, and telescoping legs with flip-locks
for fast and easy leg adjustments. The three-way
pan & tilt head gives you total control over camera
positioning, and the quick-release plate features a
1/4”-20 male thread for universal camera mounting.
There is also a bubble level to ensure that your shot is
properly aligned.
Please read and follow these instructions, and keep
this manual in a safe place.
Platform Orientation
Locking Knob
Universal ¼-20
Mounting Screw
Tilt/Pan Bar /
Tilt Lock
Center Column
Locking Collar
Center Brace
Locking Knob
Quick-Release
Mounting Plate
Pan Locking
Knob
Leg
Flip-Lock
Image is for illustration purposes only.
Features varies by model
Opening the Tripod
1 Always extend the legs from the top flip-locks first.
Pull out on each flip-lock and extend the legs to the
desired height. Relock each leg (Fig. A-B)
2 Rotate the locking
knob counterclockwise
to release the center
brace, and gently pull
the legs out. Push
down on the center
brace, and then rotate
the locking knob
clockwise to lock the
legs in place (Fig. C)
Mounting the Quick-Release Plate to
the Camera
1 To remove the quick-release plate from the tripod
head, pull and hold the plate locking lever and
remove the quick-release plate (Fig. D)
2 Line up the quick-release plate lengthwise with the
bottom of the camera. Match the quick-release
plate screw to the camera’s mounting thread, and
mount the plate to the camera by rotating the
screw clockwise until snug (Fig. E)
Figure A Figure B
Figure C
Figure E
Figure D
