Owner’s

Manual

Travel Tripod

TR-13

Travel Tripod Components

Thank you for choosing Magnus.

The Magnus TR-13 Travel tripod is the perfect lightweight

travel companion when you’re on the go. This tripod

features a dual-action ballhead with pan control for precise

aim. An Arca-type quick release plate allows you to quickly

and effortlessly mount or swap your cameras. For height

adjustment up to 62 inches, the adjustable center column

offers smooth and precise positioning, and it’s reversible,

which enables low-angle or close-to-the-ground shots.

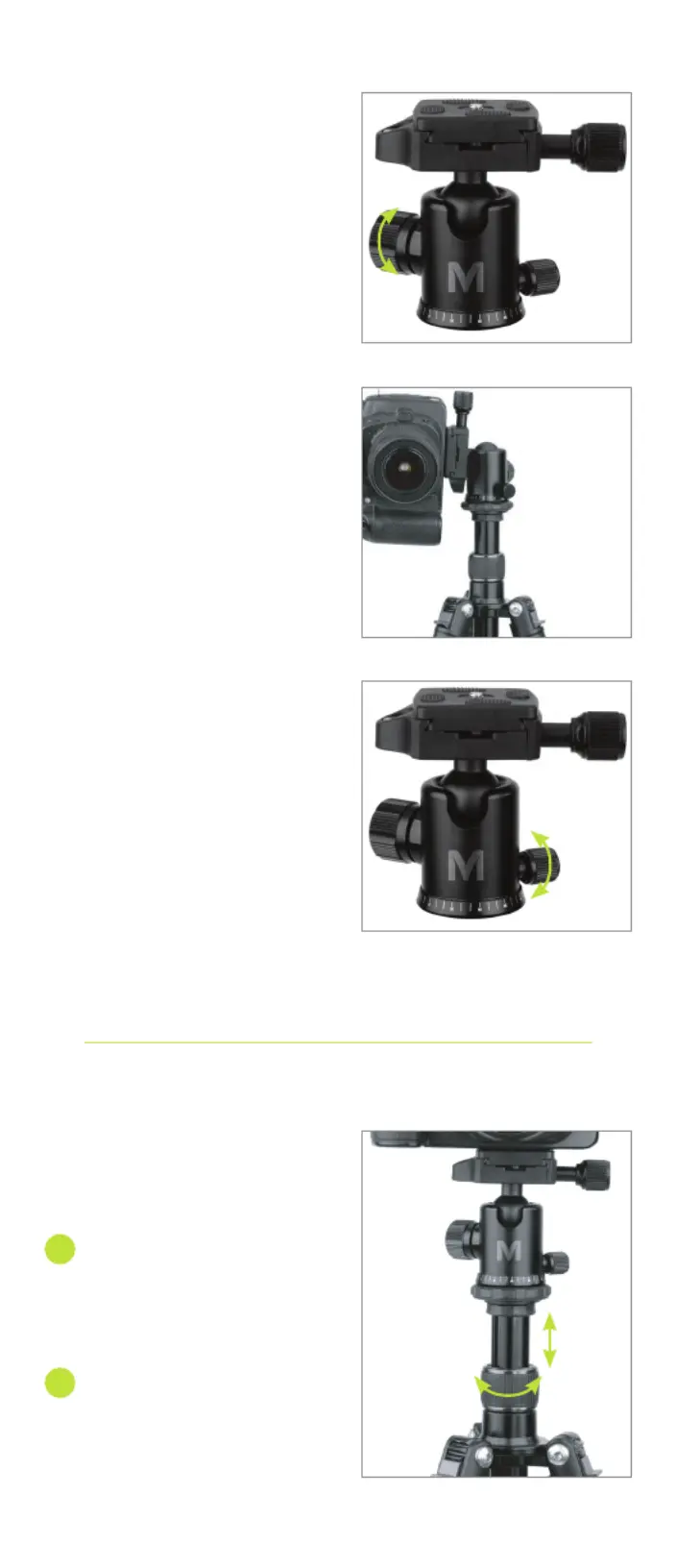

Pan locking

knob

Center column

Ball locking knob

Pan degree scale

Center column

locking knob

Leg angle locks

Counterweight

hook

Quick-release plate

Quick-release locking knob

Flip locks

Rubber feet

Opening the Tripod

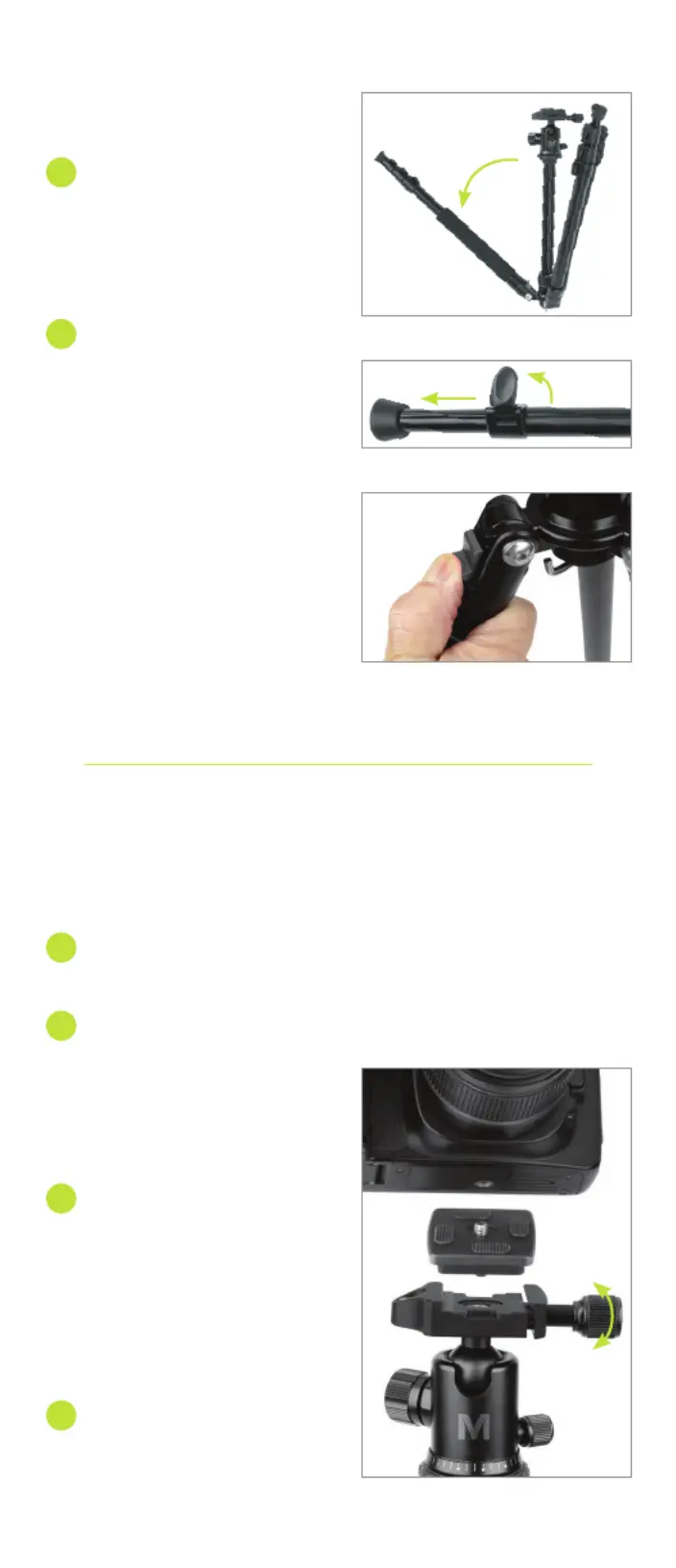

Fold the legs down

until the angle locks

click into place. Make

sure all the legs are set

to the same angle.

Open the flip locks, and

extend each leg to the

desired height. Relock

each leg.

Always extend the legs from

the top flip-locks first.

To adjust the leg angles, slightly

fold each leg down, and press

the leg angle lock. Move the leg

to the new angle, and release

the lock.

Mounting the Quick-Release Plate to the Camera

Loosen the quick-release locking knob, and remove

the quick-release plate from the ballhead.

Screw the quick-release plate into the camera’s tripod

socket until snug.

Make sure the mounting

screw’s D-ring is off to

the side of the screw.

Mount the camera/quick-

release plate assembly to

the ballhead by placing

the grooved edges of the

quick-release plate into

the matching beveled

sides of the ballhead.

Tighten the quick-release

locking knob until the

assembly is secure.
