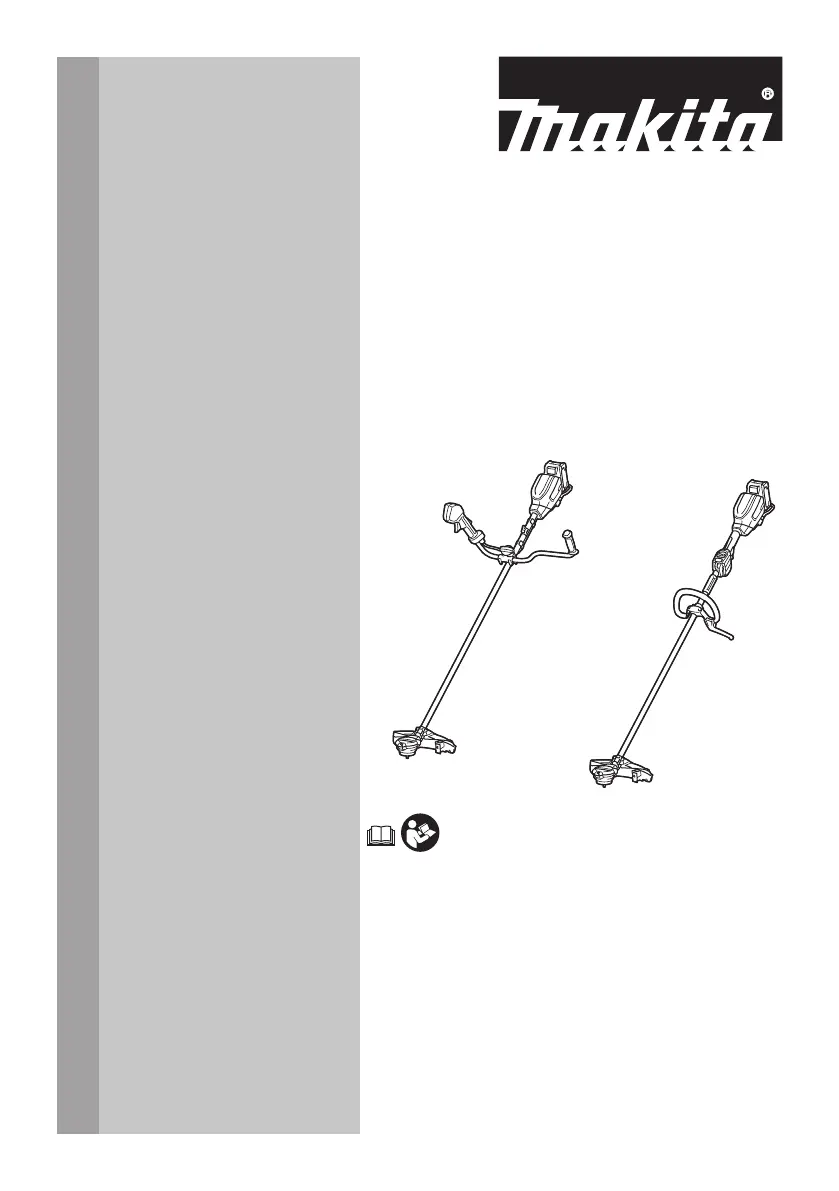

INSTRUCTION MANUAL

Cordless Grass Trimmer

UR002G

UR003G

ENGLISH: Original instructions

Read before use.

2 ENGLISH

SPECIFICATIONS

Model: UR002G UR003G

Handle type Bike handle Loop handle

No load speed

(at each rotation speed level)

Cutter blade /

Nylon cutting head /

Plastic blade

3: 0 - 6,500 min-1

2: 0 - 5,300 min-1

1: 0 - 3,500 min-1

Overall length

(without cutting tool)

1,760 mm

Nylon cord diameter 2.0 - 2.4 mm

Applicable cutting tool and

cutting diameter

3-tooth blade

(P/N: 195298-3)

230 mm

4-tooth blade

(P/N: 195150-5)

230 mm

8-tooth blade

(P/N: B-14130)

230 mm

Nylon cutting head

(P/N: 198893-8)

350 mm

Plastic blade

(P/N: 198383-1)

255 mm

Rated voltage D.C. 36 V - 40 V max

Net weight 4.6 - 5.0 kg 4.1 - 4.4 kg

Protection degree IPX4

•

Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may dier from country to country.

• The weight may dier depending on the attachment(s), including the battery cartridge. The lightest and heavi-

est combination, according to EPTA-Procedure 01/2014, are shown in the table.

Applicable battery cartridge and charger

Battery cartridge BL4020 / BL4025 / BL4040

Charger DC40RA

•

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re.

Recommended battery adapter

Battery adapter PDC1200 / PDC01

• The battery adapter(s) listed above may not be available depending on your region of residence.

• Before using the battery adapter, read instruction and cautionary markings on the battery adapter.

Noise

Model UR002G

Cutting tool

Sound pressure level (L

pA )

dB(A)

Sound power level (LWA)

dB(A)

Applicable

standard

LpA dB(A) Uncer-

tainty (K)

dB(A)

WA dB(A) Uncer-

tainty (K)

dB(A)

4-tooth blade 74.4 1.9 87.6 0.3

ISO22868

(ISO11806-1)

Nylon cutting head 72.2 1.7 89.7 2.2

ISO22868

(ISO11806-1)/

EN50636-2-91

Plastic blade 74.4 0.7 85.3 0.8

ISO22868

(ISO11806-1)/

EN50636-2-91

3 ENGLISH

Model UR003G

Cutting tool

Sound pressure level (L

pA)

dB(A)

Sound power level (LWA)

dB(A)

Applicable

standard

LpA dB(A) Uncer-

tainty (K)

dB(A)

LWA dB(A) Uncer-

tainty (K)

dB(A)

4-tooth blade 74.4 1.9 87.6 0.3

ISO22868

(ISO11806-1)

Nylon cutting head 72.2 1.7 89.7 2.2

ISO22868

(ISO11806-1)/

EN50636-2-91

Plastic blade 74.4 0.7 85.3 0.8

ISO22868

(ISO11806-1)/

EN50636-2-91

• Even if the sound pressure level listed above is 80 dB (A) or less, the level under working may exceed 80 dB

(A). Wear ear protection.

NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and

may be used for comparing one tool with another.

NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual use of the power tool can dier from the declared val-

ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the

times when the tool is switched o and when it is running idle in addition to the trigger time).

Vibration

Applicable standard : ISO22867(ISO11806-1)

Model UR002G

Cutting tool Left hand Right hand

ah,W (m/s2) Uncertainty K

(m/s2)

ah,W (m/s2) Uncertainty K

(m/s2)

4-tooth blade 2.5 1.5 2.5 1.5

Nylon cutting head 2.5 1.5 2.5 1.5

Plastic blade 2.5 1.5 2.5 1.5

Model UR003G

Cutting tool Left hand Right hand

ah,W (m/s2) Uncertainty K

(m/s2)

ah,W (m/s2) Uncertainty K

(m/s2)

4-tooth blade 2.5 1.5 2.5 1.5

Nylon cutting head 2.5 1.5 2.5 1.5

Plastic blade 2.5 1.5 2.5 1.5

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and

may be used for comparing one tool with another.

NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can dier from the declared

value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the

times when the tool is switched o and when it is running idle in addition to the trigger time).
