Sida 1/12
1
ENGLISH (Original instructions)

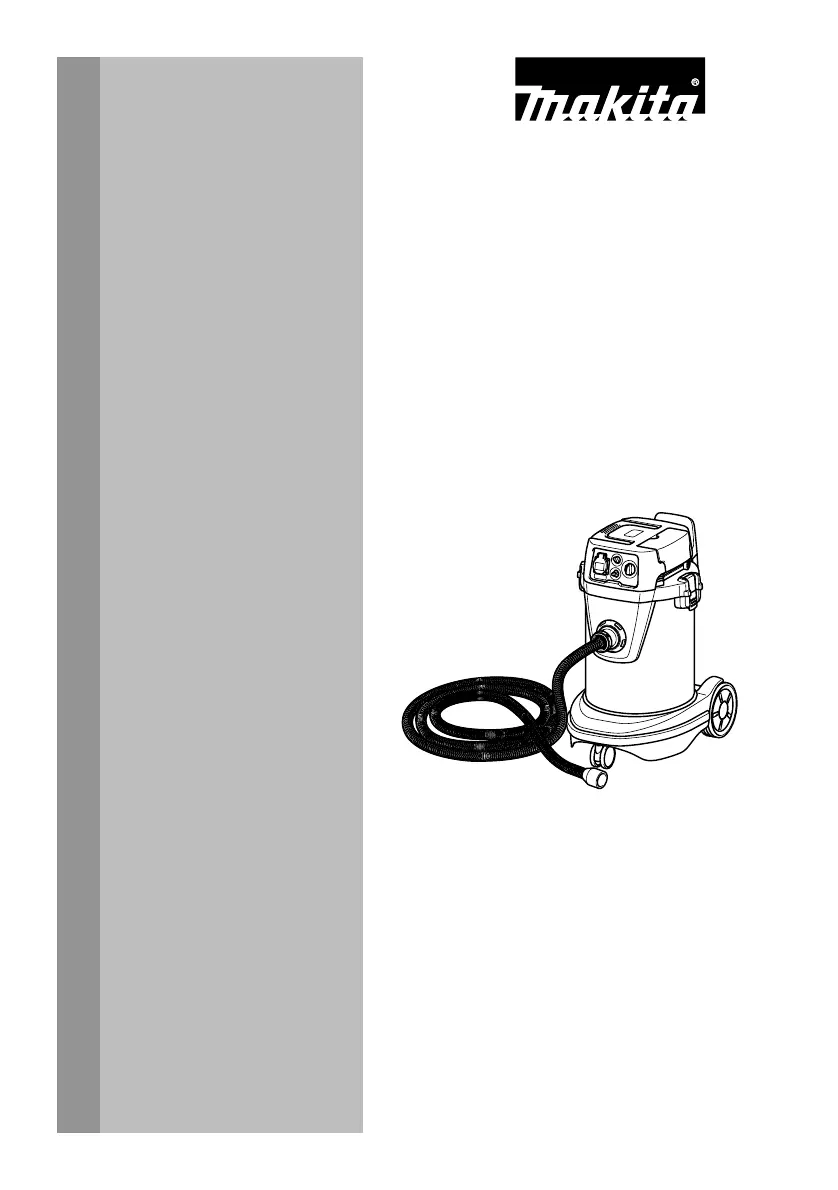

INSTRUCTION MANUAL
IMPORTANT: Read Before Using.
V
acuum Cleaner
VC3211H
013368
2
ENGLISH (Original instructions)
SPECIFICATIONS
Model VC3211H
Countries EU Switzerland UK
Voltage Volt 230-240 230-240 110 230-240
Power consumption Watt 1050 1050 1050 1050
Watt at symbol mode 2400 1100 600 1900
Connected load for appliance
socket Watt at symbol mode 2600 1400 850 2100
Total connected load Watt 3450 2150 1650 2950
Model VC3211H
With φ28 mm X 3.5 m hose 2.0 m
3/min
Volume flow (air) With φ38 mm X 2.5 m hose 3.5 m
3/min
Vacuum 22 kPa
Type of protection IP X4 (splash-proof)
Dust 32 L
Recoverable capacity Water 27 L
Dimensions (L x W x H) 552 mm x 398 mm x 685 mm
Net weight 17.0 kg
Safety class Class I
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END114-2
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･ Read instruction manual.
･ Take particular care and attention.
･ Warning! The cleaner may contain
hazardous dust.
･ Never stand on the cleaner.
･ The cleaners are capable of picking up
dust class L,M and H. Follow your
county's regulations relating to dusts
and to occupational health and safety.
Warning! This machine contains dust
hazardous to health. Emptying and
maintenance operations, including
removal of the dust collection means,
must only be carried out by authorised
personnel wearing suitable personal
protection. Do not operate without the
full filtration system fitted.
･ Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of the European
Directive, on Waste Electric and
Electronic Equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
ENE084-1
Intended use
The tool is intended for collecting both wet and dry dust.
The tool is suitable for commercial use, for example in
hotels, schools, hospitals, factories, shops, offices and
rental businesses.
ENF001-1
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. This tool
should be grounded while in use to protect the operator
from electric shock. Use only three-wire extension cords
which have three-prong grounding-type plugs and three-
pole receptacles which accept the tool's plug.
3
ENG905-1
Noise
The typical A-weighted noise level determined
according to EN/IEC60704:
Sound pressure level (L
pA) : 72.5 dB (A)
Uncertainty (K) : 2.5 dB (A)
The noise level under working may exceed 80 dB (A).
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN/IEC60335:
The vibration emission value is below 2.5 m/s
2.
ENH038-3
For European countries only
EC Declaration of Conformity
Makita declares that the following Machine(s):
Designation of Machine:
Vacuum Cleaner
Model No./ Type: VC3211H
Conforms to the following European Directives:
2006/42/EC
They are manufactured in accordance with the following
standard or standardized documents:
EN60335
The technical file in accordance with 2006/42/EC is
available from:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
31.7.2014
000331
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
ENB121-1
VACUUM CLEANER SAFETY
WARNINGS
WARNING! IMPORTANT READ CAREFULLY all
safety warnings and all instructions BEFORE USE.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
1. Before use, make sure that this cleaner must
be used by people who have been adequately
instructed on the use of this cleaner.
2. Only use the socket outlet on the cleaner for
purposes specified in the instructions.
3. If foam/liquid comes out, switch off
immediately.
4. Clean the water level limiting device regularly
and examine it for signs of damage.
5. Do not use the cleaner without the filter.
Replace a damaged filter immediately.
6. USE OF EXTENSION CORD. When using an
extension cord because of the great distance
to your power source, try to employ a cord
that is sufficiently thick but not too long, or
cleaner performance will be adversely
affected. For outdoor applications use an
extension cord suitable for outdoor use.
7.
VOLTAGE WARNING: Before connecting the
cleaner to a power source (receptacle, outlet, etc.)
be sure the voltage supplied is the same as that
specified on the nameplate of the cleaner. A power
source with voltage greater than that specified for
the cleaner can result in SERIOUS INJURY to the
operator as well as damage to the cleaner. If in
doubt, DO NOT PLUG IN THE CLEANER. Using a
power source with voltage less than the nameplate
rating is harmful to the motor.
8. AVOID UNINTENTIONAL STARTING. Be sure
switch is OFF when plugging in.
9. Do not attempt to pick up flammable materials,
fire works, lighted cigarettes, hot ashes, hot
metal chips, sharp materials such as razors,
needles, broken glass or the like.
10.
NEVER USE THE CLEANER IN THE VICINITY OF
GASOLINE, GAS, PAINT, ADHESIVES OR OTHER
HIGHLY EXPLOSIVE SUBSTANCES. The switch
emits sparks when turned ON and OFF. And so
does the motor commutator during operation. A
dangerous explosion may result.
11.
After vacuuming up toxic, carcinogenic or
pathogenic, or other hazardous materials such as
asbestos, arsenic, barium, beryllium, lead,
pesticides, or other health endangering materials,
bring the machine to authorised institution for
cleaning and disposal of those hazardous dusts
in accordance with your country’s regulation.
12.
Never vacuum up combustible dusts or materials.
13. Never use the cleaner outdoors in the rain.
14. Do not use close to heat sources (stoves, etc.).
15. GUARD AGAINST ELECTRIC SHOCK. Prevent
body contact with grounded surfaces. For
example; pipes, radiators, ranges, refrigerator
enclosures.
16. Do not block cooling vents. These vents
permit cooling of the motor. Blockage should
be carefully avoided otherwise the motor will
burn out from lack of ventilation.
17. Keep proper footing and balance at all times.
18. DO NOT ABUSE CORD. Never carry the
