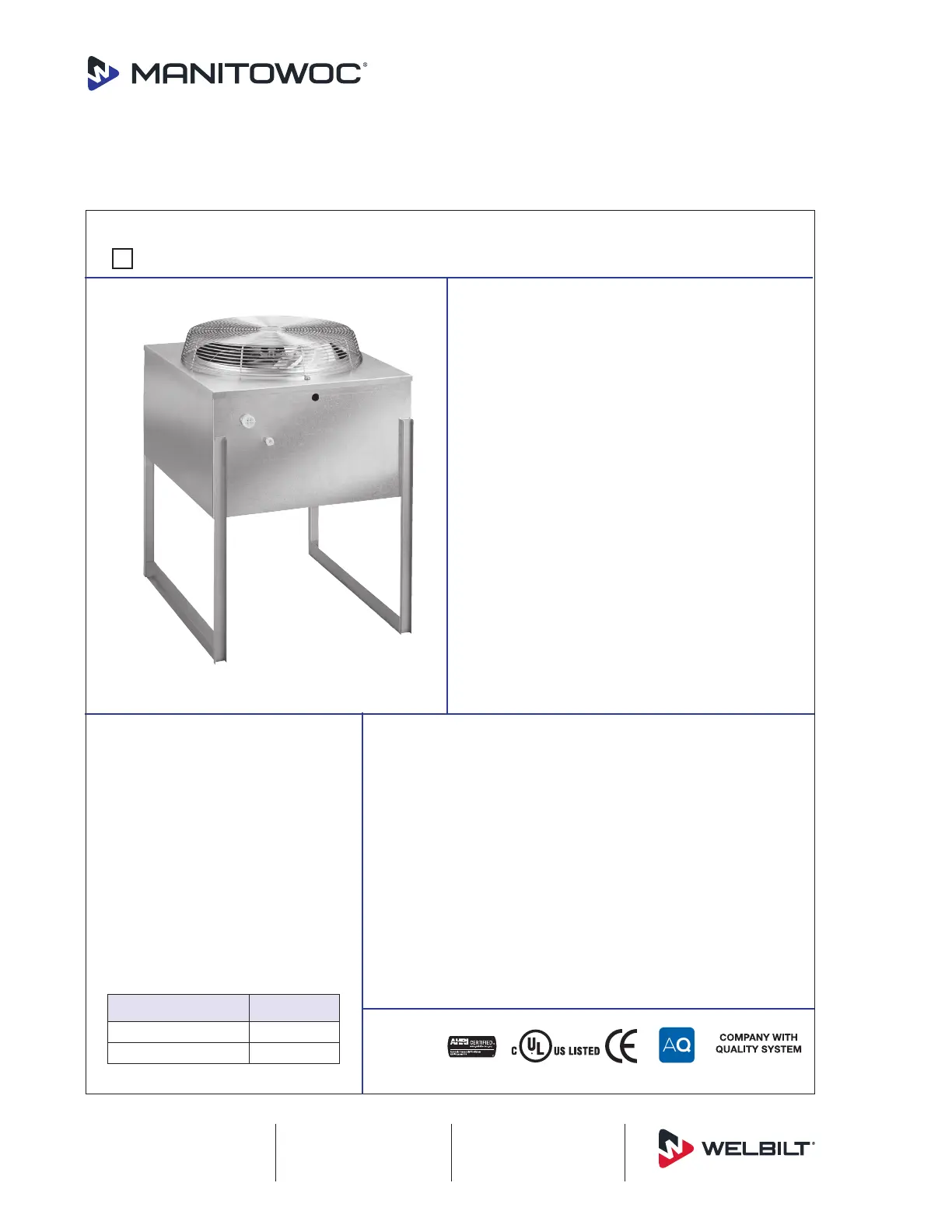

Standard Features
Vertical discharge remote condenser is available
for Indigo NXT Series iF0600N and iF0900N ice
machines. Refer to ice machine specification sheet
for equipment dimensions, production capacities,
electrical requirements, and ice storage bin
compatibility.
Condenser operation range from -20°F (-29°C) to
120°F (49°C). Can be installed with up to 20” (50.8 cm)
of bottom clearance.
Remote system consists of a remote condenser and
interconnecting refrigerant lines. All components are
pre-charged with refrigerant and have quick-connect
fittings for convenient installation. Order ice cube
machine, ice storage bin, vertical discharge remote
condenser and line set separately.
Warranty
• 3-year parts and labor. See warranty statement for
complete details.
Models
Vertical Discharge Remote Condenser
for Indigo® NXT™ Series Ice Cube Machines with R404A refrigerant
Vertical Discharge Remote Condenser
for Indigo® NXT™ Series Ice Cube Machines with R404A refrigerant
JCF0900
JCF900
Remote Condenser
Remote, air-cooled condenser
system improves efficiency and ice
production, conserving energy.
Manitowoc remote condenser
systems effectively dissipate heat
at a convenient location, indoors
or outdoors, away from the ice
machine. This maximizes ice-
making capability and minimizes air
conditioning loads by lowering the
ambient air temperature at the
ice machine.
Installation Information and Dimensions
Maximum Location Distance - combined vertical and
horizontal distances from ice machine to condenser must
comply with guidelines.
Maximum Line Length: 100' (30 m)*
Maximum Vertical Rise: 35' (10.5 m) above ice machine.
Maximum Vertical Drop: 15' (4.5 m) below ice machine.
To calculate other acceptable horizontal and vertical combinations,
refer to remote condenser installation instructions.
* Remote condenser has refrigerant charge for up to 50' (15 m) line length.
Over 50' (15 m) requires additional refrigerant charge at time of installation.
Single Indigo Series
Ice Machine
R emote
Condenser
iF0600N JCF0900
iF0900N JCF0900
2110 South 26th Street
Manitowoc, WI 54220
Tel: 1.920.682.0161
Fax: 1.920.683.7589
Vertical Discharge Remote Condenser
for Indigo® NXT™ Series Ice Cube Machines with R404A refrigerant
Typical Installation
Optional
34.00"
(86.36 cm)
or
38.00"
(76.20 cm)
24.50" (62.23 cm)
28.00" (71.12 cm)
29.16" (74.06 cm)
Electrica
l
Entranc
e
Discharg
e
Refrig.
Line
Liquid
Refrig.
Line
A
B
C
E
F
D
6.00" (15.24 cm)
3.50" (8.89 cm)
3.88" (9.85 cm)
12.13" (30.81 cm)
1.50" (3.81 cm)
6.50" 16.51 cm)
Optional
20.00" (50.80 c
m)
16.00" (40.64 c
m)
G
G
E
F
C
D
A
B
JCF0900 Remote Condenser
Electric
Electrical power to the remote condenser is intended to be
supplied from the ice machine; however, if necessary, a separate
electrical power source can be used.
Remote Indigo NXT Series Ice Machine
Indigo NXT Series Remote Condensers
with R404A Refrigerant
Standard Interconnecting Refrigerant Lines
Indigo
Model
Electrical
Service*
Minimum Circuit
Ampacity
Maximum
Fuse size
iF0600N 208-230/60/1 10.7 15
iF0900N 208-230/60/1 12.2 9.7 20 15
* Shaded box indicates 3 phase. Consult factory.
HACR circuit breakers can be used in place of fuses.
Condenser
Indigo
Model
Matching
Ice Machine
Condenser
Electrical
Service* Amperage Weight
lbs. kgs.
JCF0900 iF0600N,
iF0900N 208-230/60/1 1.0 78 35
* Consult factory. HACR circuit breakers can be used in
place of fuses.
Model Line Length Weight
ft. m. lbs. kgs
RT-20-R404A 20 6.07 10 4.54
RT-35-R404A 35 10.67 15 6.8
RT-50-R404A 50 15.24 22 9.98
Order “RT” line sets separately for iF0600N and iF0900N
The line sets above are pre-charged and come with quick connect ttings.
www.manitowocice.com
6654 06/18
