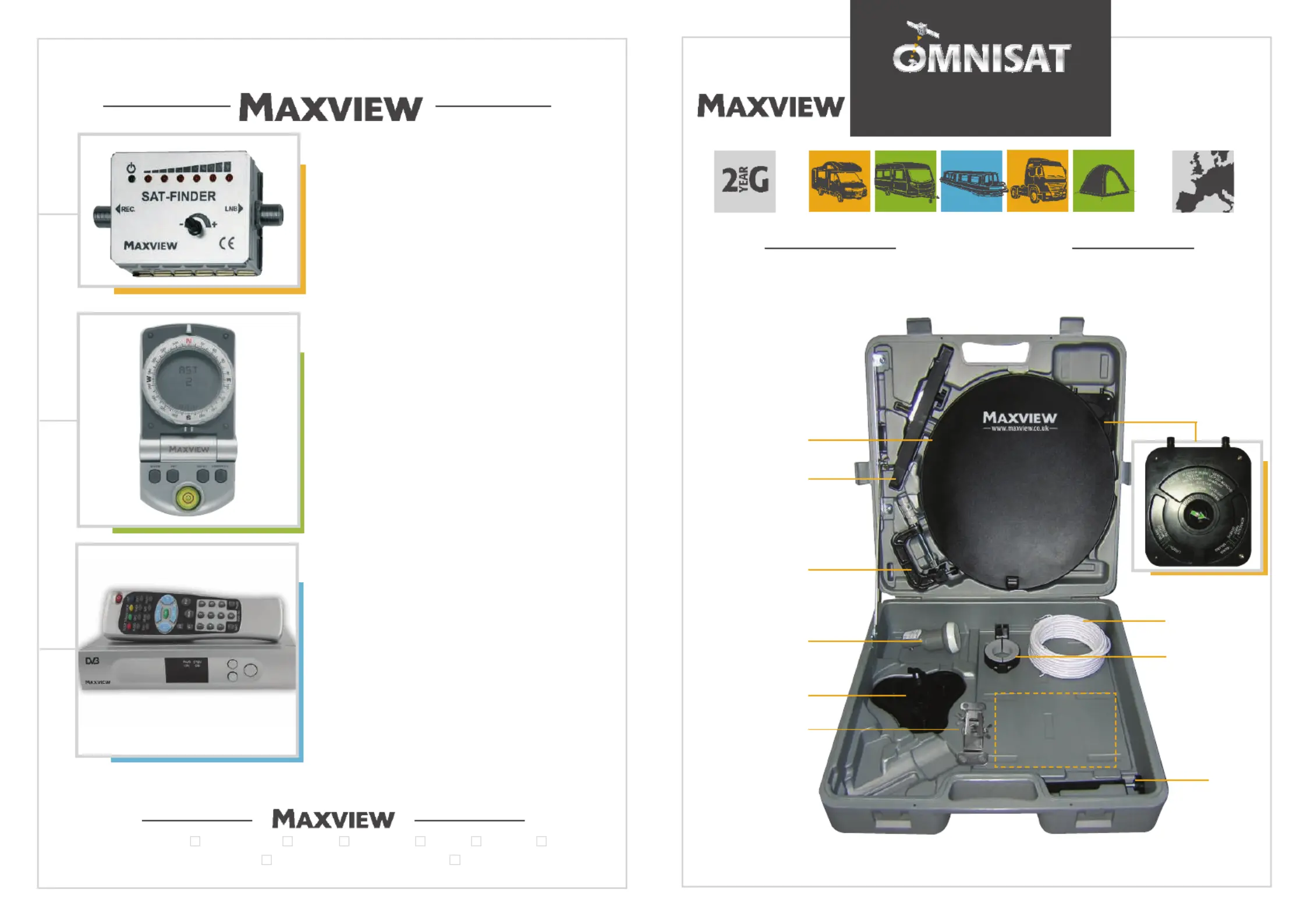

CAMPING KIT MXL006
FOR USE IN UK
& CENTRAL EUROPE
MXL006IL Iss 4
Kit contents
check list
A - 40cm dish
B - Universal LNB
C - LNB Arm
D - LNB holder
E - Suction base
F - G-clamp
G - 10m coaxial cable
H - Satellite compass
I - Support arm
J - Wall mount
Space for
your receiver*
A
B
C
D
E
F
G
H
I
Maxview Limited (UK) ■Common Lane ■Setchey ■King’s Lynn ■Norfolk ■PE33 0AT ■England
Customer Helpline +44 (0)1553 811000 ■e-mail cust_serv@maxview.co.uk ■website www.maxview.co.uk
2 YEARS
GUARANTEE
* Free to Air satellite receiver available from Maxview MXL014
Maxview reserve the right to change specifications without prior notice.
J
USER GUIDE
OPTIONAL ACCESSORIES ALSO AVAILABLE FROM
B2031
OMNISAT SAT-FINDER
■ Essential for locating your digital satellite signal
■ Designed to help align satellite dish to the satellite
with varying audible and ascending visual tone LED
display
■ Signal sensitivity control for ease of satellite
dish adjustment and alignment
■ Suitable for use with all satellite systems
■ Comes complete with flylead and full instructions
B2030
OMNISAT DIGITAL COMPASS
■ Satellite alignment zone to help locate the direction of
the satellite signal for all the main European satellites
■ Back lit digital LCD display for low light viewing
■Distortion feature to identify magnetic fields causing
possible error to compass accuracy
■ For use as navigation compass
with digital LCD readout in 1 degree increments
■ Direction hold mode and path finder mode
■ Can be calibrated to maintain accuracy when placed
near ferrous objects
■ Bubble level
For more information on our vast range of leisure products, please request a copy of our .leisure catalogue
MXL014
FREE TO AIR SATELLITE RECEIVER
■ Digital Video Broadcasting (DVB) receiver, for receiving
Digital Satellite broadcasts.
■ Ideal for non-conditional access, free to air TV and radio
programmes.
■ RECEIVES OVER 200 TV & RADIO CHANNELS (BBC, ITV)
■ Compact size, measures only 210mm x 135mm x 40mm.
■ Super fast video text
■ Channel list editor
■ Includes remote controls with batteries
12V power supply, cigarette adaptor and instructions
VISIT: www.maxview.co.uk to see our set up guide video!
FIRST TIME SET UP GUIDE
When using the MXL006 Camping Kit for the first time we recommend following this guide.
Choose a level surface with an unobstructed view to the south.
Use the Satellite Compass to determine the direction of south.
The Green arrow in the compass ball always points to south.
With the Camping Kit Case placed on a level
surface and pointing south, fix the Lid (containing the Dish)
in a Vertical position by tightening the wingnut.
Loosen screws in the LNB Holder with the screwdriver provided.
Insert the LNB into the LNB Holder, note the angle and position of the LNB.
Tighten screws in the LNB Holder.
1
2
4Place the LNB Holder into the LNB Arm at the end marked “LNB”.
Tighten screws to fix the LNB Holder to the LNB Arm.
3
N.B These TV channel lists were correct at time of print (5/06). Please visit www.ses-astra.com if you require more up to date channel lists
ABC1
BBC1 + variants
BBC2 + variants
BBC3
BBC4
BBC Choice
BBC i
BBC i 8, 9, 10
BBC News 24
BBC One + variants
BBC Parliament
CBBC
CBEEBIES
Channel TV
Disney Channel
Disney Channel + 1
DW TV
E4
E4 UK +1
E!
Fancy A Flutter
Film Four
Film Four Weekly
Film Four +1
FX UK +2
Going Places TV
Grampian TV
ITV 2
ITV 3
ITV News Channel
ITV1 + variants
Jetix UK +1
Men & Motors
More 4 Promo
Playhouse Disney
RTE Network 2
RTE One
Scottish TV
Sky Active + variants
Sky Box Office 36, 37, 38, 39, 41, 42, 43, 55
Sky Sports in Pubs
Sky Sports Extra
Sky Travel Active
Sky Travel Channel
Sky Travel Extra
Sky Travel Shop
Sky Travel +1
Solitaire
Teletext on 4
TG4
The Amp
The Betting Zone
Toon Disney
TV3
UTV
Programmes on the ASTRA 2 cluster of satellites are beamed down to create three footprints, NORTH,
SOUTH and UK. All FREE TO AIR and SKY programmes are received in these footprints.
Whilst travelling in the UK, you should be within all three of the footprints and with the right
equipment, you should not have any problems with receiving all of the ASTRA transponders.
Outside of the UK, problems of reception and aligning the dish can start to occur. The default
frequency of the SKY ‘Digibox’ is set to a transponder on the north beam. As you travel south and
move out of the north footprint, you may need to change the default transponder of the ‘Digibox’ to
match the south beam.
To change the default transponder setting, you will first need to access the hidden ‘INSTALLER SETUP’
menu. First press the ‘SERVICES’ button on you SKY remote and the ‘4’ to access ‘SYSTEM SETUP’.
Although it is not displayed, you will need to press ‘0’ then ‘1’ then ‘SELECT’ to access the ‘INSTALLER
SETUP’ menu, then ‘2’ to enter ‘DEFAULT TRANSPONDER’.
The display will then show, from top to bottom:-
Frequency (GHz), Polarisation, Symbol Rate (Nbaud), FEC and Save new settings.
Select ‘ FREQUENCY (GHz) and by typing in the relevant numbers, change the settings from ‘11.778’
to 11.720’. Using the arrow keys, change the Polarisation setting from ‘V’ to ‘H’. When the changes
have been made you will then need to ‘SAVE NEW SETTINGS’.
Press ‘BACK UP’ to return to main screen.
Astra 2 UK (2D)
DISH ALIGNMENT IN SOUTHERN EUROPE
VISIT: www.maxview.co.uk/acatalog/OMNISAT_PORTABLE_DISH_KITS.html
to see our set up guide video!
With the Dish fixed inside the grey case
insert the LNB Arm into the Dish.
Attach one end of the Coaxial Cable to the LNB and the
other end to the input of your Maxview MXL014 FTA
Satellite Receiver.
5
6
7Follow the MXL014 Quick Start Guide to select an ASTRA 2
satellite channel and enable the built-in Sat Finder.
If using another receiver we strongly recommend the use of the
Maxview Sat Finder.
Attach the Flylead provided with Sat Finder between
the LNB and Sat Finder.
Attach the Coaxial Cable between the receiver and Sat Finder.
With the receiver and TV turned on adjust the Sat Finder so that a
low frequency sound is audible.
8
Very slowly rotate the complete camping kit from South to South-East.
The tone of the Sat Finder will rise in pitch and a
picture will be shown on the TV.
If the tone rises in frequency but you cannot receive a signal then you
have probably found the ASTRA 1 satellite. Continue turning the dish East.
The tone will lower in frequency then rise again when
you have found ASTRA 2.
If no picture is found adjust the elevation angle of the
Lid and repeat search from South to South-East.
9
Five
Fox News Channel
Game Network
Gems TV Gold
Hallmark Entertainment Network
Kerrang
Kiss TV
Life TV
Magic
Manchester United TV
MuTV
National Geographic Channel
National Geographic Channel +1
Open
Paramount 2
Premiership Plus
Private Blue
Q
Reality TV UK
Record International TV
Sci-Fi Channel
Sky Box Office + variants
A1 UK
Animal Planet
ARY Digital
B4U Movies
B4U Music
Bangla TV
BBC Interactive 1 to 7
BBC News Interactive
BBC Sport
BBCi 2 - 7
Bid up TV
Biography Channel
Bomerang Europe
Bravo
Bravo UK +1
Cartoon Network + variants
Sky Movies + variants
Sky One
Sky One Mix
Sky Sports + wariants
Sky Vegas Live
Smash! Hits
Spice PPV
Sports Extra Highlight
Sports Extra Statistics/Fanzone
The Box
The Community Channel
The Hits
The Pub Channel
TV Megastore
TV Travel Shop
TV Warehouse
TV5 Europe
UKTV Documentary +1
UKTV Food +1
UKTV G2+1
UKTV Gold+1
UKTV History +1
UKTV People + variants
UKTV Style +1
Vector Direct
Your Easy Shop 661
Goplay TV
History +1 hr
IBuy
Ideal World
Ideal World Vitality
Jetix UK
Living
Living TV 2
L!ve TV
Manchester United TV
Men & Motors
Movie Quiz
MTV
MTV 2
MTV Base
MTV Dance
MTV Hits
MTV Interactive
MTV Ireland
MTV UK
MuTV
Nick Jr
Nickelodeon +variants
Nicktoons
Pepsi Twang
Powerpuff Girls
Premiership Plus
Premiership Plus in Pubs
Price-drop TV
Quiz Call
QVC
S4C
S4C2
Samurai Jack
Set Max
Sky Bet
Sky Box Office 56, 57, 58
Sky Box Office Events
Sky Movies 7, 9
Sky Movies Cineama 1, 2
Sky News
Sky News Dual Mosaic 1, 2, 3
Sky News Octant
Sky One
Sky Sports 1, 2 , 3
Sky Venue
Sony Entertainment TV Asia
Speeed Auction TV
Star News
Star Plus
TCM
Teachers TV
Teletext Holidays
The Paramount Comedy Channel
Thomson TV
TMF
Tom & Jerry
Toonami
Travel
Trouble
UK Bright Ideas
UK Drama
UK Food
UK Gold
UK Gold 2
UK History
UK Horizons
UK Horizons + 1
UK Living + 1
UK Style
UK Style Gardens
UKTV Drama + 1
VH-1
VH-1 Classic
VH-2
Zee + variants
18+ Movies + variants
Challenge TV
Challenge TV+1
CNN International
Cow & Chicken
Create and Craft with Ideal World
Discovery Channels:
Discovery Civilizations
Discovery Home & Health +1
Discovery Home & Leisure
Discovery Kids
Discovery Science
Discovery Travel & Living Europe
Discovery Wings
Discovery +1
FX
Games Lounge
A1 UK
Adventure 1
Animal Planet +1
Artsworld
At the Races
BB Game
Bloomberg TV UK
Boomerang Europe
Box Office Preview
British Eurosport
Channel 4 variants
Chelsea TV
CNBC
Discovery Home & Health +1
EeZeeTV
Eurosport 2
Astra 2 North Beam
Astra 2 South Beam
ASTRA SATELLITE FOOTPRINTS
& SATELLITE TV CHANNELS
Produktspecifikationer
| Varumärke: | Maxview |
| Kategori: | Satellitmottagare |
| Modell: | MXL006 |
Behöver du hjälp?
Om du behöver hjälp med Maxview MXL006 ställ en fråga nedan och andra användare kommer att svara dig
Satellitmottagare Maxview Manualer
18 September 2024
13 Augusti 2024
7 Augusti 2024
26 Juli 2024
Satellitmottagare Manualer
- Satellitmottagare Samsung
- Satellitmottagare Grundig
- Satellitmottagare Nokia
- Satellitmottagare Toshiba
- Satellitmottagare Strong
- Satellitmottagare Silvercrest
- Satellitmottagare Thomson
- Satellitmottagare Megasat
- Satellitmottagare Manhattan
- Satellitmottagare Bang And Olufsen
- Satellitmottagare Technisat
- Satellitmottagare Kathrein
- Satellitmottagare Denson
- Satellitmottagare Topfield
- Satellitmottagare Zgemma
- Satellitmottagare Konig
- Satellitmottagare Zehnder
- Satellitmottagare Metronic
- Satellitmottagare Pure Acoustics
- Satellitmottagare Humax
- Satellitmottagare Homecast
- Satellitmottagare Globo
- Satellitmottagare Smart
- Satellitmottagare Aston
- Satellitmottagare Edision
- Satellitmottagare Xoro
- Satellitmottagare SAB
- Satellitmottagare Ferguson
- Satellitmottagare Reflexion
- Satellitmottagare TelSKY
- Satellitmottagare Rebox
- Satellitmottagare Schwaiger
- Satellitmottagare Boca
- Satellitmottagare Triax
- Satellitmottagare Palcom
- Satellitmottagare ALLvision
- Satellitmottagare Travelsat
- Satellitmottagare SetOne
- Satellitmottagare Oyster
- Satellitmottagare Technomate
- Satellitmottagare Micro Electronic
- Satellitmottagare I-Set
- Satellitmottagare Axing
Nyaste Satellitmottagare Manualer
22 Oktober 2024
20 Oktober 2024
4 Oktober 2024
29 September 2024
27 September 2024
22 September 2024
22 September 2024
22 September 2024
21 September 2024
21 September 2024
