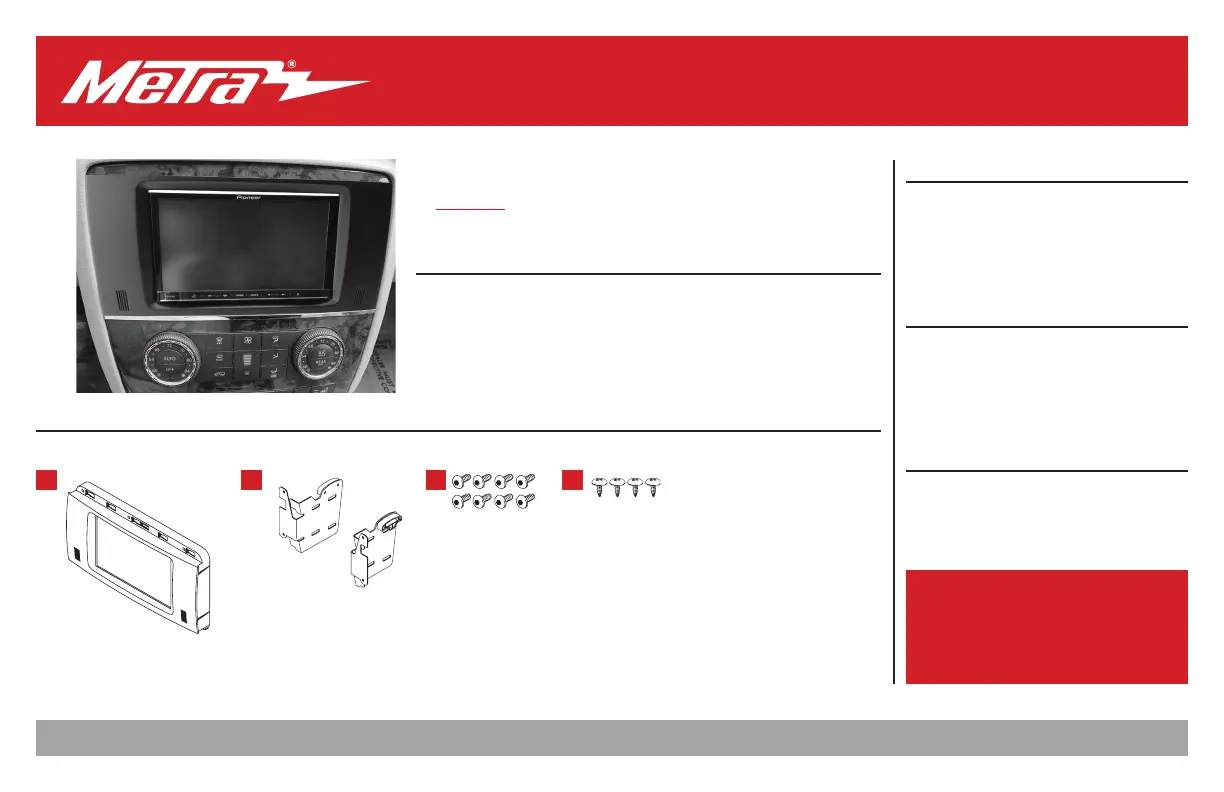

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/15/19 INST95-8728B
I N S TA L L AT I O N I N S T R U C T I O N S
95-8728B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision
• Painted black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Radio screws (8) • D) Radio trim panel screws (4) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 3mm Allen screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness:
XSVI-9005-NAV (non-amped only)
Antenna Adapter: 40-EU10
Steering Wheel Control Interface: • ASWC-1
A B
Mercedes R Class 2006-2011
Visit for more detailed information about the product and up-to-date vehicle specific applicationsMetraOnline.com
C D
1.800.221.0932
|
MetraOnline.com
2
1. Unclip the climate control panel, then
set to the side. No need to disconnect
the wiring harness. The tabs holding the
panel in place are located on the left and
right sides of the panel, towards the top.
(Figure A)
2. Remove (2) Torx screws below the radio
(white circles in figure), then pull down
the metal clips to release the radio. Slide
the radio out, then unplug and remove
the radio. (Figure B)
Continue to Kit Preparation
DASH DISASSEMBLY
(Figure B)
(Figure A)
REV. 1/15/2019 INST95-9728B 3
1. Remove the top trim from the factory
radio by pulling back on the release tab
in the middle, then sliding the trim to
the right. Follow the same procedure to
attach it to the radio trim panel.
(Figure A)
2. Secure the radio brackets to the radio
trim panel (4) radio trim using the
panel screws supplied. (Figure B)
Continue to Kit Assembly
KIT PREPARATION KIT ASSEMBLY
(Figure B)
(Figure A) (Figure A)
1. Slide the radio into the bracket/panel
assembly, then secure the radio using
either the screws supplied with the
radio, or the radio screws provided.
(Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
3. Slide the radio into the dash, then push
the metal clips up into the bottom of the
kit. Using the factory Torx screws, secure
the metal clips to the dash to secure the
radio assembly.
4. Clip the climate control panel back in to
complete the installation.
