APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2014 METRA ELECTRONICS CORPORATION
REV. 2/27/2014 INST95-8901
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Table of Contents
INSTALLATION INSTRUCTIONS FOR PART 95-8901
• Double DIN radio provision
• Painted to match the factory color and finish
• A) Radio Housing • B) Brackets • C) (5) #8 x 3/8” Phillips Screws

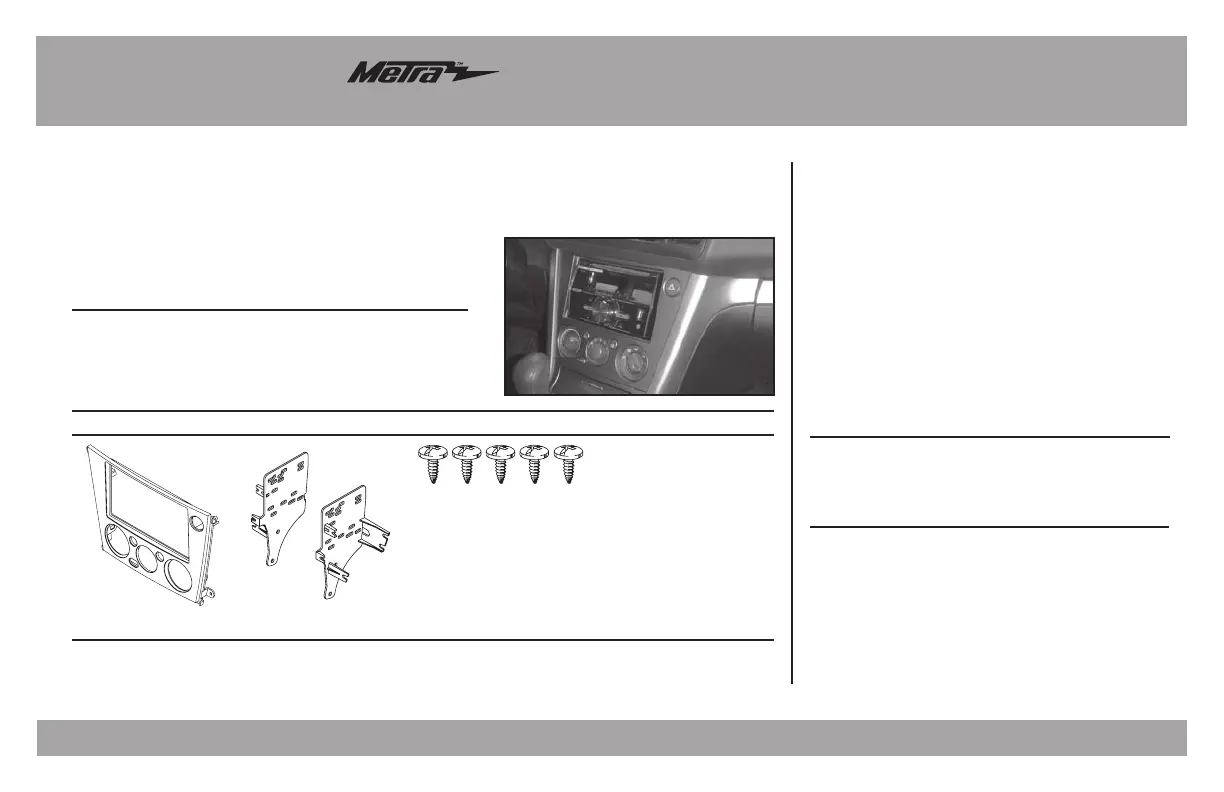

KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-8901 Subaru harness 1990-up
Antenna Adapter: • 40-SB10 Subaru antenna adapter 2005-up
• Panel removal tool • Phillips screwdriver
• Socket Wrench
TOOLS REQUIRED
For manual climate controls only, excluding Outback Sport.
A B C
Dash Disassembly
– Subaru Legacy/Outback 2005-2009 ..................... 2
Kit Assembly
– Double DIN radio provision ................................... 3
95-8901
1. Unclip and remove panel
surrounding shifter including
ashtray. (Figure A)
2. Remove (1) Phillips screw per
side panel then unclip and remove
panels. (Figure B)
3. Remove (6) Phillips from radio to
remove. (Figure C)
Dash Disassembly
2 Screws Per Side
(Figure A)
(Figure D)
(Figure B)
(Figure E)
(Figure C)
4. Remove (4) screws securing the
climate control to the radio/climate
control assembly then unclip and
remove climate control. (Figure D)
NOTE: You will need to unclip
the climate control cable from
behind the pocket, above the
radio, in order to remove the
radio and climate controls.
(use caution when removing the
pocket as the dash will scratch
very easily) (Figure E)
Continue to kit assembly
95-8901
Kit Assembly
(Figure A) (Figure C)
(Figure B) (Figure D)

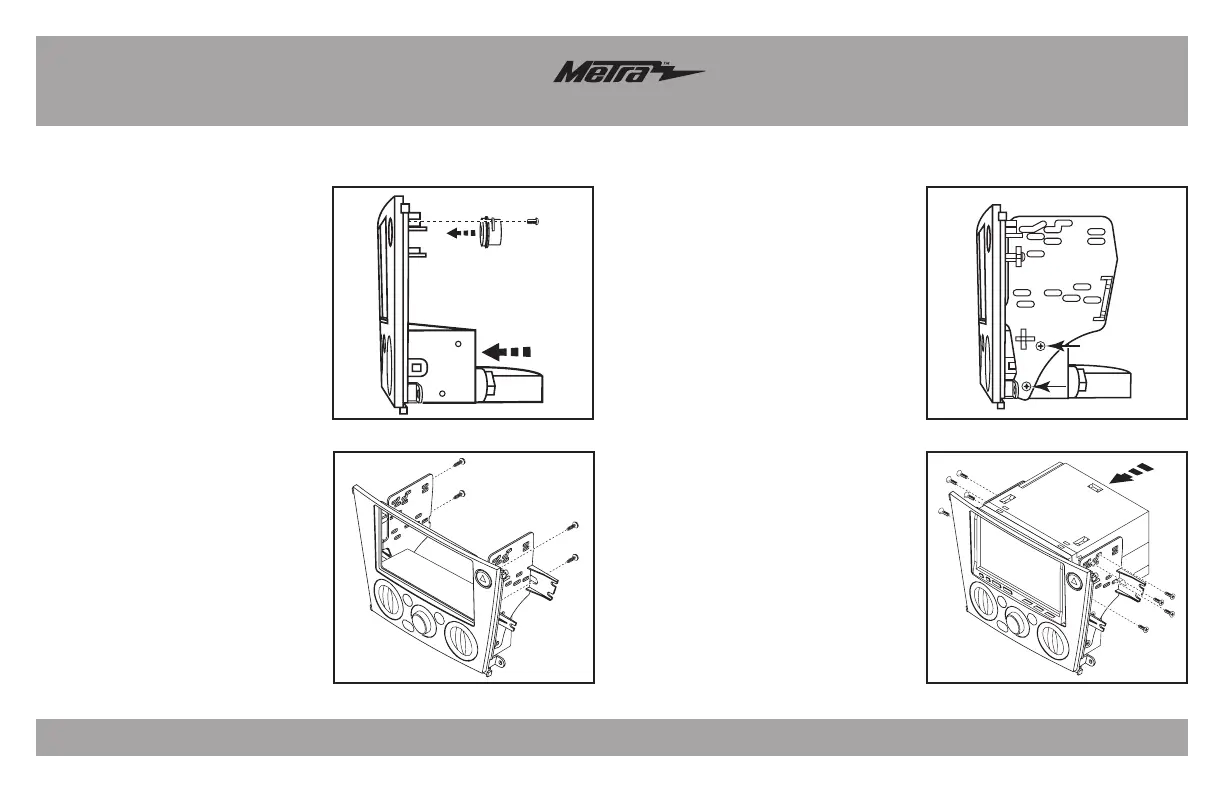

ISO DDIN radio provision
1. Clip the climate control into the
back of the 95-8901. (Figure A)
2. Attach the hazard switch to the
radio housing trim panel with the
supplied (1) #8 x 3/8” Phillips
screw supplied. (Figure A)
3. Attach the radio brackets to the
radio housing trim panel using
the (4) #8 x 3/8” Phillips screws
supplied. (Figure B)
4. Secure the climate control to the
brackets using the factory screws.
(Figure C)
5. Slide the radio into the bracket/
radio housing trim panel assembly
and secure to the assembly using
the screws supplied with the radio.
(Figure D)
6. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS.
Re-connect the negative battery
terminal and test the unit for
proper operation.
7. Reassemble dash in reverse order
of disassembly.
