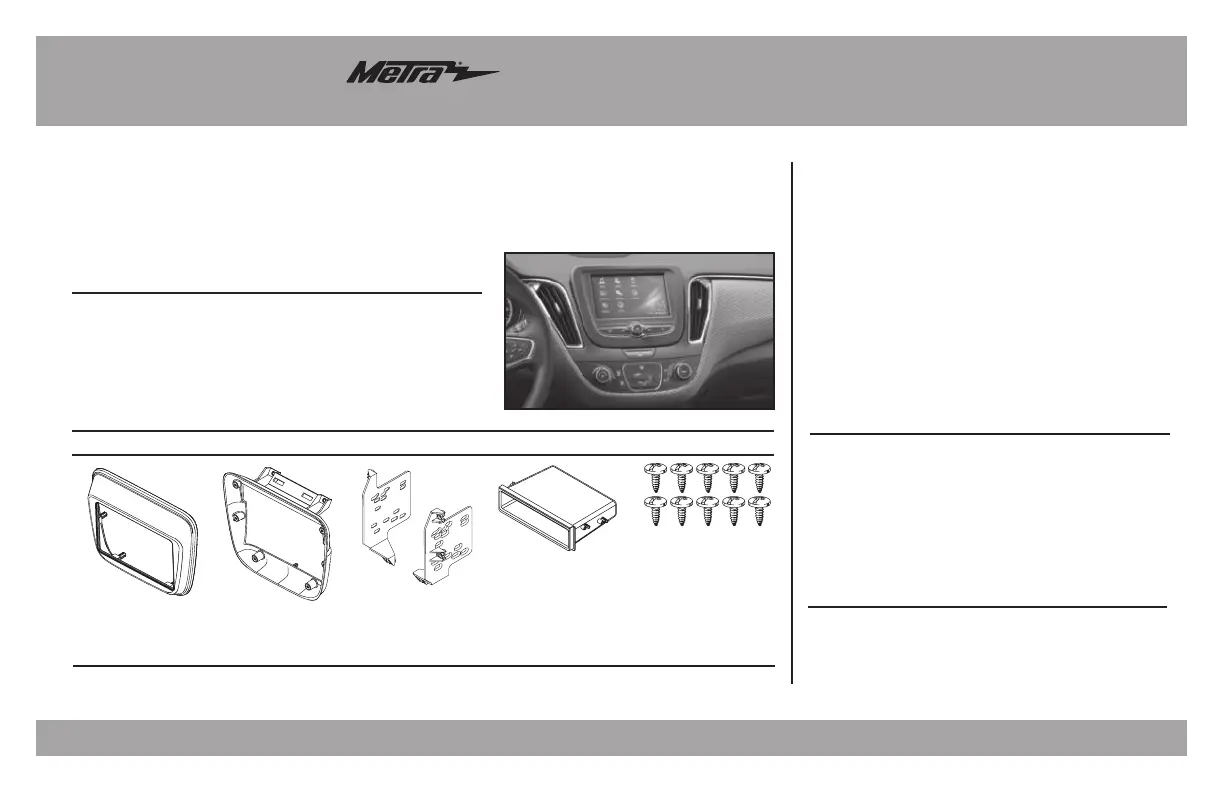

INSTALLATION INSTRUCTIONS FOR PART 99-3019B
METRA – The World’s best kits.®metraonline.com © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
• ISO DIN radio provision with pocket
• Painted matte black
• A) Radio trim panel • B) Radio housing • C) Radio brackets • D) Pocket • E) (10) #8 x 3/8” Phillips screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Please visit metraonline.com for specific interface options Antenna Adapter: 40-EU55
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TOOLS REQUIRED
(excluding Malibu limited) Table of Contents
A B C D E
Dash Disassembly ................................................. 2
Kit Assembly
– ISO DIN radio provision with pocket 3 ......................
99-3019B
Dash Disassembly
1. Unclip and remove the small trim
panel above the factory radio
display, and then remove (2) 9/32”
screws exposed. (Figure A)
2. Unclip and remove the trim panel
below the climate controls that
extend across the dash, and above
the glove box. (Figure B)
3. Unclip and remove the
climate controls. (Figure C)
4. Inside a small cavity located
behind the climate controls,
remove (2) 9/32” screws facing
up that are securing the radio
assembly. (Figure D)
5. Unclip and remove the radio
assembly. (Figure E)
6. Cut and remove the shaded
area from the sub-dash to allow
clearance for the aftermarket radio.
(Figure F)
Continue to Kit Assembly
INSIDE RADIO CAVIT Y
(Figure A) (Figure B) (Figure C)
(Figure D) (Figure E) (Figure F)
99-3019B
Kit Assembly
ISO DIN radio provision with pocket
1. Secure the to the pocket radio
brackets using the (4) #8 x 3/8”
Phillips screws provided. (Figure A)
2. Remove the metal DIN sleeve and
trim ring from the aftermarket radio.
3. Secure the radio to the radio
brackets using the screws supplied
with the radio. (Figure A)
4. Slide the radio/pocket/bracket/
assembly in between the radio
trim panel radio housing and the
and secure with the (6) #8 x 3/8”
Phillips screws provided. (Figure B)
(Figure A)
(Figure B)
5. Locate the factory wiring harness
and antenna connector in the
dash, and complete all necessary
connections to the radio. Metra
recommends using the proper
mating adapter from Metra and/or
AXXESS. Test the radio for proper
operation.
6. Reassemble the dash in reverse
order of disassembly.
