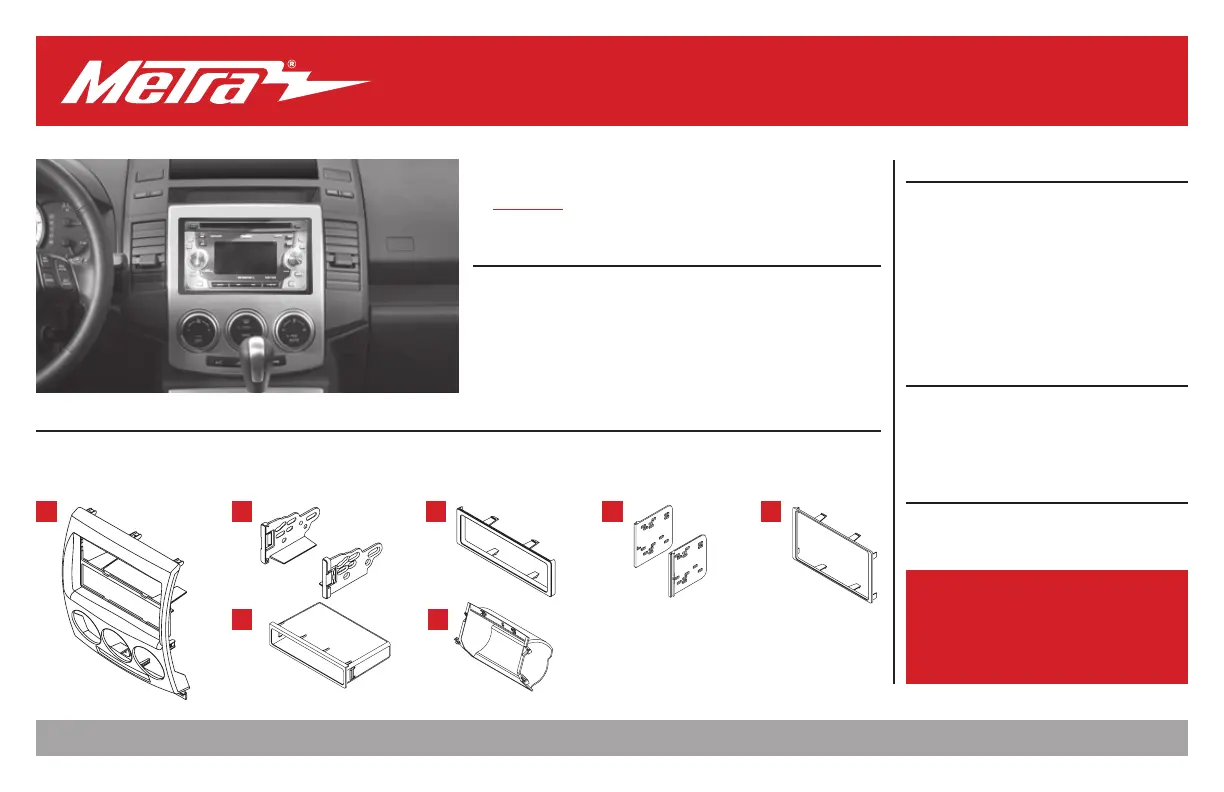

I N S TA L L AT I O N I N S T R U C T I O N S
99-7527S
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 7/24/19 INST99-7527S
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• DIN radio provision with pocket
• ISO DDIN radio provision
• Painted silver
• Storage pocket included to replace the factory NAV screen
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets • E) Double DIN Trim Plate • F) Snap In Pocket
• G) NAV Screen Replacement Pocket
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
–DIN radio provision with pocket ........................5
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision .....................................7
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-7903
Antenna Adapter: Not required
A CB
Mazda 5(with factory NAV) 2006-2007
D E
F G
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2
1. Remove the shifter knob, unclip and
remove the shifter trim panel, then
remove (2) Phillips screws exposed.
(Figure A)
2. Unclip and remove the left and right
side trim panels from the front of the
center console, then remove (1) Phillips
screws exposed on each side.
(Figures B, C)
Continued on the next page
DASH DISASSEMBLY
P
R
N
M-D
A/C
(Figure B)(Figure A) (Figure C)
REV. 7/24/2019 INST99-7527S 3
DASH DISASSEMBLY (CONT.)
A/C
(Figure D) (Figure E)
3. Unclip the center console, pulling
towards the rear of the vehicle to release
the clips, then sit aside. (Figure D)
Note:
Models with a full center console
will require additional disassembly.
4. Remove (2) Phillips screws securing
the bottom of the radio/climate control
panel, then unclip just the climate
control panel and set aside. (Figure E)
5. Remove (1) screw securing the bottom
left of the radio, then unclip, unplug,
and remove the radio.
Continue to Kit Preparation
