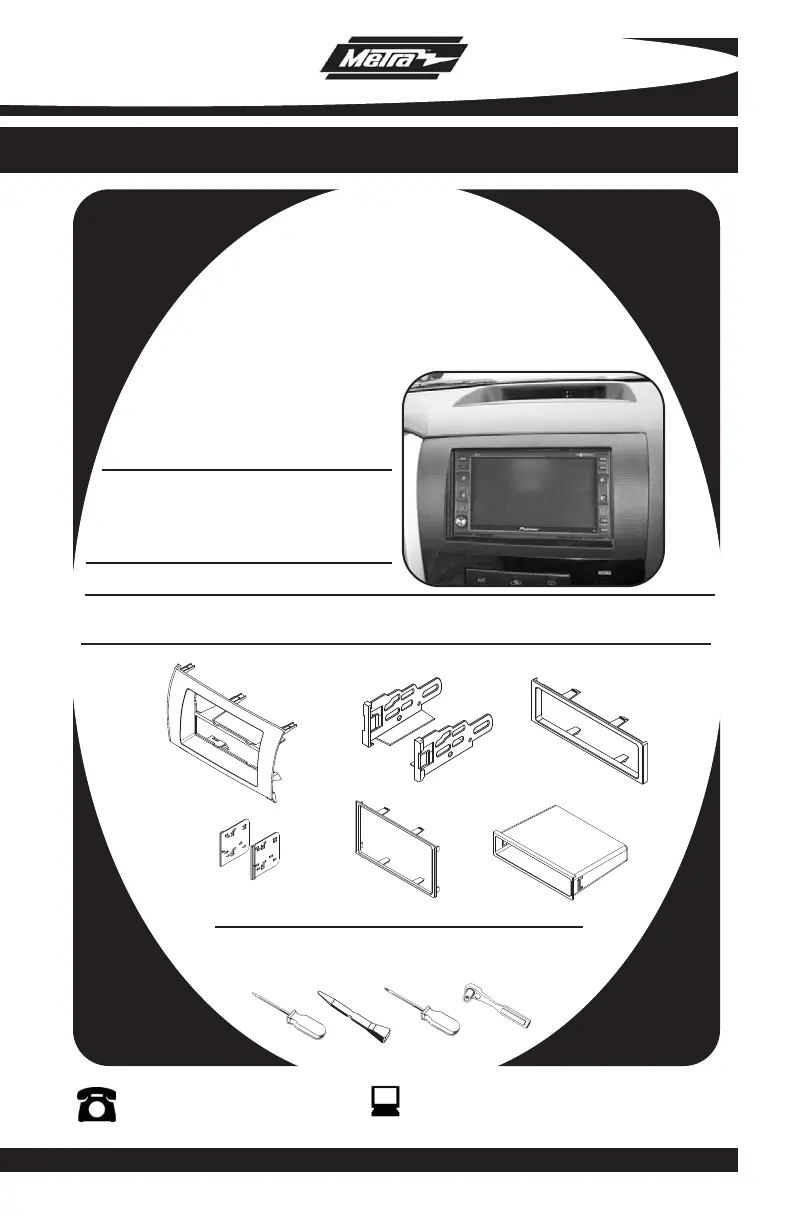

INSTALLATION INSTRUCTIONS FOR PART 99-8220
99-8220
APPLICATIONS
Toyota
Tundra 2007-2011
Sequoia 2008-2011
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• 99-8220 - Scratch Resistant Matte Black
• 99-8220HG - High Gloss Black
• 99-8220CHG - High Gloss Charcoal (matches 2010-UP models)
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket
KIT COMPONENTS
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
B
D
E
C
F
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wire harness:
• 70-1761 Toyota 87-up
• TYTO-01 Toyota amp interface harness 03-up
Antenna adapter:
• Not requi red
Dash Disassembly
-
Toyota Tundra (Console Shift ) 2007-2011 . . . . . . . . .
. . . 1,2
-
Toyota Sequoia 2008-2011 . . . . . . . . . . . . . . . . . . . . . . . .
1,2
-
Toyota Tundra (Column Shift ) 2007 -2011 . . . . . . . . . .
. . . 3
-
Toyota Sequoia 2008-2011 . . . . . . . . . . . . . . . . . . . . . . . .
3
Kit Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
- ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . . 5
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
- Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TABLE OF CONTENTS
99-8220
*Note:
Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
towa a better tomorrord w.
99-8220 DASH DISASSEMBLY
TOYOTA TUNDRA (Console Shift) 2007-2011
TOYOTA SEQUOIA 2008-2011
1
1
Remove (1) Phillips screw from shifter
trim panel and remove panel.
(
Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Unclip and remove the top trim panel
around cup holders. (
Figure A)
2
Unclip, unplug and remove the cli-
mate control assembly. (
Figure C)
4
Continue dash disassembly.
A
B
C
