Installation instructions for part 99-9011
®
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• A) Radio housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) ISO DDIN brackets • E) ISO DDIN trim plate • F) Pocket

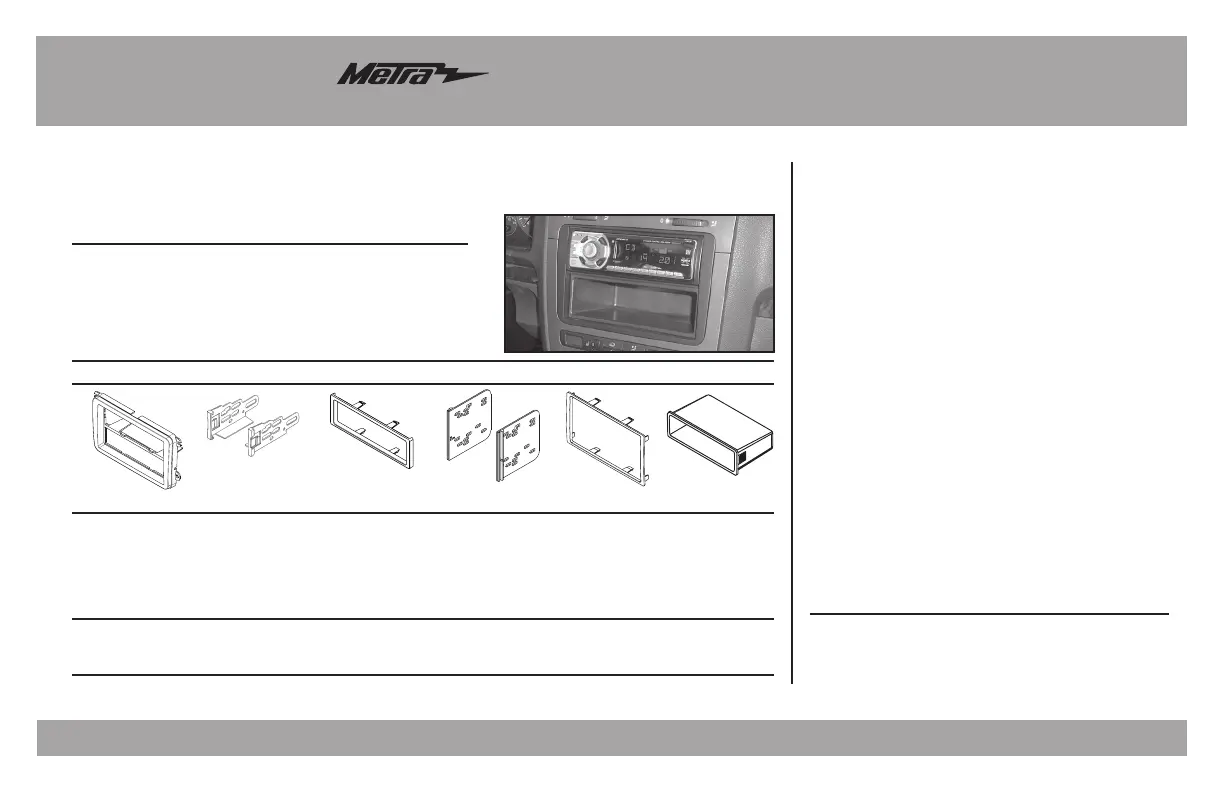

KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Please visit metraonline.com for wiring harness options
Antenna Adapter: • Please visit metraonline.com for antenna adapter options
Steering wheel control interface: • ASWC-1
• Panel removal tool • Phillips screwdriver • T-20 Torx screwdriver • Cutting tool
TOOLS REQUIRED
A B C D E F
Table of Contents
APPLICATIONS
See inside front cover
Dash Disassembly
– Beetle 2012-up 2 .............................................................
– CC 2009-up 4 ...................................................................
– Eos 2007-2016 4 .............................................................
– Golf 2010-2014 4 .............................................................
– Golf R 2012-2013 4 ..........................................................
– GTI 2006-2009 3 ..............................................................
– GTI 2010-2014 4 ..............................................................
– Jetta (with new dashboard) 2005...................................3
– Jetta 2006-2010 3 ...........................................................
– Jetta 2011-up 5 ...............................................................
– Jetta GLI 2006-2009 3 .....................................................
– Jetta GLI 2012-2015 5 .....................................................
– Jetta SportWagen 2010-2014 4 ........................................
– Passat 2006-2010 4 .........................................................
– Passat 2012-up 5 .............................................................
– R32 2007-2008 3 .............................................................
– Rabbit 2007-2009 3 .........................................................
– Tiguan 2009-up .............................................................6
Kit Assembly
– DIN radio provision with pocket 6 .....................................
– ISO DIN radio provision with pocket 7 ...............................
– ISO DDIN radio provision 7 ................................................
99-9011
®
Dash Disassembly
VOLKSWAGEN
Beetle 2012-up
CC 2009-up
Eos 2007-2016
Golf 2010-up
Golf R 2012-2013
GTI 2006-2014
Jetta (with new dashboard) 2005
Jetta 2006-up
Jetta GLI 2006-2015
Jetta SportWagen 2010-2014
Passat 2006-up
R32 2007-2008
Rabbit 2007-2009
Tiguan 2009-up
Applications
(Figure A)
(Figure B)
(Figure C)
Beetle 2012-up
1. Unclip and remove the small trim
around radio. (Figure A)
2.
Unclip and remove larger trim around
radio including the a/c vents. (Figure B)
3.
Remove the (4) T-20 Torx screws
securing the radio, and then unplug
and remove the radio. (Figure C)
Continue to Kit Assembly
99-9011
®
Dash Disassembly
(Figure B)
(Figure C)
(Figure D)
(Figure A)
GTI 2006-2009,
Jetta (new dashboard)
2005,
Jetta 2006-2010,
Jetta GLI 2006-2009, R32 2007-2008
,
Rabbit 2007-2009
1.
Unclip and remove the grille from the
top-center of the dash. (Figure A)
2. Remove the (1) T-20 Torx screw
now exposed. (Figure B)
3. Unclip and remove the black
plastic insert. (Figure C)
4. Remove the (2) T-20 Torx screws
now exposed. (Figure D)
(Figure F)
(Figure G)
(Figure H)(Figure E)
5. Unclip and remove the hazard/A/C
vent panel. (Figure E)
6. Remove the (2) T-20 Torx screws
now exposed. (Figure F)
7. Unclip and remove the radio/
climate control panel. (Figure G)
8. Remove the (4) T-20 Torx screws
securing the radio, and then
unplug and remove the radio.
(Figure H)
Continue to Kit Assembly
