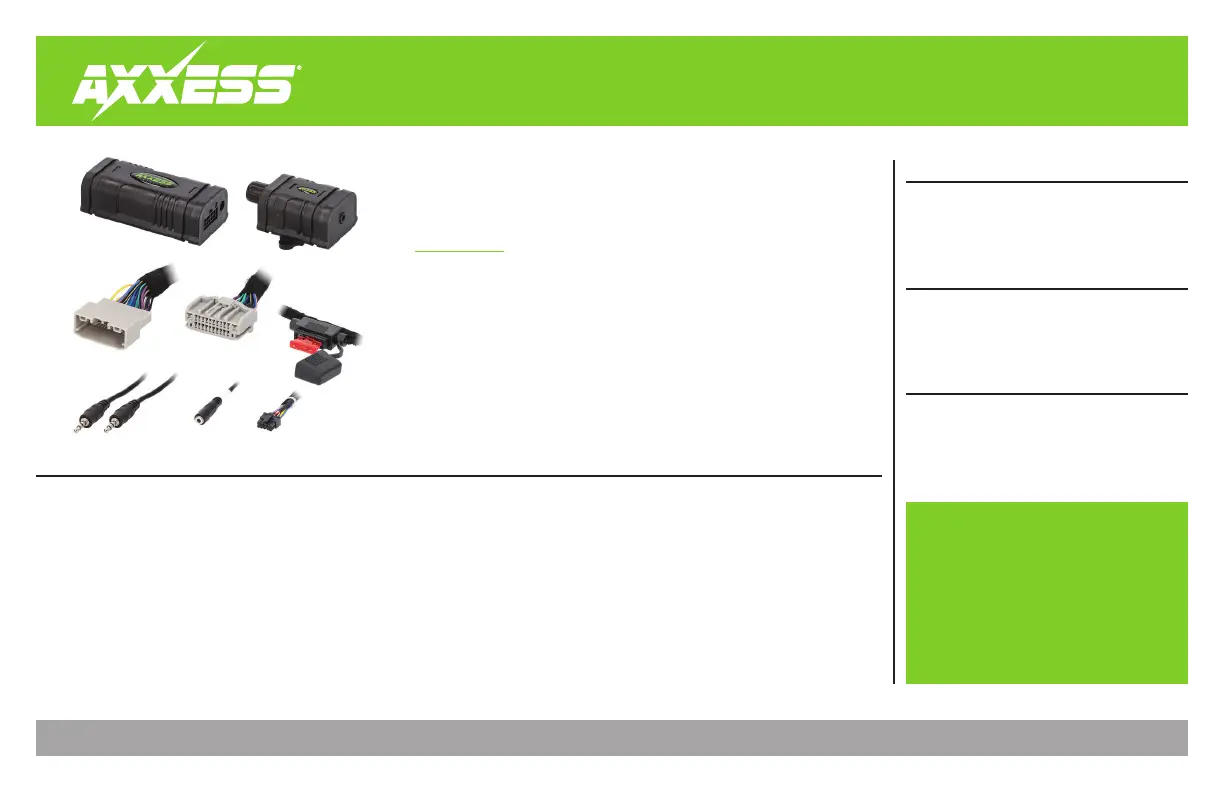

AXLOC-CH4

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

TABLE OF CONTENTS

Applications.............................................................1

Installation ............................................................. 2

Diagram .................................................................. 3

Chrysler LOC (Line Output Converter)

AXLOC-CH4 (for Non-Ampliﬁed Vehicles) 2007-2021

APPLICATIONS

Chrysler

200 2011-2014

300 2008-2010

Aspen 2008-2009

Sebring 2007-2010

Town & Country 2008-2017

Dodge

Avenger 2008-2014

Caliber 2009-2012

Caravan and

Grand Caravan 2008-2020

Challenger 2008-2014

Charger 2008-2010

Dakota 2008-2011

Durango 2008-2013

Journey 2009-2010

Magnum 2008-2009

RAM 2009-2011

Jeep

Commander 2008-2010

Compass 2009-2017

Grand Cherokee 2008-2013

Liberty 2008-2012

Patriot 2009-2017

Wrangler(JK) 2007-2021

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle speciﬁc applications

KIT COMPONENTS

For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide Radio Install Kits for .

• Designed to provide (2) channels of low-level audio output from the factory system.

• Allows for the installation of an ampliﬁer for speakers or subwoofers.

• Gain Controller included to adjust the overall output.

• 12v-500mA remote wire activated with signal sense.

• 55-watts per channel.

• Designed for non-ampliﬁed vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple ampliﬁers.

• AXLOC-CH4 Wiring Harness

• Gain Controller

• 12v-500mA Remote Wire

• Auxiliary Cable
