I-00373 Rev C
SHOWN: WMRK Inside Corner
The FLOOR MOUNTING HARDWARE is supplied by the Installer and approved by the Field Engineer
who will rate the entire job.
Four (4) 1/2” Anchor Bolts are required.
Includes four (4) brackets and three (3)
ARRHK hardware kits containing eight (8)
oval nuts and eight (8) bolts each.

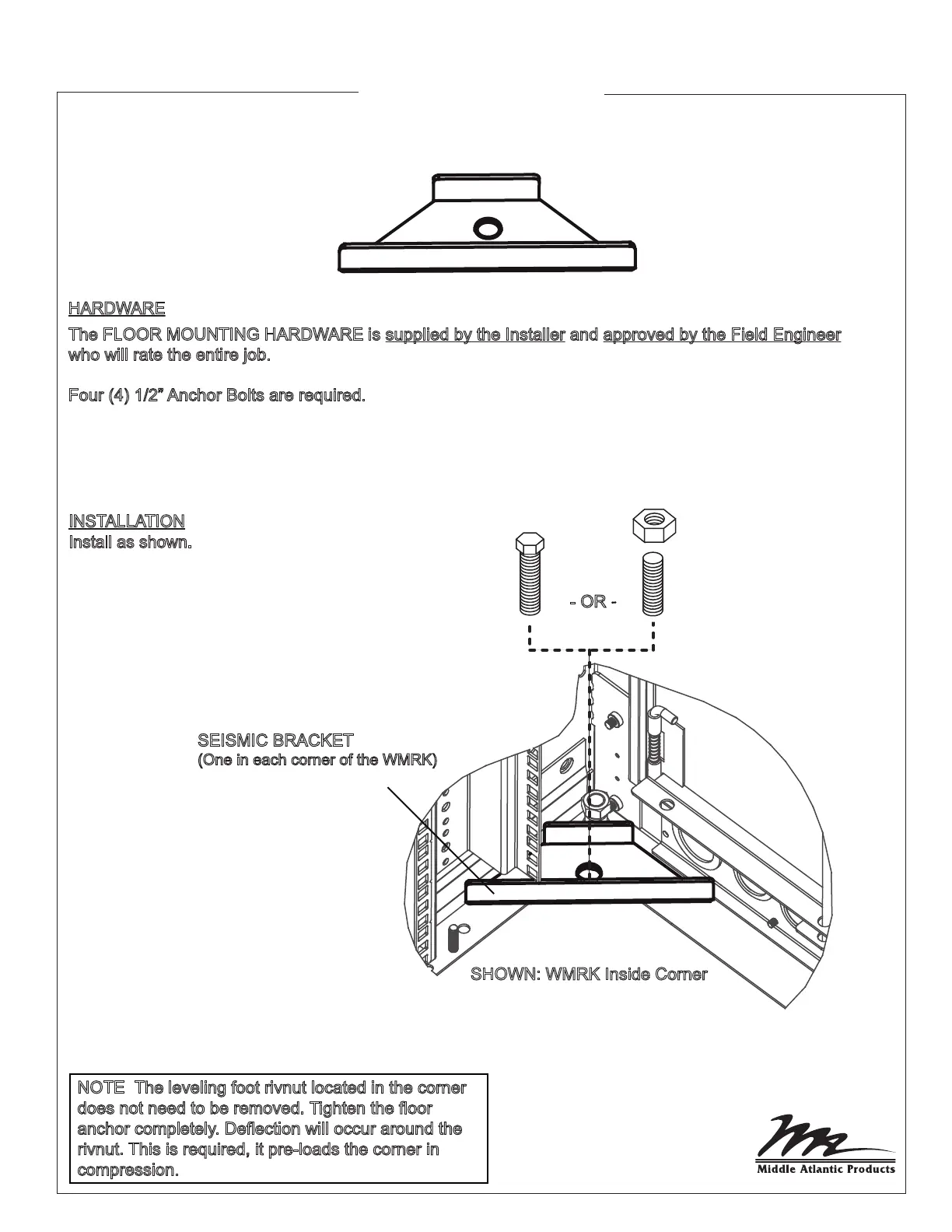

INSTALLATION
Install as shown.
NOTE: The leveling foot rivnut located in the corner
does not need to be removed. Tighten the floor
anchor completely. Deflection will occur around the
rivnut. This is required, it pre-loads the corner in
compression.
SEISMIC BRACKET
(One in each corner of the WMRK)
- OR -
HARDWARE
Page 2
The REMOVABLE KNOCKOUT PLATE (BOTTOM) must NOT be removed for seismic certification to stay in
effect (may differ based on enclosure). Enclosure must be plumb and level in 2 directions.
REMOVABLE
KNOCKOUT
PLATE
(DO NOT REMOVE)

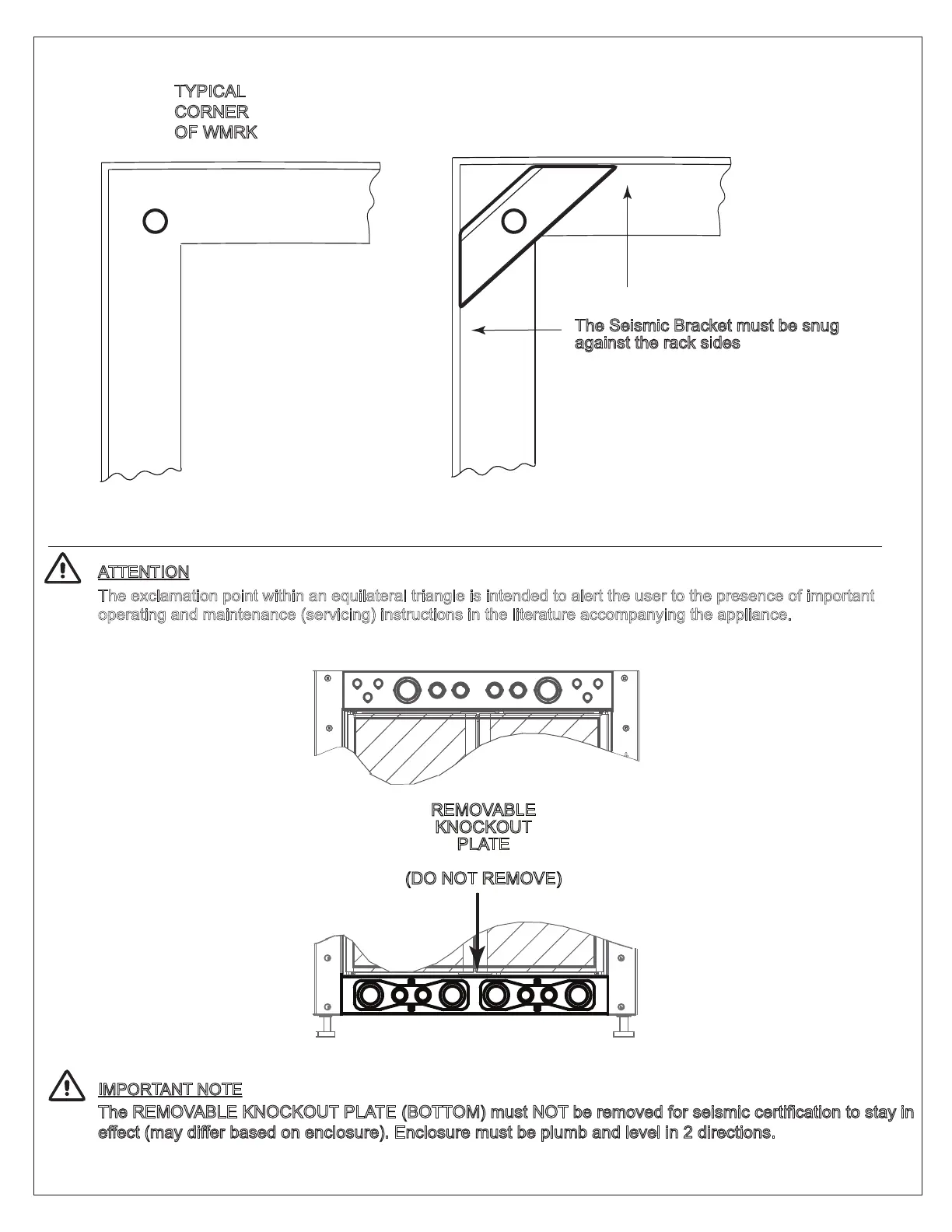

TYPICAL
CORNER
OF WMRK
The Seismic Bracket must be snug
against the rack sides
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ATTENTION
IMPORTANT NOTE
Page 3

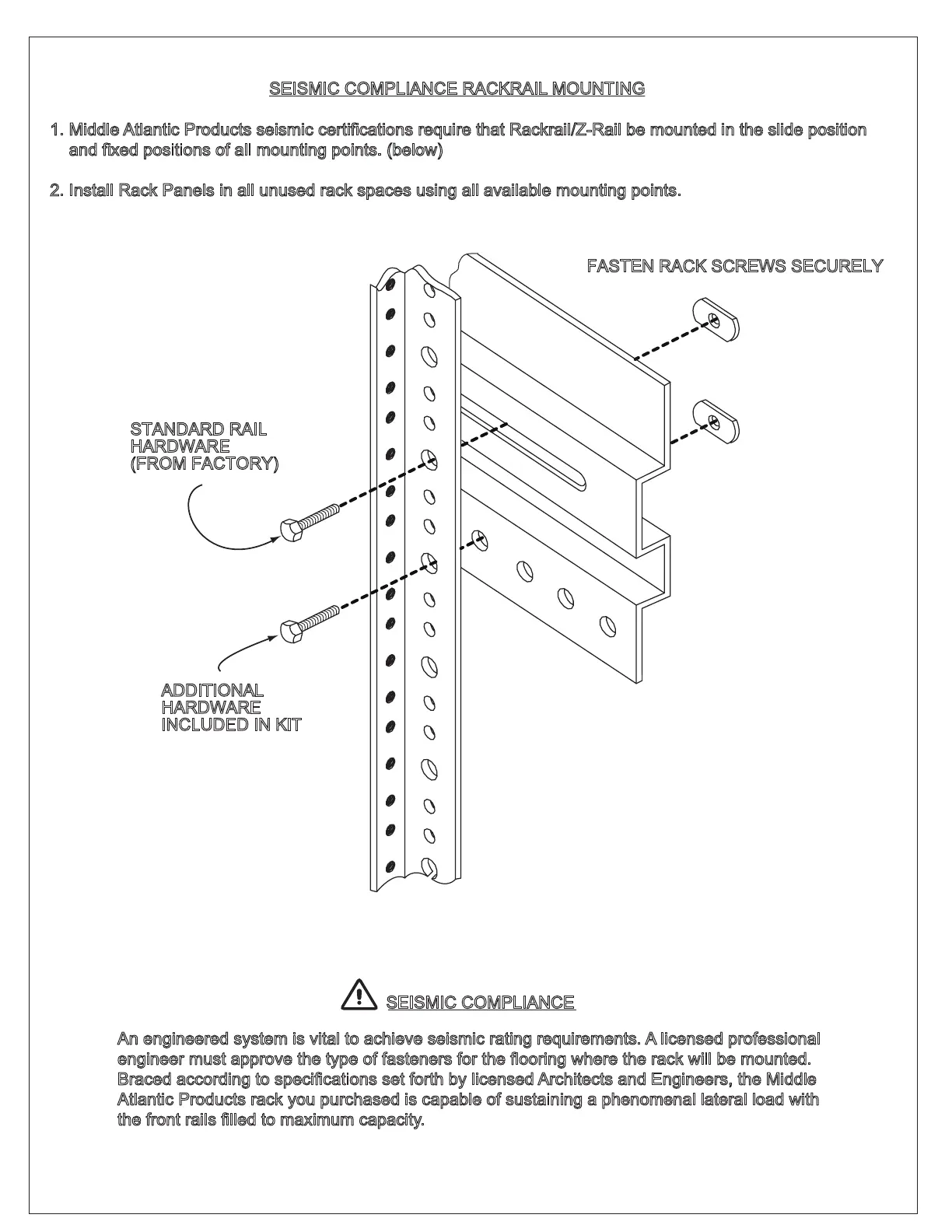

SEISMIC COMPLIANCE RACKRAIL MOUNTING
1. Middle Atlantic Products seismic certifications require that Rackrail/Z-Rail be mounted in the slide position
and fixed positions of all mounting points. (below)
2. Install Rack Panels in all unused rack spaces using all available mounting points.
ADDITIONAL
HARDWARE
INCLUDED IN KIT
STANDARD RAIL
HARDWARE
(FROM FACTORY)
An engineered system is vital to achieve seismic rating requirements. A licensed professional
engineer must approve the type of fasteners for the flooring where the rack will be mounted.
Braced according to specifications set forth by licensed Architects and Engineers, the Middle
Atlantic Products rack you purchased is capable of sustaining a phenomenal lateral load with
the front rails filled to maximum capacity.
SEISMIC COMPLIANCE
FASTEN RACK SCREWS SECURELY
