Sida 1/32
SAVE TO A NEW LOCATION:
GLIDE + RELEASE
(LEDs begin flashing)
SAVE PRESET:
GLIDE + RELEASE
(Press RELEASE to cancel without saving)
SELECT A PRESET LOCATION:
GLIDE + OSCILLATOR 1 or 2
1. 3.2.
SIRIN CHEAT SHEET
FREE EDITOR/LIBRARIAN
Access and automate every parameter on and under the hood of your Sirin right from your DAW.
Get the free Editor/Librarian software when you register your Sirin at Moogmusic.com/register
STORE AND CHANGE PRESETS
Up to 128 presets can be saved and loaded onto your Sirin using the free Editor/Librarian software.
Sirin also supports MIDI Program Change messages, allowing almost any MIDI controller to change
presets on your Sirin.
MODULATION SOURCES
Select from 6 different modulation sources: Triangle, Square, Ramp, Saw, Sample & Hold and Filter
EG (MIDI CC 85)
HARD SYNC
VCO 2 Hard Sync allows a number of sounds to be created with Sirin (MIDI CC 80)
OSCILLATOR 2 MODULATION
Send modulation to Oscillator 2 only – ideal for use with Hard Sync (MIDI CC 112)
CV MAPPING
Your Sirin’s Pitch and Volume CV inputs can be re-mapped to control any parameter on your Sirin,
while the Gate input can be re-mapped to alter the state of any on/off parameters like Oscillator
waveshape.
NOTE: All CV Mapping is configured in the free Sirin Editor/Librarian software.
CV TO MIDI CONVERSION
Sirin can convert multiple channels of Control Voltage to MIDI. This allows you to take CV sources
like a Moog Mother-32 and translate the voltage into MIDI for CV control over plug-in effects, soft
synths, or other MIDI gear.
WARNING: For optimal CV to MIDI conversion response, adjust the scale and range of the external
control voltage to stay within 0 to +5 Volts. Do not apply a negative control voltage, or a CV
greater than +5 Volts!
NEXT PRESET:
GLIDE + OSCILLATOR 1 WAVE
PREVIOUS PRESET:
GLIDE + OSCILLATOR 2 WAVE
SAVE CURRENT PRESET:
GLIDE + RELEASE
(Hold both for 1 second).
VCO 2 BEAT FREQUENCY:
GLIDE + VCO 2 FREQ
EXT. INPUT LEVEL:
GLIDE + VCO 1 LEVEL
EG TRIGGER MODE:
GLIDE + AMP EG ATTACK
FILTER EG DELAY TIME:
GLIDE + FILTER EG ATTACK
VCO 2 MOD ONLY ON/OFF:
GLIDE + VCO LFO AMT
TOP OCTAVE WRAP ON/OFF:
GLIDE + GLIDE RATE
FILTER EG HOLD TIME:
GLIDE + FILTER EG DECAY/RELEASE
PANIC/ALL NOTES OFF:
GLIDE + AMP EG SUSTAIN TO ZERO.
DRONE ON/OFF:
GLIDE + AMP SUSTAIN (Min to Max = ON)
GLIDE + AMP SUSTAIN (Max to Min = OFF)
MOD SOURCE SELECTION:
GLIDE + LFO RATE
HARD SYNC ON/OFF:
GLIDE + VCO 2 LEVEL

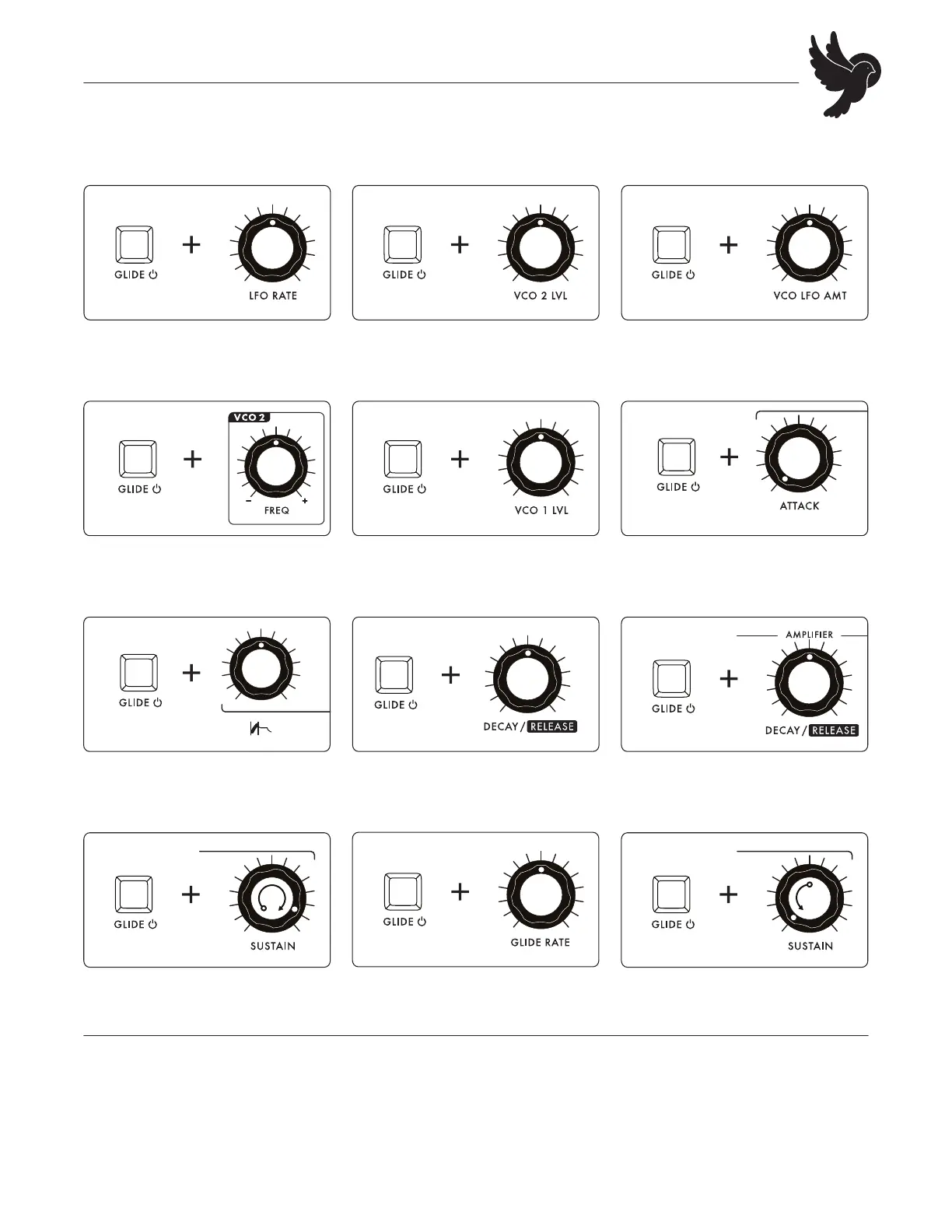

SHIFT PANEL FUNCTIONS QUICK REFERENCE GUIDE
The switch on your Sirin can act as a “shift” key, allowing quick access to a number GLIDE
of extended functions directly from the panel.
DECAY/RELEASE MODES
Press and hold the RELEASE switch for 1 second to change modes. The switch LED will blink one RELEASE
time to indicate Mode 1, or two times to indicate Mode 2.
MODE 1: Decay and Release times are linked and the switch enables or disables the Release RELEASE
stage of the envelope.
MODE 2: Decay and Release times are independent. If is lit, the RELEASE DECAY/RELEASE knob is
editing Release time. If is dark, the RELEASE DECAY/RELEASE knob is editing Decay time.
AMP EG HOLD TIME:
GLIDE + AMP EG DECAY/RELEASE
SIRIN
