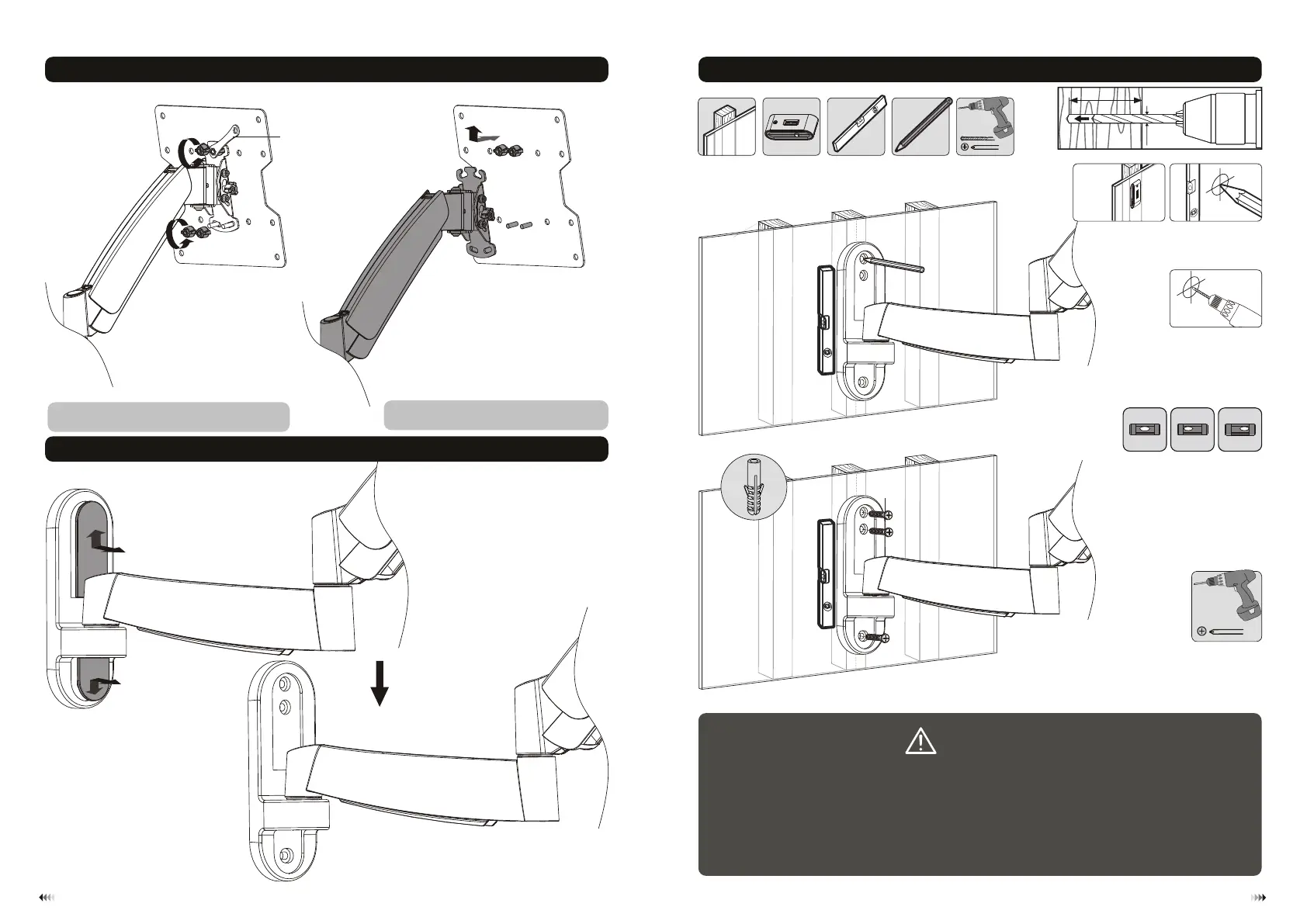

Counterbalance Full Motion LCD Wall Mount
Maintenance
• Check regularly that the bracket is safe (at least every three months).
ontact local distributor for questions or concerns.
and secure
C
2.5~20kg
(5.5~44lbs)
2
2
2
2.
.
.
.5~
5~
5~
5~2
2
2
20
0
0
0k
k
k
kg
g
g
g
(
(
(
(5
5
5
5.5
.5
.5
.5~
~
~
~4
4
4
44
4
4
4l
l
l
lbs
bs
bs
bs)
)
)
)
2.5~20kg
(5.5~44lbs)
11
ISSUED: APR. 2014
INSTALLATION MANUAL
CAUT ION : DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
21
NOTE: Read the entire installation manual before you start installation and assembly.
WARNING
Do not begin the installation until you have read and understood all the instructions
and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
This mount was designed to be installed and utilized ONLY as specified in this
manual. Improper installation of this product may cause damage or serious injury.
This product should only be installed by someone with good mechanical ability
who has basic building experience and fully understands this manual.
Make sure that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
If mounting to wood wall studs, make sure that mounting screws are installed
in the center of the studs. The use of a stud finder is highly recommended.
Always use an assistant or mechanical lifting equipment to safely lift and position
the equipment.
Tighten screws firmly, but do not over tighten. Over tightening can cause damage
to the items, which greatly reduces their holding power.
This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
Mount It! guarantees the performance and functionality of the mount only under
the conditions it is designed for. Damage to the walls, TV furniture fixtures or
persons during installation or after installation is not covered by any explicit or
implied warranty.
-

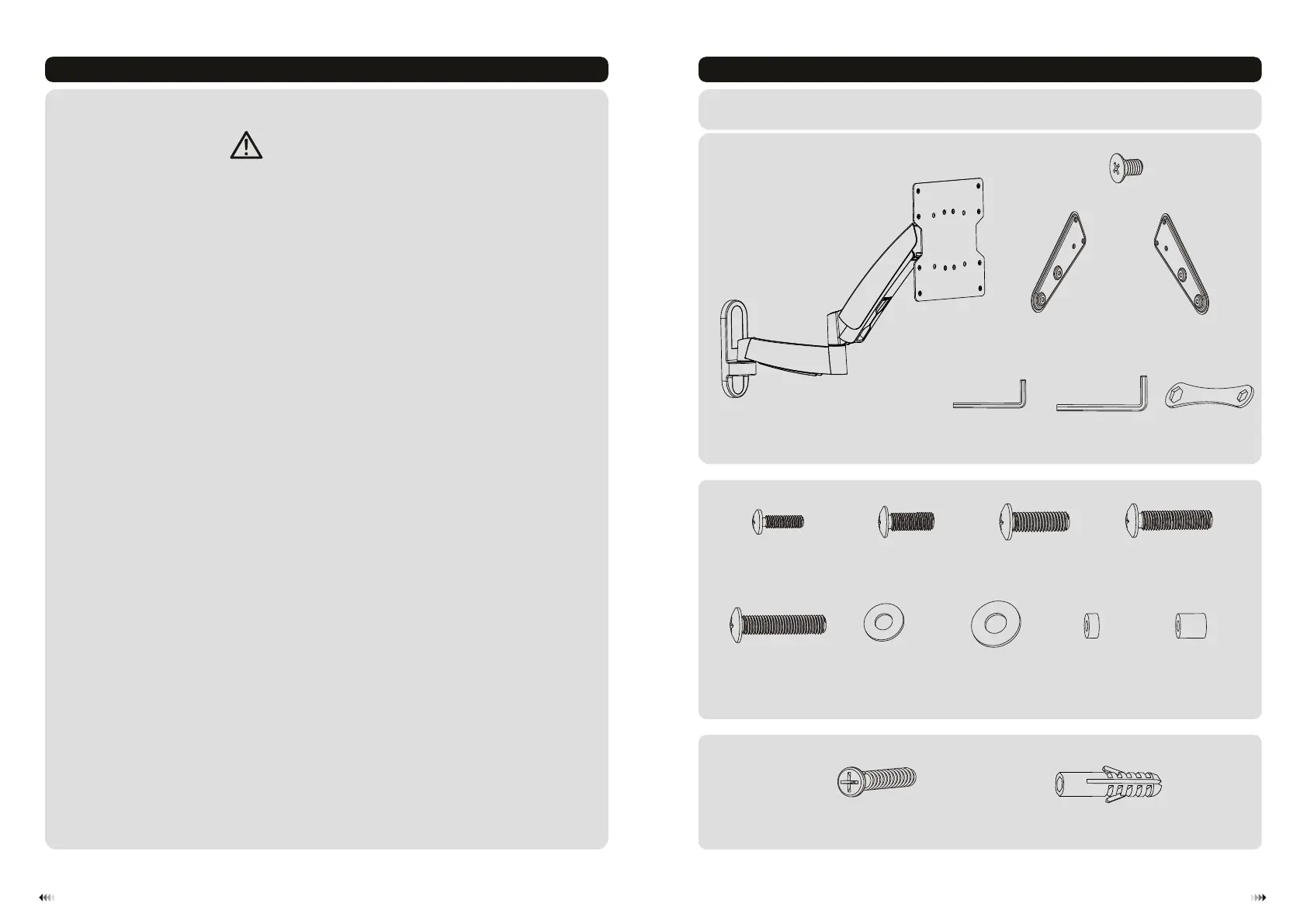

Component Checklist
IMPORTANT: Prior to installation, ensure that you have received all parts according to the component checklist.
If any parts are missing or faulty, c ontact your local distributor for a replacement.
Package M
Package W
ST6.3x55 (x3)
W-A
concrete anchor (x3)
W-B
articulated arm assembly
A
VESA adaptor (x )
C
2 VESA adaptor (x )
D
2
M6 (x8)
B
M5x14 (x4)
M-A
M6x14 (x4)
M-B
M8x20 (x4)
M-C
big spacer (x4)
M-I
M6x30 (x4)
M-D
M8x30 (x4)
M-E
small spacer (x8)
M-H
D (x4)5 washer
M-F D8 (x4)washer
M-G
4mm Allen key (x1)
E
6mm Allen key (x1)
F
wrench (x1)
G
