Sida 1/5
S2201 (2U12)
MS-S258

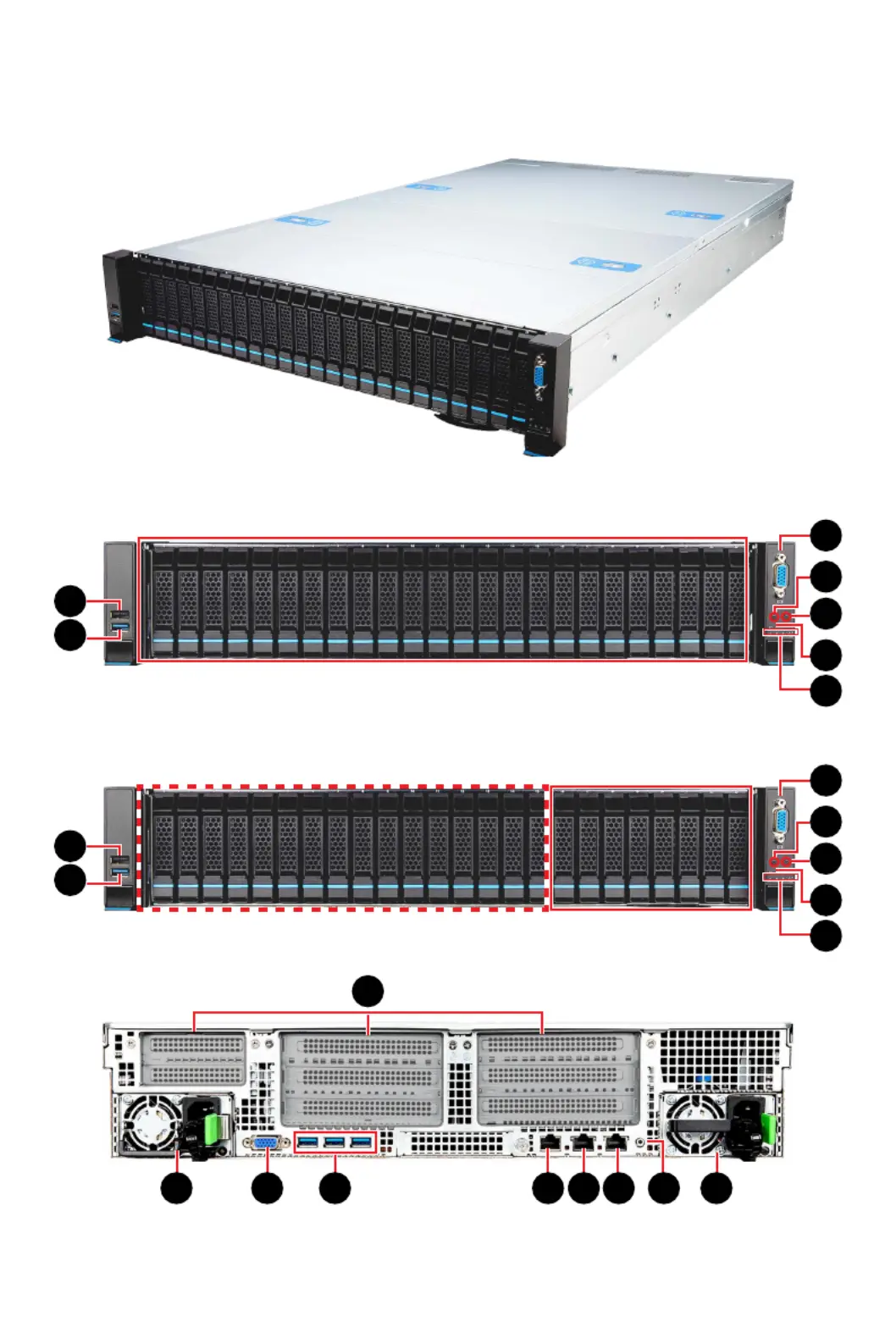

Server System
User Guide
12 Motherboard Overview
Motherboard Overview
JPWR2
BAT1
JFP_VGA1
M2_1
M2_2
LED_L1
LED_H1
JBAT1
JFP1
JPWR11
USB3
USB2
USB1
JVROC1
COM1
ID_BTN
J1_5
MLAN1
MLAN2
JSEL_BMC
JPWR13
JPWR3
JPWR5
JRPWR1
JUSB3
JUSB5
JIPMB1
JSATA3
JSEL_BIOS1
JSATA2
JSATA1
VGA1
JTPM1
CPU1_FAN
RISER4
JCHASSIS1
RISER3
RISER1
CPU2_ILM1
BP_I2C_1
JPWR4
CPU0_FAN
JPWR6
JPWR10
JPWR12
F1U-8
F1U-7
F1U-6
F1U-5
F1U-4
F1U-3
F1U-2
F1U-1
F2U-6
F2U-5
F2U-4
F2U-2
F2U-3
F2U-1
P1_DIMME1_ERR
P1_DIMME2_ERR
P1_DIMMF1_ERR
P1_DIMMF2_ERR
P1_DIMMG1_ERR
P1_DIMMG2_ERR
P1_DIMMH1_ERR
P1_DIMMH2_ERR
JPWR1
RISER2
SSATA1
SSATA2
OCP1
JSDOMPWR1
MSD1
JNVME1_3
JNVME1_4
JNVME1_1
JNVME1_2
JNVME2_3
JNVME2_4
JNVME2_1
JNVME2_2
P1_DIMMA1_ERR
P1_DIMMA2_ERR
P1_DIMMB1_ERR
P1_DIMMB2_ERR
P1_DIMMC1_ERR
P1_DIMMC2_ERR
P1_DIMMD1_ERR
P1_DIMMD2_ERR
CPU1_ILM1
P0_DIMMA1_ERR
P0_DIMMA2_ERR
P0_DIMMB1_ERR
P0_DIMMB2_ERR
P0_DIMMC1_ERR
P0_DIMMC2_ERR
P0_DIMMD1_ERR
P0_DIMMD2_ERR
P0_DIMMH2_ERR
P0_DIMMH1_ERR
P0_DIMMG2_ERR
P0_DIMMG1_ERR
P0_DIMMF2_ERR
P0_DIMMF1_ERR
P0_DIMME2_ERR
P0_DIMME1_ERR
JPWR_B
18 Motherboard Connectors
FPC Connectors
A Flexible Printed Circuit (FPC) connector connects a flexible printed circuit or flat
ribbon cable to a PCB. FPC connectors are also referred to as flat flexible cable (FFC)
connectors or ribbon connectors. Their slim and lightweight design makes them ideal
for electronic devices and equipment that require space-saving solutions.
JFP1
JUSB5

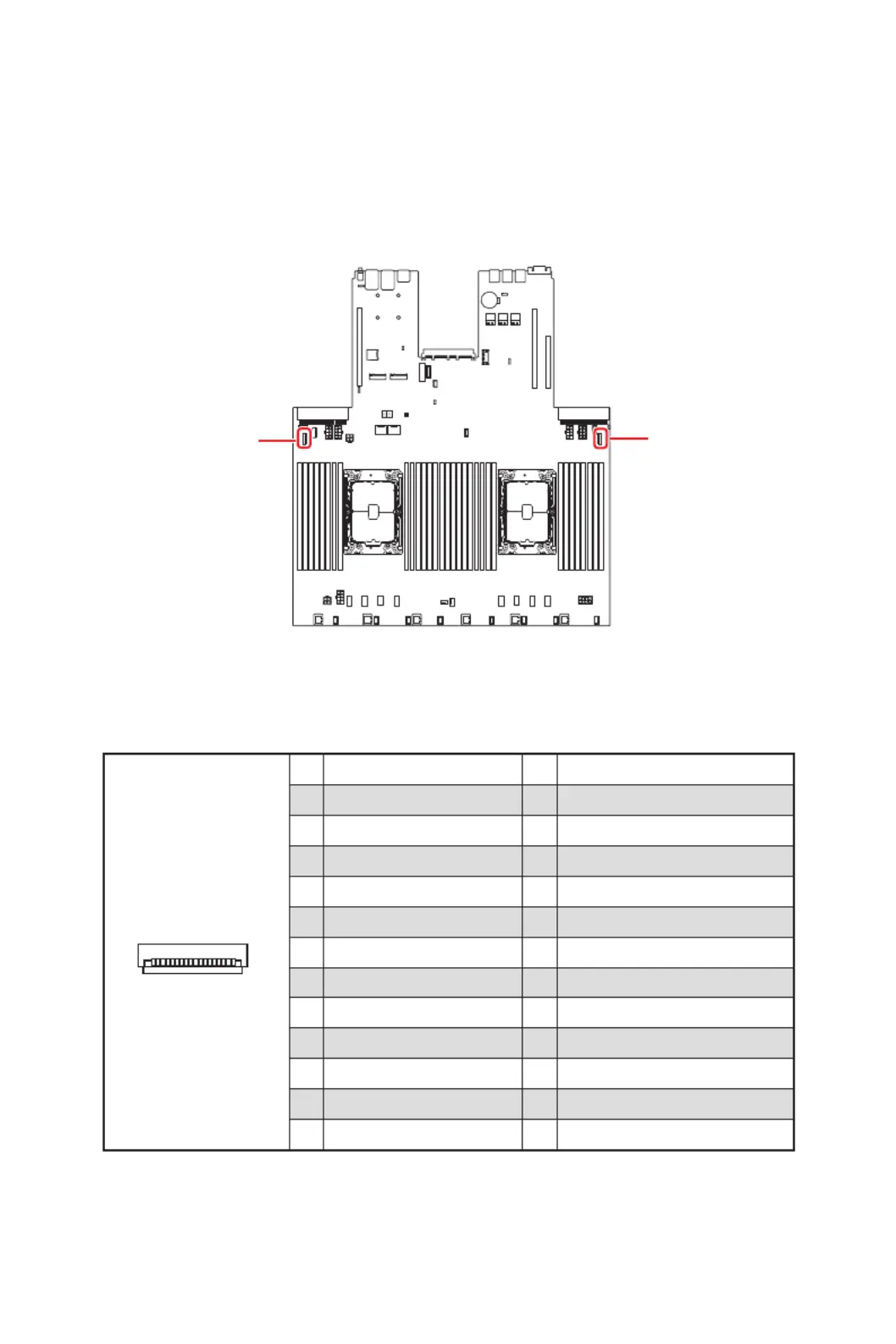

JFP1: Front Panel FPC Connector
The front panel connector is provided for electrical connection to the front panel
switches and LEDs.
JFP1
1 26
1P3V3_AUX 14 LAN_NIC1_ACT_N_R
2P3V3_AUX 15 SYS_RST_BTN
3N/A 16 SMB_BMC_HSBP_STBY_LVC3_SDA
4UID_LED+ 17 SMB_BMC_HSBP_STBY_LVC3_SCL
5FP_PWR_LED_B_R_N 18 GND
6FP_ID_LED_B_R_N 19 FP_ID_BTN_N_R
7P3V3 20 N/A
8SYS_FLT_LED#_N_R 21 N/A
9SYS_ERR_LED#_N_R 22 N/A
10 FP_HDD_ACT_LED_N 23 NIC2_LED+
11 FP_PWR_BTN_R_N 24 LAN_NIC2_ACT_N_R
12 NIC1_LED+ 25 GND
13 GND 26 GND
