MSI S2205-01 Bruksanvisning
Läs nedan 📖 manual på svenska för MSI S2205-01 (5 sidor) i kategorin Server. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/5
S2205 (2U12)
MS-S322
Server System
User Guide
23
Motherboard Connectors
JBMC_USB1: BMC USB 2.0 Header
This connector is used to connect USB devices and link to BMC for applications.
JBMC_USB1 41
1P5V_AUX 3BMC_USB2B_HOST_DN
2BMC_USB2B_HOST_DP 4GND
35

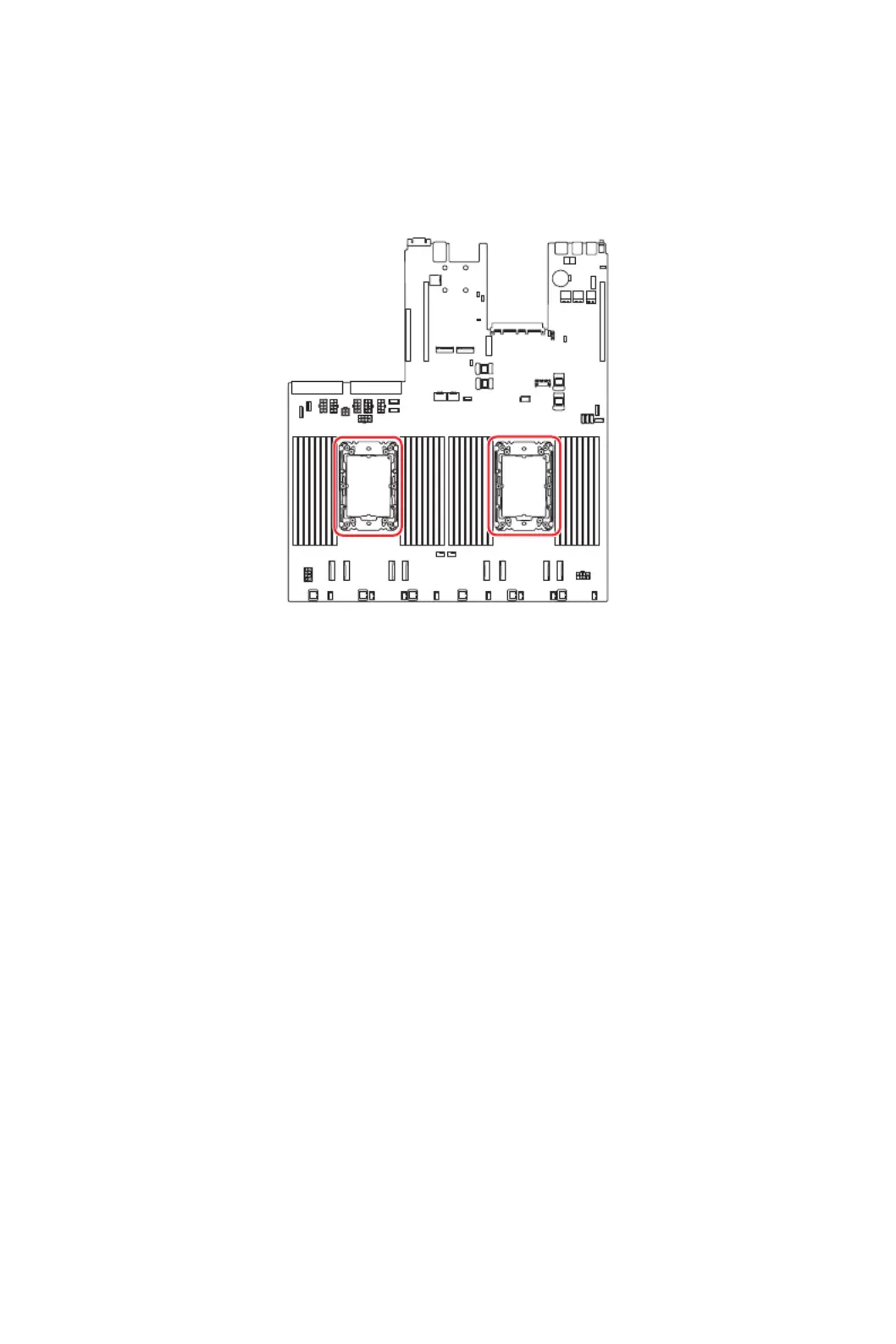

CPU & Heatsink
CPU & Heatsink
Use appropriate ground straps, gloves and ESD mats to protect yourself from
electrostatic discharge (ESD) while installing the processor.
CPU0
CPU1
⚠
Important
∙
While , always turn off the power supply or unplug the power replacing the CPU
supply’s power cord from the grounded outlet first to ensure the safety of CPU.
∙
Overheating will seriously damage the CPU and system. Always make sure the
cooling fan can work properly to protect the CPU from overheating. Make sure to
apply an even layer of thermal paste (or thermal tape) between the CPU and the
heatsink to enhance heat dissipation.
∙
Please check the instruction that come with your heatsink and thermal paste for
more details before starting.
