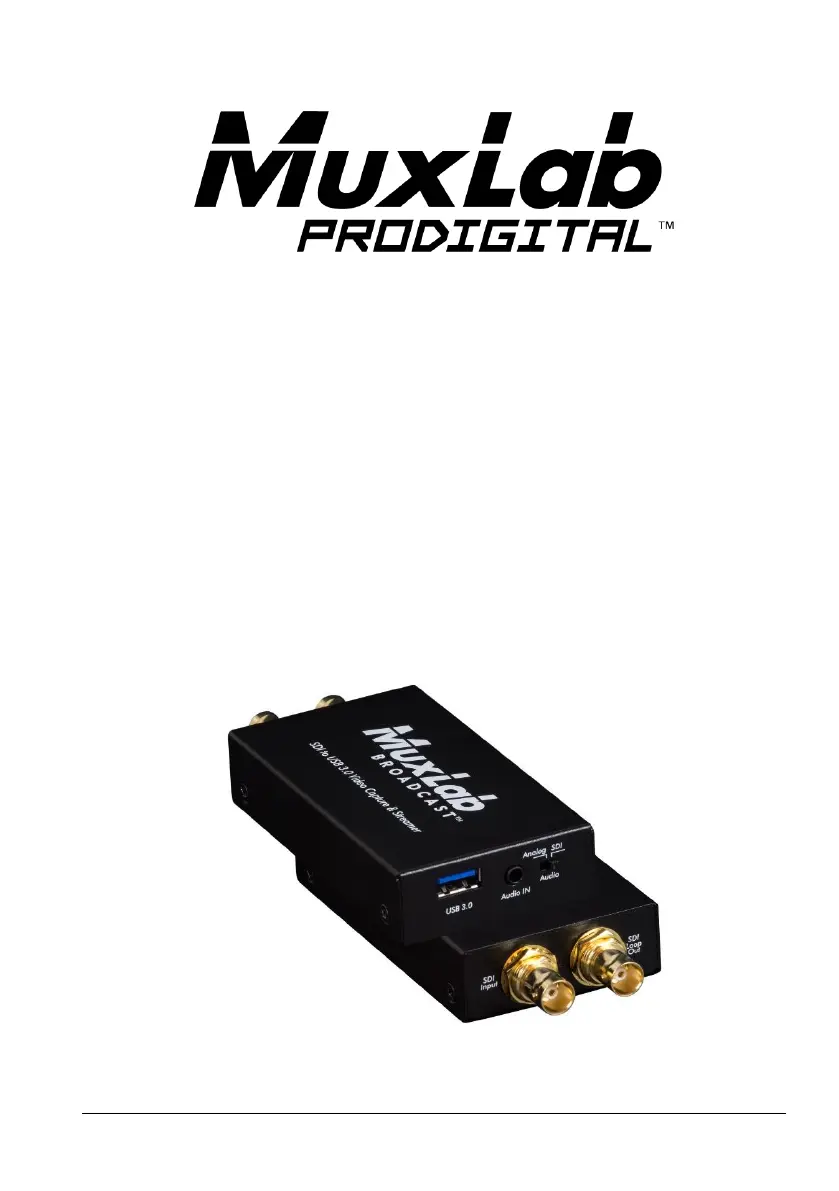

Sida 1/10
© MuxLab Inc. 20 A / SE 000953 A20 94-000953- - -
SDI to USB3.0
Video Capture & Streamer, with Audio In
Installation Guide
500705
SDI to USB3.0 Video Capture & Streamer Installation Guide
© MuxLab Inc. 20 220
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or may burn.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water. Keep the product away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Using supplies or parts not meeting the product’s specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
Install the device in a place with good ventilation to avoid damage caused by
overheating.
Unplug the power cord if it will not be used for a long period of time.
Do not put any heavy items on the unit.
Do not remove the housing of the device as you may be exposed to dangerous
voltage or other hazards.
Do not twist or pull with force ends of the optical cable attached to the unit, as it may
cause damage.
Information on disposal devices: do not burn or mix with general household waste, of
please treat this device as normal electrical wastes.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
NOTICE:
Please read this user manual carefully before using the product.
SDI to USB3.0 Video Capture & Streamer Installation Guide
© MuxLab Inc. 20 320
Contents
1. Introduction ................................................................................................................. 4
1.1 Introduction to the 500705 ................................................................................. 4
1.2 Features ............................................................................................................ 4
1.3 Package Contents ............................................................................................. 5
2. Specifications .............................................................................................................. 6
3. Panel Description ........................................................................................................ 7
4. Application Diagram .................................................................................................... 8
5. Troubleshooting .......................................................................................................... 9
